Instruction Manual

StealthLock®, Keyless Invisible Security 2

Thank you for purchasing StealthLock®. StealthLock®is an innovative solution for

keyless invisible security. Using radio frequency technology, StealthLock®allows you to

secure almost any wood cabinet door or drawer with little or no changes to the cabinet

design.

StealthLock®is battery operated and works with a user established 4 to 8 digit code.

Operation is simple: input your code and press lock or unlock. The Latch can operate any

Receiver Latch within a 15 foot range which allows it to be placed anywhere, leaving no

trace of visible hardware. In addition, the Latch can operate multiple Receiver Latches to

secure an entire room or bank of cabinets.

StealthLock®is designed to install and program easily and offers:

Programmable user and supervisor codes

Programmable modes of operation

Programmable reset features

StealthLock®is recommended for use on cabinets made from:

Wood

Wood products

Phenolic resin

Glass

StealthLock®is NOT intended for:

Metal furnishings or cabinets

Exterior furnishings or cabinets

Applications where temperatures fall below 50° F or above 120° F

StealthLock®may be used in households to help protect minors from unsafe materials.

It is strongly recommended that all batteries used by the StealthLock®be replaced on an

annual basis. Please mark this date on your calendars to insure replacement. In the event

you have allowed the batteries to die, you will need to forcefully enter the cabinet. The

StealthLock®strike plate is designed to shear away at 80lbs of force. A new strike plate

will then be needed to operate the lock.

713.839.8586 · www.cabinethardware.com

DISTRIBUTED BY:

StealthLock®, Keyless Invisible Security 3

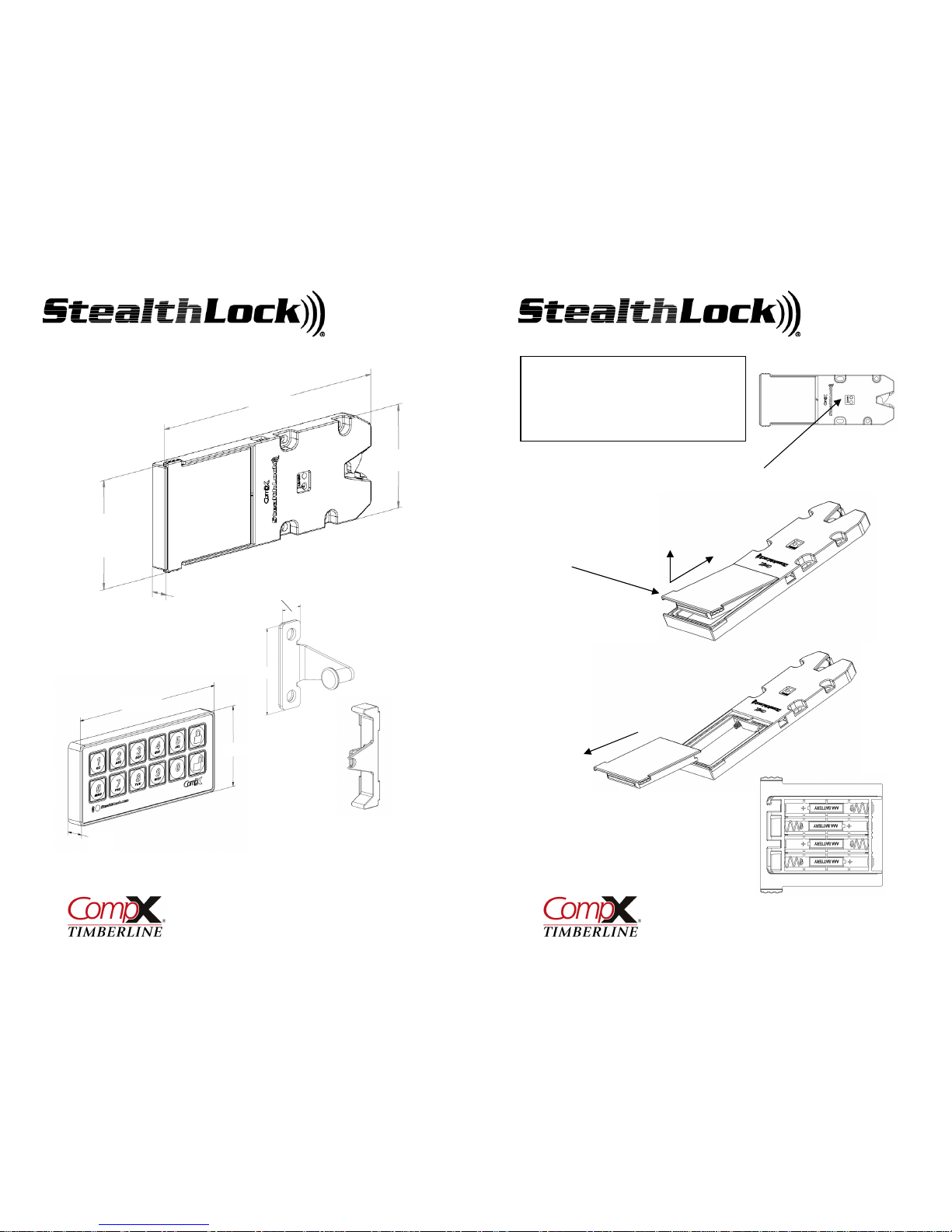

1 – TL-600

Installation Tool

1 – TP-100

Transmitter Pad

CR2032 Battery Included

1 – SP-600

Cabinet Strike Plate

Screws Included

1 – RL-100

Receiver Latch

Screws Included

SL-100 StealthLock®Contents

2.500

.437

6.785

3.375

.315

1.500

1.250

2.670

ACR0SS

REAR TABS

.350

StealthLock®, Keyless Invisible Security 4

Battery Installation – Receiver Latch

While gripping the rear

tabs, slide the battery

housing in and up as

shown

Slide the battery

housing back until it is

completely free of the

Receiver Latch

Install four AAA batteries in

the slots indicated on the back

of the battery housing.

The Receiver Latch uses 4 AAA batteries that

are expected to last 2 years in normal operation

(4 open/close cycles per day).

Batteries should be replaced on an annual basis

to insure continued reliability.

The LED will begin to blink after 5,500 operations

to warn tha

t batteries need to be replaced

StealthLock®, Keyless Invisible Security 5

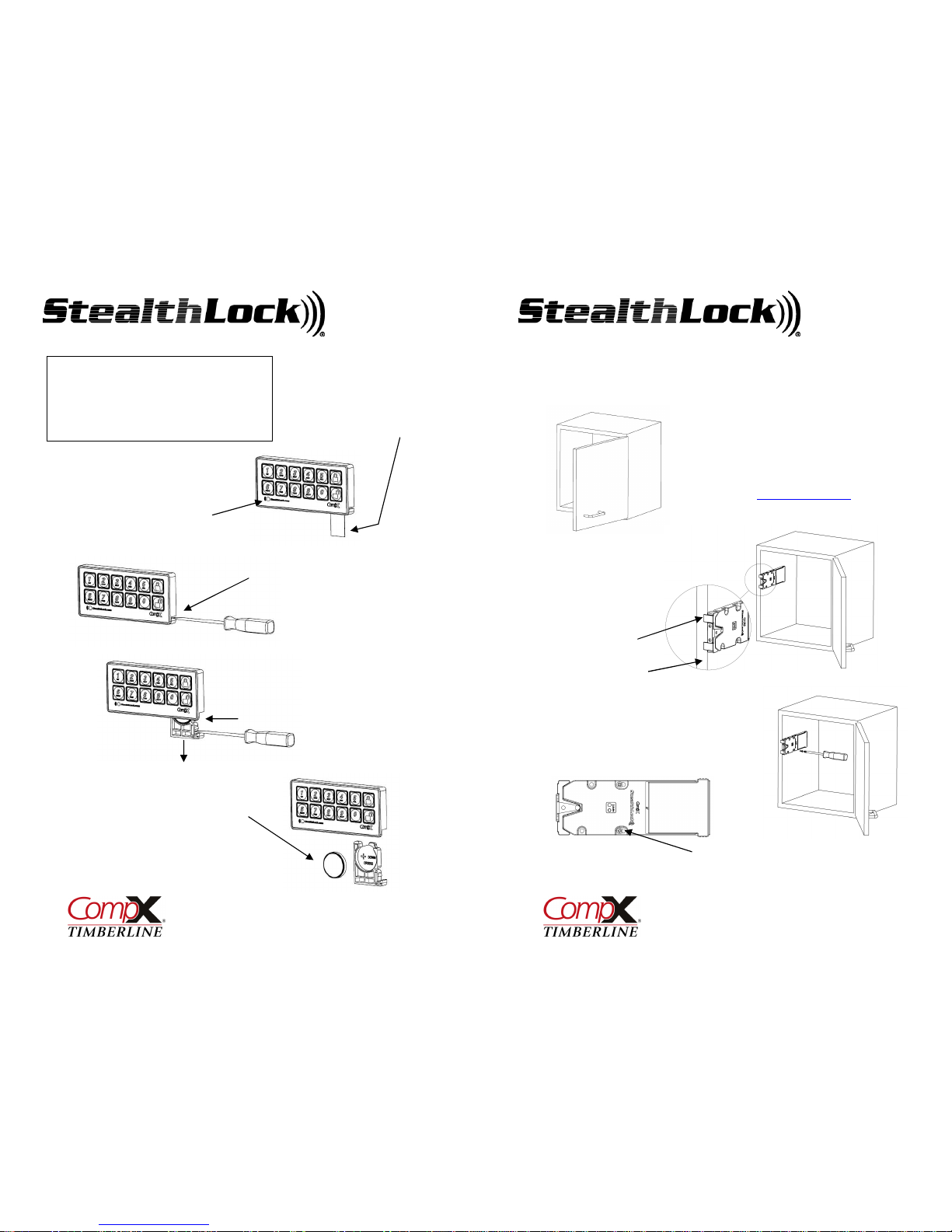

Battery Installation - Transmitter Pad

During initial

installation, remove

the red ribbon to

activate the installed

battery

To replace the battery, insert a

small flat blade screwdriver into

the battery tray slot as shown

Press the screwdriver in and

down to release the battery tray

Replace old battery with fresh CR2032

making sure that the positive (+) side of the

battery is facing down in the battery tray

Slide the battery tray back into the transmitter

housing and snap into place

The Transmitter Pad uses a CR2032 battery

that is expected to last 2 years in normal

operation (4 open/close cycles per day).

Batteries should be replaced on an annual basis

to insure continued reliability.

The LED will begin to blink after

5,500 operations to warn that

batteries need to be replaced

StealthLock®, Keyless Invisible Security 6

Installation Instructions – Receiver Latch

The StealthLock®is designed to operate within non-metallic cabinetry. Use with other

materials may limit or prohibit operation of the lock. We recommend testing the lock if

using in a material other than wood. Batteries should be installed before installation.

The SL-100 StealthLock

kit is designed for

mounting in cabinets with solid panel

construction and full overlay doors. An

INSTALLATION VIDEO and tips for

mounting this kit in other cabinet types can

be found at www.stealthlock.com

Step #1 - Position the Receiver Latch with

strike plate and installation tool attached as

shown. The front tabs on the installation tool

should contact the front edge

of the cabinet

Installation Tool Tabs

Front Edge of Cabinet

Step #2 - Screw the Receiver Latch in place using

2 of the #6 x ½” screws supplied, in the front side

of the oval holes. If attaching to material less than

¾” thick, alternate fasteners may be required.

Start with Screws in Front

Side of Oval Holes

StealthLock

, Keyless Invisible Security 7

Step #3 – Press the learn button

on the Receiver Latch until the

yellow LED lights to insure that

the Latch is in the open position

Step #4 – Remove release paper

from the back of the strike plate

Learn

Button

Step #5 – Close door firmly and open it

again. The strike plate will become

affixed to the door in the proper

mounting position. Remove and discard

red installation tool

Step #6 - Screw the strike plate in

place using 2 of the #6 x ½” screws

supplied. If attaching to material

less than ¾” thick, alternate

fasteners may be required.

Step #7 – Check the fit after any bumpers are installed. Door should

latch into the Receiver Latch and still have a little free play. Adjust

Receiver Latch forward on oval holes as required.

Release Paper

Finish by installing the remaining

screws at the front of the Receiver Latch

StealthLock

, Keyless Invisible Security 8

Installation Instructions – Transmitter Pad

The Transmitter Pad has a functional range of 15 feet from the Receiver Latch and can be

mounted virtually anywhere on any non-metallic panel. To mount, simply remove the

release paper from the tape on the back side of the Transmitter Pad, and press into place.

Suggested mounting areas

•Cabinet door face or drawer face

•Wall above switch plate

•Inside unlocked cabinet door or drawer to be hidden

Remove release

paper from tape

StealthLock

, Keyless Invisible Security 9

Programming – Introduction

StealthLock®is very easy to use and operate. Once installed, the user enters the user

code (factory default 0000) and presses Lock to lock the cabinet. To unlock the

cabinet, the user enters the user code and presses Unlock and the cabinet will open.

StealthLock®is fully programmable allowing the user or supervisor the ability to change

codes, modes, and restore lock settings. While the StealthLock®is easy to program, we

highly recommend reading the complete programming instructions prior to making any

changes. Remember to keep track of any changes made in a secure location.

Key locations and indicator lights referenced in the programming instructions are shown

below.

RL-100 Receiver Latch

Yellow and Green

LED Indicator

Learn Button – Use pen tip or

paper clip to depress

StealthLock

, Keyless Invisible Security 10

Programming – Introduction

TP-100 Transmitter Pad

Please note the following:

•StealthLock®will reset to an unlocked position whenever the learn button is

pressed.

•Only one Transmitter Pad should be used for programming in a given area at

any one time. The StealthLock®is a radio frequency device and the use of

multiple Transmitter Pads in the same area may result in interference and

improper programming.

•After pressing Lock or Unlock, the Green LED on the Transmitter Pad will

light for about 2 seconds indicating that a transmission is in progress.

•While the Green LED on the Transmitter Pad is lit, the keypad will not respond

to any other entries until the transmission is completed.

•If the Green LED on the Transmitter Pad flashes rapidly after pressing Lock or

Unlock, this indicates that an improper code has been entered. Codes must

always be 4 to 8 digits in length.

•If the LED indicator on the Receiver Latch flashes Green/Yellow, this indicates

that an improper code as been received. Start the learning function over taking

care to enter the correct codes.

Unlock Button

Green LED

Indicator

Lock Button

StealthLock

, Keyless Invisible Security 11

Programming the User Code

Use these steps to change your current user code. The factory default code is 0000. User

codes must be 4 to 8 digits in length. To view a video of these steps, go to

www.StealthLock.com Note that the user code can not be changed if the Receiver Latch

has been set to Single Use Mode.

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through the instructions prior to beginning programming

2. Press and hold the Receiver Latch learn button until the yellow LED light

begins a one blink pattern, then release

3. Using the Transmitter Pad enter the current user code and press the

Unlock button

4. Wait for green light on Transmitter Pad to turn off then enter the new user

code and press the Lock button

5. Wait for green light on Transmitter Pad to turn off then re-enter the new user

code and press the Lock button to secure code

6. If successful, the green LED light on the Receiver Latch will stay illuminated

for 3 seconds

7. Once the green LED light has turned off, the Receiver Latch will automatically

exit the learn mode

8. Test lock function with new code

9. We recommend writing down your new code in the back of these instructions

and storing in a safe area

StealthLock

, Keyless Invisible Security 12

Programming the Supervisor Code

Use these steps to change the current supervisor code. The supervisor code allows the

owner of the StealthLock®to overwrite the user code and change operational modes. The

factory default supervisor code is 071856. It is highly recommended that the

supervisor code be changed. Supervisor codes must be 4 to 8 digits in length. To view

a video of these steps, go to www.stealthlock.com .

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through instructions prior to beginning programming.

2. Press and hold the Receiver Latch learn button until the yellow LED begins a

two blink pattern

3. Enter the current supervisor code using the Transmitter Pad and press the

Unlock button

4. Wait for green light on the Transmitter Pad to turn off then enter the new

supervisor code and press the Lock button

5. Wait for green light on the Transmitter Pad to turn off then re-enter your new

supervisor code and press the Lock button to secure code

6. If successful, the green LED light on the Receiver Latch will stay illuminated

for 3 seconds

7. Once the green LED light has turned off, the Receiver Latch will automatically

exit the learn mode

8. Test lock function with new code

9. We recommend writing down your new code in the back of these instructions

and storing in a safe area. The supervisor code is not resettable if it has been

forgotten.

StealthLock

, Keyless Invisible Security 13

StealthLock®features several modes of operation and reset ability. These functions can

be changed using the following instructions by users who have rights to the supervisor

code. Modes and reset can only be modified with knowledge of the supervisor code.

Programming Single Use Mode / Non Single Mode

Non Single Mode allows the user to set the user code to be used by a single person only.

Single Use Mode allows for a revolving user code so the lock maybe used by multiple

people without having to reprogram the Receiver Latch each time.

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through instructions prior to beginning programming

2. Press and hold the Receiver Latch learn button until the yellow LED begins a

three blink pattern

3. Enter the Supervisor pin code and press the Unlock button

Then either

a. Set Single Use Mode, enter 1111 and press the Lock button

Note that this will cancel self lock mode if it has been set

b. Set Non Single Use Mode, enter 1111 and press the Unlock

Note that the user code resets to 0000 when Single Use Mode is

exited

4. If successful the green LED will flash twice on the Receiver Latch

5. Continue programming or enter 9999 followed by pressing the Lock

button to exit Learn Mode

6. Test lock function for proper operation

StealthLock

, Keyless Invisible Security 14

Programming Self Lock Mode / Passage Mode

Self Lock Mode automatically relocks the Receiver Latch after pressing the unlock

button when a valid user or supervisor code is presented. The delay time before re-

locking the Receiver Latch can be set between 2 and 60 seconds. Passage Mode keeps

the Receiver Latch in an unlocked position after unlocking.

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through instructions prior to beginning programming

2. Press and hold the Receiver Latch learn button until the yellow LED begins a

three blink pattern

3. Enter the Supervisor pin code and press the Unlock button

Then either

a. Set Self Lock, enter 2222XX and press the Lock button

Note that this command is ignored if Single Use mode is set

XX represents the number of seconds of delay time before relocking

For example entering 222215 would result in a 15 second delay

b. Set Passage Mode, enter 2222 and press the Unlock button

4. If successful the green LED will flash twice on the Receiver Latch

5. Continue programming or enter 9999 followed by pressing the Lock

button to exit Learn Mode

6. Test lock function for proper operation

StealthLock

, Keyless Invisible Security 15

Programming Learn Disable / Learn Enable

Learn Disable / Learn Enable Mode allows the supervisor to either allow or not allow a

user to program a new user code. In Learn Disable Mode, only the users with knowledge

of the supervisor code can make any programming changes.

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through instructions prior to beginning programming

2. Press and hold the Receiver Latch learn button until the yellow LED begins a

three blink pattern

3. Enter the Supervisor pin code and press the Unlock button

Then either

a. Set Learn Disable, enter 3333 and press the Lock button

b. Set Learn Enable, enter 3333 and press the Unlock button

4. If successful the green LED will flash twice on the Receiver Latch

5. Continue programming or enter 9999 followed by pressing the Lock button to

exit Learn Mode

6. Test lock function for new mode operation. If Learn Disable has been set, the

Receiver Latch should automatically go to a three blink pattern when the learn

button is pushed and held.

StealthLock

, Keyless Invisible Security 16

Reset Factory Default Settings

This feature returns the lock to its original factory settings. This will place the Receiver

Latch into a Non Single Use Mode, Passage Mode, and Learn Enable Mode. It does not

reset the user or supervisor code.

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through instructions prior to beginning programming

2. Press and hold the Receiver Latch learn button until the yellow LED begins a

three blink pattern

3. Enter the Supervisor pin code and press the Unlock button

4. Enter 4444 and press the Lock button

5. If successful the green LED will flash twice on the Receiver Latch.

Note that if Single Use mode was exited, the user pin code will default to 0000

6. Continue programming or enter 9999 followed by pressing the Lock

button to exit Learn Mode

7. Test lock function to make sure default settings are restored

StealthLock

, Keyless Invisible Security 17

Clear User Pin Code

This feature returns the user code back the factory default setting of 0000. It does not

reset any other mode or feature of the lock.

There is a 60 second programming time limit to each step. If you time out or make an

error, programming will end and you will need to restart from step 1.

1. We suggest reading through instructions prior to beginning programming

2. Press and hold the Receiver Latch learn button until the yellow LED begins a

three blink pattern

3. Enter the Supervisor pin code and press the Unlock button

4. Enter 8888 and press the Lock button

5. If successful the green LED will flash twice on the Receiver Latch

6. Continue programming or enter 9999 followed by pressing the Lock

button to exit Learn Mode

7. Test lock function to make sure user default setting is restored. Lock can now

be programmed with a new user code

StealthLock

, Keyless Invisible Security 18

Auxiliary Power

If desired, the StealthLock

Receiver Latch may

be connected to 120 VAC power using the

optional RL-AP1 Power Supply

Up to 10 Receiver Latches may

be powered from the same

Power Supply using the optional

RL-APC Power Cords as shown

RL-APC

Power Cords

RL-AP1

Power Supply

RL-AP1 Power Supply

(Includes 5

1/2 foot cord)

RL-APC-3 Power Cord – 3 foot

RL-APC-5 Power Cord – 5 foot

RL-APC-10 Power Cord – 10 foot

Power

Port

StealthLock

, Keyless Invisible Security 19

Transmitter Pad Mounting Accessories

MP-700-WM Mounting Plate

•Satin Nickel Finish

•Allows mounting to any

flat surface or wall

MP-700 Mounting Plate

•Satin Nickel Finish

•Allows mounting to material

5/8” – 7/8” Thick

•Mounting screws and

template included

Wall mounting

screws not included

Mounting Plate

screws included

StealthLock

, Keyless Invisible Security 20

Regulatory Information

The user is cautioned that changes or modifications not expressly approved by CompX

Timberline could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Indice

Altri manuali COMPX Serratura

COMPX

COMPX Stock Locks C3786 Guida

COMPX

COMPX B12 Guida

COMPX

COMPX T-HANDLE Manuale utente

COMPX

COMPX CB080-180 Manuale utente

COMPX

COMPX Pearl KEYPAD Manuale utente

COMPX

COMPX TL-37 Guida

COMPX

COMPX MFW 23058 Guida

COMPX

COMPX Timberline CB-294 Manuale utente

COMPX

COMPX TuBAR Retrofit for Dresser WayneVista 2 & 3 CAT... Manuale utente

COMPX

COMPX MFSW3-1138 Manuale utente

COMPX

COMPX Timberline CB-242 Manuale utente

COMPX

COMPX MFW 23168 Guida

COMPX

COMPX MFW 23078 Guida

COMPX

COMPX MFW23010 Manuale utente

COMPX

COMPX Timberline CB-241 Manuale utente

COMPX

COMPX Timberline CB-240 Manuale utente

COMPX

COMPX Timberline CB-235 Manuale utente

COMPX

COMPX National D8836 Manuale utente

COMPX

COMPX MFW 29138 Guida

COMPX

COMPX Timberline CB-241 Manuale utente

COMPX

COMPX TYPE300 Guida

COMPX

COMPX MFW 23038 Guida

COMPX

COMPX C8701 Guida

COMPX

COMPX RegulatorAT Manuale utente

Manuali Serratura popolari di altre marche

Magic

Magic 105 Manuale utente

Gantner

Gantner GAT NET.Lock 7020 System Guida rapida

Wittkopp

Wittkopp Insys 7202 Manuale utente

Dorma

Dorma Studio Classic Manuale utente

Securam

Securam ECSL-601 Manuale utente

Sudhaus

Sudhaus 3003 Manuale utente

Safety 1st

Safety 1st 48517 Manuale utente

Pado

Pado FDS-10 Manuale utente

Esco

Esco systeQ Series Manuale utente

secureo

secureo Key Box Manuale utente

Stock Loks

Stock Loks C8713 Manuale utente

Auslock

Auslock T11 Manuale utente

ELCOM

ELCOM 7205 Manuale utente

Stealth SAFES

Stealth SAFES ShadowVault Manuale utente

Knox

Knox KeySecure 5 Manuale utente

Kwikset

Kwikset 48334/01 Manuale utente

Metra Electronics

Metra Electronics Door Access Terminal Combo Manuale utente

Kilitronik

Kilitronik miniK10m Manuale utente
