Comtrend Corporation WAP-EN1750C Manuale utente

Quick Installation Guide

WAP-EN1750C| AC1750 Ceiling Mount Access Point

I. Product Information

I-1. Package Contents

1. Access Point

2. Ceiling Mount Bracket

3. T-Rail Mounting Kit & Screws

4. Ceiling Mounting Kit & Screws

5. Quick Installation Guide

6. Ethernet Cable

7. Power Adapter

2) 3)

1) 4)

I-2. System Requirements

-Existing cable/DSL modem & router

-Computer with web browser for access point configuration

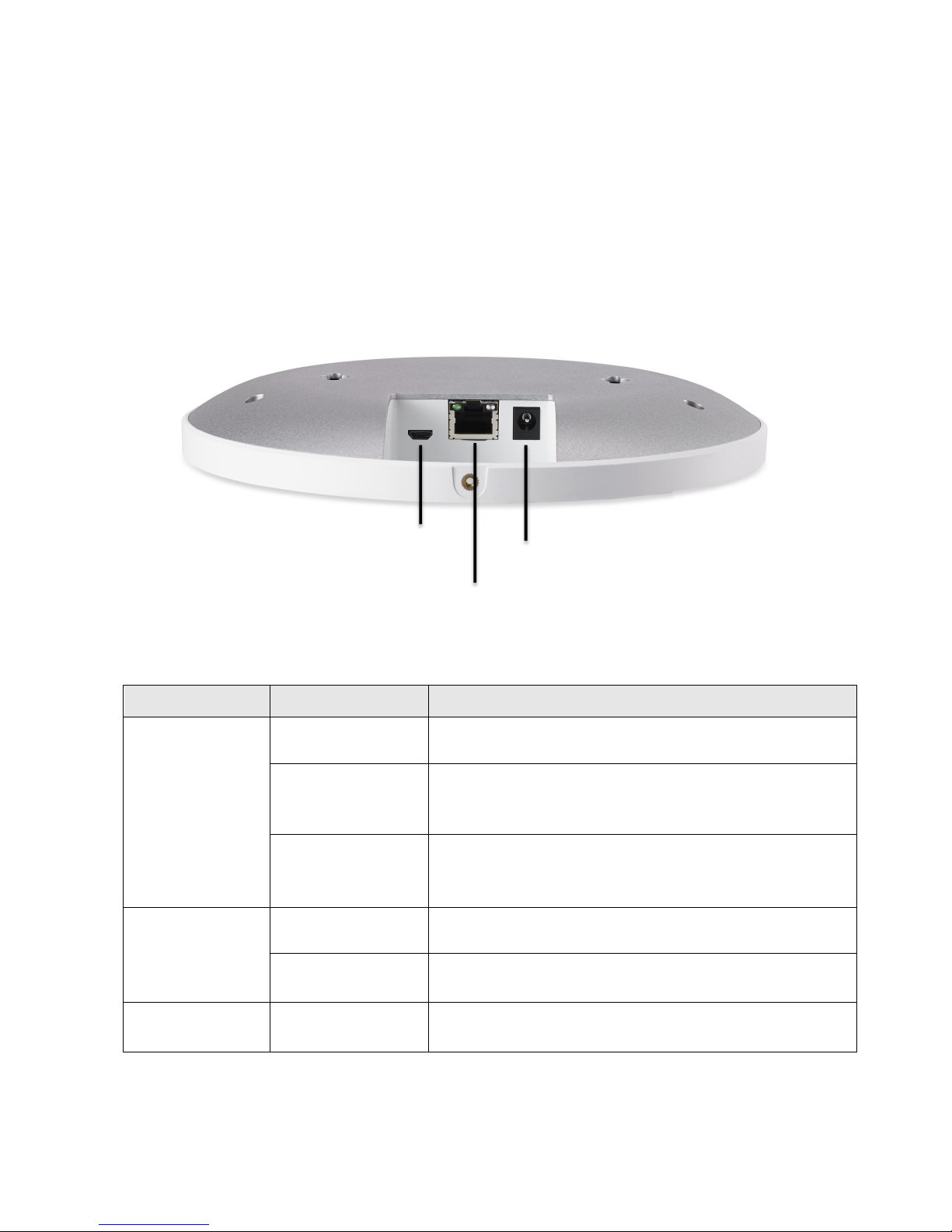

I-3. Hardware Overview

I-4. LED Status

LED Color

LED Status

Description

Blue

The access point is on

Long

Flashing

The access point’s firmware is

upgrading

Short

Flashing

The access point is resetting to

factory defaults

Amber

The access point is starting up

Flashing

There is an error

Off

The access point is off

Ethernet Port

Power Port

Micro USB Port

I-5. Reset

If you experience problems with your access point, you can reset

the device back to its factory settings. This will reset all settings

back to default.

1. Press and hold the reset button on the access point for at least

10 seconds. Then release the button.

You may need to use a paperclip or pencil to push the

reset button.

2. Wait for the access point to restart. The access point is ready

for setup when the LED is blue.

Reset Button

I-6. Mounting the Access Point to a Ceiling

To mount the access point to a ceiling, please follow the

instructions below and refer to diagrams A& B.

For Wooden Ceilings (refer to diagram A):

1. Place the ceiling mount bracket to a ceiling in your desired

location and use the included screws x 4 to fix it into place (i).

2. Attach the access point to the ceiling mount bracket by

aligning the grooves in the access point to the ceiling mount,

as shown in ii.

3. Secure the access point firmly in place using the included

screw as shown in iii.

For Other Ceilings (refer to diagram B):

1. Drill four holes in your ceiling using the ceiling mount bracket as

a guide, and insert the four included wall plugs/screw anchors

(i).

2. Align the ceiling mount bracket with your wall plugs/screw

anchors and use the included screws x 4 to fix it into place (ii).

3. Attach the access point to the ceiling mount bracket by

aligning the grooves in the access point to the ceiling mount,

as shown in iii.

4. Secure the access point firmly in place using the included

screw as shown in iv.

I-7. Drop Ceiling/Suspeded Ceiling Mount

To mount the access point to a drop ceiling rail, follow the

instructions below and refer to diagram C, D & E.

ii)

iii)

ii)

iii)

iv)

1. Select the correct size T-Rail bracket from the two sizes that are

included in the package contents.

2. Attach the T-Rail bracket to the ceiling mount using the

included screws x 2 as shown in i.

You can use the included bracket and longer screws If

you need more space between the access point and

the T-Rail.

3. Attach the access point to the ceiling mount bracket by

aligning the grooves in the access point to the ceiling mount,

as shown in ii.

4. Secure the access point firmly in place using the included

screw as shown in iii.

5. Clip the access point onto your T-Rail using the now attached

T-Rail bracket.

ii)

iii)

Quick Setup

Your access point is preconfigured in a secured setup and is ready

for use right out of the box. The following instructions will help you

install your access point and customize your settings.

II-1. Initial Setup

1. Connect a router or PoE switch to the access point’s LAN port

using an Ethernet cable.

ii)

iii)

10!

2. If you are using a router, then connect the power adapter to

the access point’s 12V DC port and plug the power adapter

into a power supply.

3. If you are using a PoE (Power over Ethernet) switch then it is not

necessary to use the included power adapter. The access

point will be powered by the PoE switch.
