CONCORD DVX Manuale utente

DVx

CONCORD

Quick Start Guide

LANGUAGES

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

NEDERLANDS

PORTUGUÊS

DZ QSG(515815-00)-E 1 11/15/04, 1:35:04 PM

ENU

QUICK START GUIDE

This Quick Start Guide provides a quick reference for operating your

new Camera. Refer to the User’s Guide, which can be found on the

CD-ROM, for detailed instructions on how to use all of your camera’s

features. Before using the camera, make sure to read all safety

instructions and precautions outlined in the User’s Guide.

DZ QSG(515815-00)-E 1 11/15/04, 1:35:04 PM

ENU

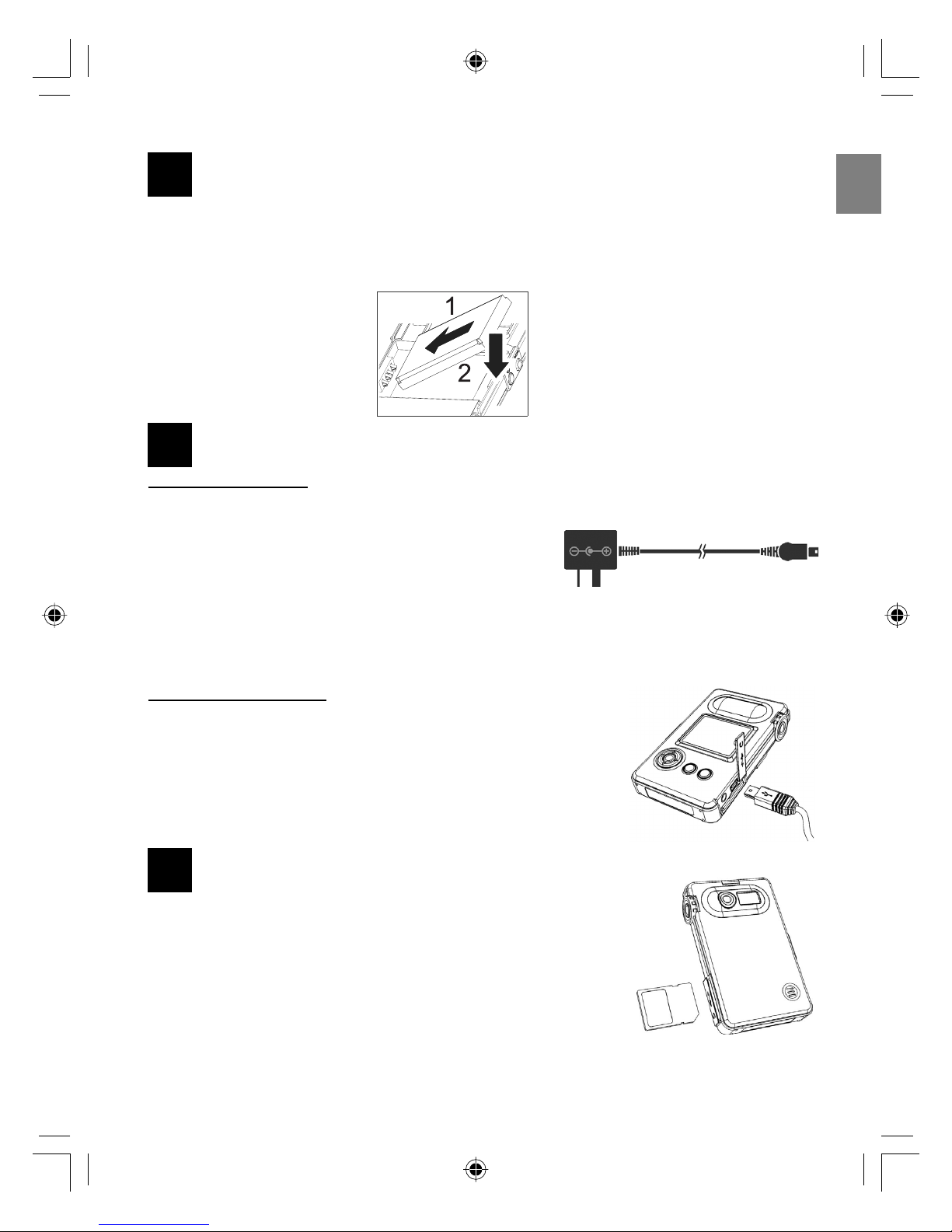

LOADING THE BATTERY

The camera uses a 3.7 volts rechargeable Li-ion Battery.

1. Press the Battery Door Latch that is located at the upper side of the unit to open the back cover.

2. Slide the battery into the battery compartment and align with the metal contact.

3. Replace the back cover.

CHARGING THE BATTERY

Charging by AC-Adapter

1. Plug the AC end of the adaptor into a standard AC socket.

2. Plug the USB end of the adaptor into the USB port of the

camera. The red backlight will be turned on.

• Charging the battery for the first time will takes about 6

hours. When the battery is fully charged, the red

backlight will go off.

• Charging the battery fully for the second time or later will

take at least 2 hours.

• When charging the battery for the first time, it is

recommended to use AC adaptor instead of USB cable.

Charging by PC / Notebook

You can also use the USB cable to charge the battery.

1. Connect the bigger end of the USB cable to the USB port of your PC

or Notebook.

2. Plug the smaller end of the USB cable to the USB port of the camera.

• The red backlight will turn on when the battery is being charged

and it will turn off when the unit is fully charged. The time for fully

charging is about 4-6 hours.

INSTALLING THE MEMORY CARD

The camera uses SD or MMC card as storage. Insert an SD or MMC

card according to the illustrations below before proceeding to take video

clips or pictures.

To remove the memory card, gently push the edge of the memory card

with your fingertip to eject it first, and then pull the card out.

AC end USB end

DZ QSG(515815-00)-E 2 11/15/04, 1:35:05 PM

ENU

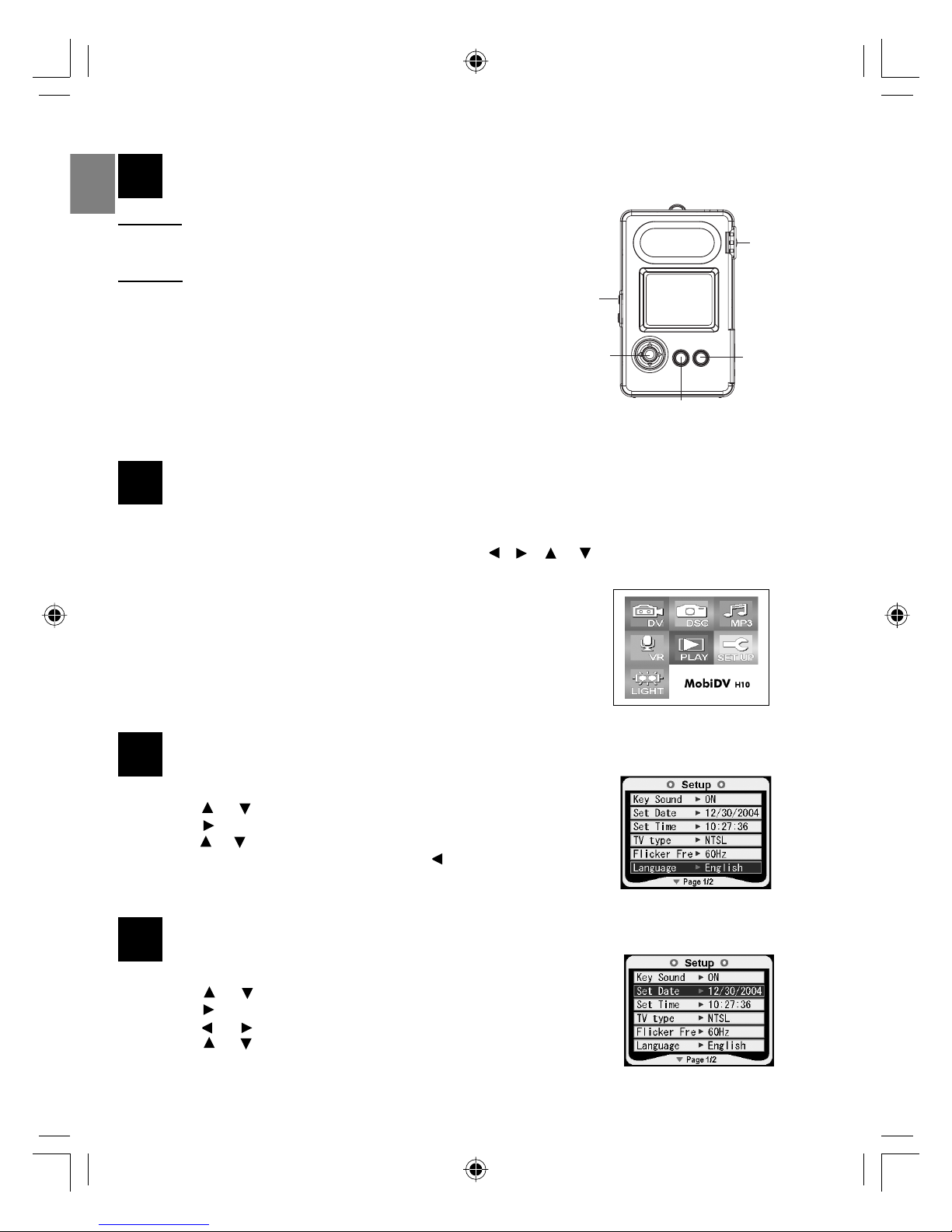

POWER ON /OFF

Power On

Press the Power button for more than 1 second to turn on the

Camera. The LCD will be turned on.

Power Off

Press the Power button for more than 1 second.

Caution:

1. If the Power button is pressed for more than 1 second while

data is being written to the memory card, the Camera will shut

down, but the memory writing will continue until it is finished.

2. If the Power button is pressed for more than 1 second while the

camera can’t be turned on, that may because the battery is over.

Charge the battery and then try again.

SETTING THE CAMERA’S OPERATIONAL MODES

1. Press the MODE button repeatedly to switch among the 7 modes. The mode selected will be highlighted on

the screen.

• You can also press the MODE button first, then press the , , or button to select the desired mode.

DV: Use this mode to record video clip.

DSC: Use this mode to take still picture.

MP3: Use this mode to play MP3 music.

VR: Use this mode to record audio clip.

PLAY: Use this mode to view the recorded video clips, pictures or audio clips.

SET UP: Use this mode to adjust the camera settings.

LIGHT: Use this mode to take the camera as a flashlight.

2. Press the SET button to enter the selected mode.

SETTING LANGUAGE

1. Power on the camera and switch to SETUP mode.

2. Press the or button to highlight the Language.

3. Press the button or SET button to enter its submenu.

4. Press the or button to select the desired language.

5. Press the SET to save the setting. Or press the button to exit the

submenu. If so, the language setting will not be changed.

SETTING DATE AND TIME

1. Power on the camera and switching to SETUP mode.

2. Press the or button to highlight the Set Date or Set Time.

3. Press the button or SET button to enter its submenu.

4. Press the or button the highlight the field to be changed.

5. Press the or button to change the value of the selected field.

6. Press the SET to save the setting.

Power

Button

Shutter

button

DISPLAY

button

MENU button

SET

button

DZ QSG(515815-00)-E 3 11/15/04, 1:35:06 PM

ENU

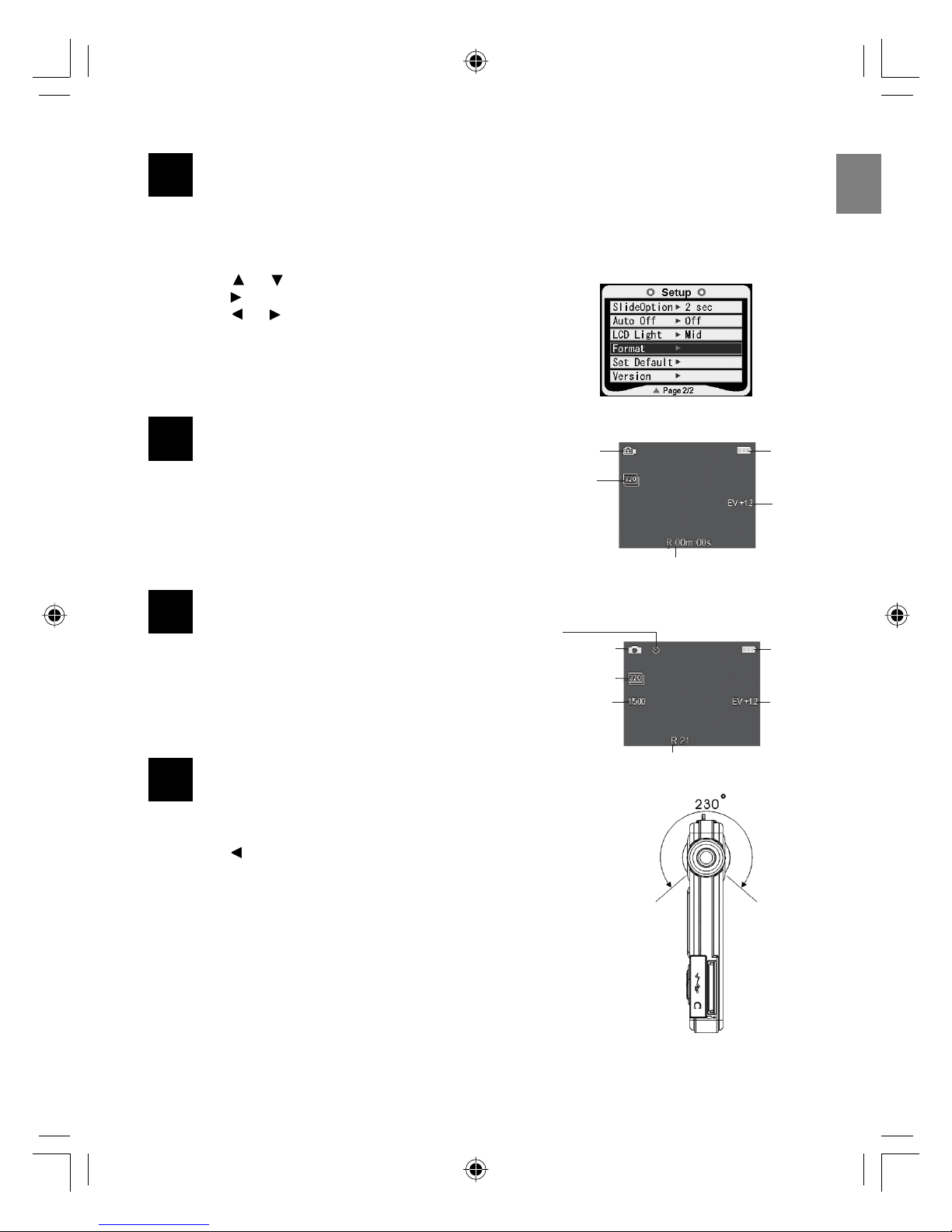

FORMATTING MEMORY CARD

To ensure your memory card functions properly, it is recommended to format the memory card for the first time

you use it.

Caution: Formatting will delete all files including the protected files from the memory.

1. Power on the camera and switch to SETUP mode.

2. Press the or button to highlight the Format.

3. Press the button or SET button to enter its submenu.

4. Press the or button to select Yes or No.

5. Press the SET to confirm.

• If Yes is selected, all the files in the memory will be deleted.

• If No is selected, no change will be made.

RECORDING A VIDEO CLIP

1. Power on the Camera and enter DV mode.

2. Rotate the Lens to frame the subject.

3. Press the Shutter button to start recording. The recording

time are indicated on the screen.

4. Press the Shutter button again to end the video recording.

TAKING STILL PICTURES

1. Power on the Camera and enter DSC mode.

2. Rotate the Lens to frame the subject.

• For best results, stand at least 0.8 m (2.62 ft.) away from

the subject.

3. Press the Shutter button to take your picture.

SELF-PHOTOGRAPHY

1. Power on the camera and switch to DV/DSC mode.

2. Turn the lens to face yourself.

3. Press the button to reverse the image on the LCD.

4. Press the Shutter button to take the pictures or video clips of yourself.

Remainin

time

Exposure

Value

Battery

Video

Size

DV Mode

Remainin

Pictures

Exposure

Value

Battery

shutter

Speed

Picture Size

DSC Mode

Self-Photography

DZ QSG(515815-00)-E 4 11/15/04, 1:35:09 PM

ENU

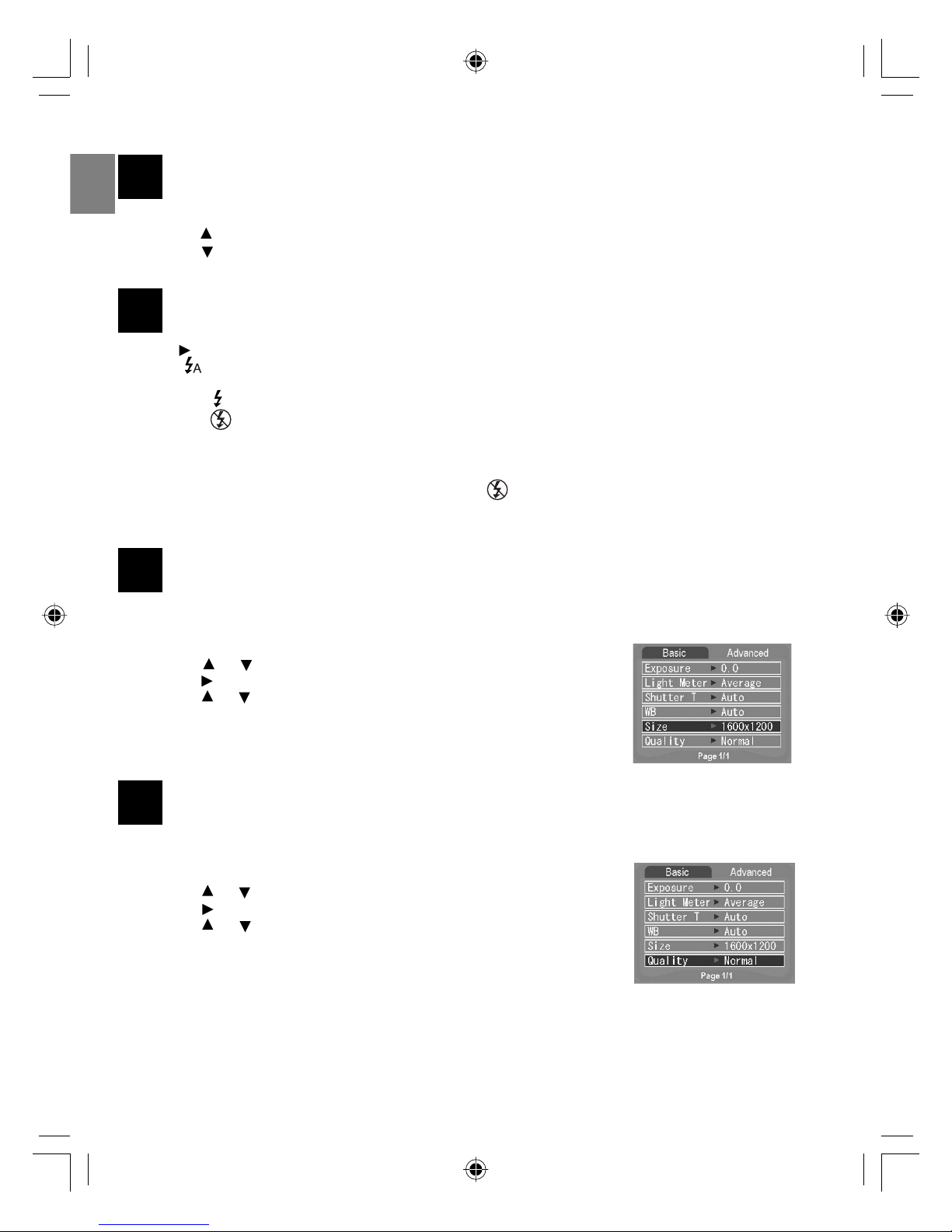

USING THE DIGITAL ZOOM

The camera provides up to 4x digital zoom.

1. Press the button to zoom in the subject. The zoom scales will be shown on the LCD.

2. Press the button to zoom out.

SETTING THE FLASH FOR PICTURE TAKING

Press the button repeatedly until the desired flash icon appears on the LCD to set the flash mode.

Auto ( ): The camera judges automatically if a Flash is required. If the environment is dark, the flash will

fire. The camera uses auto flash by default.

Flash On ( ): The flash will fire in any lighting condition.

Flash Off ( ): The Flash will not fire in this mode.

Note:

1. The flash provides assisting light only. If environment is too dark, the flash cannot ensure enough exposure

for taking clear pictures.

2. When the battery is about to run out, the Flash Off icon ( ) will be shown on the screen and the flash will

not be available in this case.

SETTING PICTURE/VIDEO RESOLUTION

Resolution determines the size of a captured file. Higher resolution images contain more details and have larger

file sizes.

1. Press the MENU button to enter Menu screen.

2. Press the or button to highlight the Size.

3. Press the button or SET button to enter its submenu.

4. Press the or button to select the desired resolution setting.

5. Press the SET to save the setting.

6. Press the MENU to exit Menu screen.

SETTING PICTURE/VIDEO QUALITY

The quality setting determines the amount of compression used to reduce the

size of the stored files in order to economize space in the memory.

1. Press the MENU button to enter Menu screen.

2. Press the or button to highlight the Quality.

3. Press the button or SET button to enter its submenu.

4. Press the or button to select the desired quality setting.

5. Press the SET to save the setting.

6. Press the MENU to exit Menu screen.

DZ QSG(515815-00)-E 5 11/15/04, 1:35:11 PM

ENU

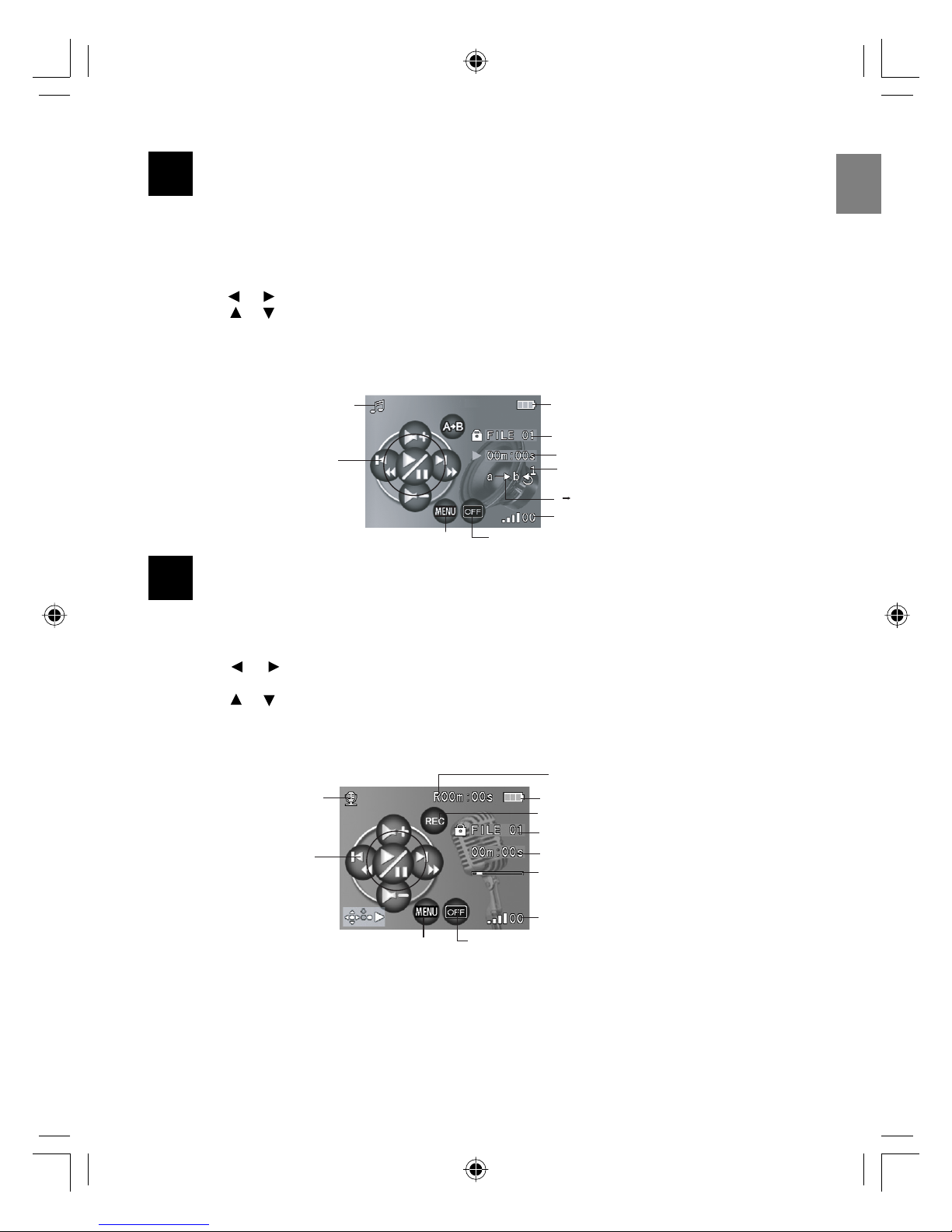

PLAYING MP3

1. Connect the camera to your computer by using the supplied USB cable and drag the desired MP3 files from your

computer into the \\Removable Disk\DCIM\100-DVx folder. Then disconnect the camera with the computer.

Note: You may also use card reader to save MP3 files onto memory card. But as the camera recognizes only

MP3 files saved in \\DCIM\100-DVx \ folder, you must format the memory card by using the camera first.

2. Power on the camera and switching to MP3 mode.

3. Press the or button to select songs.

4. Press the or button to adjust volume.

• The volume is divided into 21 levels (from 00 to 20).

5. Press the SET button to play the selected song.

6. Press the SET button to pause. Press the SET button again to resume playing.

RECORDING AND PLAYING VOICE FILES

1. Power on the camera and switch to VR mode.

2. Press the Shutter button to start recording.

3. Press the Shutter button again to end recording.

4. Press the or button to select a voice file.

5. Press the SET button to start playing the voice file.

6. Press the or button to adjust volume.

7. Press the SET button to pause. Press the SET button again to resume playing.

Volume

Repeat the

selected song

A B Repeat

Time

File Number

Battery

LCD on/off

5 Way

Function Key

MP3 Mode

Volume

Time

File Number

Battery

LCD on/off

5 Way

Function Key

VR Mode

Displaying Bar

Recording

Remaining tim

to record

DZ QSG(515815-00)-E 6 11/15/04, 1:35:12 PM

ENU

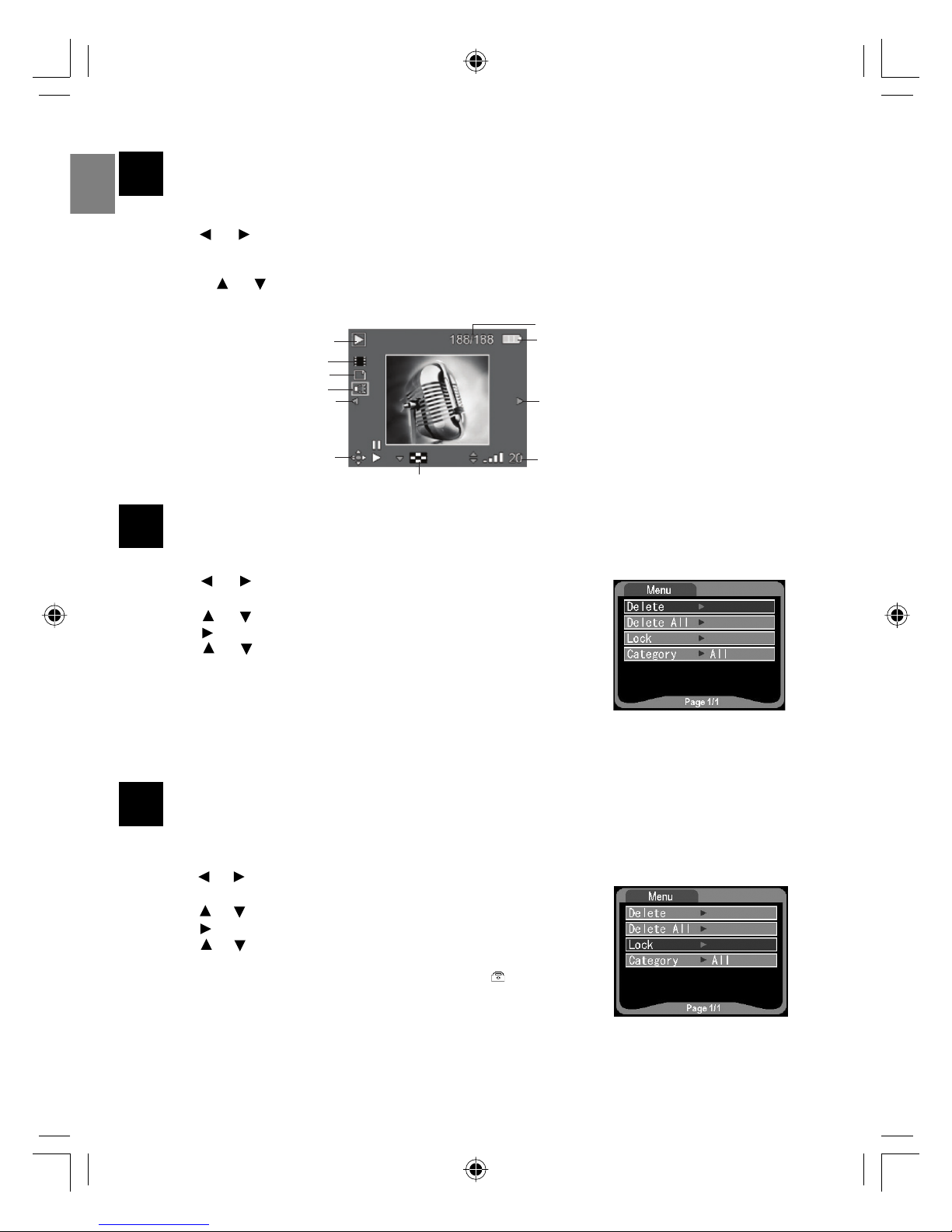

REVIEW THE STORED VIDEO CLIPS, PICTURES OR VOICE FILES

1. Power on the camera and switching to PLAY mode.

2. Press the or button to skip to the previous or next files.

3. If it is video clips or voice files,

• Press the SET button to start play. Press SET button again to pause or to resume playing.

• Press the or button to adjust volume.

DELETING FILES

1. Power on the camera and switch to PLAY mode.

2. Press the or button to find out the unwanted file.

3. Press the MENU button to enter Menu screen.

4. Press the or button to highlight Delete.

5. Press the button or SET button to enter its submenu.

6. Press the or button to select Yes or No.

7. Press the SET to confirm.

• If Yes is selected, the file will be deleted.

• If No is selected, no change will be made. Press the MENU to exit

Menu screen.

Note: Once the file is deleted, it cannot be recovered.

LOCKING THE FILES

To prevent accidental deletion of the files you like, you can lock the files by following steps below:

1. Power on the camera and switch to PLAY mode.

2. Press the or button to find out the file to be protected.

3. Press the MENU button to enter Menu screen.

4. Press the or button to highlight Lock.

5. Press the button or SET button to enter its submenu.

6. Press the or button to select Yes or No.

7. Press the SET to confirm.

• If Yes is selected, the file will be locked. The lock icon ( ) will

appear on the right side of the LCD.

• If No is selected, no change will be made. Press the MENU to exit

Menu screen.

Play Mode

Video


Voice

Files

Play/Pause

9-files displa

ed format

Volume

Next File

Battery

Number of File/All Files

DZ QSG(515815-00)-E 7 11/15/04, 1:35:13 PM

ENU

USING THE FLASHLIGHT

1. Power on the camera and switch to LIGHT mode.

2. Press the SET button to turn the flashlight on or off.

3. Press the button to increase the brightness. There are three levels of intensity.

4. Press the button to reduce the brightness.

DOWNLOADING FILES ONTO YOUR COMPUTER

Note for Windows 98 SE users: The camera driver must be installed first.

Note for all Windows users: The Windows Media Player 9 must be preinstalled before proceeding to view the

video clips on your computer.

For Windows Users

1. Connect the camera to the computer.

2. Double click “My Computer”.

3. Double click “Removable Disk”.

4. Double click “DICM”.

5. Double Click “100-DVx”.

• The pictures (JPEG), video clips (ASF), voice file (WAV) and MP3 files stored in the memory card will be

displayed.

6. Drag and drop the image you want to save in the computer.

• To select all files, click Edit > Select all.

For Macintosh Users

1. Connect the camera to the computer.

• After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “Concord” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double Click “100-DVx”.

• The pictures (JPEG), video clips (ASF), voice file (WAV) and MP3 files stored in the memory card will be

displayed.

5. Drag and drop the image you want to save in the computer.

• To select all files, click Edit > Select all.

Note: You may also transfer the stored pictures and video clips on your memory card onto your computer by

using a memory card reader (sold separately).

Concord and the Concord logo are registered trademarks or trademarks of Concord Camera Corp., in the United

States and/or other countries. Microsoft, Windows Media Player and Windows are either registered trademarks

or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Macintosh are

registered trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All other brands

and product names are either registered trademarks or trademarks of their respective owners.

DZ QSG(515815-00)-E 8 11/15/04, 1:35:15 PM

Altri manuali per DVX

Indice

Lingue:

Altri manuali CONCORD Macchina fotografica digitale

CONCORD

CONCORD EYE-Q DUO Manuale di istruzioni

CONCORD

CONCORD Eye-Q Fun.Cam Manuale di istruzioni

CONCORD

CONCORD Eye-Q 4330z Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale di istruzioni

CONCORD

CONCORD Eye-Q Easy Too Manuale di istruzioni

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Duo 2000 Manuale utente

CONCORD

CONCORD Eye-Q Go 2000 Manuale di istruzioni

CONCORD

CONCORD 3045 Manuale utente

CONCORD

CONCORD 3045Z Guida all'installazione

CONCORD

CONCORD Eye-Q 3120 Manuale utente

CONCORD

CONCORD QC3914 Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Eye-Q DV Cam Manuale di istruzioni

CONCORD

CONCORD EYE-Q DUO 2000 Guida all'installazione

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Eye-Q 4360z Manuale di istruzioni

CONCORD

CONCORD Eye-Q 4060 AF Manuale utente

CONCORD

CONCORD Eye-Q 4060 AF Manuale di istruzioni

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD JamCam 3.0 Manuale utente

CONCORD

CONCORD Eye-Q 2100 Manuale di istruzioni

CONCORD

CONCORD Eye-Q Go 2000 Manuale utente

CONCORD

CONCORD Eye-Q 3340z Manuale di istruzioni

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
