CONCORD Eye-Q 2040 Manuale utente

Technical Support Hot Line:

Toll Free In the USA & Canada

1-866-522-6372

Toll Free In Europe

UK: 0800-169-6482

BELGIUM: 0800-787-57

FRANCE: 0800-917-599

GERMANY: 0800-1800-563

SPAIN: 900-973-195

ITALY: 800-781-883

All Other Countries -Toll

31-53-482-9779

LANGUAGES

ENGLISH ............................................................................................................1

FRANÇAIS..........................................................................................................7

DEUTSCH ........................................................................................................13

ESPAÑOL ........................................................................................................19

ITALIANO..........................................................................................................25

NEDERLANDS ................................................................................................31

ENGLISH

DEUTSCH FRANÇAISESPAÑOLITALIANO

NEDERLANDS

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 2

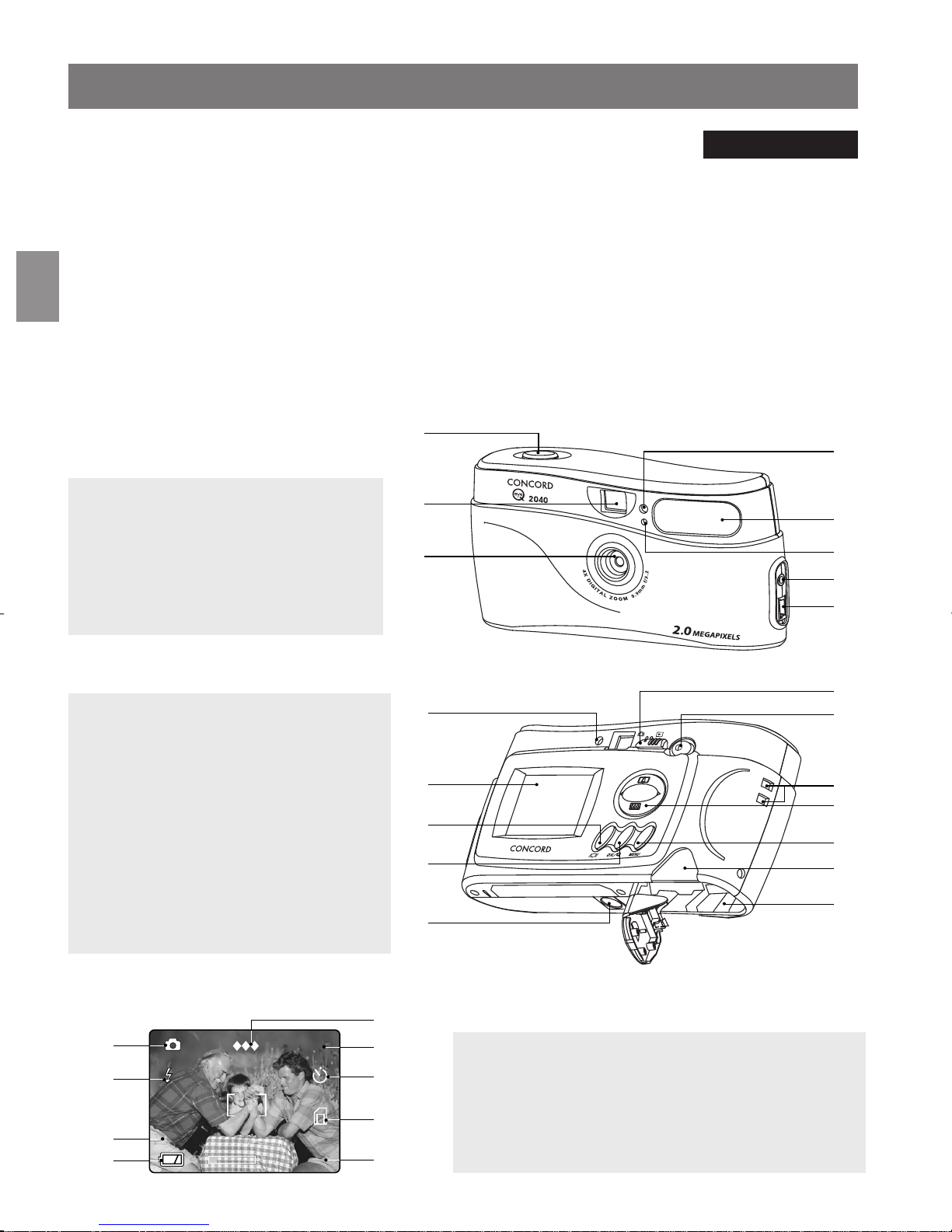

CAMERA OVERVIEW

This Quick Start Guide provides a quick reference for operating your new

digital camera. Refer to the User’s Guide, which can be found on the CD-

ROM and a hard copy in your Concord Eye-Q 2040 box, for detailed

instructions on how to use all of your camera’s features. Before using the

camera, make sure to read all safety instructions and precautions outlined

in the User’s Guide.

QUICK START GUIDE

ENGLISH

Top/Front

Bottom/Back

AWB

1600

000/009

1x 2x 4x

AWB

1600

000/009

1x 2x 4x

1. Shutter Button

2. Viewfinder

3. Ir Filter and

Lens

4. Self-timer LED

5. Flash

6. Flash Sensor

7. TV-out Port

8. Mini-USB Port

9. Flash Ready

10.LCD

11. LCD On/Off

Button

12.OK Button

13.Tripod Socket

14.Mode Slide

Switch

15.Power Button

16.Wrist Strap

Holder

17.Navigation

Button

18.Menu Button

19.Memory Card

Slot

20.Battery

Compartment

LCD ICONS

AWBWB

1600

000/009

1x 2x 4x

A: Camera Mode

B: Flash

C: White Balance

D: Battery Level

E: Quality

F: Resolution

G: Slef Timer

H: Memory Card

I: Frame Counter

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 1

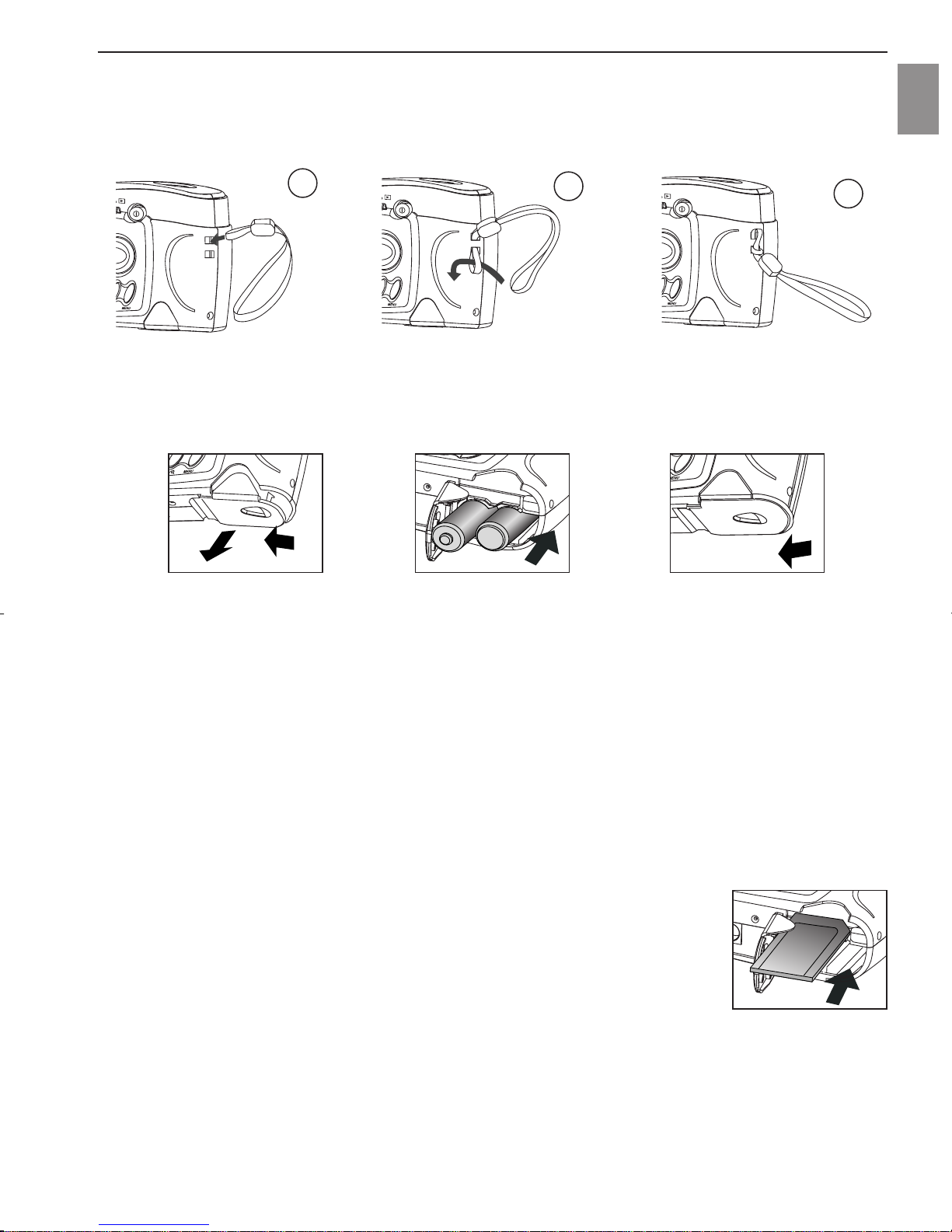

GETTING STARTED

ATTACHING THE WRIST STRAP

Please attach the supplied strap to prevent dropping the camera.

LOADING THE BATTERIES

The camera uses 2x AA batteries.

1. Slide the Battery/Memory Card Door towards the center of the camera, and lift the

Battery/Memory Card Door to open. (fig. 1.1)

2. Insert the batteries with the positive terminal toward the ( + ) sign, and the negative

terminal toward the ( – ) sign. (fig. 1.2)

3. Close the battery/memory card door. (fig. 1.3)

INSERTING MEMORY CARD

In addition to having a 7MB internal memory, the camera can use MultiMediaCard (MMC) or

Secure Digital (SD) memory cards to store images and video clips.

1. Slide the Battery/Memory Card Door towards the center of the

camera and lift the Battery/Memory Card Door to open. (fig.1.1)

2. Insert the memory card into memory card slot with its metal contacts

exposed side down and its printed side facing outward. (fig.1.4)

3. Close the battery/memory card door. (fig.1.3)

fig.1.1 fig.1.2 fig.1.3

fig.1.4

AWB

1600

005/042

AWB

1600

005/042

AWB

1600

005/042

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 2

TAKING PICTURES

TURNING THE CAMERA ON AND OFF

The power button is located in the back of the camera.

1. Press the ( ) Power button to turn the camera on. (fig.1.1)

•The LCD will turn on automatically.

•The camera is ready for picture taking when the flash ready

LED stops blinking.

2. To turn the camera off press the ( ) Power button for a few

seconds

Note: To extend battery life, the camera will automatically power off after 60 seconds of

inactivity. To change this setting, place refer to page 25.

TAKING A PICTURE WITH THE VIEWFINDER OR LCD

1. Set the camera to ( ) Camera Mode.

•The LCD can be switched off to conserve battery power by pressing the ( ) button.

2. Frame the subject in the viewfinder or LCD.

3. Press the shutter button to capture the image.

•When the image has been captured, the Flash Ready LED next to the viewfinder will

blink to indicate that the image is being stored.

TAKING PICTURE WITH DIGITAL ZOOM

The camera can use up to 4x digital zoom to magnify into the subject.

1. Set the camera to ( ) Camera Mode.

2. Position the subject in the LCD.

3. Press to zoom into the subject.

4. Press to zoom out or to return to normal mode.

AWB

1600

005/042

AWB

1600

005/042

AWB

1600

005/042

005/042 005/042

AWB

1600

005/042

1x 2x 4x

AWB

1600

AWB

1600

AWB

1600

005/042

AWB

1600

005/042

Press OK Play AVI

005/042

005/042 005/042

005/042

005/042 005/042

AWB

1600

005/042

AWB

1600

1x 2x 4x

AWB

1600

AWB

1600

005/042

AWB

1600

005/042

Press OK Play AVI

005/042

005/042 005/042

005/042

AWB

1600

005/042

AWB

1600

AWB

1600

1x 2x 4x

AWB

1600

005/042

AWB

1600

005/042

Press OK Play AVI

005/042

fig.1.1

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 3

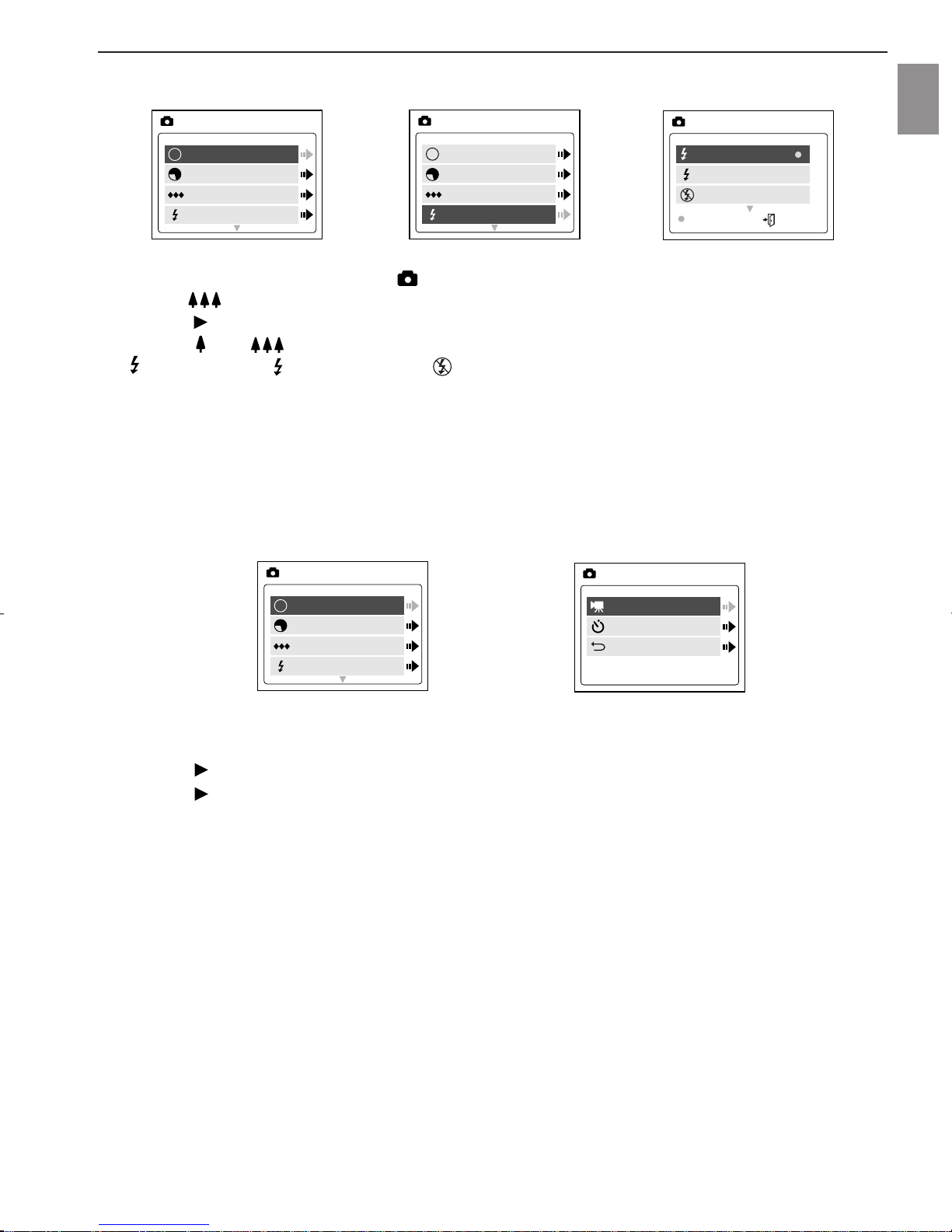

SETTING THE FLASH

1. Press the MENU button in the ( ) Camera Mode.

2. Press until Flash is highlighted.

3. Press to enter its submenu.

4. Press or to highlight a flash mode:

Auto Flash, Fill-in Flash or Flash off

5. Press the OK button to select.

6. Press the MENU button to exit.

TAKING VIDEO CLIPS

The camera can capture video clips.

To record a video clip:

1. Press the MENU button.

2. Press to enter the Mode menu.

3. Press to enter video clip mode.

4. Position the subject in the viewfinder or LCD.

5. Press the Shutter button to begin recording a continuous video clip.

6. Press the Shutter button again to stop recording. Otherwise the camera will continue

recording until the memory is almost full.

Video Clip Information

Resolution: QVGA

Frame rate: 15fps

File Format: AVI

TAKING PICTURES

Mode

Size

Quality

Flash

MAIN MENU

Mode

Size

Quality

Flash

MAIN MENU

Mode

Size

Quality

Flash

MAIN MENU

Video Clip

Self-timer

Main Menu

MODE

Auto

Flash

Flash Off

OK MENU

FLASH

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 4

REVIEWING YOUR FILES

USING REVIEW MODE ( )

In Review mode, you can review your stored pictures and video clips through the LCD.

1. Slide the Mode switch towards ( ) Review mode.

2. Press or to scroll through each file. The file

type can be found in the upper left hand corner of the

LCD. The frame counter varies with the operation.

3. When a video clip (AVI) is displayed on the LCD, press

OK to play video clip.

DELETING YOUR FILES

Delete One

Once a file is deleted, it cannot be recovered.

1. Slide the mode switch to ( ) Review mode.

2. Press the MENU button.

3. When Delete is highlighted, press to enter the Delete

submenu.

4. When Delete One is highlighted, press to enter its submenu.

5. The next screen will read “THIS FILE?” Press or to

highlight No or Yes.

6. Press OK to select.

•If No is selected, no change will be made, and you will return to the Main Menu.

•If Yes is selected, the LCD shows “deleting …” for a few seconds, then the selected file

will be deleted and the next picture or video clip will be displayed.

File Format File Type

JPEG Picture

AVIVideo Clip

005/042 005/042

AWB

1600

005/042

AWB

1600

AWB

1600

JPEG

AWB

1600

005/042

AWB

1600

005/042

Press OK Play AVI

005/042

AWB

1600

005/042

005/042 005/042

AWB

1600

005/042

AWB

1600

AWB

1600

JPEG

AWB

1600

005/042

AWB

1600

005/042

Press OK Play AVI

005/042

Delete

Thumbnail

Brightness

Exit

MAIN MENU

Delete One

Delete All

Main Menu

DELETE

DELETE ONE

THIS FILE?

Yes

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 5

CONNECTING YOUR CAMERA TO COMPUTER

DOWNLOADING PICTURES AND VIDEO CLIPS ONTO YOUR COMPUTER

Note for Windows 98SE/2000 users: Do not connect the camera to your computer before

the camera drivers and Microsoft DirectX 9.0 installation is completed.

Caution: Do not insert or remove the memory card when the camera is connected to the

computer.

For Windows Users

1. Connect the camera to the computer.

2. Double-click on My Computer.

3. Double-click Removable Disk.

4. Double-click DCIM.

5. Double-click 100_2040.

•The stored pictures (JPG) and video clips (AVI) stored in the internal memory or the

memory card will be displayed.

6. Click and drag the files into a directory in your computer to save them.

•To select all files, click Edit > Select all.

For Macintosh Users

1. Connect the camera to the computer.

•After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “untitled” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double-click 100_2040.

•The stored pictures (JPG) and video clips (AVI) stored in the memory card will be

displayed.

5. Drag and drop the image you want to save in the computer.

•To select all files, click Edit > Select all.

Note: You may also transfer the stored pictures and video clips on your memory card onto

your computer by using a memory card reader (sold separately.)

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera

Corp., in the United States and/or other countries. Microsoft and Windows are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Macintosh are registered

trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All other brands and product

names are either registered trademarks or trademarks of their respective owners.

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 6

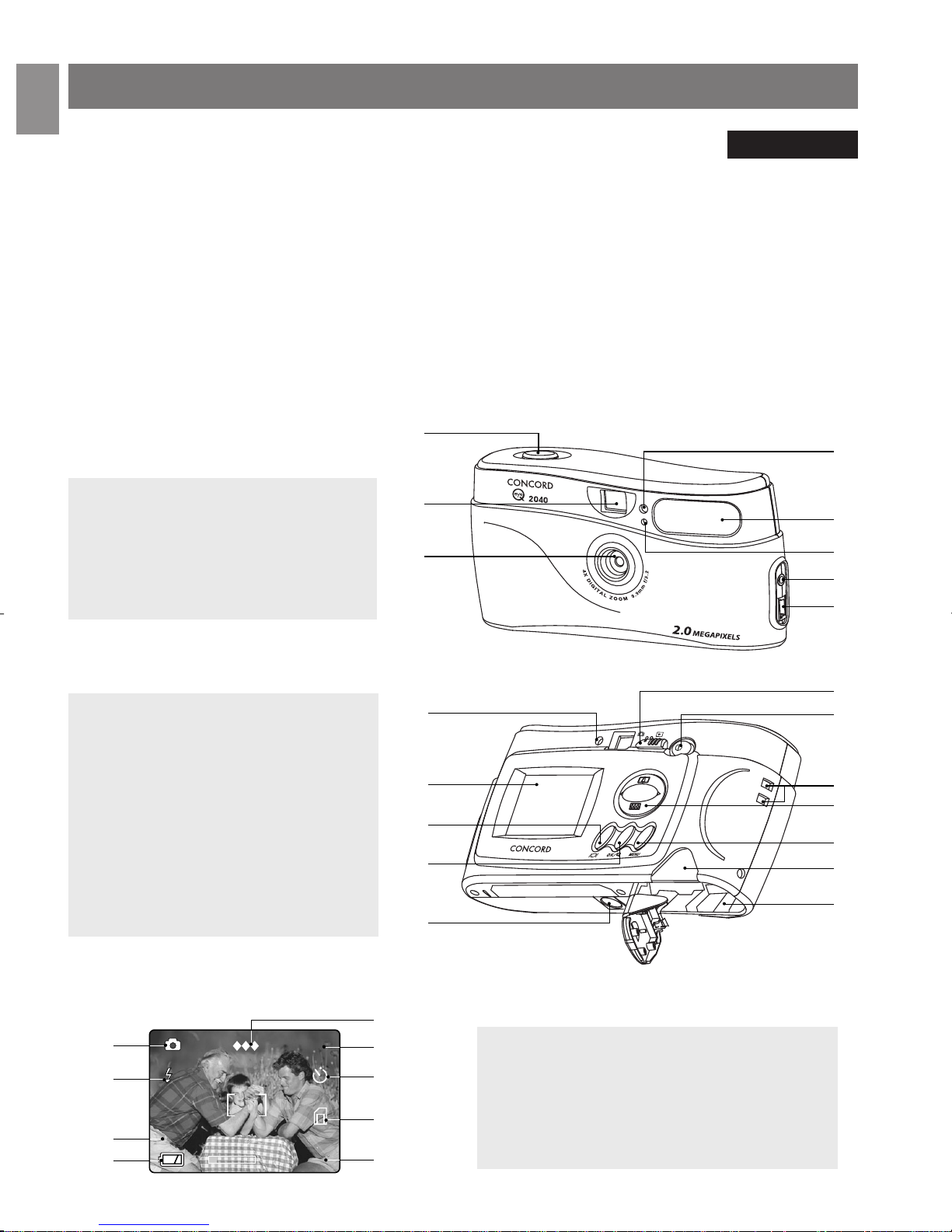

VUE D’ENSEMBLE DE L’APPAREIL

Les références de ce guide de démarrage rapide vous permettent

d’utiliser rapidement votre nouvel appareil digital. Pour des explications

plus détaillées sur toutes les caractéristiques de votre appareil, veuillez

lire le guide de l’utilisateur qui se trouve sur le CD Rom situé dans le

coffret du Concord Eye-Q 2040. Avant d’utiliser l’appareil, veuillez lire

toutes les instructions de sécurité et de précaution décrites dans ce guide.

GUIDE DE DEMARRAGE RAPIDE

FRANÇAIS

Dessus /Avant

Dessous/Arrière

AWB

1600

000/009

1x 2x 4x

AWB

1600

000/009

1x 2x 4x

1. Bouton de

l’obturateur

2. Viseur optique

3. Filtre infrarouge

et objectif

4. Diode du

minuteur

5. Flash

6. Capteur du

Flash

7. Port sortie

télévision

8. Port Mini-USB

9. Diode appareil

prêt

10.Ecran LCD

11. Bouton

Marche/Arrêt

LCD

12.Bouton OK

13.Support de pied

14.Commutateur

Mode diapositive

15.Bouton

d’alimentation

16.Support de

dragonne

17.Bouton de

Navigation

18.Bouton de Menu

19.Logement de la

carte mémoire

20.Compartiment à

piles

Icônes de l’écran LCD

AWBWB

1600

000/009

1x 2x 4x

A: Mode appareil photo

B: Flash

C: Balance des Blancs

D: Niveau de la pile

E: Qualité de l’image

F: Résolution

G: Minuteur

H: Carte mémoire

I: Compteur de photos

2040 QS Guide-6L (512949-01) 1/9/03 11:08 am Page 7

Altri manuali per Eye-Q 2040

Indice

Lingue:

Altri manuali CONCORD Macchina fotografica digitale

CONCORD

CONCORD Eye-Q 3X Manuale di istruzioni

CONCORD

CONCORD 3045Z Guida all'installazione

CONCORD

CONCORD 3045 Manuale di istruzioni

CONCORD

CONCORD Eye-Q Go Wireless Manuale di istruzioni

CONCORD

CONCORD DUO 1300 Manuale utente

CONCORD

CONCORD Eye-Q Duo 1300 Manuale di istruzioni

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Eye-Q Easy Too Manuale di istruzioni

CONCORD

CONCORD Eye-Q 4060 AF Manuale di istruzioni

CONCORD

CONCORD Eye-Q Ir Manuale utente

CONCORD

CONCORD Eye-Q 3120 Manuale utente

CONCORD

CONCORD Eye-Q Go 2000 Manuale di istruzioni

CONCORD

CONCORD VGA Manuale utente

CONCORD

CONCORD PZ2180 AF Manuale utente

CONCORD

CONCORD Eye-Q DV Cam Manuale di istruzioni

CONCORD

CONCORD Eye-Q Fun.Cam Manuale di istruzioni

CONCORD

CONCORD Eye-Q 3040AF Manuale utente

CONCORD

CONCORD Eye-Q 4062 AF Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Eye-Q 4330z Manuale utente

CONCORD

CONCORD Eye-Q Go 2000 Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD QC3914 Manuale utente

CONCORD

CONCORD Eye-Q Fun.Cam Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
