GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 1

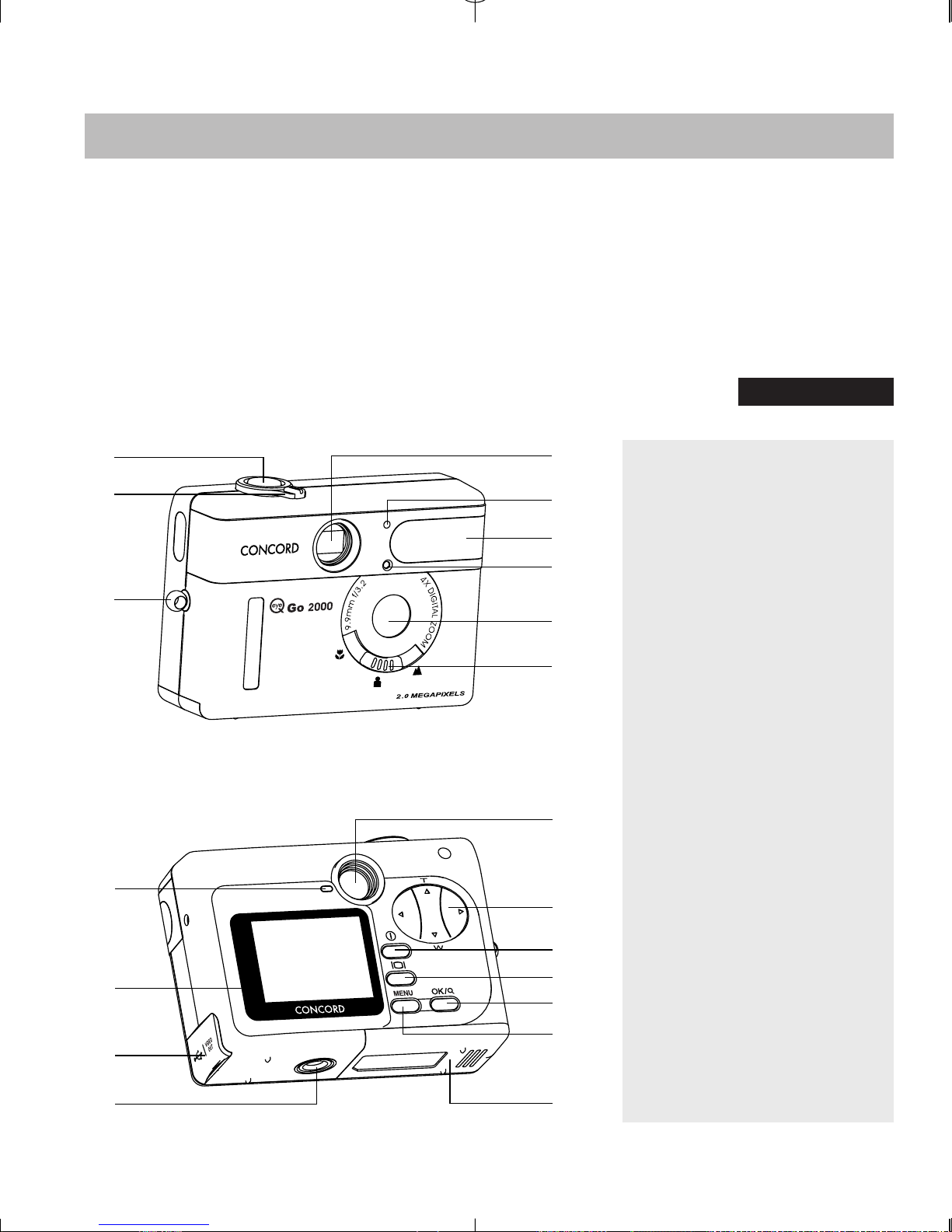

1. Shutter Button

2. Mode Switch

3. Neck/Wrist Strap Mount

4. Viewfinder

5. Flash Sensor

6. Flash

7. Self-timer LED

8. Lens

9. Slide Switch

10. Camera Ready LED

11. LCD

12. USB/TV Out Ports

13. Tripod Socket

14. Viewfinder

15. Navigation Button

16. Power Button

17. LCD On/Off Button

18. OK Button

19. Menu Button

20. Battery Door

BACK/BOTTOM

QUICK START GUIDE

This Quick Start Guide provides a quick reference for operating your new

digital camera. Refer to the User’s Guide, which can be found on the CD-

Rom and a hard copy in your Concord Eye-Q Go 2000 box, for detailed

instructions on how to use all of your camera’s features. Before using the

camera, make sure to read all safety instructions and precautions outlined

in the User’s Guide.

QUICK START GUIDE

ENGLISH

FRONT/TOP

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 2

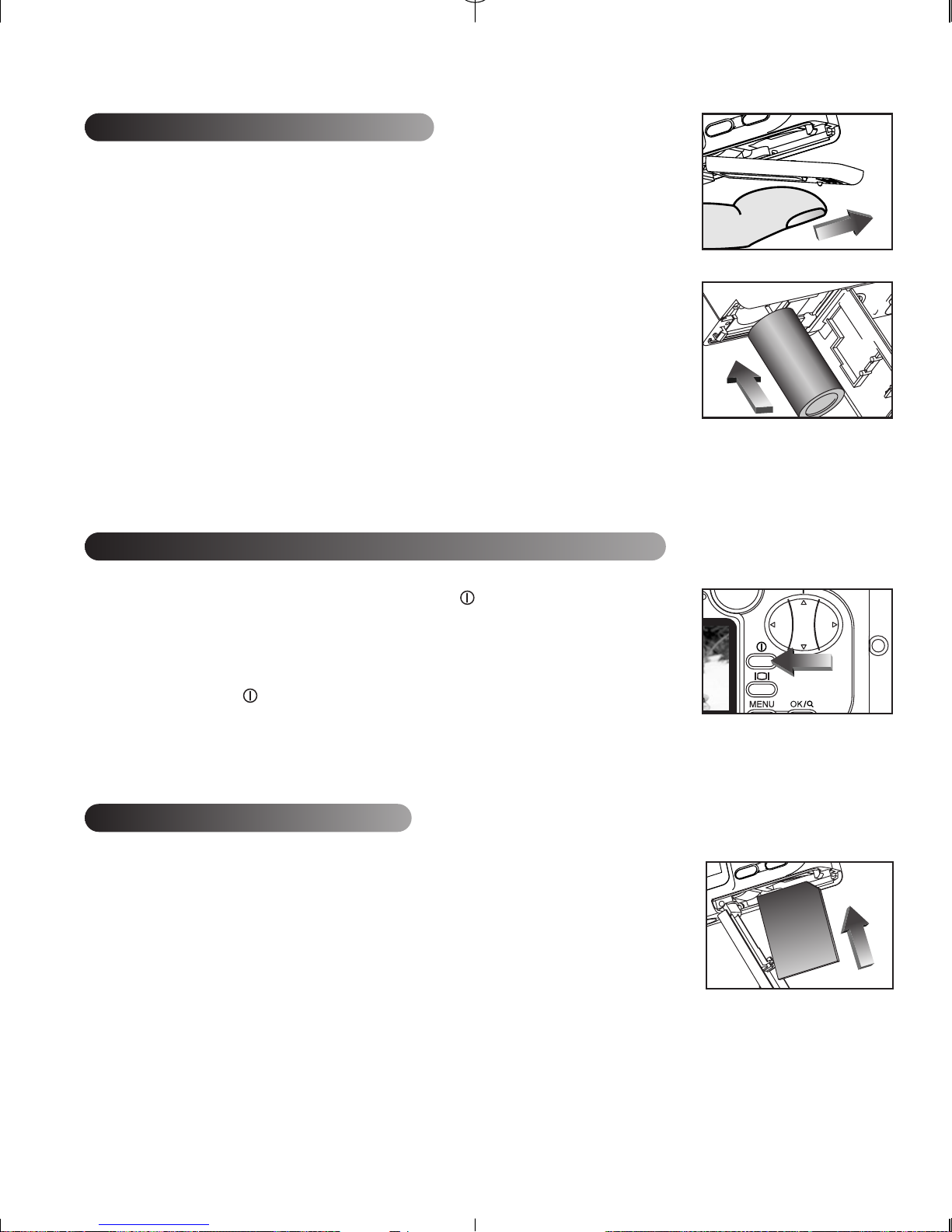

LOADING THE BATTERY

The Concord Eye-Q Go 2000 uses one 3V CR123 lithium

battery.

Loading the Battery:

1. Locate the battery door on the bottom of the camera.

2. Slide the battery door outwards, as indicated by the arrow

and lift the battery door to open. (fig.1.1)

3. Insert the 3V CR123 lithium battery with the positive

terminal (+) toward the inside of the battery compartment.

(fig.1.2)

4. Close the battery door, press down on it and slide it

towards the center of the camera until it snaps into place.

TURNING THE CAMERA ON AND OFF

1. Press the On/Off button for a few seconds. The camera

will beep when it is turned on.

2. To turn the camera off, press the On/Off button

for a few seconds. (fig.1.3)

USING THE MMC/SD

Inserting the MMC/SD:

1. Locate the battery cover on the bottom of the camera.

2. Slide the battery door away from the camera body and lift

the battery door to open.

3. Insert the MMC or SD memory card as indicated by the

arrow. (fig.1.4)

4. Close the battery door. Press down on it and slide it

towards the center of the camera until it snaps into place.

fig.1.1

fig.1.2

fig.1.3

fig.1.4

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 3

SLIDE SWITCH

The camera has a Slide Switch that has 3 image taking modes: macro ( ),

portrait ( ) and distant ( ). The current flash setting is displayed in the LCD.

Slide Switch Position Flash Status Distance from subject

Macro ( ) Auto Flash ( ) 2.2ft. (0.65m) to 4.7ft. (1.4m)

Portrait ( ) Auto Flash ( ) 4.7ft. (1.4m) to 10.8ft. (3.2m)

Distant ( ) No Flash ( ) 4.7ft. (1.4m) to infinity

Using the slide switch:

1. Position the Slide switch towards the macro ( ), portrait ( )

or distant ( ) icon until the switch clicks into place.

2. To ensure accurate focus, refer to the chart above to make sure

that the subject is within the distance range in the mode that

you selected. (fig.1.5)

TAKING STILL IMAGES

Taking Still Images:

1. Set the Mode switch to .

2. Position the subject in the LCD or the viewfinder.

3. Gently press the Shutter button (fig.1.6) and keep the

camera still when the camera ready LED next to the

viewfinder is lit. This indicates that the image is being

captured. (fig.1.7)

4. When the image has been captured, the camera ready LED

next to the viewfinder will blink. This indicates that the

image is being stored in the memory. You may move the

camera at this time.

5. A preview of the image will be displayed on the LCD for 1

second and the file counter number displayed in the LCD

will be updated.

fig.1.6

fig.1.7

fig.1.5

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 4

TAKING VIDEO CLIPS

1. When Video Clip is highlighted in the MODE menu press .

2. Press the Shutter button to begin recording a continuous video clip.

3. Press the Shutter button again to stop recording.

4. The camera will continue recording until the memory is full.

5. When the recording is completed, the camera will return to Camera Mode.

Note: If you would like to cancel your video clip session before pressing the

Shutter button, press MENU to exit.

DELETE ONE FILE

To delete a single file from the internal memory:

1. Slide the mode switch towards .

2. Press MENU.

3. When Delete One is highlighted in the DELETE menu, press .

4. The next screen will read "Delete This File?" Press or to highlight No or Yes

and press OK to select.

5. If Yes is selected, the file will be deleted.

6. If No is selected, no change will be made.

Delete One

Delete All

Main Menu

DELETE

THIS FILE?

Yes

Delete

Thumbnail

Brightness

Exit

MAIN MENU

Mode

Size

Quality

Flash

MAIN MENU

Video Clip

Self-timer

Main Menu

MODE

SHUTTER TO •REC

MENU TO CANCEL

SHUTTER TO STOP

•REC

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 5

SOFTWARE INSTALLATION

NOTE: Do not connect the camera to your computer before the camera drivers

and software installation is completed.

Installing the Camera Drivers and ArcSoft Applications:

1. Insert the CD-ROM included in your camera's packaging into your computer's CD-

ROM drive.

2. The installation screen will appear on the computer monitor. Click on "Software

Installation" to start the installation process.

3. Follow the software installation instructions on your screen to complete the ArcSoft

applications and camera drivers installation.

NOTE: If your computer has the CD-ROM automatic installation disabled,click on

START. Select MY COMPUTER and locate the CD-ROM Drive. Double click on the

CD-ROM Drive icon to show its contents. Double-click on the file named

SETUP.EXE and follow the instructions on your screen.

TRANSFERRING FILES TO THE COMPUTER

After installing the drivers and software, you may transfer files to your computer.

1. Select either PC (Windows Only) or DSC in the Setup Menu.

•Set the Mode switch to .

•Press the MENU button. Use the button until Setup is highlighted.

•Press to enter the Setup menu.

•In the Setup menu, press until Driver is highlighted.

•Press to select DSC or PC.

2. Connect your camera to the computer using the USB cable provided.

Time-out 60S

Driver DSC

TV PAL

PlayLogo O ff

SETUP

Setup

Exit

MAIN MENU

Time-out 60S

Driver PC

TV PAL

PlayLogo O ff

SETUP

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 6

USING THE PC DRIVER MODE:

1. Launch ArcSoft PhotoImpression by clicking on Start-Programs-ArcSoft Camera

Suite.

2. Click on the (Camera/Scanner) button.

3. Click on the drop-down list under SELECT SOURCE and choose Concord Eye-Q Go

2000.

4. Click on the Camera/Scanner icon. A window will appear with the images you

have transferred.

USING THE DSC MODE (Windows):

1. Open My Computer.

2. Click on the removable disk drive.

3. Double-click on an image or video clip and windows will automatically open the

file.

USING THE DSC MODE (Mac):

1. The external hard drive will appear on the desktop.

2. Open the “untitled” removable drive that is on your desktop and open DCIM to

view your files.

3. Click on the file that you would like to view.

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks

of Concord Camera Corp., in the United States and/or other countries. Microsoft and Windows

are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple

Computer, Inc. in the U.S. and other countries. All other brands and product names are either

registered trademarks or trademarks of their respective owners.

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 7

1. Déclencheur

2. Bouton Mode

3. Fixation pour dragonne

4. Viseur

5. Capteur du flash

6. Flash

7. Indicateur Lumineux de la

Minuterie Automatique

8. Objectif

9. Commutateur coulissant

10. Indicateur Lumineux Prêt

à l’Emploi de Votre

Appareil-Photo

11. LCD

12. Panneau de Branchement

du Câble

13. Prise d’Adaptation sur

Trépied

14. Viseur

15. Bouton de Fleches

16. Bouton d’Alimentation

17. Écran LCD Sous

tension/Hors tension

18. Bouton OK

19. Bouton Menu

20. Trappe du Compartiment

à Piles

ARRIERE/BAS

GUIDE DE DEMARRAGE RAPIDE

Les références de ce guide de démarrage rapide vous permettent d’utiliser

rapidement votre nouvel appareil digital. Pour des explications plus

détaillées sur toutes les caractéristiques de votre appareil, veuillez lire le

guide de l’utilisateur qui se trouve sur le CD-Rom situé dans le coffret du

Concord Eye-Q Go 2000. Avant d’utiliser l’appareil, veuillez lire toutes les

instructions de sécurité et de précaution décrites dans ce guide.

GUIDE DE DEMARRAGE RAPIDE

FRANÇAIS

AVANT/HAUT

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 8

CHARGEMENT DE LA BATTERIE

La caméra Concord Eye-Q Go 2000 utilise une batterie lithium

3V CR123.

Pour charger la batterie:

1. Localisez le couvercle du compartiment batterie à la base

de l'appareil.

2. Faites glisser le couvercle vers l'extérieur, comme l'indique

la flèche, et soulevez-le pour ouvrir. (fig.1.1)

3. Insérez la batterie lithium 3V CR123 avec la borne positive

(+) vers l'intérieur du compartiment. (fig.1.2)

4. Refermez le couvercle, appuyez dessus en exerçant une

pression vers le bas, faites-le glisser vers le centre de la

caméra jusqu'à ce qu'il se mette en place avec un déclic.

MISE SOUS TENSION/HORS TENSION DE LA CAMÉRA

1. Appuyez sur le bouton Marche/Arrêt pendant quelques

secondes. La caméra émet un signal sonore lorsqu'elle est

allumée.

2. Pour mettre la caméra hors tension, appuyez sur le bouton

Marche/Arrêt pendant quelques secondes. (fig.1.3)

UTILISATION DE LA MMC/SD

Insertion de la carte:

1. Localisez le couvercle du compartiment batterie à la base

de l'appareil.

2. Faites glisser celui-ci vers l'extérieur et soulevez-le pour

ouvrir.

3. Insérez la carte MMC ou SD dans le sens indiqué par la

flèche. (fig.1.4)

4. Refermez le couvercle, appuyez dessus en exerçant une pression vers le bas,

faites-le glisser vers le centre de la caméra jusqu'à ce qu'il se mette en place avec

un déclic.

fig.1.1

fig.1.2

fig.1.3

fig.1.4

GO 2000 QS Guide (511688-01) 31/10/02 3:57 pm Page 9

Altri manuali per Eye-Q Go 2000

Indice

Lingue:

Altri manuali CONCORD Macchina fotografica digitale

CONCORD

CONCORD Eye-Q 4062 AF Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale di istruzioni

CONCORD

CONCORD QC3914 Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale di istruzioni

CONCORD

CONCORD Eye-Q 3120 Manuale utente

CONCORD

CONCORD Eye-Q 3040AF Manuale di istruzioni

CONCORD

CONCORD Eye-Q DV Cam Manuale di istruzioni

CONCORD

CONCORD VGA Manuale utente

CONCORD

CONCORD Eye-Q 4330z Manuale utente

CONCORD

CONCORD Eye-Q Go Wireless Manuale utente

CONCORD

CONCORD Eye-Q 3X Manuale di istruzioni

CONCORD

CONCORD Eye-Q Easy Too Manuale di istruzioni

CONCORD

CONCORD Eye-Q 3042 AF Manuale di istruzioni

CONCORD

CONCORD Eye-Q 4330z Manuale di istruzioni

CONCORD

CONCORD DVX Manuale utente

CONCORD

CONCORD 3045 Manuale utente

CONCORD

CONCORD Eye-Q Duo 1300 Manuale di istruzioni

CONCORD

CONCORD Eye-Q 4060 AF Manuale di istruzioni

CONCORD

CONCORD Eye-Q Fun.Cam Manuale utente

CONCORD

CONCORD Duo 2000 Manuale utente

CONCORD

CONCORD Eye-Q 2040 Manuale utente

CONCORD

CONCORD EYE-Q MINI Guida all'installazione

CONCORD

CONCORD DUO 1300 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
