CONEN Rail 2.0 Manuale utente

PYETVBWW2RN.. ASSEMBLY INSTRUCTION

Rail 2.0

Electrical height adjustable wall mounted pylon system

including side wings for 65-86" Displays

2 x

16.1

110

117

118

123

111

112

113

114

115

116

124

125

16.2

16.3

16.4

16.5

16.6

119

120

121

122

2 x

6.1

16 19

2 x 2 x

23 23

4 x

17 8

2 x

10/11

4 x

2 x

10/11

2 x

6.29

24/25

2 x

2042015

6.4 6.3 6.5 6.6

20 13

321 5

2 x2 x4 x2 x

2 x

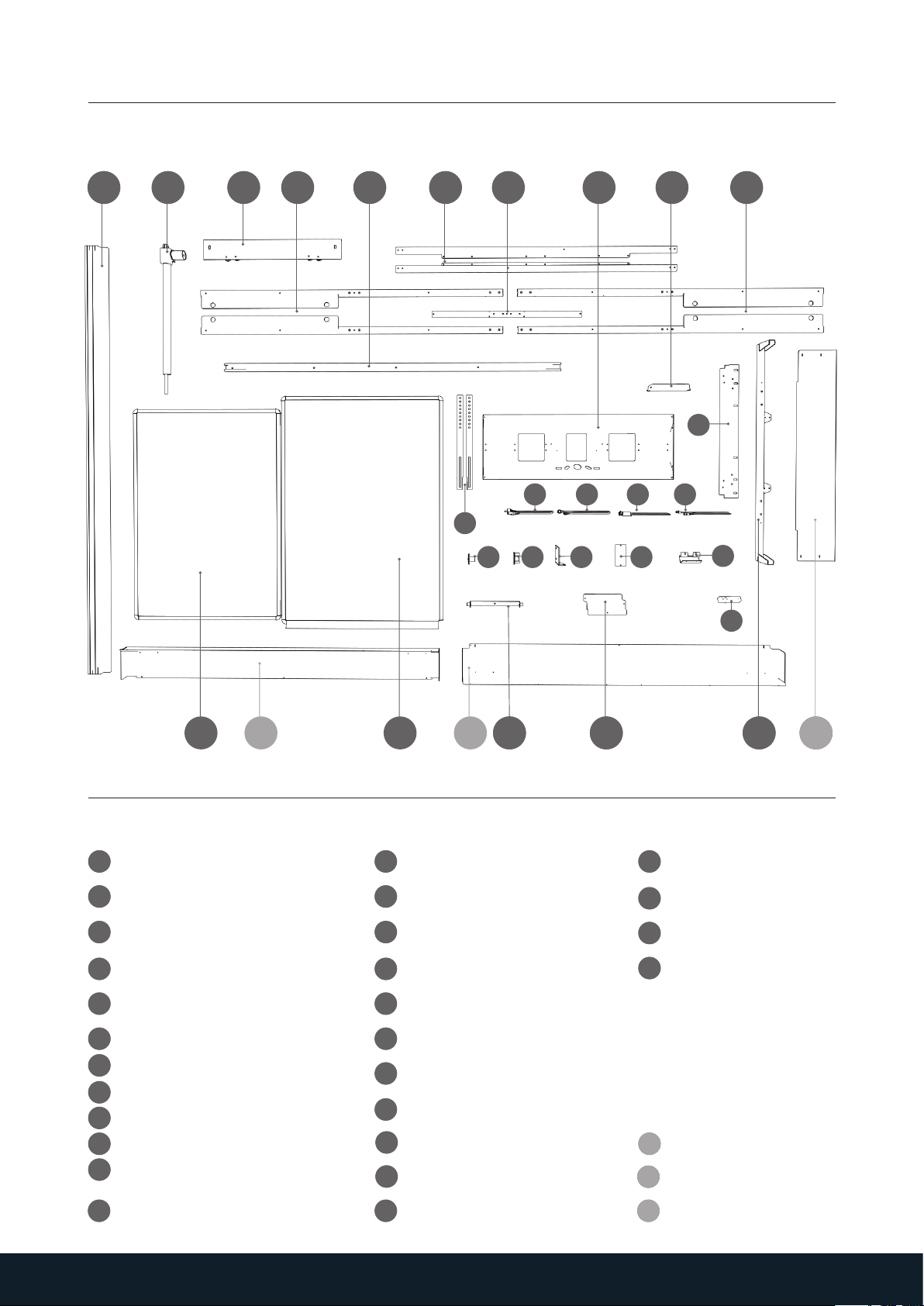

PACKAGE CONTENTS

1 x Center stopper

2 x Fixed wing

2 x Vertical braces

2 x Intermediate piece

1 x Control panel holder

4 x C-rail

2 x Cross braces

1 x Display frames

1 x Upper/lower bar right

1 x Upper/lower bar left

2 x Pylon column

2 x Pylon sledges

2 x Double sliding block

Retaining plate control unit

2 x Motor mounting bracket

(1 x right and 1 x left)

2 x Motor

1 x Control unit

2 x Cable for motor

1 x Power cable

1 x Anti-collision sensor

1 x Extension cable

2 x Mobile wing

2 x lateral stoppers

1 x Memory switch

4 x Caps

4 x Trolley

1 x Set of suspension rails

2 x Passepartout top/bottom

1 x Passepartout lateral

1 x Passepartout on the side

with revision cutout

If using passapartout

S S

CA B D E F G

4 x M8 x 16 mm 4 x M6 x 16 mm

C D

2250 mm / 88.6“

1125 mm / 44.3“ 1125 mm / 44.3“

190 mm / 7.5“

35 mm / 1.4“

30 mm / 1.2“

I K LMN

U V

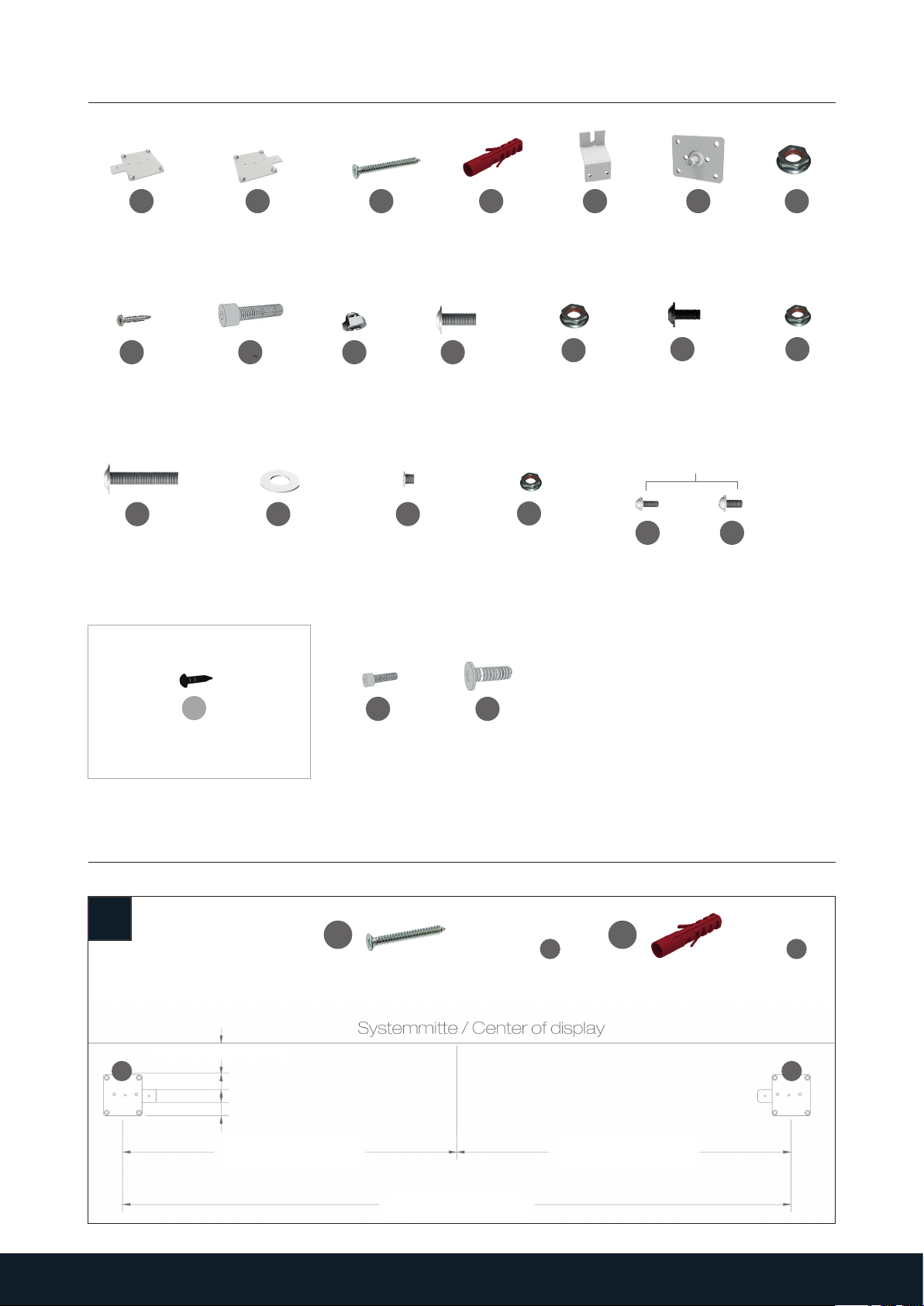

PACKAGE CONTENTS

Depending on the display

MOUNTING INSTRUCTIONS

4 x M5 x 55

Spax screw for A/B

4 x 8 mm

Dowel for A/B

8 x M10 x 25 mm

Lens head Allen screw

screw with ﬂange

8 x M10

Self-locking

nut

10 x M6 x 20 mm

Lens head Allen screw

screw with ﬂange,

black

42 x M6

Self-locking

nut

4 x M8 x 80 mm

Lens head Allen screw

screw with ﬂange

8 x

Washer

24 x 4,2 x 9,5 mm

Sheet metal

screw, black

4 x M5 x 55 mm

Spax screw

1 x

Mounting plate right 1 x

Mounting plate left 4 x 8 mm

Dowels 2 x 190 mm

Z-Angle 2 x

Sliding block 22 x M8

Self-locking nut

4 x M3,5 x 16 mm

Self-tapping

screw

4 x M10 x 40 mm

Cylinder head

screw

4 x M10

Self-locking

Cap nut

Lens head Allen screw

screw with ﬂange

If using passapartout

3 x M5

Self-locking

nut

3 x M5 x 12 mm

Lens head Allen

screw screw

2 x M3 x 25 mm

Cylinder head screw 16 x M6 x 20 mm

Flat-head screw

2100 - 2400 mm / 82.68 - 94.49"

400 - 500 mm

15.75 - 19.69"

G 1

6Optional

G1F

MOUNTING INSTRUCTIONS

Wall mounting material

not included

Optional available

(If ﬂoor mounting ist not possible.)

Do not tighten the nut G

10 11

6.1

1800 mm / 70.9"

6.1

12 13

6.1

A/B

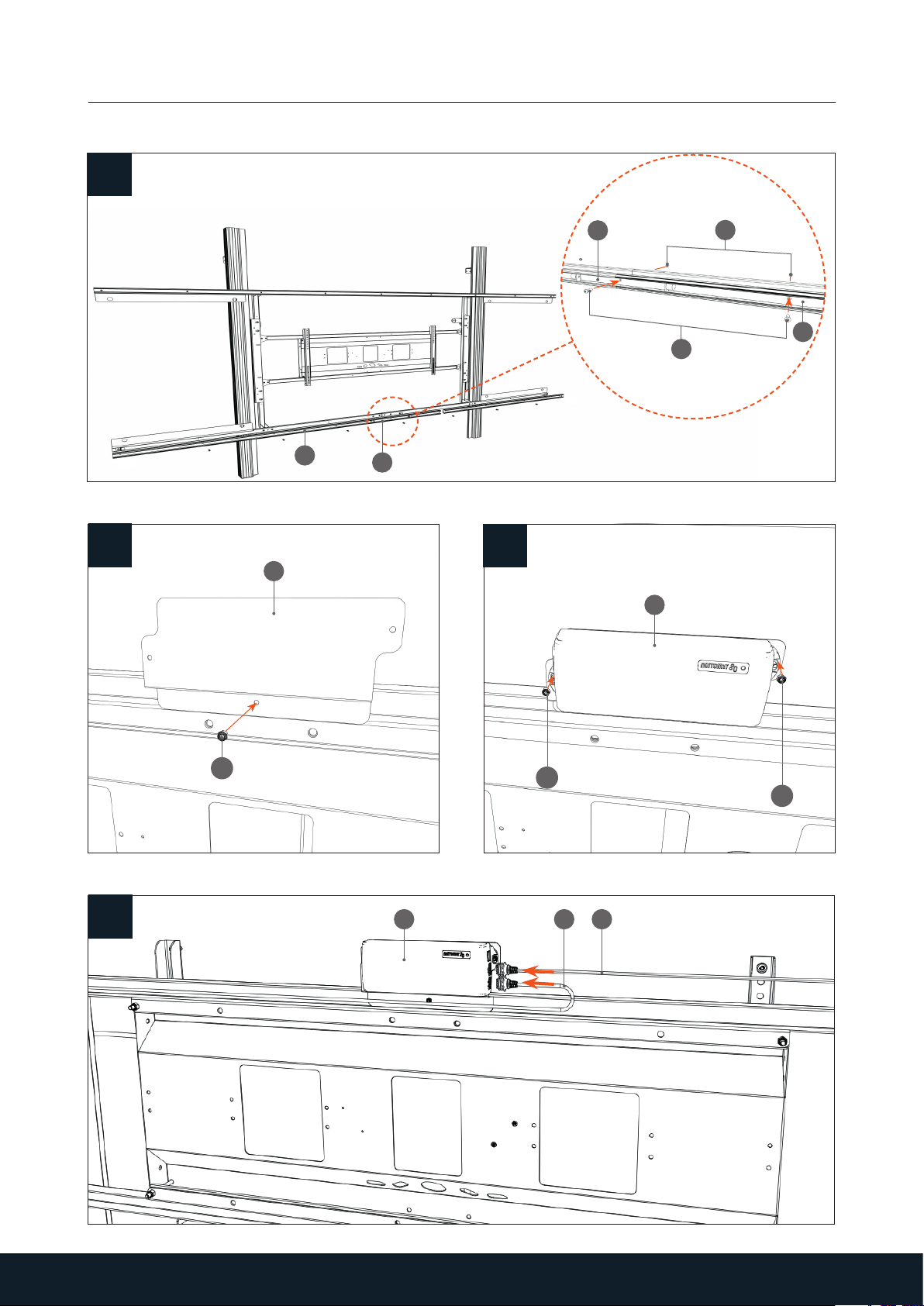

MOUNTING INSTRUCTIONS

The position of sliding block

3, resp. mounting angle 5

sets the lowest position of

the movement.

Bottom edge of

mounting bracket 5

Please check the

sliding movement

so that the dis-

play does not hit the ceiling.

If necessary, correct the positi-

on of the double sliding block

3or mounting plate 5.

Tighten the nut G

A/B

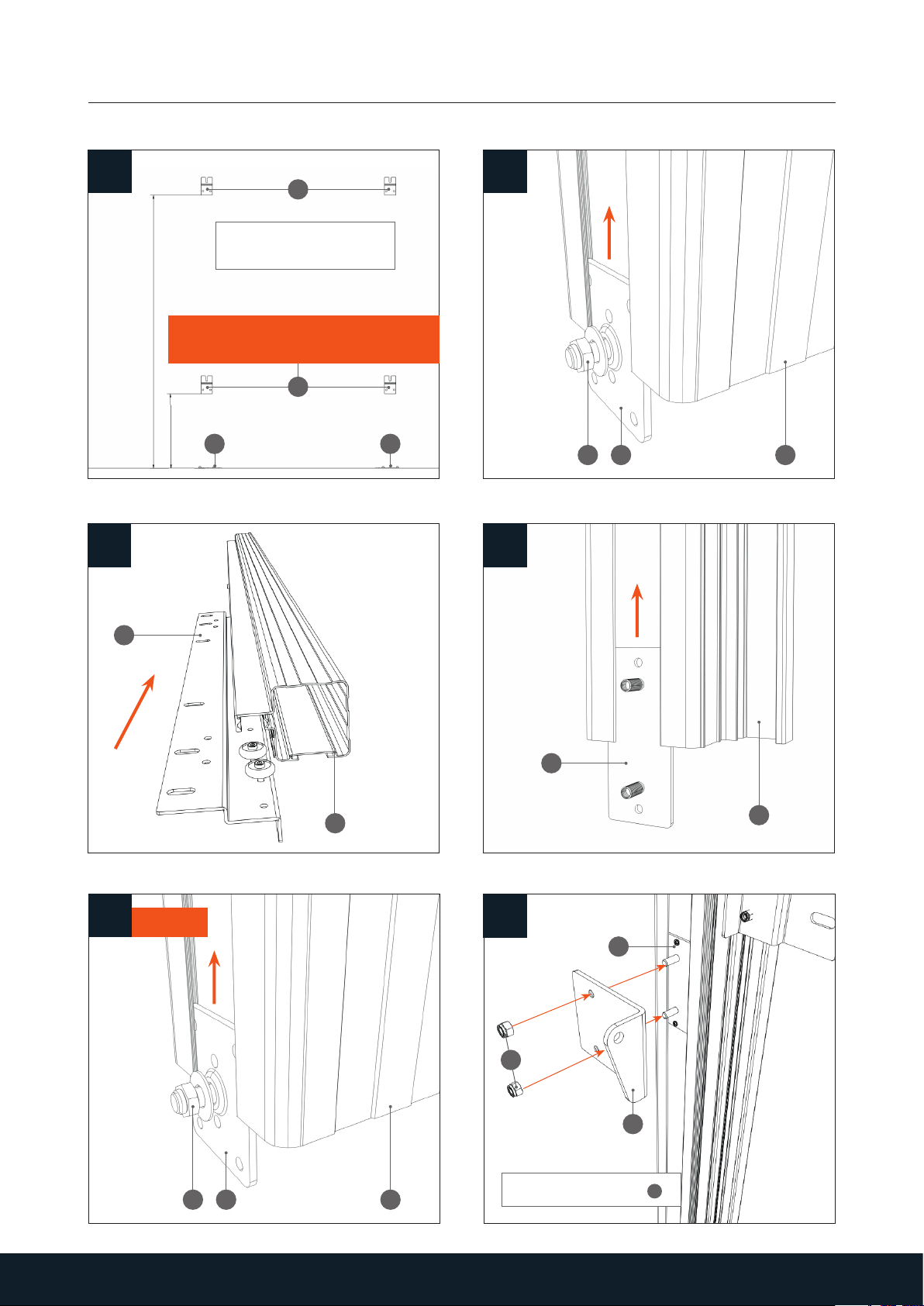

MOUNTING INSTRUCTIONS

Align with a

water level

Do not tighten

the nut G

Tighten the

nut G

Do not tighten screws L

10/11

MOUNTING INSTRUCTIONS

Do not tighten

the nut M

Do not tighten

the nut O

10/11

V V

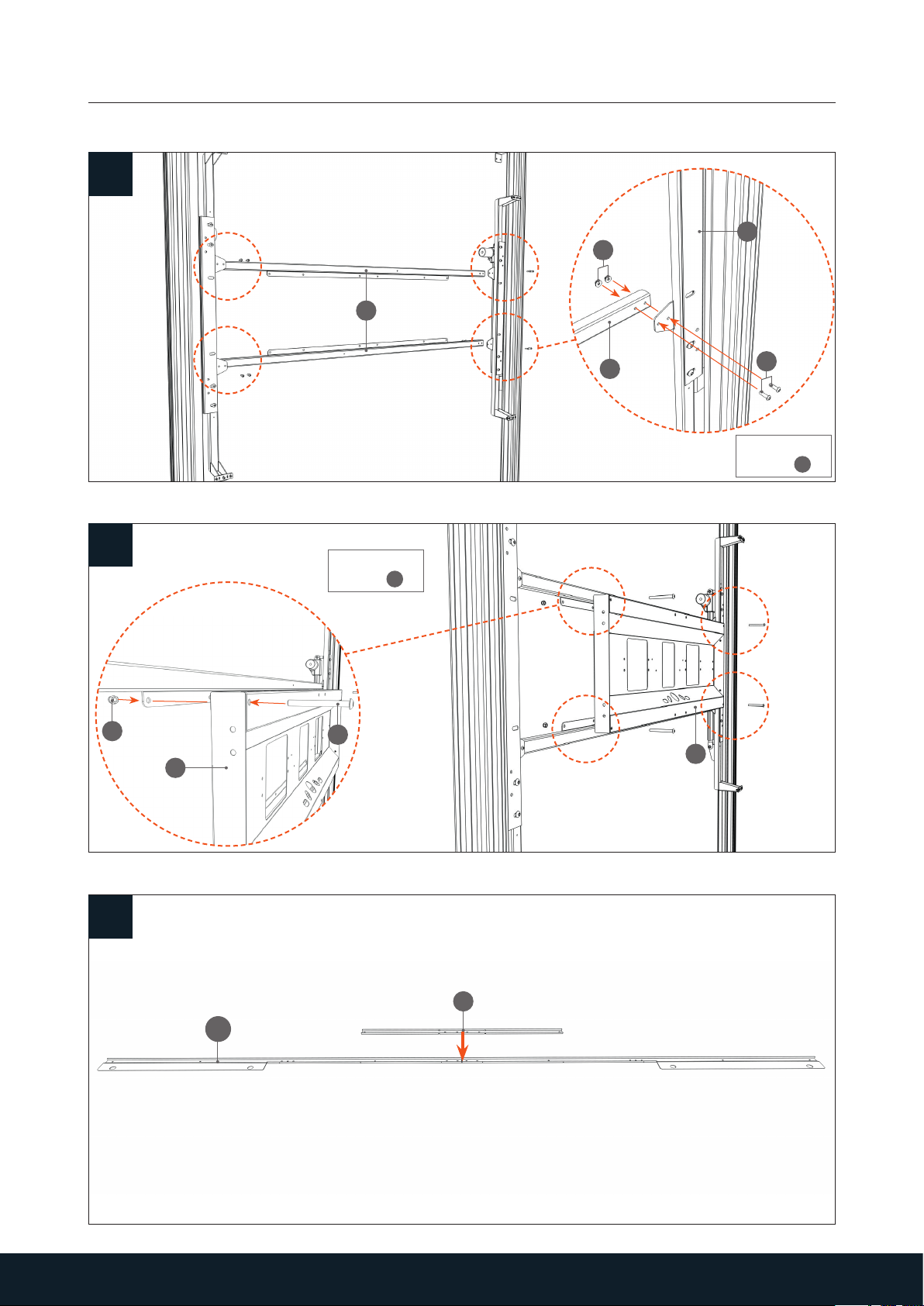

MOUNTING INSTRUCTIONS

Tighten the screws L

This step twice!

10/11

MOUNTING INSTRUCTIONS

Tighten all screws!

30 6.36.3

31 6.36.36.2

29 30

6.2

Q/R Q/R

Q/R

MOUNTING INSTRUCTIONS

Optional – without anti-collision Cable routing rear
