Conex DT-55 Manuale utente

DT-55 Telephone

Remote Control

Operating Manual

Specifications:

Size: 9 .43" x 2.9" x 1.13"

Mounting: #6 mounting holes on wide and narrow flanges

Power requirements: +8 to 20 VDC @ 80 mA nominal

110VAC wall adapter supplied

Relay Contacts: Single Pole Double Throw

Relay Contact Ratings: 1A 30 VDC

Max Input Logic Voltage Range: 0 to +12 V max. (1.6 mA in @ 12V)

Max Input Voltage to Sense Logic Low: +1V

Input Current (using external switch): 50 µA

Ringer Equivalence: 0.2

Access Codes: 1023 four-digit codes

Access Code Tries Before Hang-Up: 3

FCC Registration Number: 3H1USA-20367-OT-N

DT-55

Telephone Access Remote Control and

Status Monitoring System

The Conex DT-55 answers a phone line, accepts a user access code, then allows remote control

of ten SPDT relays and remote monitoring of ten external switch contacts or logic levels. The DT-

55 is simple to understand, simple to install, secure, and effective.

_____________________________________________________________________________

• Compact 9.43" x 1.13" x 2.9"

• Magnetic latching relays. On power loss and restoration, the relays can retain their prior

states or return to the de-activated state. Each relay can be set, cleared or activated

momentarily ( for the duration of the push-button actuation on the calling telephone ).

• Relay interlock mode allows easy use as a remote-controlled audio selector.

• All IC's and relays plug in for easy maintenance.

• Miniature screw-clamp terminal strips for easy connection to your external circuits -- no

crimp pins, spade lugs or special tools required.

• Switch-selectable four-digit access code (can be disabled if desired).

• Easily distinguishable tones indicate the high-low or open-closed status of the ten

external inputs. Each input is individually polled by the user.

• Status lights indicate ringing signal, power, DTMF tone detection, line-connected status,

and access granted.

BASIC OPERATION

The DT-55 allows the remote control of 10 SPDT relays from any Touch-Tone telephone

standard telephone network. It also allows the user to check the status of 10 logic-level or switch

contact inputs, through easily distinguishable audio tones.

The DT-55 is connected to a phone line with a standard 6 position modular cable. When the DT-

55 is called, it will answer after the 3rd ring. If the access code feature is enabled, the caller will

hear the access code prompt, a “beep boop”. When the correct access code is entered, the caller

will hear the 3 tone “command prompt”.

At this time the caller may turn any of the relays on or off using the Touch- Tone keys on the

telephone, request the status of any relay, or request the status of any of the 10 logic inputs. The

status is indicated by either a single low-pitched tone for “off”, or two short high-pitched tones for

“on”. An error by the caller is indicated by a low-pitched pulsing tone.

SETTING THE ACCESS CODE

The access code is a four-digit number that the user must enter before the DT-55 will allow any

further functions to be used. This code is set into the DT-55 by a switch under the top cover. This

cover is removed by removing two small screws. If the access code is set to 0000, the unit will

allow all functions without the caller first entering an access code.’

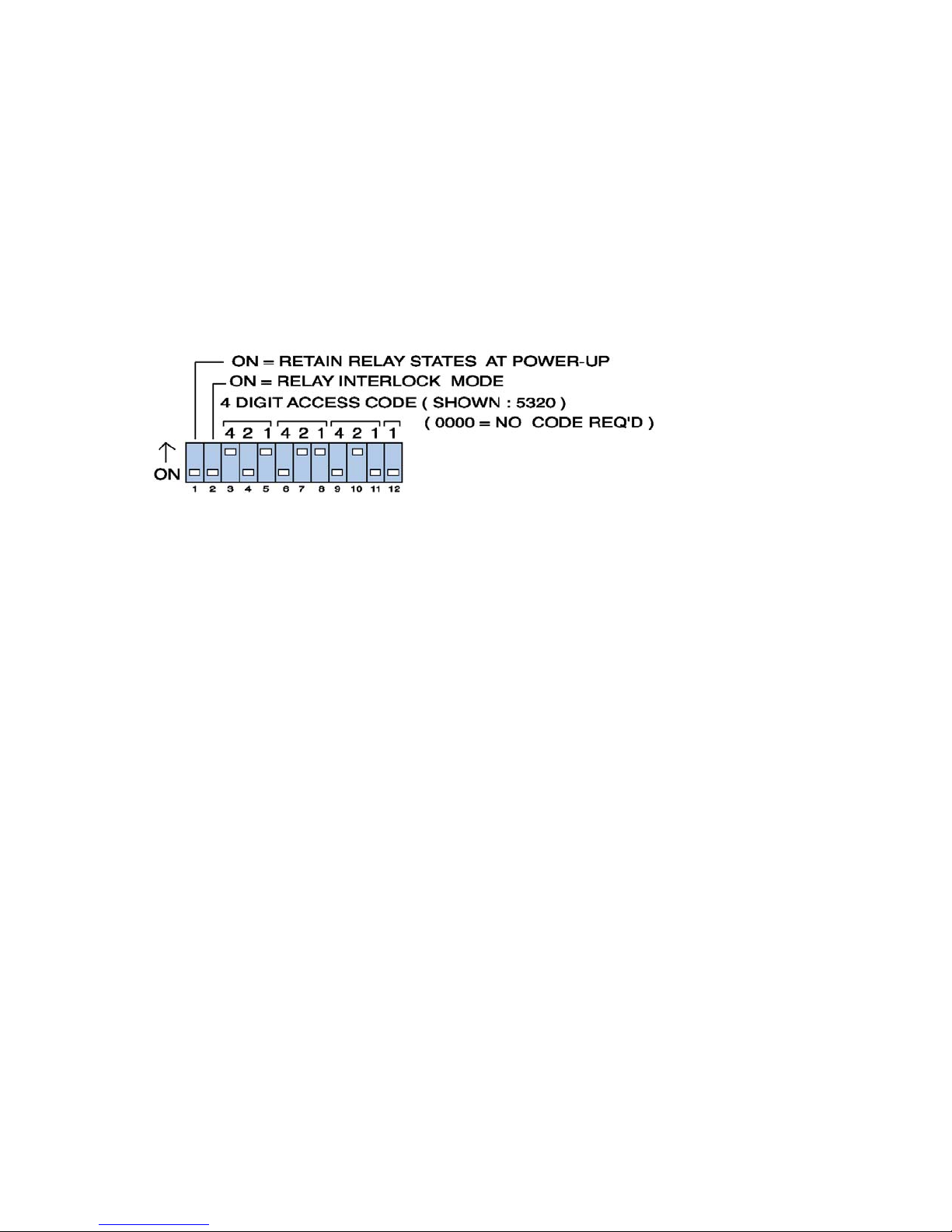

The access code is determined as shown:

Only switches 3 - 12 (the 10 right hand positions) are used for the access code. Each switch has

a digit value as shown in the diagram. In the example shown, the first digit, 5, is determined by

the 1 and 4 switches being set to the “on” position and 2 to “off”. the next digit, a 3, consists of the

4 being off and the 1 and 2 being on. The last digit has only one switch; therefore the last digit

of the access code must be a 1 or a zero.

This scheme may be familiar to you as the octal number system. If the code is set to 0000 (all

switches in the OFF position) no access code will be needed to use the DT-55. There are 1023

usable 4 digit codes, with the highest number being 7771. Not that none of the digits can be 8 or

INSTALLING THE DT55

To install the DT-55, connect it to the phone lie with a standard 6 position modular cable, as you

would any extension phone. Connect the wall power adapter. The red POWER LED should light.

The DT-55 may be mounted to a wall or to a blank rack panel using the mounting holes provided.

All external connections to the relays and logic inputs are made to the miniature terminal strips.

Strip about 1/8” of insulation off the wire and insert it into the hole. Now tighten the screw. The

relay symbols on the box are shown in the “OFF” position.

For safety, do NOT connect 110 VAC circuits to the relays.

Each logic or switch input is pr4ovided with two terminals, a “ground” pin and an input pin. These

terminals may be connected to any pair of switch contacts such as external relays, thermostats,

magnetic reed door switches, etc. The inputs may also be connected to external open-collector

circuits or 5 - 12 V logic signals.

Note that all the inputs have the same common. This common is not connected to power-mains

ground since the AC adapter module output is isolated. However, the input common is internally

connected to the circuit ground and the metal enclosure of the DT-55.

If a DC power supply other than the supplied wall adapter is used, not that the input common and

metal enclosure are connected to the negative side of the DC input jack. Any DC power source

supplying a +8 to 20 VDC at 80 mA may be used.

SETTING THE OTHER SWITCHES

The left two switches (switch positions 1 & 2 on the diagram above) enable two DT-55 options:

If switch #1 is on, then after a power interruption, the relays will retain their previous states when

power is restored. (The relays are magnetic latching) If switch #1 is off, then all relays will be

cleared to their "off" state when power is restored.

Switch #2 puts the DT-55 into the "Interlock Mode". In this mode, only one relay may be on at a

time. If any relay is turned on with a momentary touchtone from the caller, all other relays will be

turned off. This mode would allow the DT-55 to be used as a simple remote-control audio routing

switcher, for instance. In this application, all the relay commons could be tied together and

connected to the audio destination, and all the relay normally open contacts would be connected

to various audio sources.

If switch #2 is off, the DT-55 is in its normal mode, allowing individual control of all 10 relays.

CALLING THE DT-55

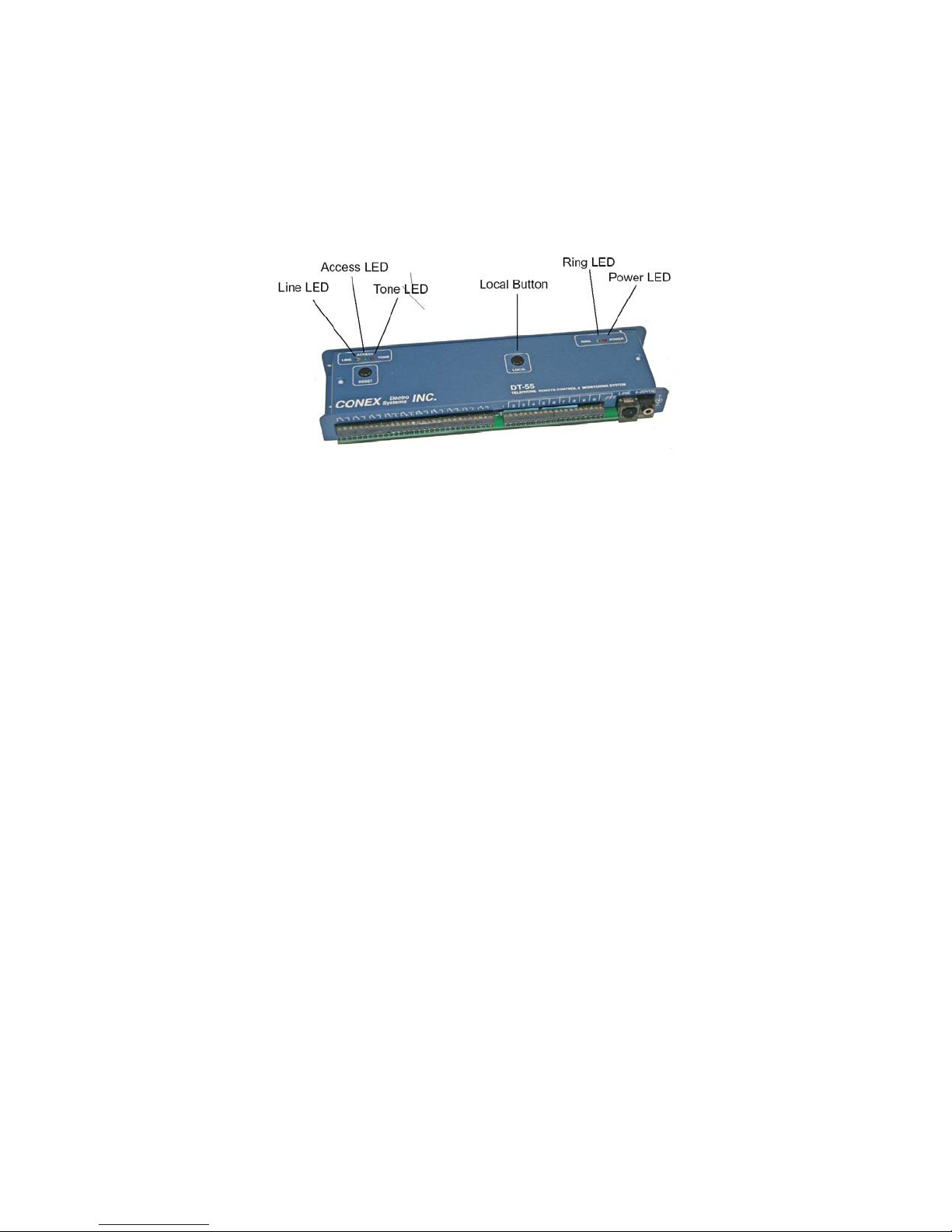

When a call is received by the DT-55, the yellow RING LED will light each time the ringing signal

is detected. The call will be answered after the third ring. At this time the LINE LED will light, and

the caller will hear a "beeboop", indicating that the DT-55 has answered the line. If an access

code is required, the code should be entered at this point. If a correct access code is not entered

after three tries, or if more than 48 seconds elapses before a correct code is entered, the DT-55

will hang up.

When access has been granted by the DT-55, the green ACCESS LED will light and the caller

will hear the a rising sequence of three tones ("DoodleBeep"). This is the command prompt,

which signifies that a command may be entered. If the access code feature has been disabled ,

as described above, the green ACCESS LED will light and the command prompt will be heard as

soon as the call is answered.

If no commands are detected for 10 minutes, the DT-55 will hang up. This prevents some un-

foreseen condition, such as a wrong number, from indefinitely causing an off-hook condition. The

DT-55 can be caused to unconditionally hang up with the command * # *.

All the three - tone command prompts may be disabled or re-enabled by pushing the * button four

times. This feature allows slightly faster actuation of the relays. The prompts are automatically

enabled each time the DT-55 is called. A new command should not be entered before the

response tones are over.

CONTROLLING THE RELAYS

After the command prompt, pushing a number key on the phone ( 0 - 9 ) will turn the

corresponding relay on for as long as the key is held down. If the unit is in the "interlock mode", a

momentary key press will latch the selected relay on and turn all others off.

To latch a relay on, simply push the # key followed by the relay number. To turn a relay off, push

the # key twice followed by the relay number.

Pressing the # key 3 times will turn all relays off.

If you wish to terminate a relay command before it is completed, press the * key.

POLLING THE RELAY STATUS

To find out, or "poll", the current state of any relay, push the * key three times followed by the

relay number. The DT-55 will respond with a single low-pitched tone ( booop ) if the relay is off, or

two short high-pitched tones ( beepbeep ) if the relay is on. Note that if the power has failed since

the DT-55 was last called, the state of the relays may be the same as previously set (see

"SETTING THE OTHER SWITCHES", above), but the state of the relays cannot be determined

by polling. In this case, instead of the normal tones, the DT-55 will give an error tone, a low-

pitched pulsating tone. Once another relay command is received, that relay's state will once again

be known and may be polled.

POLLING THE STATUS OF THE INPUTS

To determine the state of the 10 input circuits, press the * key followed by the channel number.

Assuming that external switches are connected to the input terminals, the status tone will be a

"booop" if the switch is ON, or the beepbeep if the switch is OFF. Note that "ON" would

correspond to a low logic level, since one side of the switch circuit is ground.

To find out if the status of any input has changed since the DT-55 was called last, press the * key

twice followed by the channel number. If the channel has changed at least once, the tone

(beepbeep) will be heard. If not, the tone (booop) will be heard.

POWER-FAIL STATUS

When the DT-55 answers a call, and before access is granted, a rapid series of alternating high

and low pitched tones will be heard if the power has failed since the last call was made. This is an

indication that the unit is not able to be polled for the relay status, and also that it is not known

whether any of the logic inputs have changed state since last polled.

LOCAL OPERATION

With the DT-55 connected to the phone line, you might wish to test the unit without calling it from

another phone line. If there is a phone connected to the same line as the DT-55, call any number,

preferably one that will be answered by someone who can put your call on hold while you test the

unit. Or, if you call your own number, you will receive a busy signal. Then hold the LOCAL button

down, on the DT-55, until the line is answered, as indicated by the LINE light. You can then

proceed to use the phone to test the functions of the DT-55, even though you will still hear the

busy signal in the background.

RESET BUTTON

If a power transient or some other unusual condition causes the DT-55 to lock up or otherwise

behave incorrectly, pushing the RESET button will completely clear the unit to its initial power-up

state.
