PRO-12UL User Guide
PRO-12UL is a 2-port USB KVM switch that allows KVM control over 2 USB computer
Connecting the KVM Switch:
Operating the KVM Switch:
1. Nothing needs to be installed on any computer to be operated with the KVM Switch. Once it’s all
plugged in – you should be ready to go.
2. To switch ports manually, you can hit the button on the top of the KVM switch.
3. To operate the KVM with keyboard hotkeys, there are several commands listed below. They will
allow you to switch ports, auto-scan, and turn the beep on or off.
Switch to Next PC
[Left Ctrl] [Left Ctrl] [A]
Switch to Port 1
[Left Ctrl] [Left Ctrl] [1]
Switch to Port 2
[Left Ctrl] [Left Ctrl] [2]
Toggle Beep On/Off
[Left Ctrl] [Left Ctrl] [Left Arrow]
Auto- Scan
F1: 5 Sec / F2: 10 Sec
F3: 20 Sec / F4: 40 Sec
F5: 60 Sec
[Left Ctrl] [Left Ctrl] [Function #]
1. To install your KVM Switch, you’ll want to
first connect the included power adapter. In
many cases the power adapter will be
unnecessary, though it’s use is recommended
to provide stability.
2. Next you’ll want to connect your monitor,
keyboard, and mouse. All these will plug
into the ports on the right side of the switch,
that are labeled ‘Console’.
3. Included with the USB KVM Switch are 2
KVM cables which are used to connect your
computers to the switch on ports PC1 and
PC2. For each cable – the side with a 15-pin
connector will plug into the KVM switch, and
the side that splits out will connect to your
computer’s video port and an open USB port.
To computer
video port
To computer
USB port
PRO-12UL User Guide
USB Hub Port:
The PRO-12UL includes a Hub port which allows you to connect an additional USB device such as a
printer or scanner. This 3rd USB port is located on the left side of the switch, by the power connector.
** Keep in mind devices connected to this port are only accessible
by the computer selected on the KVM switch. **
What are included:
•2-port USB KVM switch x 1
•6-ft or 3-ft all-in-1 USB combo cable x 2
•DC 5V 2A switching power adapter x 1
•weight-loader x 1
•Screw for weight loader x 2
Support:
toll-free: 888-999-1983 (in USA) , 8:30 a.m. ~5:30 p.m. Monday.~ Friday.
email: support@connectpro.com
web site: www.connectpro.com
Skype: connectpro_support
Address: 20525 Paseo Del Prado, Walnut, CA 91789, USA.

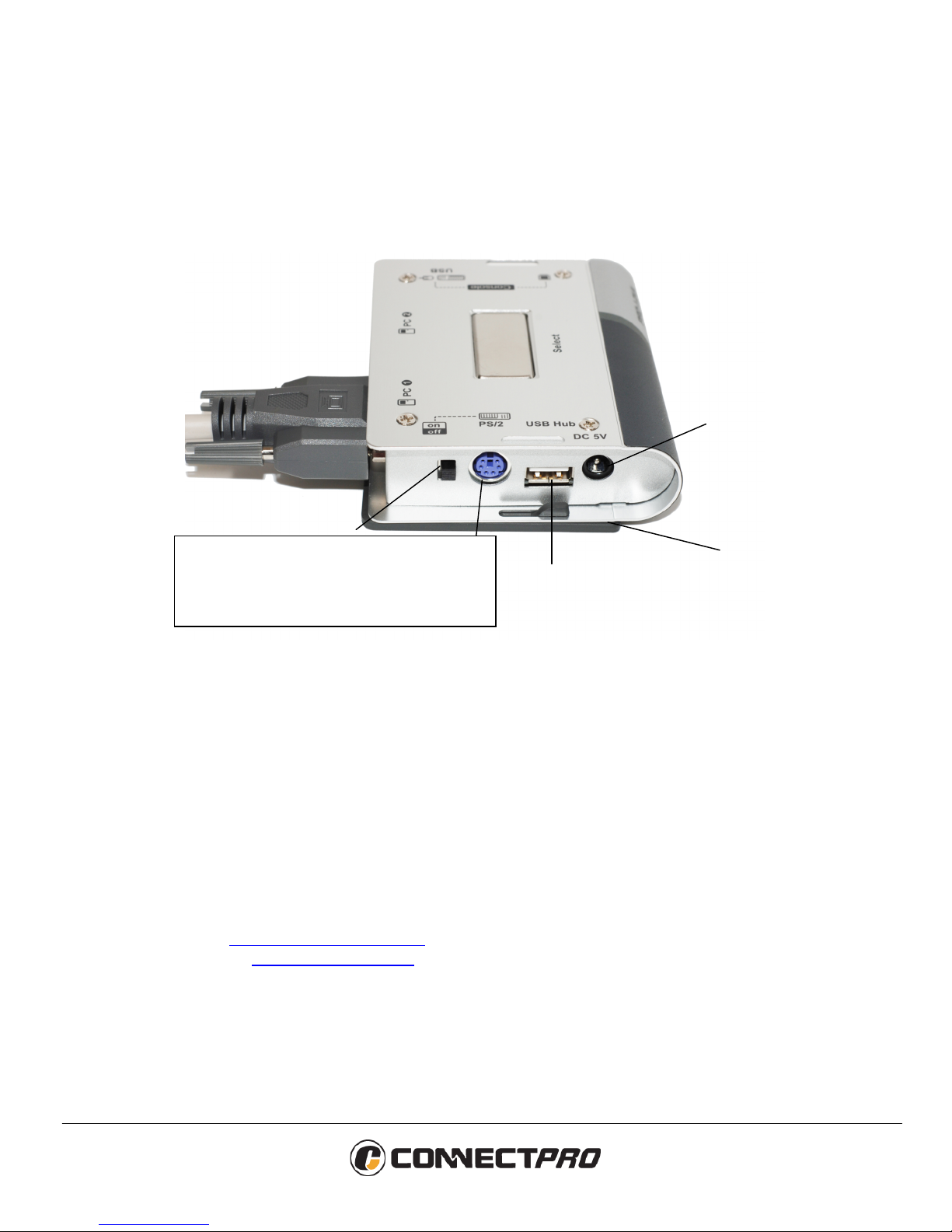

power
connector
weight-loader
USB Hub Port
•Default= OFF
This “on/off switch” is only for the OLD
PS/2 USB systems which DO NOT
have native USB configuration.
