Consultix CellWizard™ WTX-35-B

Multi-port CW transmitter

User Manual

Ver. 8.0 February 2021

No part of this manual may be produced or transmitted in any form or by any means

without prior written consent of Consultix.

Trademarks

Consultix is a trademark of Consultix Company. All other trademarks mentioned in this

manual are the property of their respective holders.

Notice

The information in this manual is subjected to be changed without notice. Every effort

has been made in the preparation of this manual to ensure the accuracy of the contents,

but all statements, information, and recommendations in this manual do not constitute

the warranty of any kind, expressed or implied



Contents

Contents.......................................................................................................................... 1
Overview......................................................................................................................... 2
Introduction............................................................................................................................2
Key Features...........................................................................................................................2
Applications............................................................................................................................2
Safety Compliances & Precautions.................................................................................... 3
Setup & Installation ......................................................................................................... 4
Check the package..................................................................................................................4
User Interface.........................................................................................................................5
Functions Keys........................................................................................................................5
General Operations.......................................................................................................... 6
Preparations ...........................................................................................................................7
Main Menu .........................................................................................................................7
Start Test ............................................................................................................................7
Saved Channels...................................................................................................................7
New Channel ......................................................................................................................8
Settings menu.....................................................................................................................8
Memory Status...................................................................................................................9
Starting a test scenario..................................................................................................... 9
Start a new test ......................................................................................................................9
Recall saved configuration ...................................................................................................10
Save a re-usable Configuration ............................................................................................10
Upgrade WTX-35-B4....................................................................................................... 11
Activating a new upgrade with a key-code ..........................................................................11
Specifications................................................................................................................. 12











Overview

Introduction

Consultix WTX-35-B4 is a handheld test transmitter that generates CW (Continuous Wave)

signals with a maximum output power of 15 dBm. It is compact, portable, lightweight and

easy to use for indoor coverage test scenarios.WTX-35-B4 operates over most of wireless

frequency bands; 2.6 GHz, 2.5 GHz, 2.1 GHz, 1.8 GHz, 900 MHz, 850 MHz, 700 MHz, 400

MHz, 3.5 GHz (optional) and others.

Key Features

•4 adjustable frequency channels & simultaneous transmission.

•Adjustable output power range: -10 dBm to 15 dBm (according to

the frequency band)

•100 KHz Frequency step

•Best output power accuracy of ±1 dB

•Up to 24 Memory channels

•Light weight < 0.7 kg

•Ergonomic user interface

•Functional Keypad

•LCD display

•Battery Operation

•Versatility & Upgradability

Applications

•CW Measurements

•Walk-Tests

•IBS Path Loss Measurements and DAS Performance Evaluation

•In-Building Coverage Enhancement

•General Purpose Signal Generator

Safety Compliances & Precautions

In order to use the WTX-35-B4 in a correct, efficient, safe way, and to avoid damage caused

by improper operations, you are recommended to:

A. Use only the original accessories to prevent any damage to the device.

B. To not affect the radiation pattern, don't touch the antenna during operation.

C. It is preferable to connect the antenna before switching RF power on.

D. Don't let water or other liquids flow into the device.

E. Prohibit approaching the device to flammable or explosive items.

F. Don't open the device outside company maintenance branches.

G. For the first time usage of the device, the battery should be charged continuously 10

hours before usage.

Setup & Installation

Check the package

Please unpack and inspect the shipping package to make sure that you have received all the

parts without damage; the shipping package is shown in table 1.

WTX-35-B4

Power Adapter

Carrying Case

Table 1: WTX-35-B4 Packing list

For any issue regarding the shipment package, please call your agent or our nearest service

office or contact us through support@consultix-egypt.com

User Interface

Figure 1 below depicts the Front Panel of the WTX-35-B4.

Charging Interface USB Interface

(12 Vdc) (FW Upgrade)

Figure 1: WTX-35-B4 User Interface

Functions Keys

Bottom Panel

Fron

t Panel

Back Cover

Antenna Interface

LCD Display

Keypad

Battery Compartment

1) ON/OFF: Switching on & switching off the device

2) Numeric Keypad: Writing numbers, characters or space

3) Escape: Going to previous menus, or canceling entered data

4) Save: Saving the current configuration channel

5) : Editing values or names

6) Enter: Entering to submenus, accepting choices, going to fine-tuning for amplitude

and frequency adjustment

7) Up & Down arrows: Moving up and down between menus, or fine-tuning of amplitude

and

frequency (after clicking the “Edit” key as per (5) above)

8) RF ON/OFF: Starting or stopping RF power transmission

General Operations

Preparations

•Connect the power adapter to the charging socket

(For the first-time usage of the device, the battery should be charged continuously

10 hours)

•Switch On the device by a one-second press on the On/OFF switch

•Connect the antenna to the device; The device now is ready to start RF transmitting

In the following section, the menus of the WTX will be described in details before going

through illustrating different operations of the unit

Main Menu

This menu contains all available functions that can be

applied for the transmitter like starting a test, saving a

test channel, going to system settings and checking the

device memory.

Start Test

This will recall all configurations for the last test setup including Freq. (MHz), and Amp.

(dBm). And you can modify afterward.

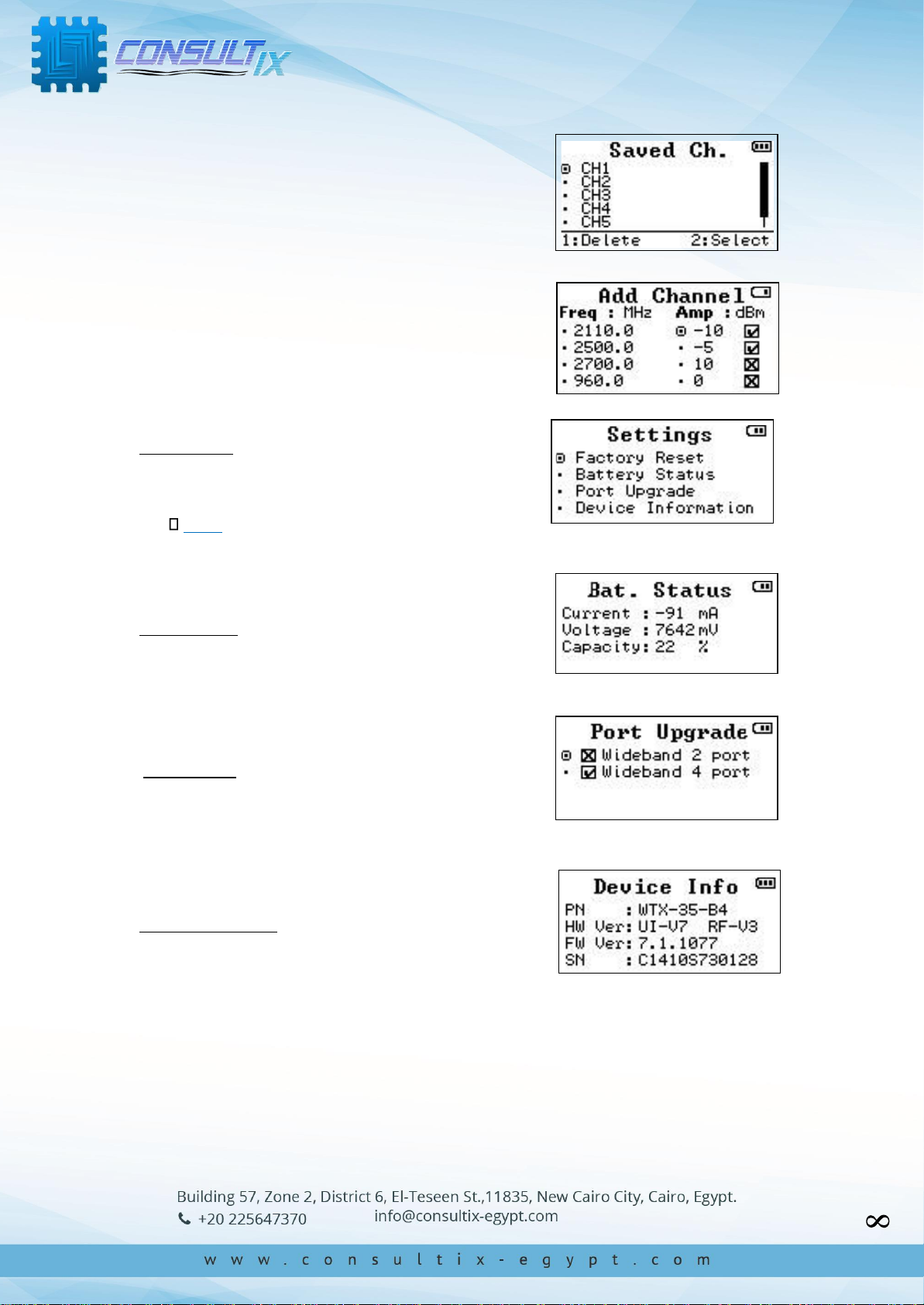

Saved Channels

This menu contains the saved test channels with all of its configurations. Use Key (1) to

delete a saved test channel and use Key (2) to select a test channel.

Menu Choices

)

Freq. & Amp

(

Charging Indicator

Bat

tery Indicator

Menu Title

RF Indicator

channel

configuration

New Channel

this menu adds a new channel to the device memory for

future use.

Settings menu

Factory Reset: This function is used to restore WTX

factory settings. It will delete all saved test channels from

your device

Note: This action will erase activated Key-codes

license

Battery Status: This function is used to show the device

battery’s status.

Port Upgrade

This menu provides information about activated features

and available upgrades

Device Information:

This menu provides the device information; like serial

number, Firmware & Hardware version and others
