CONTINENTAL EDISON CECP701FSA Manuale utente

Manuel d’instructions de la

PLAQUE DE CUISSON INDUCTION

CECP701FSA

Cooking Hob

Cooking Zones 4 INDUCTION

Supply Voltage 220-240V 50/60 Hz

400 V 50/60 Hz

Installed Electric Power

(W) 7200

Product Size

D×W×H(mm) 590×520×55

560×490

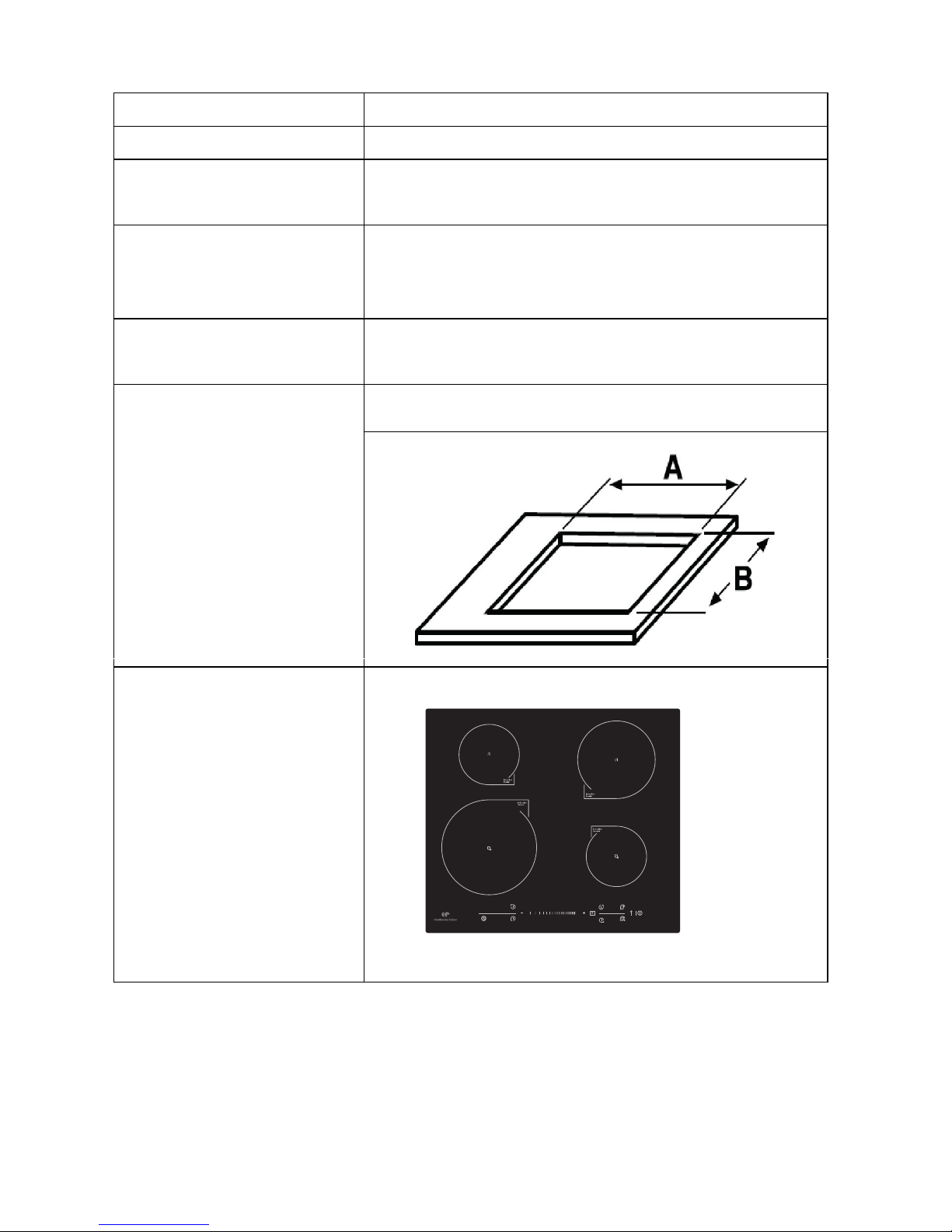

Building-in Dimensions

A×B (mm)

Induction Hotplate

Appearance

CECP701FSA

Working Principle

The induction hotplate is mainly composed of an induced heating coil, hotplate

made of ferromagnetic materials and control system.

In principle, current generates a powerful magnetic field via the coil. Large

numbers of vortexes are produced in the way that the magnetic lines in the

field contact the bottom containing iron or stainless steel substances. The

tremendous energy generated by the vortexes can heat the food directly by

converting efficiency heat energy penetrating through the bottom.

Figure (1)

Product Introduction

The induction hotplate can meet various demands of cuisine by

electromagnetic heating, with micro-computerized control and multifunction,

really the optimal choice for modern families.

The induction hotplate centers on customers and adopts personalized design,

and which will make your life comfortable and enabling to fully enjoy the

pleasure of life.

We have designed this hob for private use in home.

Dear customer:

Thank you for purchasing the the induction hotplate our product can

serve you many years to your satisfaction.

Please read this instructions manual carefully before using and

installation, keep it cautiously after reading for future reference.

Thank you for your purchase of the induction hotplate again, and wish

you to enjoy the pleasure by it.

Over- Temperature Protection

A temperature sensor equipped can monitor the temperature inside the

hotplate. When an excessive temperature is monitored, the induction hotplate

will stop operation automatically.

Pot Detection

When an unsuitable size or non-magnetic pot (e.g. Aluminum), or some other

small item (e.g. knife, fork, key) has been left on the hob, or the pot has been

removed, the hob can stop heating immediately. If there is no suitable pan put

on the right hob in one minute, the hob will go automatically into the standby

state, and the buzzer will sound for warning at one time.

Heat Indication

When the hotplate is used for a long time, waste heat remains in the heating

zone in a few minutes. The code “H” appears, warning to be away from the

heating zone.

Protection of Shutting Down Automatic

Shutting down Automatic is a safety protection function for your induction

hotplate. It will shut down automatically if you forget to turn off your cooker.

The default working times for various power levels are shown in the

following table:

Power level The heating zone shut down automatically

after

1~5 8 hours

6~10 4 hours

11~14 2 hours

*Remind:

The patient with a heart pacemaker shall use this product under the guidance

of the doctor.

15 1 hours

Selection of installation equipment

Drill holes on the table surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 50 mm space shall be

preserved around the hole.

Be sure the thickness of the table surface is at least 30mm. Please select

heat-resistant table material to avoid larger deformation caused by the heat

radiation from the hotplate.

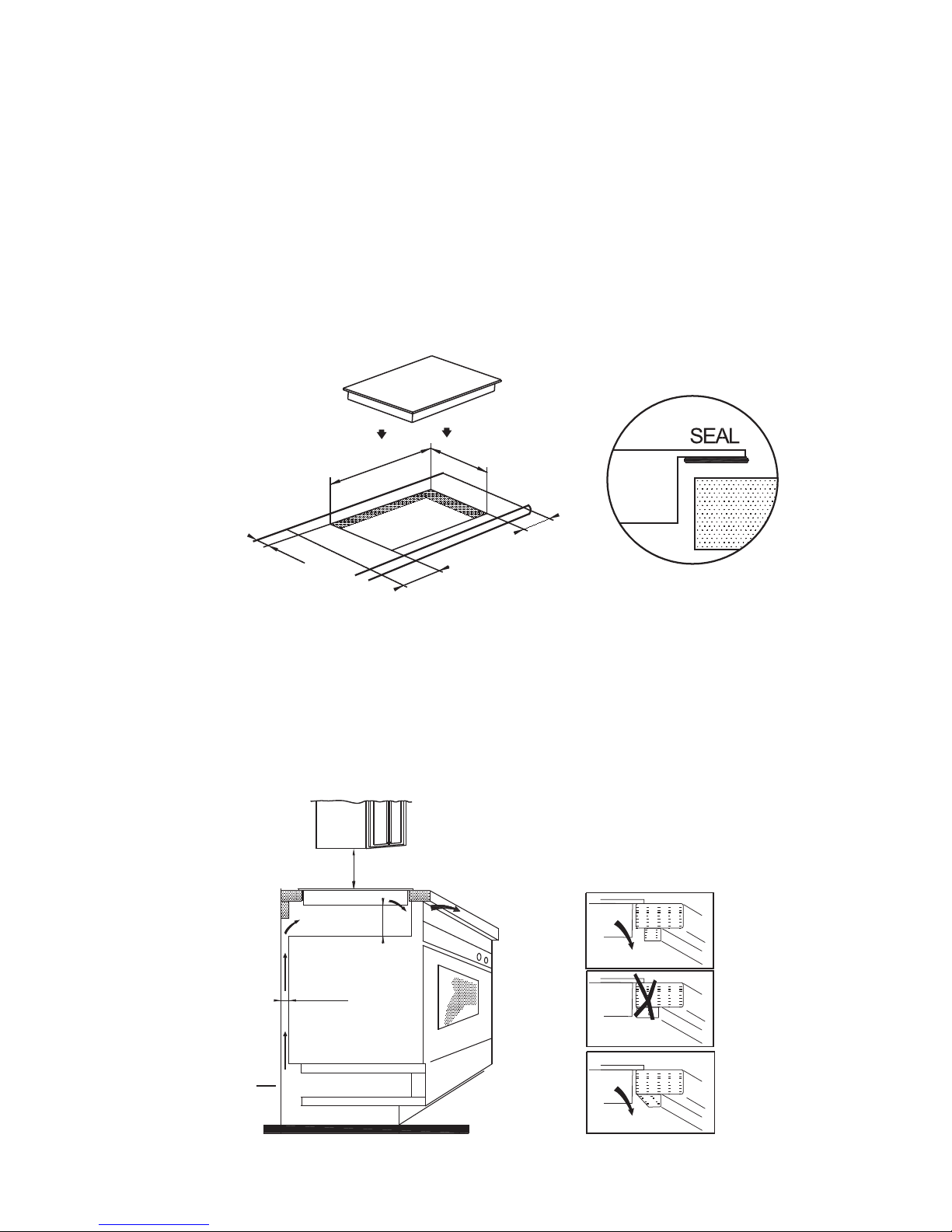

As shown in Figure (2)

Under any circumstances, make sure the induction hotplate is well ventilated

and the air inlet and outlet are not blocked.

Ensure the induction hotplate is in good work state.

As shown in Figure (3)

Figure (3)

Figure (2)

5cm mini

5cm mini 5cm mini

56 cm

Air intake

mini 5 cm

mini 760mm

mini 2 cm

Air exit

mini 5 mm

Note: The safety distance between the hotplate and the cupboard above the

hotplate should be at least 760mm.

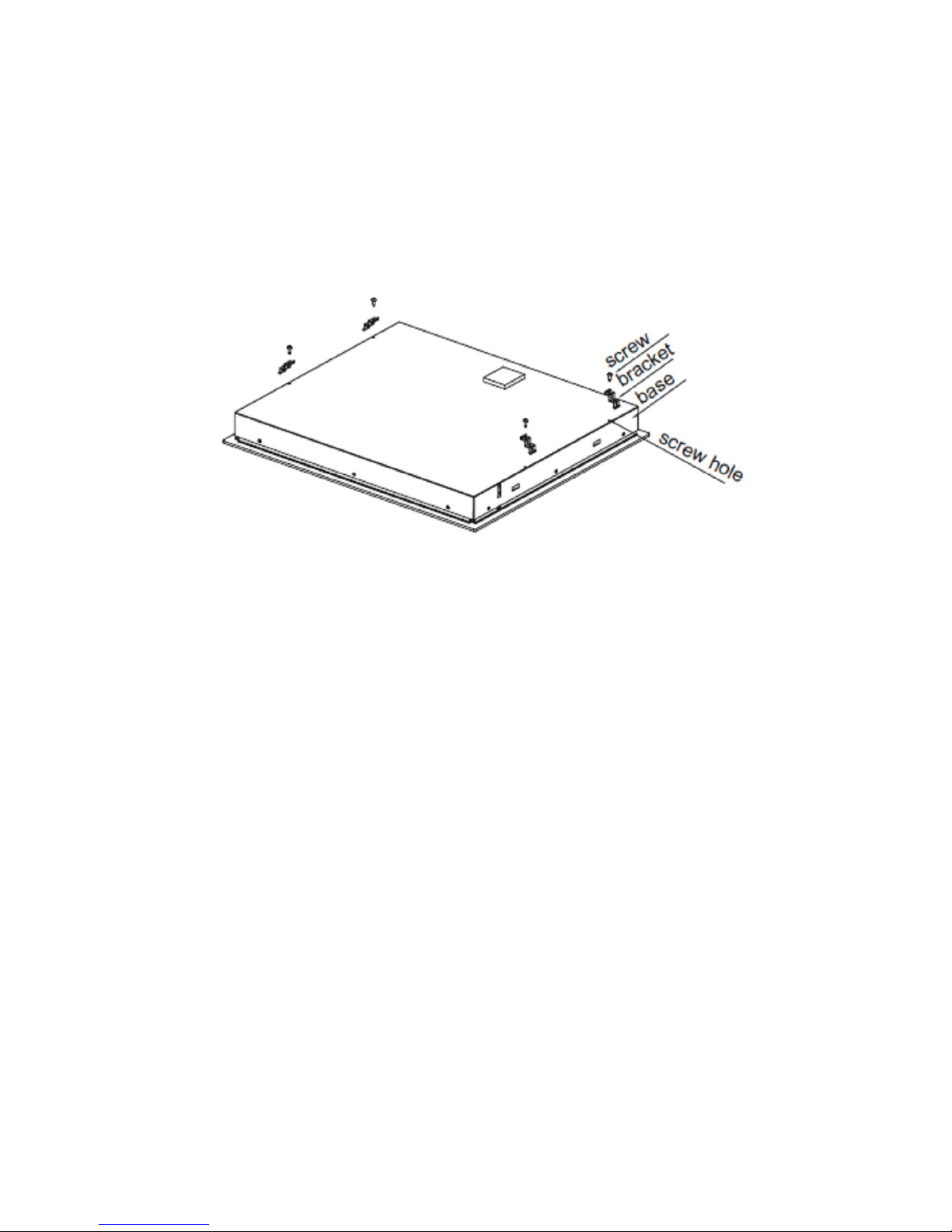

Fix the hob on the table by screw four brackets on the bottom of hob (as

shown in figure (4)) after installation. Adjust the bracket position to suit for

different table top thickness.

Figure (4)

Cautions:

1. The induction hotplate must be installed by qualified personnel or

technicians. We have professionals at your service. Please never conduct

the operation by yourself.

2. The induction hotplate shall not be mounted to cooling equipment,

dishwashers and rotary dryers.

3. The induction hotplate shall be installed such that better heat radiation can

be ensured to enhance its reliability.

4. The wall and induced heating zone above the table surface shall withstand

heat.

5. To avoid any damage, the sandwich layer and adhesive must be resistant to

heat.

ELECTRICAL CONNECTION

"The installation must conform to the standard directives."

The manufacturer declines all responsibility for any damage that may be

caused by unsuitable or unreasonable use.

Power line connection

The socket shall be connected according to the relevant standard or

connected to a single-pole breaker.

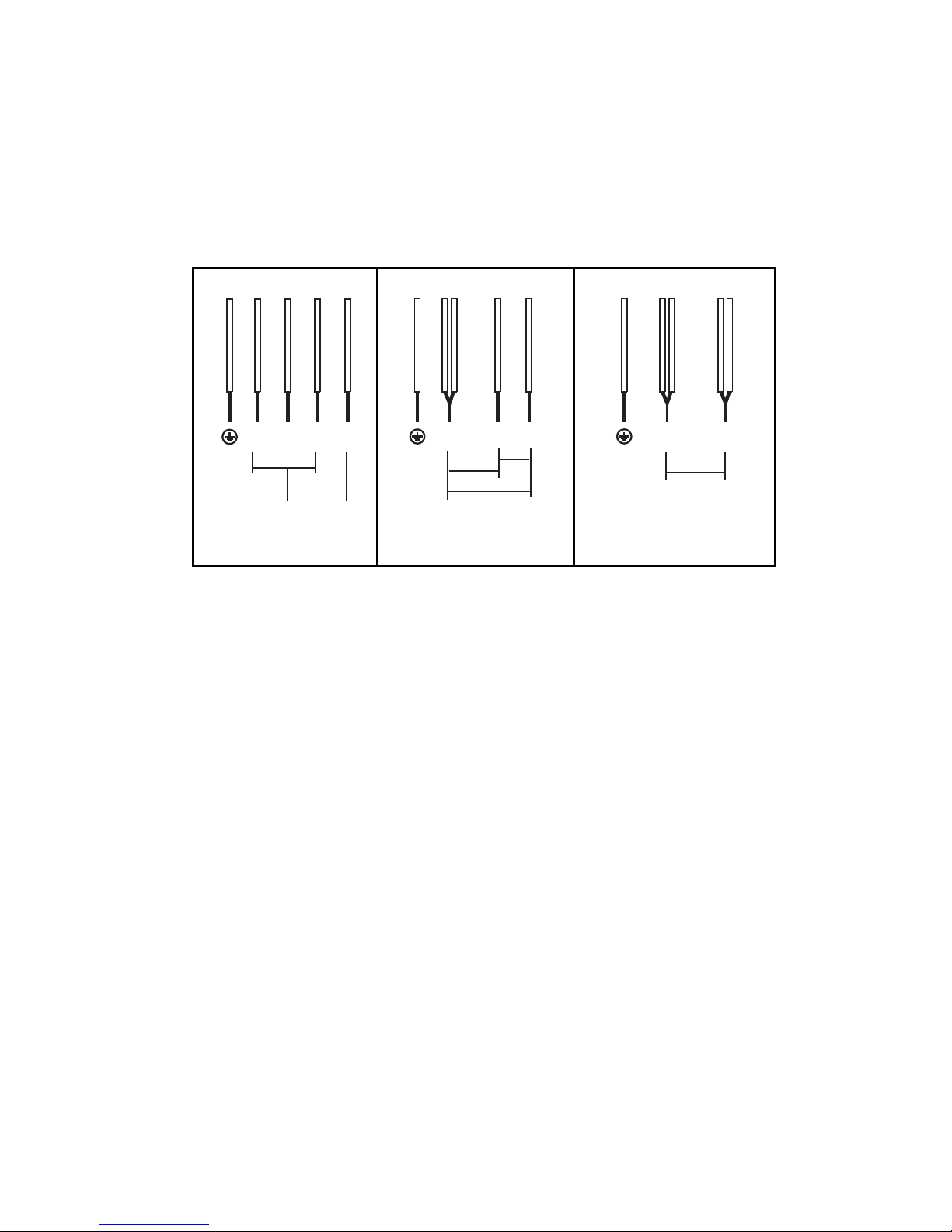

The method of connection is shown in Figure (5):

Figure (5)

blue

green-yellow

N2 N1 L2 L1

grey

brown

black

220-240V

blue

green-yellow

N L2 L1

grey

brown

black

400V

220-240V

blue

green-yellow

N L

grey

brown

black

220-240V

connet to the main power supply connet to the main power supply connet to the main power supply

220-240V 2+2N~ 220-240V~

400V~ 2-N

If the cable is damaged or needed to be replaced, the operation must be

carried out by the after-sale agent with dedicated tools to avoid any accidents.

If the appliance is being connected directly to the mains an Omni-polar

circuit-breaker must be installed with a minimum opening of 3mm between

contacts.

The installer must ensure that the correct electrical connection has been made

and that it is compliant with safety regulations.

The cable must not be bent or compressed.

The cable must be checked regularly and replaced by authorized technicians

only.

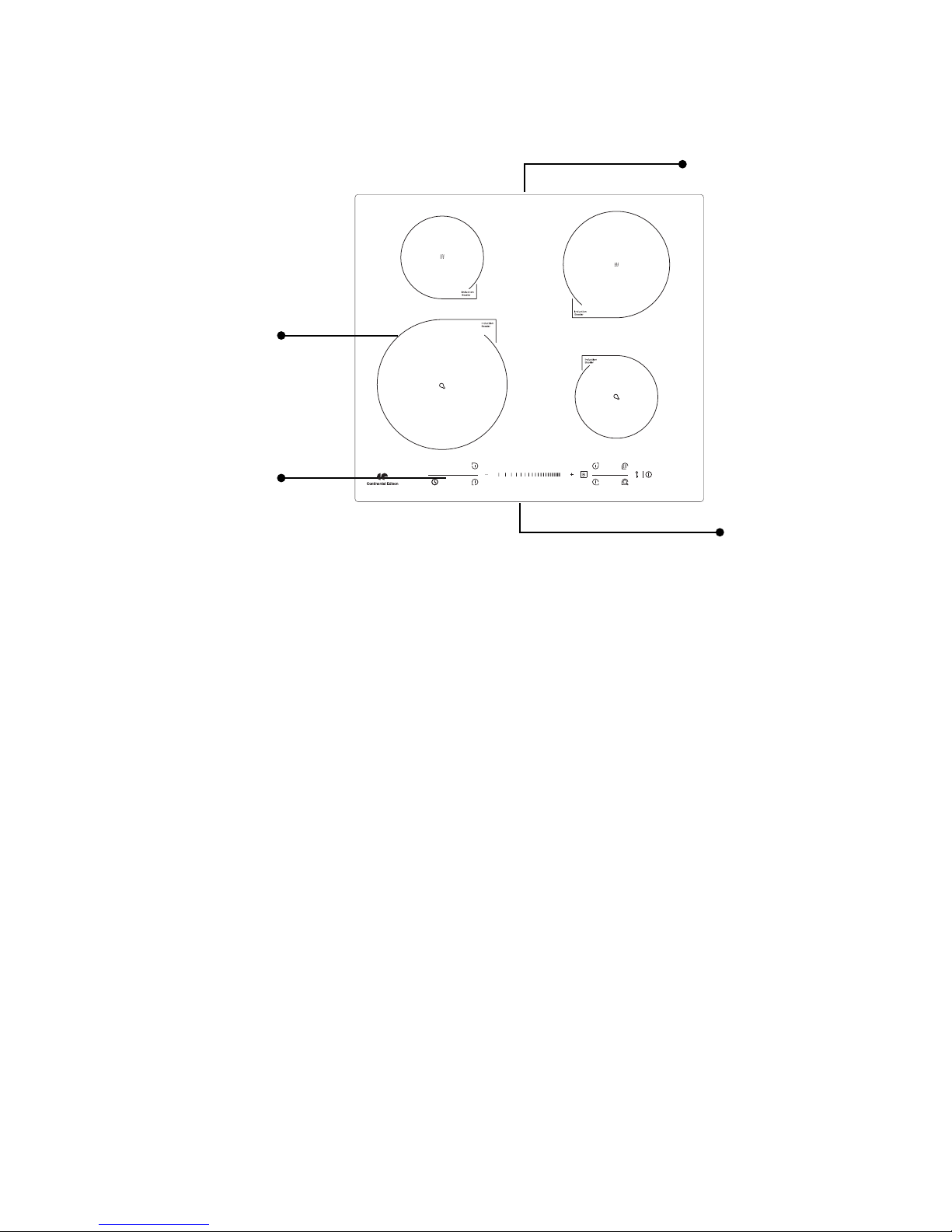

Induction Hotplate Appearance

Figure (6)

Air entry

Air vent

Ceramic plate

Control panel

1 4

2 3

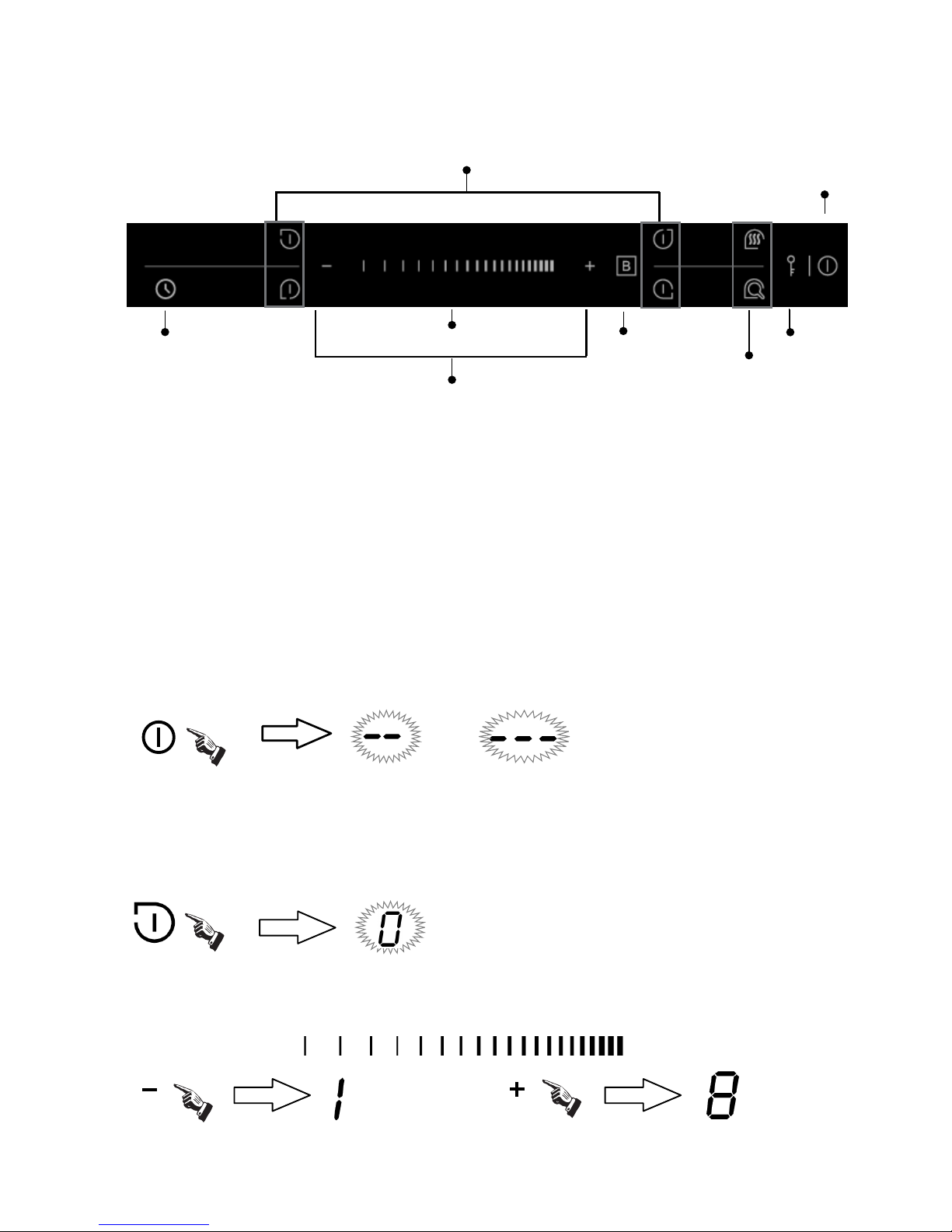

Schematic Diagram of The Control Panel

Figure (7)

Instructions For Use

Preparation Before Using:

After power on, the buzzer beep once, all the indicators light up for 1 second

and then go out, which indicates the induction hotplate enters the state of

standby.

Put the pot in the center of the heating zone.

Operation Instructions:

When the “ON / OFF” button is pressed, all the indicators show "-" or "---"

According to the heating zone where the pot is placed, select a relevant zone

selection (e.g. select zone 1), with a corresponding power level indicator

flashing.

Heating zone selection key

Timer key

On/OFF

Lock

Regulating key

Boost

At the moment, press the "+" button, the indicator displays "8", or press the "-"

button, the indicator displays "1",then adjust the power u levels sing the "+", "-"

button or the slider

Function key

lide key

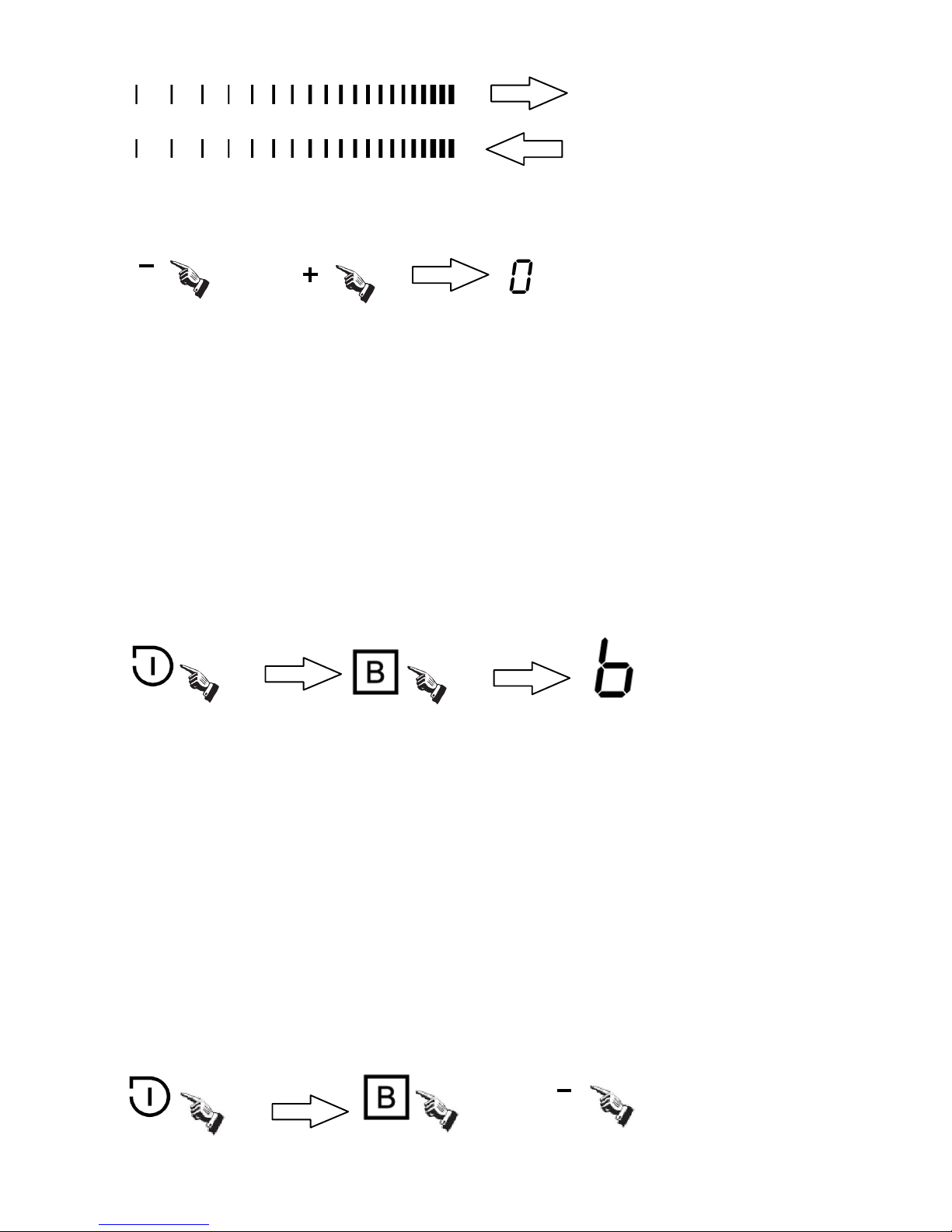

Boost function

To get a quicker heating speed, there is a function named “Boost” will satisfy

your requirement.

Directly press the “ Boost” button after selecting the heating zone, with the

power level indicator showing “P. ” , and the heating power can reach up to the

max. (e.g. select zone 1)

Note:1. The boost function only operates for 5 minutes, after which the cooking

zone returns to its orginal setting.

2. The boost function works on the all cooking zones.

Cancellation of “Boost” function

When in the "Boost" function, select the relevant heating zone with the “Boost”

function, and press the "Boost" button or the "-" button to cancel the Boost

function, then the cooking zone will revert to its original setting.

POWER UP

POWER DOWN

Or press the "+" and "-" buttons simultaneously, the power setting

immediately chang to 0, and the relevant cooking zone switches off.

See the attached table "the max power of each heating zone" for the power

specific to each heating zone.

Note: 1. After the "ON/OFF" button is pressed, the induction hotplate will restore

to its standby state if no any operation is carried out within one minute.

AND

3. As the boost function is activated ,the other cooking zone of the same side

is limited under level 2 automatically(for example, when the 2nd cooking

zone's boost function is activated, the 1st cooking zone which is of the same

left side will be limited under level 2 automatically).
