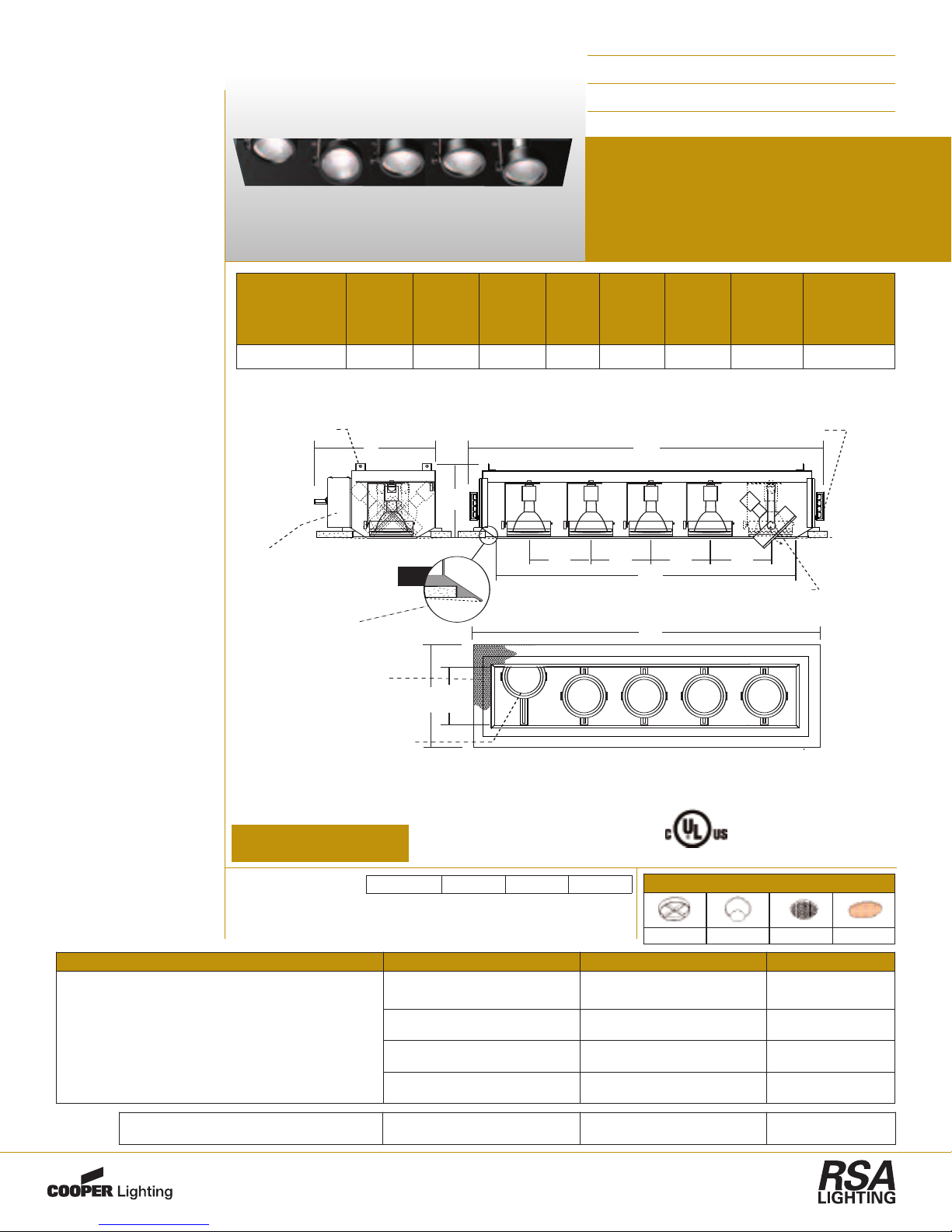

Cooper Lighting Combolight LV350MH Manuale utente

Catalog #

Type

Project

COMBOLIGHT®LV Series

FIVE (5) Light Recessed

Next Generation Trimless

Multi-Lamp Luminaire

PAR30 Metal Halide

6.75"6.75"6.75"6.75"

380º x 45º locking

angular adjustment



45º visual cut-off

Perforated mesh plaster 

frame adheres to ceiling 

compound for seamless 

trimless mounting.

Beveled housing interior and 

standard retractable yokes allow 

lamp holders to slide within the 

housing for added adjustability.

Trimless

Detail

Ceiling mudding 

compound is applied 

directly to the edge 

of the aperture.



Side mounted compartment

houses wiring, Aromat® 

electronic ballasts and 

thermal protector. 

Accessible through 

fixture opening.

Tabs for aircraft 

cable suspension

above ceiling Butterfly Brackets

for Black Iron mounting

Other Adders

CC - Two Circuit

CP - Chicago Plenum

RECESSED PAR30MH

LV TRIMLESS

SPECIFY -

Dimensions A

Housing

Length

Housing

Height

Aperture

Length

Aperture

Width

Plaster Frame

Width

Plaster Frame

Length

Above Ceiling

Width

Ceiling

Cut-Out

41.77” 8.40” 36.00” 7.00” 12.75” 41.75” 14.95” 39.25” x 10.25”

Optional Accessories - Details on Other Side

Baffle Snoots Louvers Lenses

DESCRIPTION:

An adjustable PAR30MH fixture

suitable for multiple downlighting

applications with one point of

electrical entry. Powder coat fin-

ish on housing & lamp assembly.

Housing suitable for new con-

struction applications.

CONSTRUCTION:

All aluminum construction.

Perforated mesh plaster frame

adheres to ceiling compound for

seamless trimless mounting.

Beveled fixture opening provides

easy mudding compound applica-

tion. Can accommodate 0.50” or

0.625” drywall. Includes butterfly

brackets for black iron commer-

cial mounting.

LAMP ASSEMBLY:

5-PAR30MH lamps mounted in

adjustable bezels. Each lamp can

accept up to two optical acces-

sories. 380º x 45º locking adjust-

ment. Fixture provides 45º visual

cut-off. Lamp holders retract for

added internal adjustment.

SYSTEM PROTECTION:

Thermal protection provided to

guard against overheating, and

misuse of insulation over and

aroundfixture.Vent holes in hous-

ing provide cooler operation

ELECTRICAL:

Aromat® electronic metal halide

ballsts in remote housing.

Junction box is UL listed for

through branch wiring, (access

above ceiling not required) for 8

#12, 90°C supply conductors or

60°C for end of run. Ballasts and

electricalaccessible through ceil-

ing opening via access door on

housing sidewall.

ALL RSA COMBOLIGHT PRODUCTS

ARE MADE IN THE U.S.A. ORDERING EXAMPLE:

=Five Light Trimless Recessed PAR30MH - White Interior - 70 watt lamps -

120 Volt

LV350MH WH 70 120

Cat. # / Description Interior Finish Lamp Wattage Voltage

LV350MH : 5Light Recessed Next Generation Trimless

Combo Fixture

PAR30MH

BK - Black 39 - 39 Watt PAR30MH 120 - 120 Volt

(Standard)

WH - White 70 - 70 Watt PAR30MH 277 - 277 Volt

S - Silver

PT - Custom (Specify)

LV350MH

Includes Aromat® Electronic

Metal Halide Ballasts

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
