SPECIFICATION FEATURES

07/19/2007 5:04:11 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADE071099

DESCRIPTION

Corelite's Traverse Wall Mount is an asymmetric semi-indirect fluorescent

luminaire that features a rugged aluminum construction and sleek modern

styling. The concave perf aluminum insert creates a subtle sparkle while

offering the awareness of the light source. The Traverse Wall may be

mounted over standard 2"x4" J-Boxes for individual or continuous

configuration using 4' and 8' modular sections. The Traverse Wall is suited

for open office perimeters, private offices, conference rooms, corridors and

public spaces.

A ... Construction

Housing is 6063 T5 aluminum

extrusion forming a 2-7/8"

rectangular profile. Standard 4'-0"

and 8'-0" fixture lengths combine

for continuous runs.

B ... End Caps

Standard end caps are precision

die-cast aluminum, mechanically

attached without exposed

fasteners.

C ... Louver

Semi-specular material, perforated

section is 15% open with 0.062"

diameter holes and opal diffuser.

D ... Reflectors

Reflector pan is painted with a

highly reflectance white powder

coat finish. Optional die-formed

side reflector is a highly specular

anodized aluminum.

E ... Electrical

Fixtures are prewired with quick

wire connectors and use UL listed

Class P, T5HO program rapid start

universal voltage electronic

ballasts. Power factor of 97% with

less than 10% THD. Fixtures and

electrical components certified to

UL and CUL standards.

F ... Finish

Fixture housings are standard

white using electrostatically

applied polyester powder coat

paint.

Mounting

Fixture mounts directly to existing

structure over a 2" x 4" standard

electrical box mounted horizontally

into the wall. Refer to installation

section for details.

Traverse Wall

1T5HO

Wall Mount

Semi-Indirect

Light Distribution

Indirect - 96.3%

Direct - 3.7%

ORDERING INFORMATION

Sample Number: TW-WC-1T5-1C-UNV-SU-WA-8

Wiring

Standard Circuit

Dimming

Emergency

Battery Pack

Nightlight

Daylight

Lamp Type

54W T5 HO (4' unit)

Suspension

SU-WA

Surface/Wall Mount

Voltage

120

120V

277

277V

347

347V

UNV

Universal

(120V-

277V)

Optics Up

Specular

White

Series

Traverse

Wall

Optics Down

Concave Metallic Perf

Number of

Lamps

1 Lamp

Run Length

Individually Mounted

Luminaires may be 4' or 8' in length

Continuously Mounted

Standard row configurations over 8'

consist of 4' and 8' sections

Number of Circuits

1 Circuit

Not all options available. Please consult your Cooper Lighting Representative for

availability. Specifications and dimensions subject to change without notice.

Notes:

48" [1219mm]

96" [2438mm]

MODULES AND DIMENSIONS*

*Dimensions do not include end caps.

2-7/8"

[73mm]

6-7/8" [174mm]

A DEC F

1-1/4" [31mm]

End Cap Side View

C o nc a ve Me tallic P er f

CORELITE

Corelite • 4675 A Holly Street • Denver, CO 80216 • 303.393.1522 • FAX 303.393.1477 07/19/2007 5:04:11 PM

Specifications and Dimensions subject to change without notice.

ADE071099

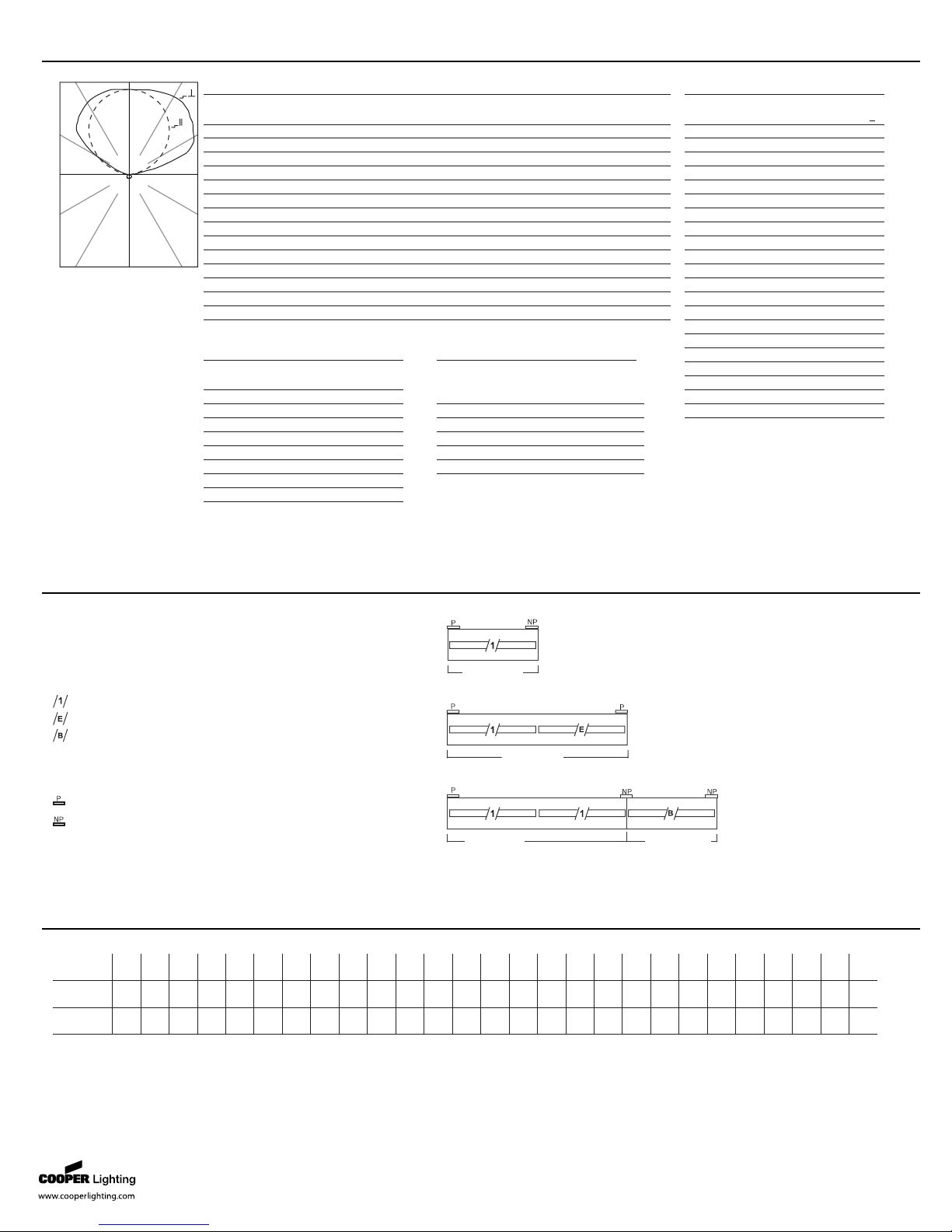

PHOTOMETRICS

COMMON CIRCUIT CONFIGURATIONS

STANDARD ROW CONFIGURATIONS

Corelite

TW-WC-1T5

(1) FP54/841/HO

4500 Lumens

Eﬃciency 82.3%

Test Report

#LSI17904

Coeﬃcients of Utilization

Eﬀective ﬂoor cavity reﬂectance 20%

rc 80% 70% 50% 30% 10% 0%

RCR

79 79 79 79

72 69 66 63

65 60 55 51

60 53 47 43

54 46 40 36

50 40 35 30

46 36 30 26

42 33 26 22

39 29 23 19

36 26 21 17

33 24 18 15

68 68 68 68

62 59 57 54

56 52 48 44

51 45 41 37

47 40 35 31

43 35 30 27

39 32 26 23

36 28 23 20

33 25 20 17

31 23 18 15

28 21 16 13

47 47 47

41 40 39

36 34 32

32 29 27

28 25 23

25 22 19

22 19 16

20 17 14

18 15 12

16 13 11

15 12 09

29 29 29

25 24 24

22 21 20

19 18 17

17 15 14

15 13 12

14 12 10

12 10 09

11 09 08

10 08 07

09 07 06

11 11 11

10 10 09

09 08 08

08 07 07

07 06 06

06 05 05

05 05 04

05 04 04

04 04 03

04 03 03

04 03 02

020

202

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

Candela

0 47 47 47

5 46 46 47

15 44 45 45

25 41 42 41

35 38 38 39

45 31 33 34

55 23 26 26

65 16 19 20

75 7 11 10

85 1 1 2

90 0 0 0

95 32 79 80

105 187 505 436

115 359 664 832

125 525 801 927

135 676 911 1014

145 802 963 1068

155 901 990 1056

165 967 1003 1029

175 1001 1006 1002

180 1008 1008 1008

Zonal Lumen Summary

0-30 36 .80 .98

0-40 59 1.32 1.61

0-60 107 2.38 2.89

0-90 139 3.09 3.75

40-90 79 1.77 2.15

60-90 32 .71 .87

90-180 3566 79.26 96.25

0-180 3705 82.35 100.00

Zone Lumens %Lamp %Fixture

Luminance Data

45 616 647 659

55 560 634 634

65 525 641 660

75 416 594 563

85 297 234 344

Angle 0-Deg 45-Deg 90-Deg

in Deg cd/sm cd/sm cd/sm

Angle Along II 45oAcross I

1C=Single circuit luminaire

1E=Single circuit luminaire with emergency circuit (generator)

1B=Single circuit luminaire with battery pack

48"(1219mm)

96"(2438mm) 48"(1219mm)

96"(2438mm)

=Circuit 1

=Emergency Circuit

=Battery Circuit

=Power Mount

=Non-Power Mount

FIXTURE

LENGTH

4' 8' 12' 16' 20' 24' 28' 32' 36' 40' 44' 48' 52' 56' 60' 64' 68' 72' 76' 80' 84' 88' 92' 96' 100' 104' 108'

11111111111111

8' 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13
