Cooper Lighting INVUE IMI-654 Manuale utente

Fixture Type Fitter Type Pole Insert Depth

Medium Epic Spider Mount 4" 6" or Longer

Large Epic Spider Mount 4" 6" or Longer

These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible

contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please

contact your nearest representative.

1. Remove Pole Cap and let hang from fitter.

2. Position the service wires to feed through the bottom of the arm. Fig. 1.

3. Slip the arm onto the pole feeding the service wire leads to the interior of the arm. Fig. 2.

4. Connect the service wires lead to the terminal block. Install the Pole Cap and tighten the (3) set screws (provided).

Rotate and position the arm on the pole so the street side and the fixture side are facing the correct direction. The street side

label is located on the inside of the reflector. Fig. 2.

5. Tighten and make sure that locite is applied to the (6) SS set screws (provided) located at the base of the arm. Fig. 2.

6. Pole Application:

WARNING: Do not use fixtures on poles or tennons smaller than noted below. Insure that upper most set screws engage the

tenon/pole.

Customer First Center • 1121 Hwy 74 South • Peachtree City, GA 30269 IMI-654 AVU071135

Epic/Pole Mounted

Fixtures

Sheet 1 of 1

6/18/07 IMI-654

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

General: Upon receipt of fixture thoroughly inspect for any

freight damage, which should be brought to the attention of

the delivery carrier. Compare the catalog description listed

on the packing slip with the fixture label on the housing to

assure you have received the correct merchandise.

Safety: This fixture must be wired in accordance with

the national electrical code and applicable local codes

and ordinance. Proper grounding is required to insure

personal safety. Carefully observe grounding procedure

under installation section. All work should be done by a

qualified electrician.

WARNING:

Risk of Electric Shock. Disconnect power at fuse or circuit breaker before installing

or servicing.

AUXILLIARY

GROUND

TERMINAL BLOCK

SERVICE WIRES

SET SCREWS

POLE CAP

TERMINAL

BLOCK

SERVICE WIRES

FITTER

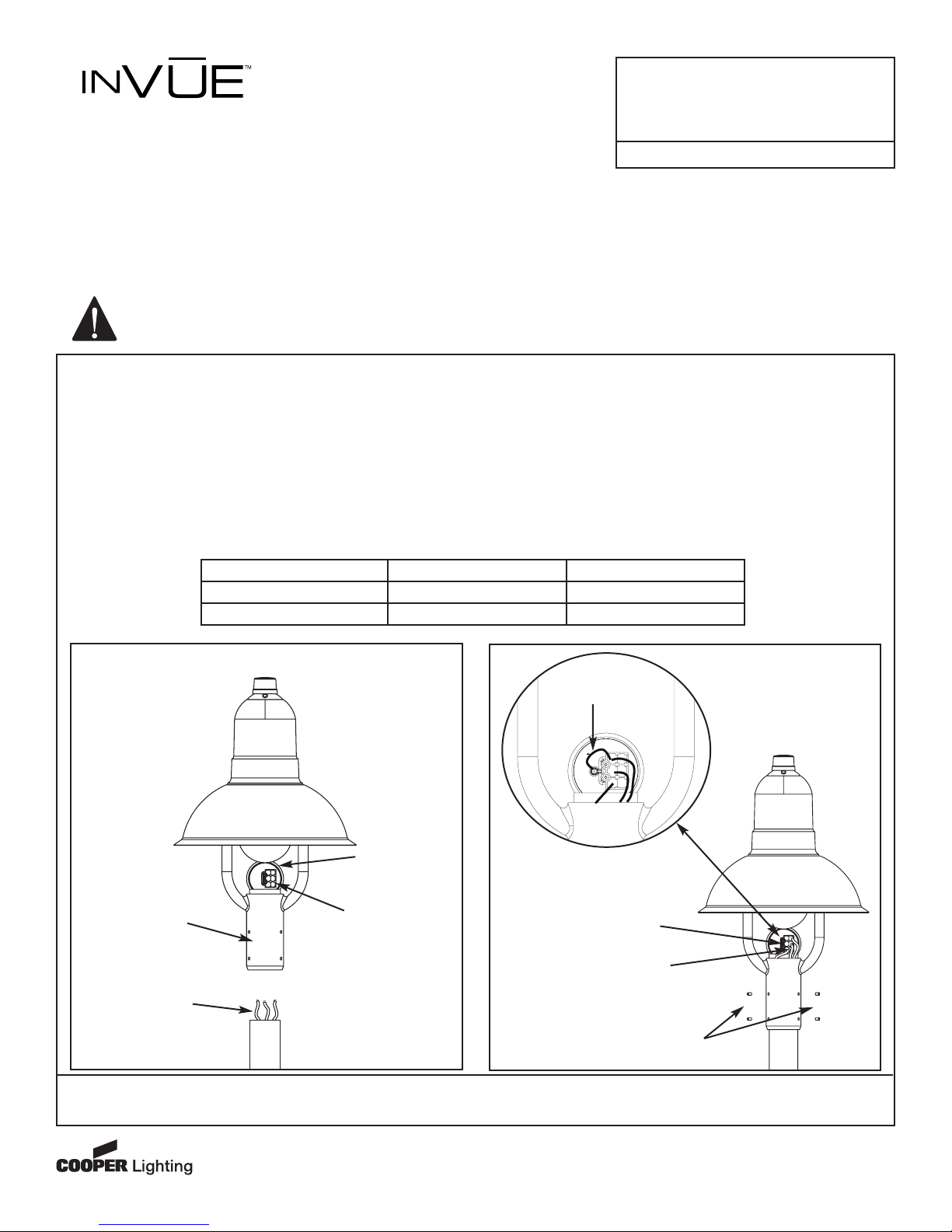

Fig. 1 Fig. 2
