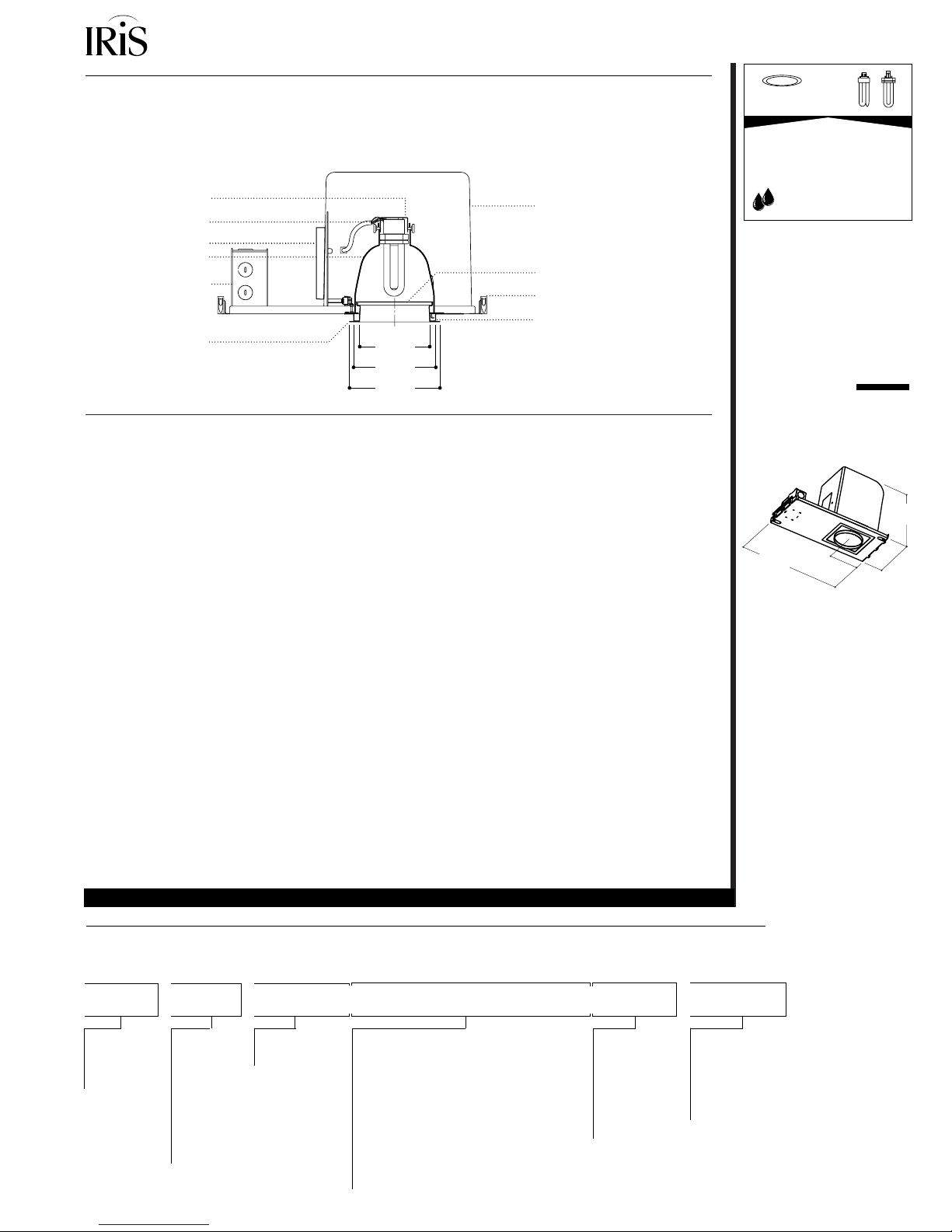

Cooper Lighting IRiS M32T Manuale utente

CATALOG#: TYPE:

Specification grade wet listed 32 or 26 Watt triple

tube compact fluorescent fixture rated for use in

wet locations. Regressed frosted lens provides a

low brightness aperture and a smooth illumination

pattern. Triple tube lamps provide excellent color

and long life. Dimming and emergenc ballast

options are available. Lamp module and optical

element can be changed after installation to pro-

ide a ariety of lamp sources and

distributions. e.g. into a PAR36 Adjustable

A...Reflector

.040 thick aluminum specular clear upper and

spun parabolic lower reflector in Clear, Gold,

Haze, Warm Haze, Black Alzak®finish,

painted gloss

white or matte white

. Special cone colors listed

below.

B...Flange

Self flange reflector or die cast flange with either

matte white or clear coat finish. Die cast flanges

are easil removed for field painting. Elements are

ke ed for proper insertion. Gasket is a closed cell

foam.

C...Lens

.125 thick frosted lens obscures lamp and is

retained during relamping.

D...Attachment

Positive torsion springs pull flange tight to

ceiling. Mechanical light trap eliminates spill light

at edge of flange or reflector.

E...Socket

4 pin G24q3 base for 32 or 26W PLT, TBX and TTT

lamps. Fatigue free stainless steel spring ensures

positive lamp retention. Fixed socket height

ensures consistent lamp position.

F...Electronic Ballast

Thermall protected, current controlled electronic

ballast produces full light output and rated lamp

life. Meets stringent FCC part 18 Class B

requirements.

G...Electrical

Ke ed quick connect provides eas lamp module

installation.

H...Frame/Housing

Hot dipped galvanized 20 gauge steel frame

with built in 1/2 inch plaster lip Aluminum .032

thick housing allows for heat dissipation and

reduces weight.

I...Junction Box

18 cubic inches, listed for 4#12 AWG or 6#14 AWG

90° C additional feed through conductors, has five

1/2 inch pr outs.

J...Bar Hangers

No Flex®bar hangers with positive locking, for use

with joists spaced up to 24" O.C. ship with plat-

form. For use in T-bar ceilings order accessor

MBCLP. Nailess barb and locator lip provide con-

sistent installation height.

K...Codes

Thermall protected, IP labeled. Unit is airtight

and exchanges less than 2.0 CFM with the plenum

at apressure of 75 pascals. Insulation must be

kept three inches awa from fixture sides and

none on top as to entrap heat.

L...Labels

UL and cUL listed, standard wet label, IBEW union

made.

ADI030825

SPECIFICATION FEATURES

M32T=

32/26W

Compact

Flourescent

Ballast

M32T

Lutron =

32W onl

Tu Wire

Dimming

Ballast

ORDERING INFORMATION

Complete unit consists of a platform, module and element

PN5

PN5 = 5"

Airtight

Non-IC

Rated

Housing

Lamp

Module

E5SR = 5"

Regressed Lens

Showerlight

Optical

Element

Platform

COOPER LIGHTING

PN5

M32T

E5SR

32W TRIPLE

Compact Fluorescent

5" REGRESSED LENS

SHOWERLIGHT

51/4"

ENERGY DATA

5" AirTight

Input Power:

120V = 36W

Input Current (Max.):

120V = .306

Power Factor:

120V = .98

T.H.D.:

120V = <10%

M32T LUTRON

Input Power:

120V = 36W

Input Current (Max.):

120V = .33A

Power Factor:

120V = >.95

T.H.D.:

120V = <20%

DESCRIPTION

5 1/4"

[134mm]

6 1/4"

[159mm]

6 3/4"

[172mm]

Accessories

MBCLP = 40 Push

On T Bar Clips

(for 10 Units)

PLE5 = Plaster Lip

Extension for

Max 2" Thick

Ceiling

Blank= Matte

White die-cast

SF= Self Flange

RAW= Natural

Die-cast

SFWF= Self

Flange Painted

White

Flange

Finish

Standard

C = Clear

H = Haze

G = Gold

WMH = Warm Haze

W = Gloss White

MW= Matte White

B= Black

Custom

K = Cognac

KH = Cognac Haze

Custom

CC = Chocolate

CCH = Chocolate Haze

BU = Blush

BUH = Blush Haze

GP = Graphite

GPH = Graphite Haze

PN = Pine

PNH = Pine Haze

SK = Sk

SKH = Sk Haze

8 1/2"

[216mm]

8 1/2"

[216mm]

4 15/16"

[126mm]

16 1/2"

[419mm]

Ceiling Cutout

6 1/4" [159mm]

For additional options please consult factor .

Matte white is recommended for self flanged reflectors

PHOTOMETRICS

P5-M32T-E5SRC

Test No. H36117

Lamp: 26W PLT

Lumens: 1800

Cutoff: 75°

Spacing: 1.1

Efficienc : 32.4%

Unit LPW: 22.43

Unit Number: PN5-M32T-E5SRC

Candelas

Vertical CD

Angle

90 0

85 0

75 5

65 37

55 82

45 142

35 202

25 256

15 294

5 309

0 311

Luminance

Degree cd/m2

85˚0

75˚1410

65˚6266

55˚10183

45˚14384

4'6"

5'6"

6'6"

8'0"

10'0"

12'0"

5'0"

6'6"

7'6"

9'6"

11'6"

14'0"

Cone of Light

Distance to Initial Nadir Beam

Illuminated Plane Footcandles Diameter

Notes and Formulas:

Luminance: To convert cd/m2to footlamberts, multipl b 0.2919

Cone of Light:

• Footcandle and CU multiplier: clear x 1.0, Haze x .95, Gold x .90, Black x .65, Warm Haze x .90

• Beam diameter is to 50% of maximum footcandles, rounded to the nearest half-foot.

• Footcandle values are initial. Appl appropriate light loss factors where necessar .

CU Notes/Formulas:

• maintained illuminance=lamp lumens x CU x light loss factors

room area

• total number of luminaires=total room area x maintained illuminance

lamp lumens x CU x light loss factors

• CU data based on 20% effective floor cavit reflectance.

80% 70% 50% 30% 0%

70 50 30 10 50 10 50 10 50 10 0

38 38 38 38 38 38 36 36 34 34 32

36 35 34 33 34 33 33 32 32 31 29

34 32 31 29 32 29 30 28 29 28 26

32 29 27 26 32 29 30 28 29 28 26

30 27 25 23 26 23 26 22 25 22 21

28 24 22 20 24 20 23 20 23 20 19

26 22 20 18 22 18 21 18 21 18 17

24 20 18 16 20 16 19 16 19 16 15

22 18 16 14 18 14 18 14 17 14 14

21 17 15 13 17 13 16 13 16 13 12

19 16 13 12 15 12 15 12 15 12 11

Ceiling Reflectance

Wall Reflectance

Room Ca ity Ratio

Coefficient of UtilizationZonal Lumen Summary

Zone Lumens %Lamp %Luminaire

0-30 230 12.8 39.5

0-40 356 19.8 61.1

0-60 539 30.0 92.6

0-90 582 32.4 100.0

90-180 0 0.0 0.0

0-180 582 32.4 100.0

Distribution

0°

Note: Specifications and Dimensions subject to change without notice.

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highwa 74 South Peachtree Cit , GA 30269 770.486.4800 FAX 770 486.4801 ADI030825

Cooper Lighting 5925 McLaughlin Rd. Mississauga, Ontario, Canada L5R 1B8 905.507.4000 FAX 905.568.7049
