Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

07/20/2007 6:03:47 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADE071096

DESCRIPTION

Corelite's Traverse Wall Mount is an asymmetric direct-indirect fluorescent

luminaire that features a rugged aluminum construction, sleek modern

styling and cross blade louver. Our Slide-N-Lock(TM) optics accessory

allows the designer to adjust the amount of uplight and downlight for a

particular application. The Traverse Wall may be mounted over standard

2"x4" J-Boxes for individual or continuous configuration using 4' and 8'

modular sections. The Traverse Wall is suited for open office perimeters,

private offices, conference rooms, corridors and public spaces.

A ... Construction

Housing is 6063 T5 aluminum

extrusion forming a 2-7/8"

rectangular profile. Standard 4'-0"

and 8'-0" fixture lengths combine

for continuous runs.

B ... End Caps

Standard end caps are precision

die-cast aluminum, mechanically

attached without exposed

fasteners.

C ... Louver

A continuous semi-specular

aluminum parabolic 1-1/4" blades

spaced 2-1/4" on-center with a

2-3/4" opening.

D ... Reflectors

Reflector pan is painted with a

highly reflectance white powder

coat finish. Optional die-formed

side reflector is a highly specular

anodized aluminum.

E ... Electrical

Fixtures are prewired with quick

wire connectors and use UL listed

Class P, 265ma T8 instant start

universal voltage electronic

ballasts. Power factor of 95% with

less than 10% THD. Fixtures and

electrical components certified to

UL and CUL standards.

F ... Finish

Fixture housings are standard

white using electrostatically

applied polyester powder coat

paint.

Mounting

Fixture mounts directly to existing

structure over a 2" x 4" standard

electrical box mounted horizontally

into the wall. Refer to installation

section for details.

Traverse Wall

1T8

Wall Mount

Direct/Indirect

Light Distribution

Indirect - 68.8%

Direct - 31.2%

ORDERING INFORMATION

Sample Number: TW-WB-1T8-1C-UNV-SU-WA-8

Lamp Type

32W T8 (4' unit)

Voltage

120

120V

277

277V

347

347V

UNV

Universal

(120V-277V)

Wiring

Standard Circuit

Dimming

Emergency

Battery Pack

Nightlight

Daylight

Run Length

Individually Mounted

Luminaires may be 4' or 8' in length

Continuously Mounted

Standard row configurations over 8'

consist of 4' and 8' sections

Series

Traverse

Wall

Options

Slide-N-Lock™

DL1

DL2

DL3

DL4

DL5

DL6

DL7

DL8

Optics Down

Cross Blade Louver

Number of

Lamps

1 Lamp

Number of Circuits

1 Circuit

Optics Up

Specular

White

Suspension

SU-WA

Surface/Wall Mount

Not all options available. Please consult your Cooper Lighting Representative for

availability. Specifications and dimensions subject to change without notice.

Notes:

48" [1219mm]

96" [2438mm]

MODULES AND DIMENSIONS*

*Dimensions do not include end caps.

2-7/8"

[73mm]

6-7/8" [174mm]

A DEC F

1-1/4" [31mm]

End Cap Side View

Cross Blade Louver

CORELITE

Corelite • 4675 A Holly Street • Denver, CO 80216 • 303.393.1522 • FAX 303.393.1477 07/20/2007 6:03:47 PM

Specifications and Dimensions subject to change without notice.

ADE071096

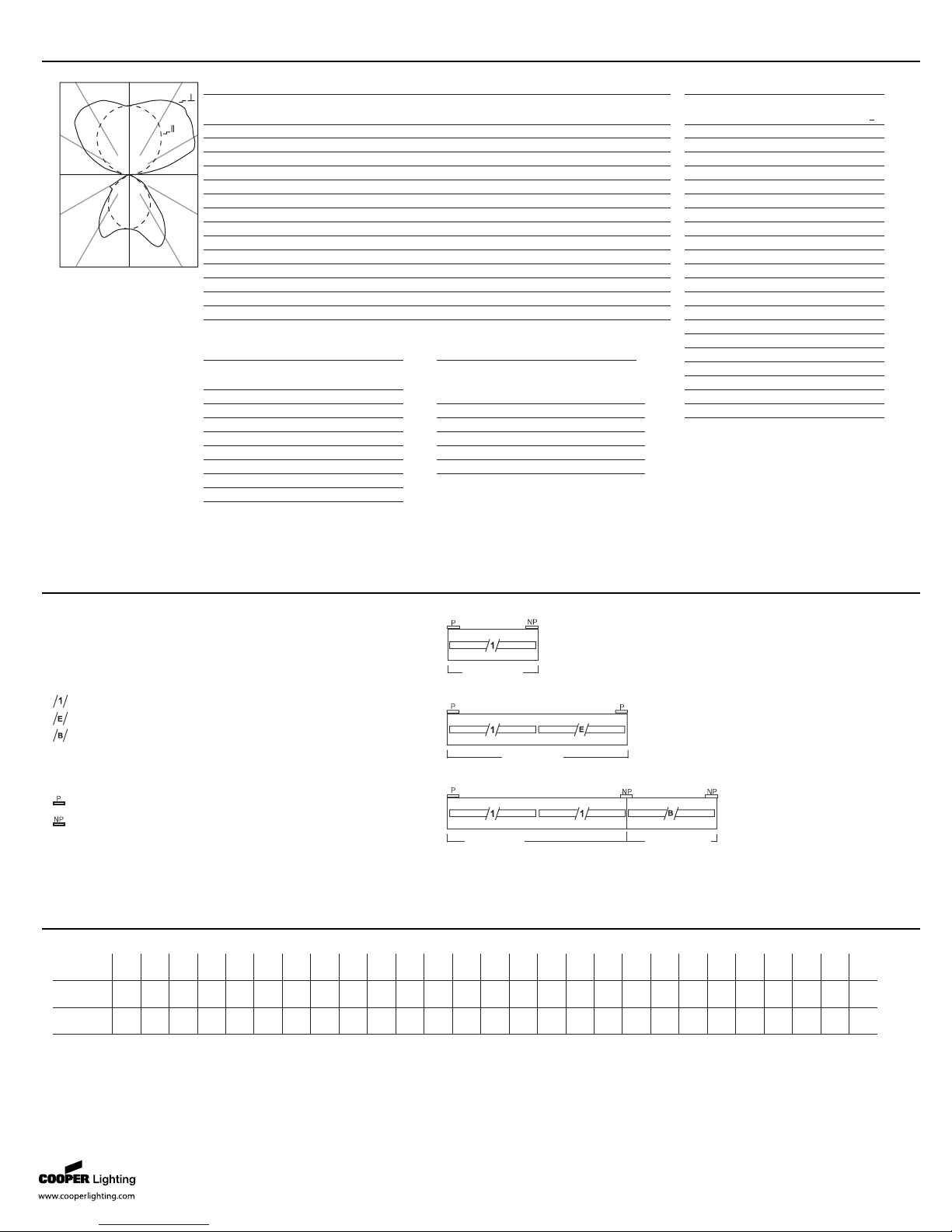

PHOTOMETRICS

COMMON CIRCUIT CONFIGURATIONS

STANDARD ROW CONFIGURATIONS

Corelite

TW-WB-1T8

(1) F32T8/TL841

3000 Lumens

Eﬃciency 84.7%

Test Report

#LSI17911

Coeﬃcients of Utilization

Eﬀective ﬂoor cavity reﬂectance 20%

rc 80% 70% 50% 30% 10% 0%

RCR

87 87 87 87

80 77 74 71

73 68 63 59

67 60 55 50

62 54 47 43

57 47 41 37

52 43 36 32

48 38 32 28

44 35 28 24

41 31 25 21

38 28 22 19

78 78 78 78

72 69 67 64

66 61 57 54

61 54 50 46

56 49 43 39

51 43 38 34

47 39 33 29

43 35 30 26

40 31 26 22

37 28 23 19

34 26 21 17

62 62 62

55 53 52

49 46 44

44 41 38

39 36 33

35 31 28

32 28 25

29 25 22

26 22 19

23 19 16

21 17 15

47 47 47

42 41 40

38 36 35

34 32 30

31 28 26

28 25 23

25 22 20

23 20 18

20 18 15

18 16 13

17 14 12

33 33 33

30 30 29

27 27 26

25 24 23

23 21 20

20 19 18

19 17 16

17 15 14

15 13 12

14 12 10

13 11 09

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

Candela

0 324 324 324

5 319 323 328

15 296 333 396

25 264 378 461

35 221 354 371

45 170 238 198

55 91 107 124

65 22 28 51

75 8 12 15

85 4 5 6

90 0 0 0

95 16 44 35

105 69 256 266

115 137 327 435

125 205 384 469

135 270 430 501

145 326 444 518

155 370 447 495

165 401 435 461

175 416 426 427

180 419 419 419

Zonal Lumen Summary

0-30 287 9.58 11.31

0-40 476 15.88 18.76

0-60 737 24.57 29.02

0-90 793 26.45 31.23

40-90 316 10.56 12.47

60-90 56 1.87 2.21

90-180 1746 58.23 68.77

0-180 2540 84.68 100.00

Zone Lumens %Lamp %Fixture

Luminance Data

45 3277 4594 3832

55 2167 2550 2946

65 738 934 1672

75 452 652 794

85 625 906 1062

Angle 0-Deg 45-Deg 90-Deg

in Deg cd/sm cd/sm cd/sm

Angle Along II 45oAcross I

1C=Single circuit luminaire

1E=Single circuit luminaire with emergency circuit (generator)

1B=Single circuit luminaire with battery pack

48"(1219mm)

96"(2438mm) 48"(1219mm)

96"(2438mm)

=Circuit 1

=Emergency Circuit

=Battery Circuit

=Power Mount

=Non-Power Mount

FIXTURE

LENGTH

4' 8' 12' 16' 20' 24' 28' 32' 36' 40' 44' 48' 52' 56' 60' 64' 68' 72' 76' 80' 84' 88' 92' 96' 100' 104' 108'

11111111111111

8' 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13
