COP Security 15-CD455 SERIES Manuale utente

High Resolution High Sensitivity

SDR Super Wide Dynamic Dome Camera

INSTRUCTION MANUAL

CONTENTS

PRECAUTION……………………………………………….2

FEATURE…………………………………………………….3

SPECIFICATIONS…………………………………………..3

INSTALLATION……………………………………………...4

OSD MENU OPERATION INSTRUCTION……………….6

PRECAUTION

Do not open or modify

Do not adjust the camera's internal circuits or power supply modules,

as it may cause damage to the unit. For internal set up and repair,

please consult our dealer.

Do not put objects inside the unit

Do not put metal objects or flammable substance inside the camera

for it may cause damage to the unit. If water or liquid gets inside of

the camera please disconnect power immediately and contact with

your dealer.

Be careful when handling the unit

Do not drop the camera and avoid it from strong shock or vibration.

Install away from electric or magnetic fields

It may interfere or distort the image when camera is installed close to

electric or magnetic fields. Ex: TV, Speaker, and etc.

Avoid from humidity, dust and heat

a. Do not install the camera in smoky, dusty or steamy areas.

b. Do not install the camera close to heat generating devices (for ex:

spotlights)

Protect the camera carefully from direct exposure to sunlight,

rain, and etc.

Cleaning

Do not touch the CCD directly. If necessary, use a soft cloth

moistened with alcohol to wipe off dust.

FEATURES

zSuper Hi- Res CCD with Star-Light more than 600TV Lines (D/N)

zSuper Wide Dynamic Range(SDR 52dB)Video Digital Signal Processor (SOC) IC

zAuto / Manual Electronic SHUTTER speed adjustable

zHigh Sensitivity, Low Smear, excellent anti-blooming

zOn Screen Display (OSD) set-up Menu

zMotion Detection, Privacy Marking, H / V Mirror, Freeze, Negative, Cross Line

z2X Digital Zoom with Manual Pan / Tilt

zBack Light Compensation adjustable

zS/N Ratio with Auto 3D-DNR

zChallenging High Lighting Condition

zBuilt-in Video/Power Surge Protection

SPECIFICATIONS

Model No.

Image Pick-up Device 1/3“ CCD Image Sensor (HI-Res.)

Total Picture Elements NTSC: 811 x 507, PAL: 765 x 595

Effective Picture Elements NTSC: 771 x 492, PAL: 753 x 582

Horizontal Resolution 560TV lines (Color) / 600 TV lines (D/N)

Minimum Illumination 0.01 Lux 0.001 Lux 0 Lux IR ON

Auto Iris Lens 3.7~12mm

IR CUT X YES

Rotation 3 Axis 2 Axis

Digital Zoom 2X, Manual, PAN / TILT

S/N Ratio WITH Auto 3D-DNR More than 56 dB

Wide Dynamic Range 48dB

Gamma Characteristic 0.45 / 1.0

Auto/Manual Electronic Shutter NTSC: 1/60s~1/120,000s, PAL: 1/50s~1/120,000s

Digital Slow Shutter 2X~64X

Flickerless Mode YES

MIRROR FUNCTION HORIZONTAL / VERTICAL / ROTATION

POWER INPUT

BNC(VIDEO OUT)

DUAL POWE

POWER+

POWER-

SINGLE POWER

POWER INPUT

BNC(VIDEO OUT)

IMAGE FUNCTION FREEZE、NEGATIVE、CROSS LINE

Auto Gain Control ON/OFF (6 ~ 24dB adjustable)

White Balance Auto (ATW, AWB, FIXED, Manual)/ 3200 ~ 10000 ºK

Back Light Compensation ON/OFF (48 Area adjustable)

Motion Detection On screen alarm

Video Output 1 Vp-p / 75 Ohms

Privacy Masking ON/OFF ( 4 Areas adjustable)

Synchronous System EXT / INT.SYNC. / (LINE LOCK OPTION)

Power Supply AC24 / DC12 V DC 12V

Power Consumption 2W 5W

Operating Temperature -10 ~65 (14 ~149 )℃℃℉ ℉

Dimension

136 (D) X 100 (H) mm

Packing / Weight 1 CTN：12pcs BOX：18(W)X14.7(H)X11.5(D)mm

INSTALLATION

Step1:

Remove the 3 screws from the domes

housing.

Step2:

Attach the base of the housing to the

wall/ceiling by fixing the screws into the

drilled holes.

Step3:

Connect power and video signal (see left)

Ensure the polarity is correct when

connecting power to the terminal block. +/-

Sept 4:

Adjust the cameras focus, angle and

functions.

Step 5:

Attach the domes cover and insert the

screws.

OSD Key explains

OSD Menu Operating Instruction

S E T U P M E N U ( 1 / 3 )

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 I M A G E Q U A L I T Y

2 → 1 I R I S

3 2 A G C / S E N S

4 3 E N H A N C E

5 4 I R S E T T I N G

6 5 B A C K L I G H T

7 6 W H I T E BALANCE

10 N E X T . . .

S E T U P M E N U ( 2 / 3 )

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 F U N C T I O N M E N U

2 → 1 M O T I O N D E T E C T

3 2 D I G I T A L ZOOM

4 3 H / V R E V E R S E

5 4 F R E E Z E

6 5 C R O S S L I N E

7 6 M A S K

8 7 P O S I / N E G A

10 N E X T . . .

S E T U P M E N U ( 3 / 3 )

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 E X T R A S E T T I N G

2 → 1 L A N G U A G E

3 2 T I T L E

4 3 P R I O R I T Y S E T T I N G

5 4 R E S E T / SYNC

10 R E T U R N

1. To display OSD MENU on the screen, please press the ENTER

key for 2 seconds.

2. To turn of OSD MENU on the screen, please press the RETURN

key.

3. The UP, DOWN and ENTER keys to move and make the

decision.

DOWN

RET

RN ENTER

IRIS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 I R I S

2 → W D R O N /OFF

4 P E A K O N/O F F

5 A █———————— P

6 A L C → A U T O /OFF

7 ———— █— — — —

9 A E S → F I X/AUTO

[VR / HOLD]: ALC setting is controlled by VR on camera board.

Please reference to “PRIORITY SETTING” function.

*[NOTE]: Keep the WDR mode working, please use an auto IRIS

lens and set the WDR ON, ALC AUTO, AES FIX

1/120(1/100).

* Wide Dynamic Range can be change via the bar which on the

WDR setting.

A G C / S E N S

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 A G C / S E N S

2 → A G C → A U T O /FIX

3 ———————— █

5 S E N S → A U T O /OFF

6 ———— █— — — —

E N H A N C E

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 E N H A N C E

2 E N H A N C E L E V E L

3 L———— █— — — — H

I R S E T T I N G

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

1 I R S E T T I N G

2 → O F F / E X T / A U T O

[SWITCH]: IR-cut on/off is controlled by DIP switch.

Please reference to “PRIORITY SETTING” function

that in extra setting menu for more detail.

Indice

Altri manuali COP Security Telecamera di sicurezza

COP Security

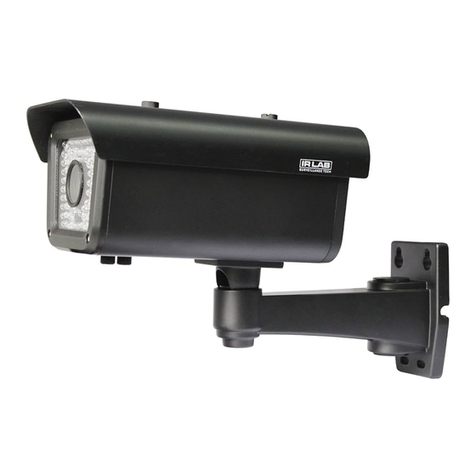

COP Security CIR-UW34WP Manuale utente
