COP Security CIR-UW34WP Manuale utente

ITEM №: CIR-UW34WP

Caution for Installation

1. Resistor A: If you want to change the intensity of the IR light, please open the

cover at the bottom of the camera(As showed in the following picture), you can

adjust the IR light intensity.

2. Resistor B: If you want to change the working time of IR Led, please open the

cover at the bottom of the camera(As showed in the following picture), you can

adjust the IR LED working time.” – “refers to the IR LED will start working under

the darker situation. “+” refers to the IR LED will start working under the brighter

situation.

Packing

1. Camera X1

2. User Manual X1

3. Screw X4

4. Plastic-Conical-Anchor X4

5. Mounting drawing paper X1

6. Hexagonal Wrench X1

7. DC Connector X1

Specification

ITEM

CIR-UW34WP

IP Rating

IP66

Type

Colour/Monochrome

Signal System

NTSC/PAL

Pick Up Device

1/3" Sony Colour High Resolution CCD

Picture Elements

NTSC:811H×508V; PAL:795H×596V

Resolution

550TVL

Min Illumination

0Lux（80 Pieces IR LED ON）

Vertical Frequency

NTSC:60Hz; PAL:50Hz

Horizontal Frequency

NTSC:15.734KHz; PAL:15.625KHz

Clock Frequency

NTSC:28.636MHz; PAL:28.375MHz

Scanning System

2:1 Interlace

S/N Ratio

≥50dB

Electronic Shutter

NTSC:1/60-1/100,000s; PAL:1/50-1/100,000s

Lens

9-22mm Varifocal Auto iris IR Lens

White Balance

AUTO Tracking

Back Light

Auto Gain Control

GAMMA

0.45

Video Out-put

1V p-p,75Ω

Power Supply

DC12V ±10%

Current Consumption

200mA(Max)

IR Effect Distance

2~15m （6.56~49.18ft）(Outdoor)

Dimension

325×196×124mm (12.80”×7.72”×4.88”)

Weight

1920g (67.72oz)

Storage Temperature

-30～+60℃(-22～+140℉)

Operating Temperature

-30～+40℃(-22～+104℉)

Remark:Non-regulativeadaptormay cause camera damaged.

Number Plate Capture Camera

Caution for Installation

1. Please do not install the camera where the vibration always happens, or the

camera will be damaged.

2. Please keep the glass in front of the camera clean. Do not touch it directly. You

can use a soft cloth with alcohol to wipe if necessary.

3. The available IR range of this camera is shown in the specification. Please be

sure to place the camera in the working distance when it works.

4. In order to prevent short circuit, please do not loosen any screws in the

camera at random.

5. Please do not let the camera work in the conditions which is beyond the most

extreme and demanding of operating conditions and climates shown in the

specification. When any abnormalities happen, please turn off the camera and

contact your local dealer or us right away.

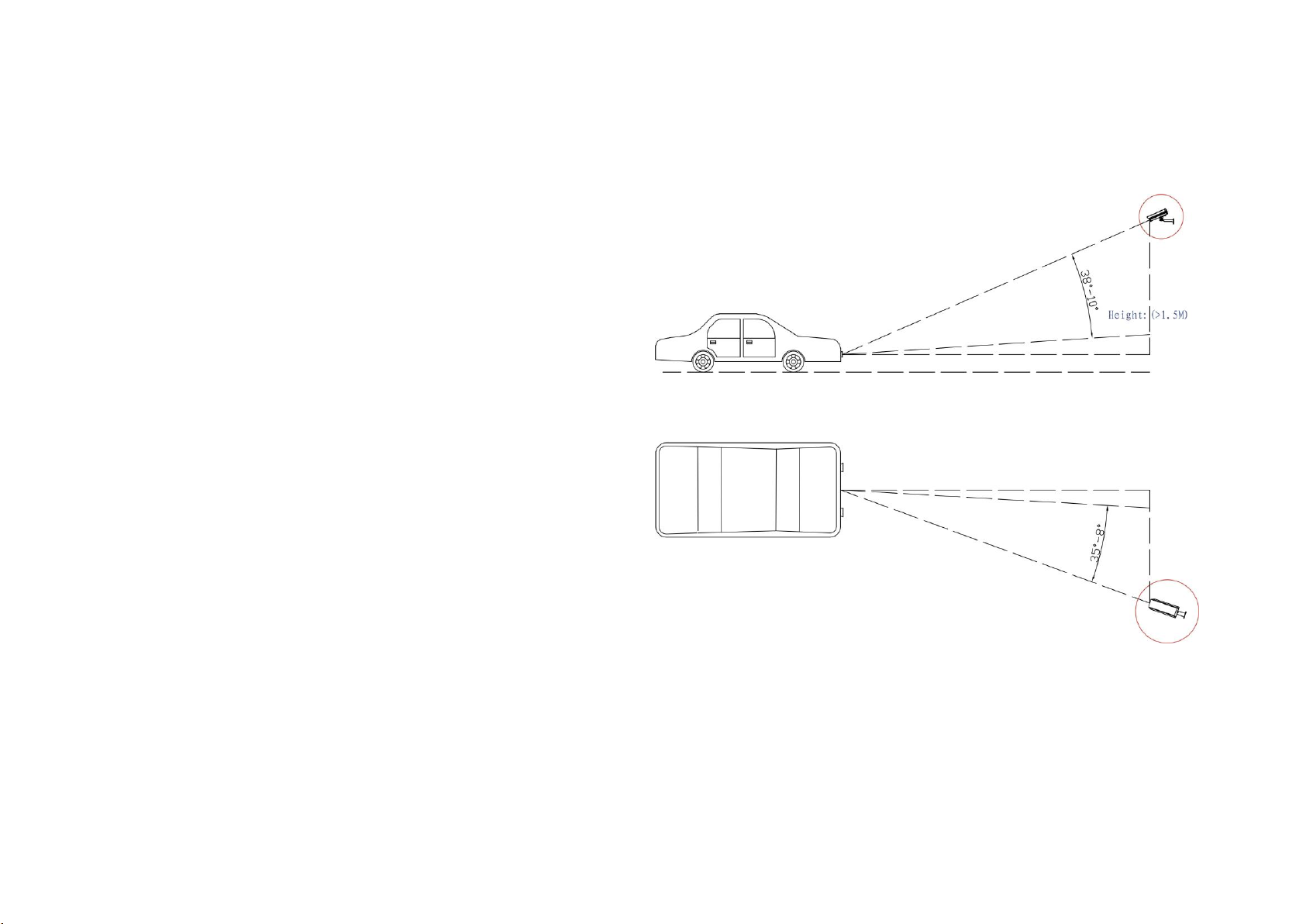

Pay attention to the setting angle. The picture in the right is for your reference.
