Copernicus Tech Tub TEC600 Manuale utente
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Please Recycle
Assembly Guide
TEC600_2015_C
Check out our other products online at
www.copernicused.com
?This product is meant to be assembled by an adult.
?In its unassembled state, small parts present a hazard.
?To be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
TM
Tech Tub
TEC600
Email our Customer Support
Need Support?
Have a Question?
Don’t throw
these instructions
away!
Positioningtemplate
printed inside!
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at . Enter a drawing to win a
Copernicus Product for your classroom at the same time!
www.copernicused.com
Validate Your Warranty
Warranty
Life
Time
Frame
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Dear Educator,
TM
Thank you for purchasing one of our products. I hope that the Tech Tub is useful in your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
Enjoy using your new product and happy teaching.
Jim Phillips
Chief Cook and Bottle Washer
Assembly Guide
TEC600_2015_C
Check out our other products online at
www.copernicused.com
TEC600 TM
Tech Tub
2
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Warning! Hazard Risks!
Please read the warnings below for important safety information regarding your product.
Failure to read these warnings or to follow the instructions below could result in personal
injury or damage to your product that could void your warranty.
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture. The internal components are not sealed from the
environment.
Read your power strip’s electrical specifications. Only plug in devices that are approved for use
with this power strip. Connect the supplied power strip directly to a wall outlet. The socket-outlet
shall be installed near the equipment and shall be easily accessible. Do not connect to
another power strip or use an extension cord. Unplug when not in use.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and
marked to avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless
otherwise specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage
to your equipment or personal injury.
Electronic
Equipment
Adult
Supervision
3
TM
Tech Tub
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Please note that in its unassembled state, this product contains parts
that can be hazardous to small children. This product should be
assembled by an adult.
!
WARNING
Lid (1)
Tub (1)
Locking Pin (1)
Padlock (2)
Locking Block (1)
Cable Hook (2)
Spacer (2)
Cable Management Pocket (1)
Divider (6)
Power Strip (1)
TEC600
4
Power Strip
Bracket (2)
Rail (2)
Items not shown:
Bottom Foam Pad (1)
Padlock Keys (6)
TM
Tech Tub Parts
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Contents
Before beginning, you should have:
Additional tools required:
Adjustable wrench (2) OR 11mm Wrench
TEC600
TM
Tech Tub
1x
Divider
6x
(23229)
Locking Block
1x
(31078)
Locking Pin
1x
(31079)
Padlock
2x
Power Strip
1x
(25515)
Hardware
Actual Size
M3 x 14mm Carriage Screw
4x
C
M4 Wing Nut
4x
A
In box
Hook & Loop
Straps
x6
Key
6x
M6 x 70mm
2x
G
M6 Lock Nut
2x
I
M6 Washer
6x
H
Power Strip Bracket
2x
(232281)
5
Cable Hook
2x
Allen Key 4mm
1x
M3 Flat Washer
4x
D
M3 Lock Washer
4x
EM3 Wing Nut
4x
F
M4 Lock Washer
4x
B
Foam
1x
TM
(Found inside Tech Tub )
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Tips for Assembly
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you
build the unit.
For parts and other issues regarding your Tech Tub:missing
Please call Copernicus Customer Service,
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
where we will be happy to help.
?
?
?
Need Tech Support?
Have a Question?
Email our Tech Support Service
Customer Service - FAQ’s
TEC600
6
Watch this video on how to
set up and manage your cables
www.copernicused.com/help/default.aspx
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Power Strip
1x
C
2
You will need: (Not to Scale)
Actual Size:
Power Strip Bracket
2x
Install Carriage Bolts on Power Strip and Mount to Power Strip Brackets
7
1
You will need: (Not to Scale)
Actual Size:
TM
Tech Tub
1x
Cable Hook
2x
M4 Wing Nut
4x
A
Install Cable Hooks
AA
Tighten fully
Note orientation
of cable hooks
1
M3 x 14mm Carriage Screw
4x
CM3 Flat Washer
4x
DM3 Lock Washer
4x
E
M3 Wing Nut
4x
F
2
D
E
F
B
B
M4 Lock Washer
4x
B
Hold bracket in place
while tightening hardware.
Tighten fully.
Keep your power strip upside
down as shown. This will make
the assembly easier!
Power strip
cord end
Pay close attention to
orientation of power strip.
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
3You will need: (Not to Scale)
Assemble Power Strip on Divider
1 2
4
Actual Size:
Divider
1x
Make sure snaps (x4)
are fully connected
Bracket hooks fit
into recess.
Do not hook brackets
below second rail.
Install Power Strip
Run power strip
cable out of the
bottom back hole.
Use the 5th slot
when positioning
your power strip.
Make sure
divider tab
is pushed
down fully.
Pull power strip cable out of the
TM
Tech Tub completely. This will
make the installation of the power
strip easier!
8
9TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.
Wrap Power Strip Cable
6
Note
Padlock will
not lock
without key
:
1 2
Lock Lid with Padlock
7You will need: (Not to Scale)
Padlock
1x
Plug cable directly into wall outlet.
DO NOT PLUG THIS POWER STRIP
INTO ANOTHER POWER STRIP.
Install Dividers
5You will need: (Not to Scale)
Divider
5x
Make sure
divider tabs
are pushed
down fully.
Use your devices to setup the spacing in between
your dividers. Using a smaller storage space for your
device will minimize your device’s movement during
transport. Don’t forget to leave extra room if you have
a case!
Small or No Case
1 Groove Between Dividers
Large Case
2 Grooves Between Dividers
M6 Washer
6x
H
TEC600 - Version C - Released March 30, 2015 - Copernicus Educational Products Inc.

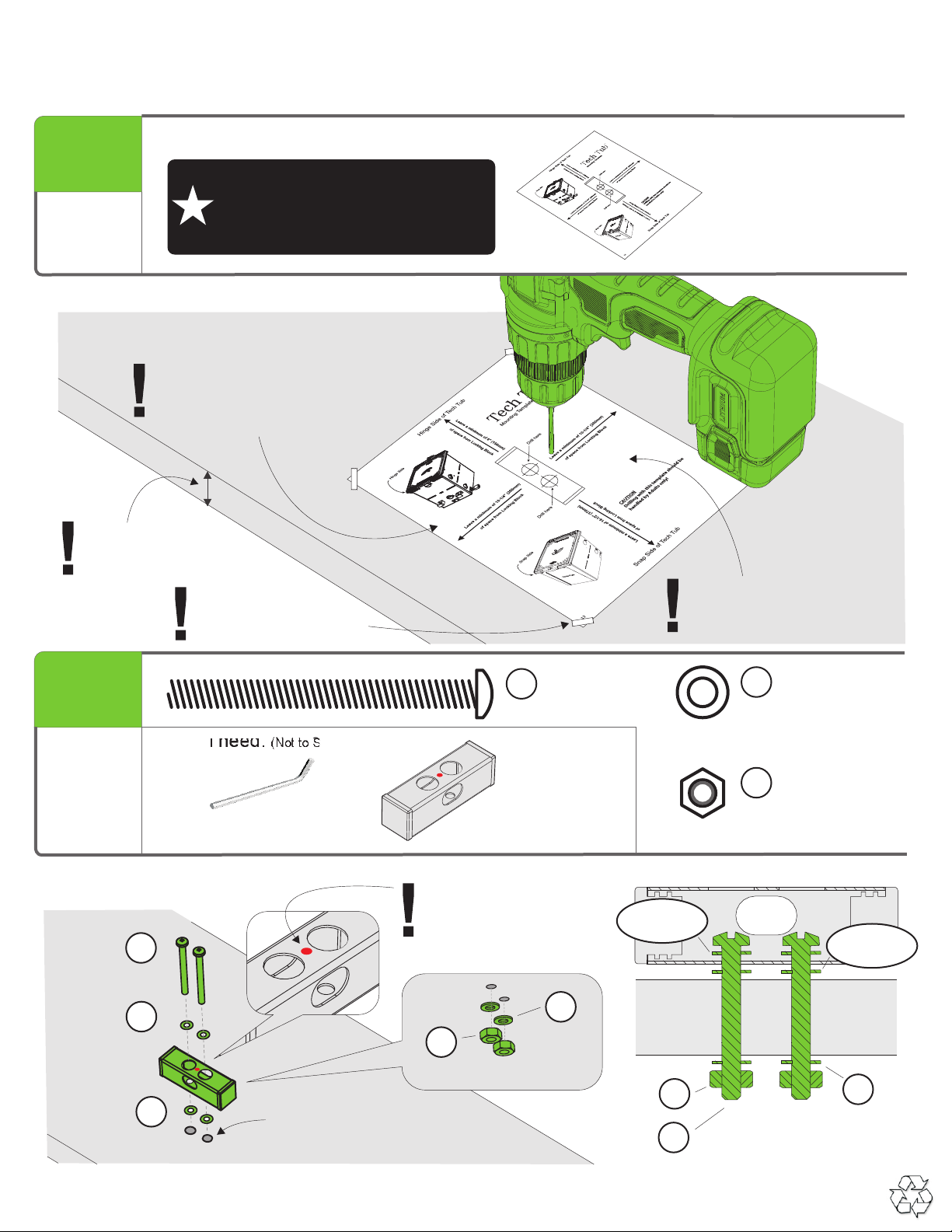

Use Template and Drill Holes into Surface
8You will need: (Not to Scale)
9
You will need: (Not to Scale)
Actual Size:
Locking Block
1x
M6 x 70mm
2x
G
M6 Lock Nut
2x
I
OPTIONAL:
Positioning Template (found
at back of this guide)
1x
10
Allen Key 4mm
1x
TM
Follow Steps 8 to 10 to install the Tech Tub Locking
Block and Locking Pin System
Mount Locking Block
Drilled holes from Step 6
G
H
I
Underside
Label facing
upwards
H
Table or Countertop
Section
View
I
G
HWasher goes
INSIDE tube
HWasher goes
UNDER tube
H
H
Use positioning template
found at back of these
Assembly Instructions
Use 1/4” or 6mm drill bit
Maximum thickness of
surface is 2-1/2” (63mm)
Table or Countertop
Use tape to secure
the positioning template
This system allows you to lock your Tech Tub™
to a table or countertop. This is a really good idea
if you leave your devices out in the open or your
room doesn’t lock. You can then lock the Tech
Tub in place and lock the Tech Tub itself.
