Cornelius P/N 631500074 Manuale utente

IMI CORNELIUS INC. 2001–2003

October 9, 2003

6304601621Rev C

IMI CORNELIUS INC gOne Cornelius Place gAnoka, MN 55303-6234

Telephone (800) 238-3600 Facsimile (800) 535-4231

INSTALLATION INSTRUCTIONS, BIN STAT KIT, P/N 631500074,

631500099, 631500108, 631500109, AND 631500116

These Bin Stat kits apply to all “X” Series Ice makers

Table 1. Loose–Shipped Parts

Item No. Part No. Name Qty.

1 630000837 Thermostat Asy 1

2 07578 Screw TC 08–32 2

3 630460162 Installation Instruction, Thermostat 1

4 630900895 Hex Nut 8–32 SS Keps 1

5 620045454 or

620045455 or

620045456 or

620045457 or

620050327

Bin Stat Support 1

1. Disconnect power.

2. Remove front cover of the unit and the electrical box cover plate. For 22” wide units you will need to

remove the Grill from the right side of the unit.

3. To mount bin thermostat in electrical box:

A. Route wires and connector through grommet in electrical box (see Figure 1).

B. Attach bin thermostat to electrical box with two 08–32 TC screws provided (see Figure 1).

4. Connect the bin thermostat lead to the circuit board (see Figure 2).

5. Straighten approximately 12” of capillary tube to go through hole in chassis base. Re–coil the re-

mainder. Do not disturb the tightly coiled end.

6. Insert the “1/4” diameter wire Bin Stat support into the coiled end of capillary tube. Carefully wrap 5

turns of free capillary tube tightly around the Bin Stat support. Insert the assembly through the hole

in the chassis base. Route capillary tube to follow the Bin Stat support as closely as possible (see

Figure 3).

7. Slip eye of Bin Stat support over the 8–32 weld stud in the chassis base. If a nut exists on this weld

stud remove before assembling the Bin Stat support. Secure the Bin Stat support with the 8–32

Keps nut provided in the kit (see Figure 3).

8. Any excess capillary tubing must be carefully pulled back into the compressor compartment to pre-

vent ice from damaging it during dispenser operation.

IMI CORNELIUS INC. 2001–2003

October 9, 2003

6304601622Rev C

9. Seal ½”diameter hole with sealant (RTV).

10. Turn bin stat adjustment screw clockwise until it stops. Then turn it counterclockwise 1/8 of a turn.

11. Reinstall the front cover of the electrical box and the ice machine and reconnect the power. Verify

that the Bin Stat is working by holding ice on the coiled bare capillary tube. The bin stat will allow the

ice machine cycle to complete and harvest ice. Then the ice machine will shut down. Remove the ice

from the capillary tube and warm the tube with hand heat. The ice machine should start in approxi-

mately 60 seconds. Reinstall front cover and grill (22”units only).

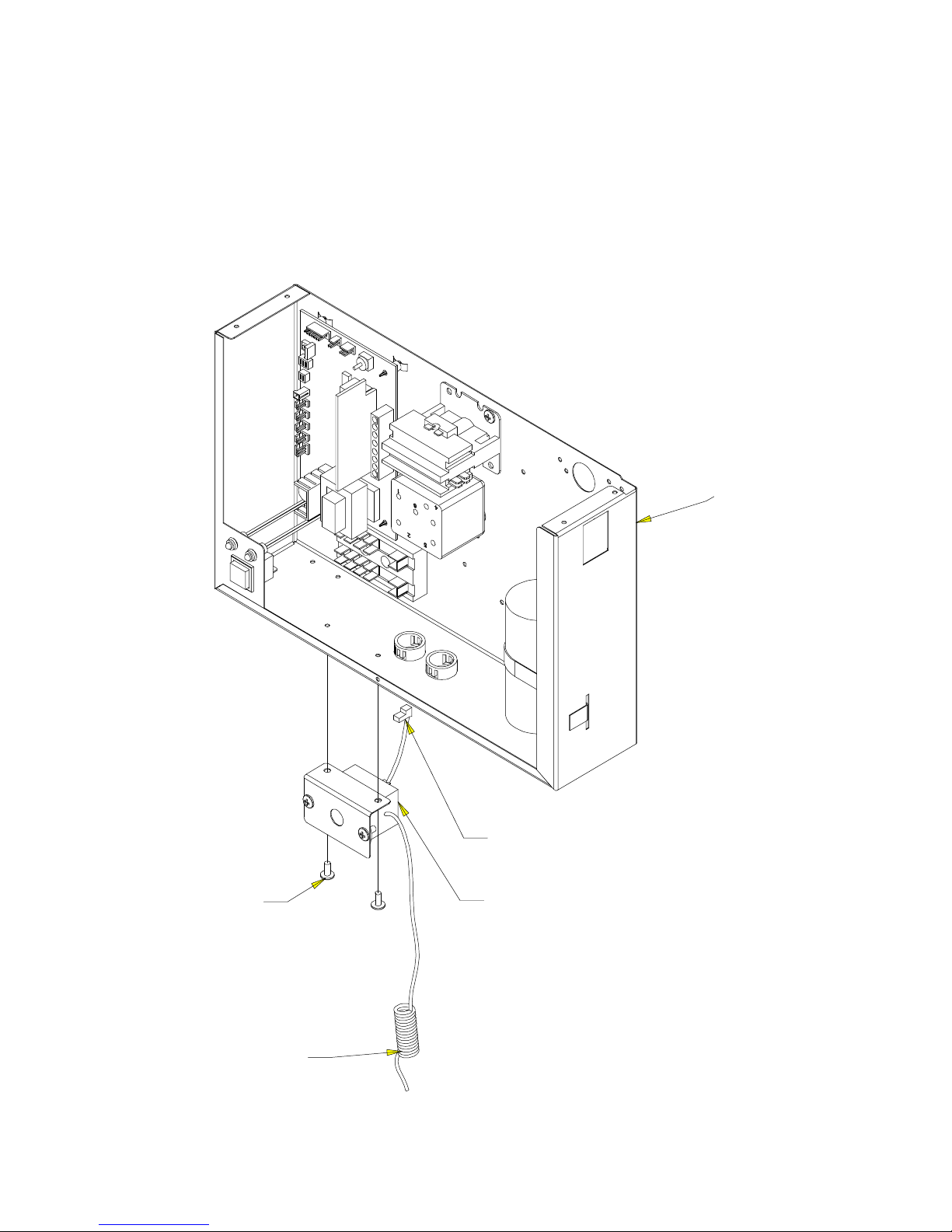

Figure 1

COIL

THERMOSTAT KIT ASY

631500074

ELECTRICAL BOX ASY

TO CHASSIS BASE

SCREW TC 08–32

TO CIRCUIT BORD

IMI CORNELIUS INC. 2001–2003

October 9, 2003

6304601623Rev C

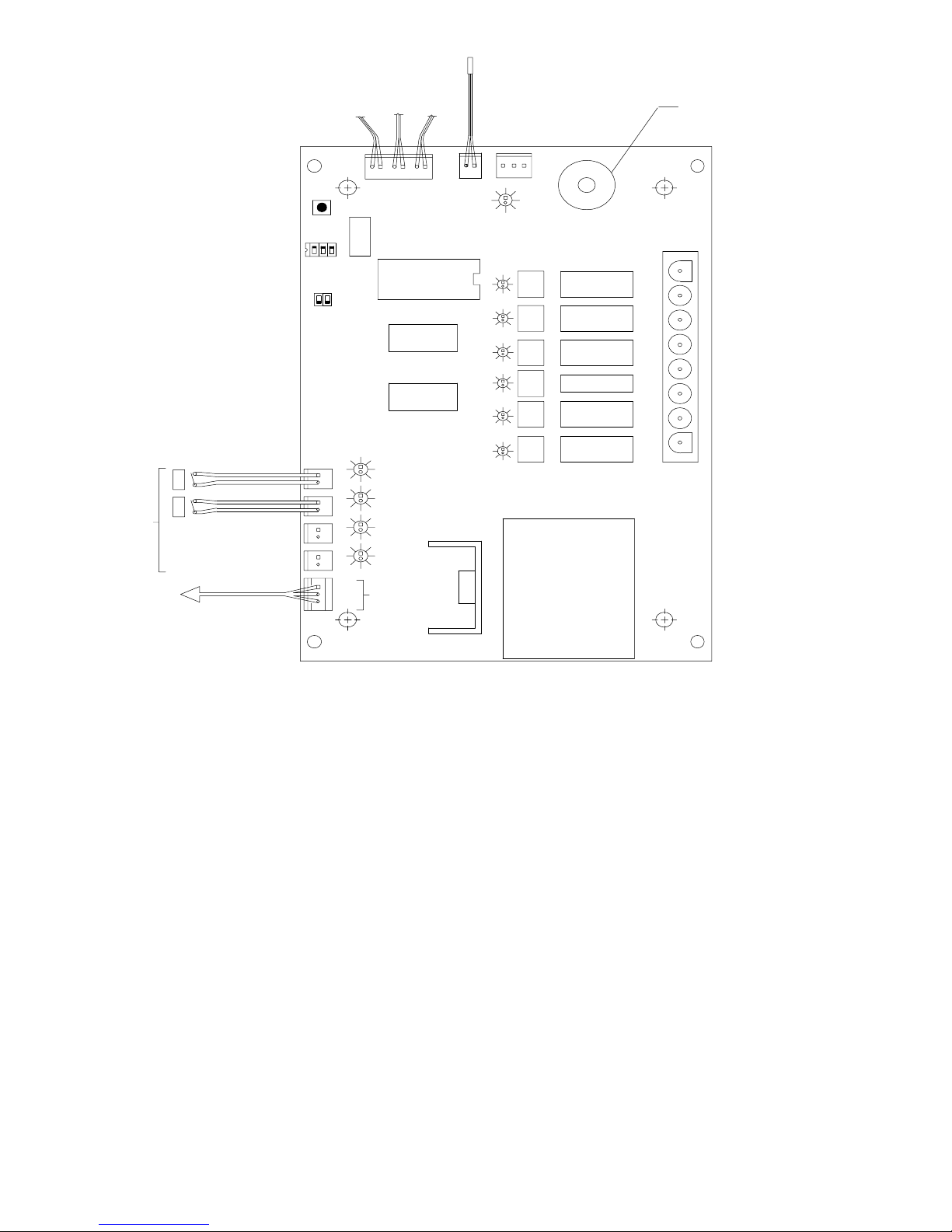

Figure 2

Unit

Stack

Switches

Bin

Com

Out

Switch

LH Evap.

Selection

Switch

RH Evap.

S3–2S3–1

Off

Transformer

Triac

(Manufacturing Date)

Processor

36430001

Micro

pot.

(White Lead)

Condenser Sensor

See note 1

Harvest

Off

312

Adjust

Thickness

Bridge RD

FILL VALVE

DUMP VALVE

FAN MOTOR (AIR COOLED)

COMPRESSOR

WATER PUMP

HOT GAS

NEUTRAL

POWER

PRESSURE Transducer

Valve

Dump

Fan

Comp

Pump

Gas

CLEAN

DELAY

ERROR

Plug Bin Thermostat on Top

Two Pins of Stacking Cable Plug

CAPILLARY TUBE

BIN STAT SUPPORT

SEE DETAILA

DETAIL A

SCALE 1:2

INSERT COIL AROUND

BIN STAT SUPPORT

8–32 HEX

BIN STAT

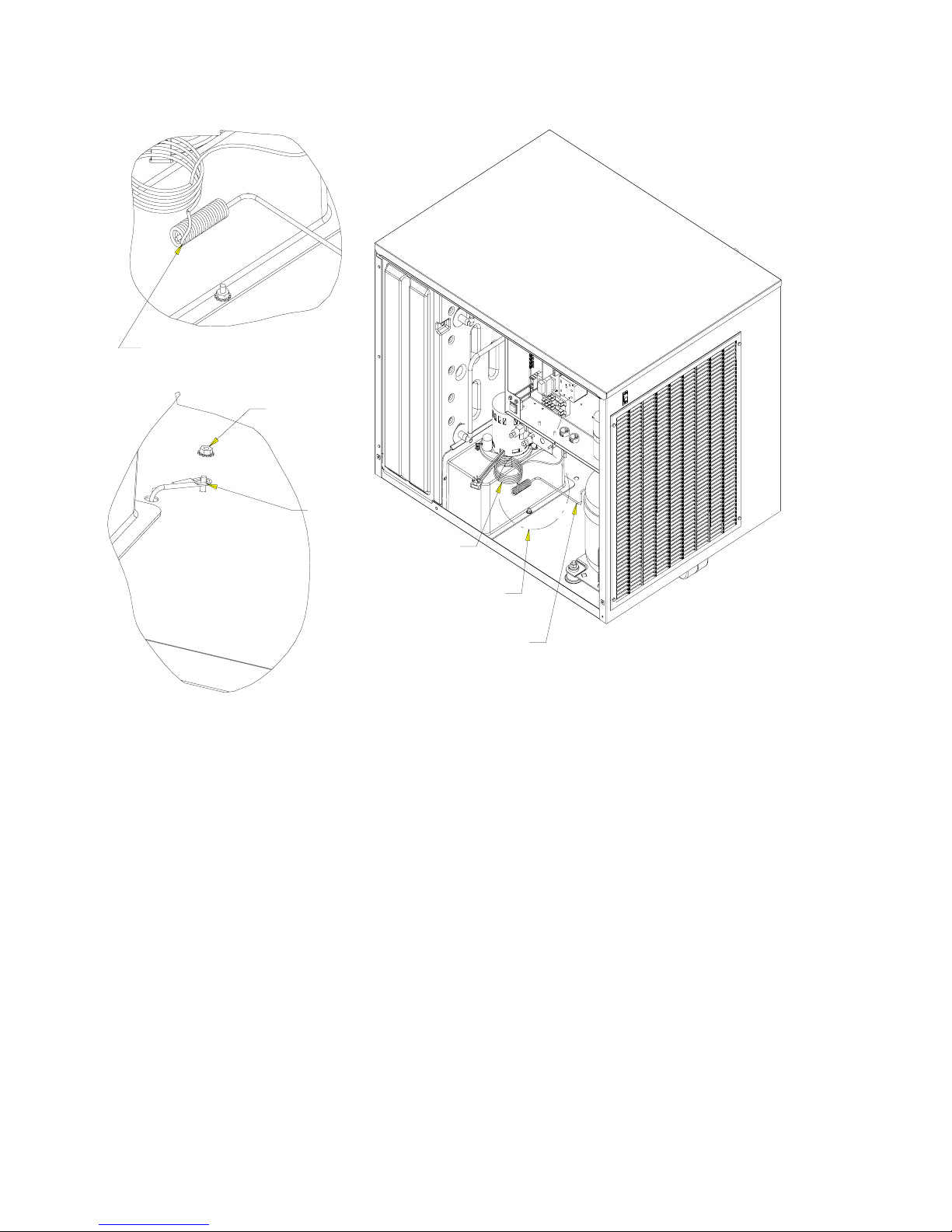

Figure 3

SUPPORT

NUT
