Replacing GIB Controller on Quest Juice Dispensers

© 2003-2011, IMI Cornelius Inc. - 1 - Publication Number: 729011138INS

INSTALLATION INSTRUCTIONS

REPLACING GIB CONTROLLER ON QUEST JUICE DISPENSERS

Parts and Tools

Parts List

Kit should includes: 1 each of the following

Tools Required

One - Phillips Screw Driver

!

WARNING:

Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all

power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

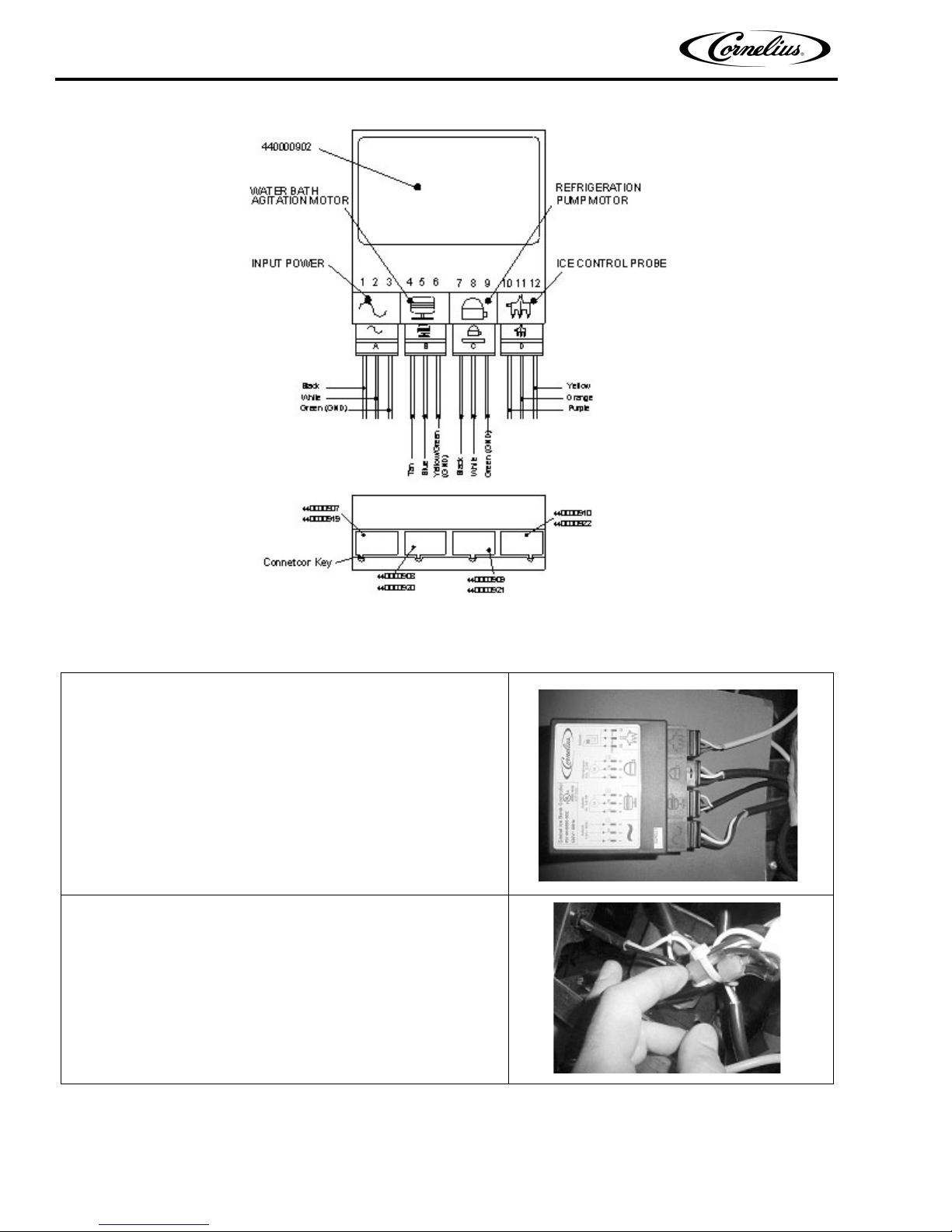

Wiring Diagram of GIB Control

If housing and plugs are damaged during disassembly please refer to the drawing below to for proper location of

inputs and outputs and wires. Each plug is keyed for proper placement.

GIBC Field Kit –Quest (P/N 729011138)

1 440000902 Control Ice Bank 120/60 QST/SLJ/UN750/VG245/VNT

2 440000907 P- Housing Elect Plug A GIBC

3 440000908 P- Housing Elect Plug B GIBC

4 440000909 P- Housing Elect Plug C GIBC

5 440000910 P- Housing Elect Plug D GIBC

6 440000919 P- Cover “A”

7 440000920 P- Cover “B”

8 440000921 P- Cover “C”

9 440000922 P- Cover “D”

Release Date: January 10, 2011 www.cornelius.com Revision: B

Replacing GIB Controller on Quest Juice Dispensers

Publication Number: 729011138INS - 2 - © 2003-2011, IMI Cornelius Inc.

Removal of GIB Control

1. Disconnect power from unit.

2. Remove dispensing nozzles.

3. To remove splash panel located at the bottom of the unit

remove two screws left and right side and slide splash panel

forward.

4. To remove top panel open door and locate two screws at

the rear of the panel. Slide top panel forward to release it

from the front.

5. To remove the side panels locate two screws at the rear of

the panel top and bottom and pull off.

6. Locate the plastic wire tie holding the wire harness bundle

together and cut to remove.

Replacing GIB Controller on Quest Juice Dispensers

© 2003-2011, IMI Cornelius Inc. - 3 - Publication Number: 729011138INS

9. Remove plugs from GIBC by pulling connectors from rear of unit. Plugs may be difficult to remove. (NEVER

PULL ON WIRES AS THEY MAY COME LOOSE FROM CONNECTOR BODY). If connector body is damaged

replace with the proper connector body supplied in the kit. Refer to the drawing in the beginning of the installation

sheet for proper connector and wire locations.

10. Reverse the above procedure to reassemble machine.

CAUTION: When reinstalling the new GIBC be sure not to pinch wires between any parts of the

frame. With the side panel off inspect that the wires are free and not trapped where they could

become pinched and short out to the cabinet frame.

NOTE: It is also recommended that before reattaching the panels to the machine reinstall the control

and verify machine functions properly. If any part of the dispenser does not function properly

such as pumps, disconnect power and reinstall GIB control. Be sure connector is seated prop-

erly in connectors.

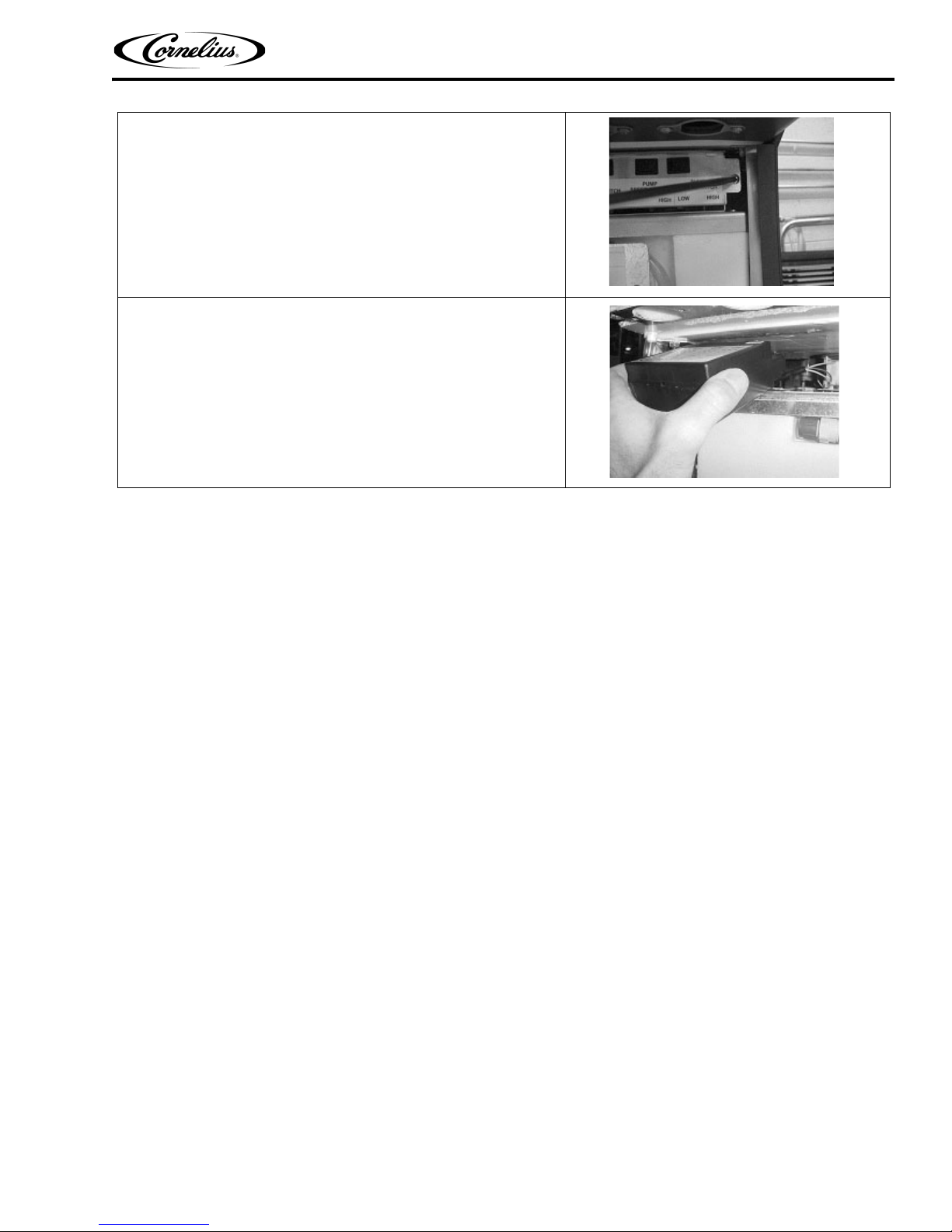

7. Locate the electrical box, from the front of the machine, and

remove the screw on the right side holding it in place. Grab

the left tab of the box and pull forward.

NOTE: The connectors in the back will tend to give

some resistance when pulling on the box.

8. You will now be able to access the GBIC. To remove slide

module to the right. When box stops push up and pull for-

ward.
