SAFETY PRECAUTIONS
Always:disconnectpowertothe dispenserbeforeservicing orcleaning.
Never:place handsinside ofhopperorgate area withoutdisconnecting powertothe dispenser.Agitator rota-
tion occursautomaticallywhen dispenserisenergized!
Thisice dispenserhasbeen specificallydesigned to provide protection againstpersonal injuryand eliminates
contamination ofice.Toinsurecontinued protection and sanitation,observethe following:
ALWAYS:be surethe removablelidisproperlyinstalled to preventunauthorized access tothe
hopperinteriorand possiblecontamination of the ice.
ALWAYS:be surethe upperand lowerfrontpanelsaresecurelyfastened.
ALWAYS:keep area around the dispenserclean oficecubes.
CAUTION:Dispensercannotbeusedwithcrushed orflakedice.
Use ofbaggedice which has frozenintolarge chunks canvoidwarranty.The
dispenseragitatorisnotdesignedto be anice crusher.Use oflarge chunks of
ice which”jamup”insidethehopperwill cause failureof the agitatormotorand
damagetothehopper. Ifbaggedice isused, itmustbe carefully and completely
brokenintosmall, cube--sized pieces beforefilling intothedispenserhopper.
DESCRIPTION
The 2230 seriesofice dispensers solves yourice and beverage service needsinthe sanitary,spacesaving,
economicalway.Designed tobemanuallyfilled withicefromanyremoteicemaking source,ortop mountice
maker, these dispenserswill dispensecubes(up to 1--1/4”insize),cubeletsand hard--chipped orcracked ice;
and,in addition,severalflavorsofpre--mixbeverages.
The sink can be easilyand quicklyremoved.The unitmustneverbe lifted ormoved bythe sink.

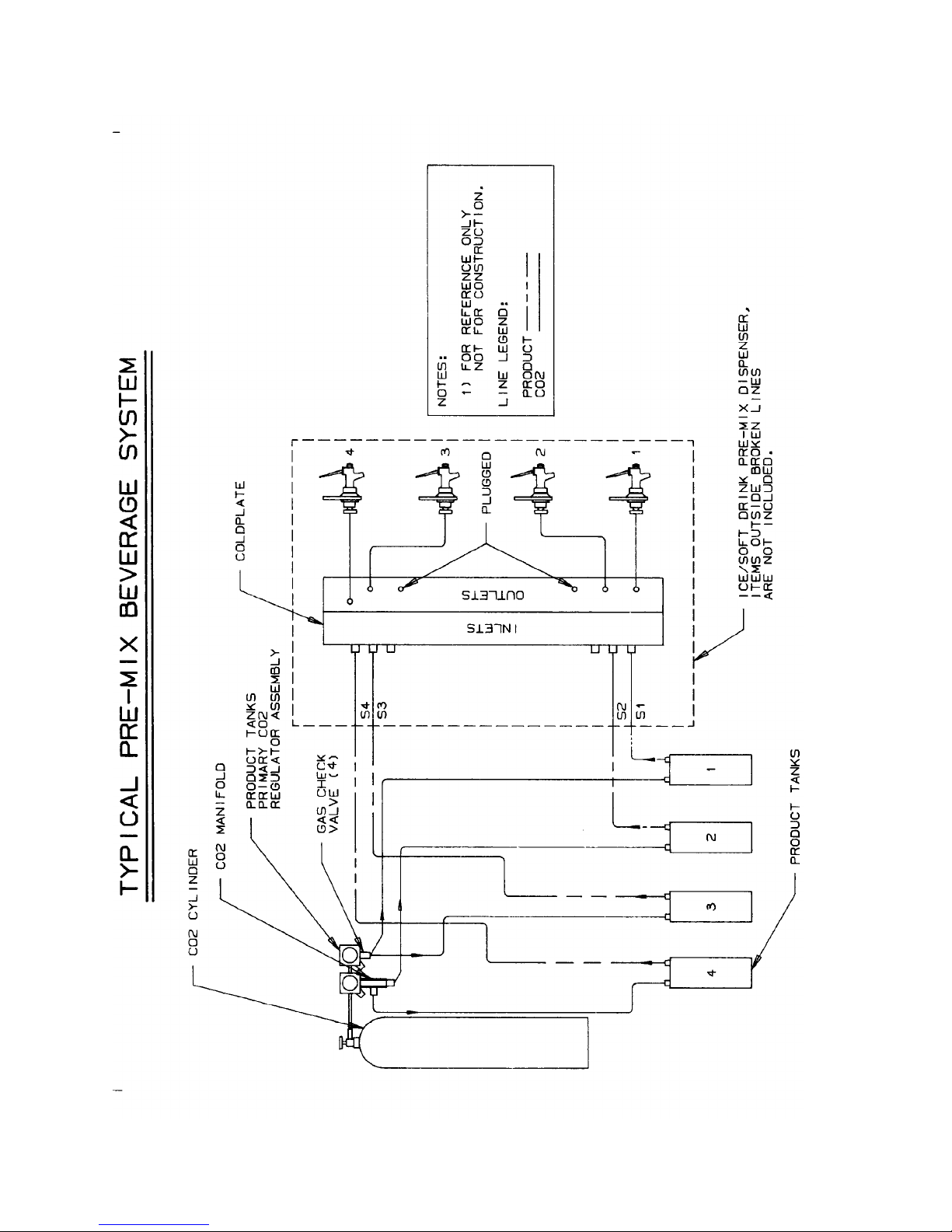

Dispensersinclude faucetsand cold platesand are designed tobesupplied direct fromsyrup tanks,with no
additionalcooling required.
IMPORTANT:Fordispensing nuggetice (ModelMH750/NM650 Ice Makers),partnumber27065 Ice
Divertermustbeinstalledonthedispenser.(See INSTALLATIONINSTRUCTIONS).
Table 1.Specifications
Model:2230 C4-100 2230 C6-100 2230 C4 2230 C6
IceStorage:100 lbs100 lbs150 lbs150 lbs
MaximumNumberofFaucetsAvailable:4 6 4 6
Built--inColdPlate:YesYesYesYes
Electrical:120/1/60 120/1/60 120/1/60 120/1/60
Dimensions:22IWide
29-3/4IDeep
30--1/2IHigh
22IWide
29-3/4IDeep
30--1/2IHigh
22IWide
29-3/4IDeep
36--3/16IHigh
22IWide
29-3/4IDeep
36--3/16IHigh
Dispensing SystemRated 125 psimax125 psimax125 psimax125 psimax
