Cornelius QUEST 4000 Manuale utente

FEATURES:

QUEST ELITE 4000

4 Flavor Post-Mix

Juice DisPenser

CATG8598-1111 JUICE

Wide product/ratio capability – Handles a wide

range of post-mix products including juices with pulp,

teas and cold coffees

Frost-free refrigeration compartment – Safely

accommodates frozen, ambient or aseptic concentrate

containers or BIB’s

Large 14-16lb ice bank – Provides cold drinks during

peak demand

Patented mixing system – Delivers consistent

quality drinks with no stratiﬁcation, slugging or dripping

LED illuminated graphics – Eliminates lost sales

due to ‘lights out’ and reduces life costs

Narrow footprint – Conserves counter space

Easy to service – Modular component design

and ease of access speeds service

‘Sold out’ indication – Alerts operator to product out

condition and maximizes sales

Optional ﬂush feature – Speeds maintenance and

promotes product safety

For more information or to place an order, contact your sales representative or authorized distributor.

OUTSIDE THE U.S.A.

Ph: 763.488.8200

Email: [email protected]

IN THE U.S.A.

Ph: 800.238.3600

Fax: 800.258.0255

101 Broadway Street West

Osseo, MN 55369

www.cornelius.com

REFRIGERATION. . . . . . . . . . . . . . Hermetically sealed

system, R-134a

refrigerant 6.2 oz (190 g)

Ice bank..................... 14-16 lb

CABINETRY. . . . . . . . . . . . . . . . . . High impact plastic

cabinetry with

stainless steel front panel

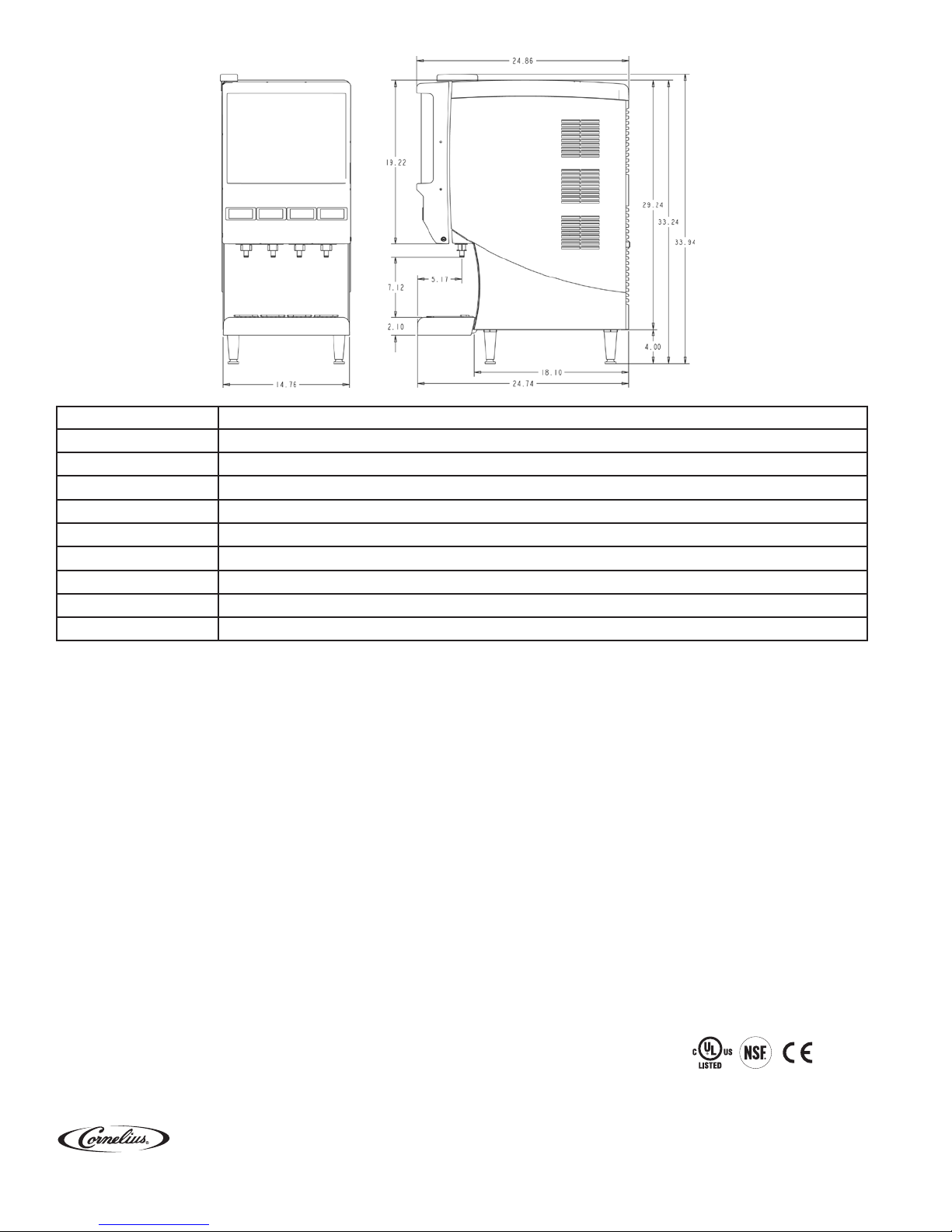

DISPENSER DIMENSIONS . . . . . . 29.3"H x 15"W x 24.3"D

(74.4 cm x 37.5 cm x 61.7 cm)

WEIGHT . . . . . . . . . . . . . . . . . . . . . Dry: 120 lb (54.4 kg)

Operating: 185 lb (83.9 kg)

Shipping: 135 lb (61.2 kg)

RECOMMENDED CLEARANCE . . Back: 4" (10.16 cm)

Top: 12" (30.48 cm)

Sides: 1” (2.54 cm)

WATER CONNECTION . . . . . . . . . 0.375" (0.95 cm) SAE male

ﬂare SAE ﬁtting on dispenser

CONCENTRATE STORAGE . . . . . Four 3.5 L bottles

WATER SUPPLY REQUIREMENTS. . 50 psi (3.4 bar):

Recommended dynamic

operating pressure

80 psi (5.15 bar):

Max static pressure

20 psi (1.38 bar):

Min dynamic pressure

COOLING. . . . . . . . . . . . . . . . . . . . Three 12 oz drinks/min

(355 mL) @ 75°F (24°C)

ambient, 75°F (24°C)

incoming water, and

41°F (4°C) concentrate

w/o exceeding a 40°F (4°C)

FLOW RATE. . . . . . . . . . . . . . . . . . Adjustable water ﬂow rate

from 1-2.2 oz/sec

Agency listings . . . . . . . . . . . . . . .

PART NUMBER DESCRIPTION

721414101JU1 Quest Elite 4 ﬂavor, illuminated, ﬂush, push button 115/60

721414111JU1 Quest Elite 4 ﬂavor, illuminated, ﬂush, portion control 115/60

721404100JU1 Quest Elite 4 ﬂavor, non-illuminated, non-ﬂush, push button 115/60

721414201JU1 Quest Elite 4 ﬂavor, illuminated, ﬂush, push button 230/50

721414211JU1 Quest Elite 4 ﬂavor, illuminated, ﬂush, portion control 230/50

729011003 Extended Panel Kit for Pitchers/Carafes

720500066 Reﬁllable Concentrate Reservoir (4) 3.5 L

729011152 Cup Locator

729011125 Bag-In-Box Option Kit

TECHNICAL SPECIFICATIONS:
