ED150 ‘’K’’ Style Lid Kit Installation Instructions

INSTALLATION INSTRUCTIONS

ED150 “K” STYLE LID KITS,

P/N 629083204 AND 629083202

Revision Date: April 18, 2011 www.cornelius.com Revision:D

These “K” style kits apply to the following ice maker:

WARNING:

Disconnect power to the unit before installing the adaptor following all lockout/tag out procedures established by the

user. Verify all the power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All ice baffle plates and bin states, if included or recommended in this kit, must be installed as directed in this manual

or the equipment manufacturer’s instructions.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All of the attachment screw and plates must be installed as directed in this manual.

Failure to comply could result in serious injury, death or damage to the equipment.

Table 1. Appropriate Model

Ice maker Width

Manitowoc Q320/420 22”

Table 2. Loose Shipped Parts

Item No. Part No. Name Catty.

1 52994 Cover, Gray (629083202) 1

52934 Cover, Black (629083204)

2620027505 DF150 Ice Maker Lid Assembly 1

3 620027306 Bracket 2

4 70217 #8 Screw 6

5 50904 RTV 1

6 90221 Label 1

7 620909401 Installation Instruction 1

8 620701902 Acorn Nut, 8-32 Nylon 2

9 620701901 Sealing Washer 2

10 620042928 Baffle Ice ED150 Adapter Lid 1

11 621701903 #8 Nylon Washer 2

ED150 ‘’K’’ Style Lid Kit Installation Instructions

1. Unpack the kit.

2. Insert a baffle assembly into the adapter lid.

3. Place (2) sealing washers (item 9) over studs and (2) flat washers (item11), then fasten in place with (2)

plastic acorn nuts (item 8).

4. Set ice maker lid on the top of the dispenser.

5. Using the slotted holes in the lid as a template, drill four (4) 9/64I diameter holes at the bottom of the slots

(see Detail A). Use extreme care not to drill into the hopper. Fasten the lid to the dispenser with four (4) #8

sheet metal screws, two on each side.

6. Seal the ice maker to the top of the dispenser as follows:

A. Run beads of RTV around the opening in the lid and inside of the perimeter of the ice maker outline so

that the ice maker sets on the RTV.

B. Set the ice maker onto the lid and position it as required.

C. Wipe away the excess RTV.

7. Remove the two rear screws (only) installed in step 5. Use those screws to install the mounting brackets

(item3). Drill 9/64I diameter holes into the ice maker cabinet using the bracket as a template. Use extreme

care not to drill into any ice maker components (condenser, tubing, etc.). Secure the brackets using the

screws provided.

8. Follow the ice maker manufacturers instruction to complete the installation of the ice maker including the

bin thermostat if so equipped or required.

9. If the plastic acorn nuts interfere with the positioning of the plastic manual fill cover, it may be necessary to

make small notches in the back flange of the cover to clear the acorn nuts.

CAUTION:

Bin Thermostat must not interfere with the agitator rotation.

ED150 ‘’K’’ Style Lid Kit Installation Instructions

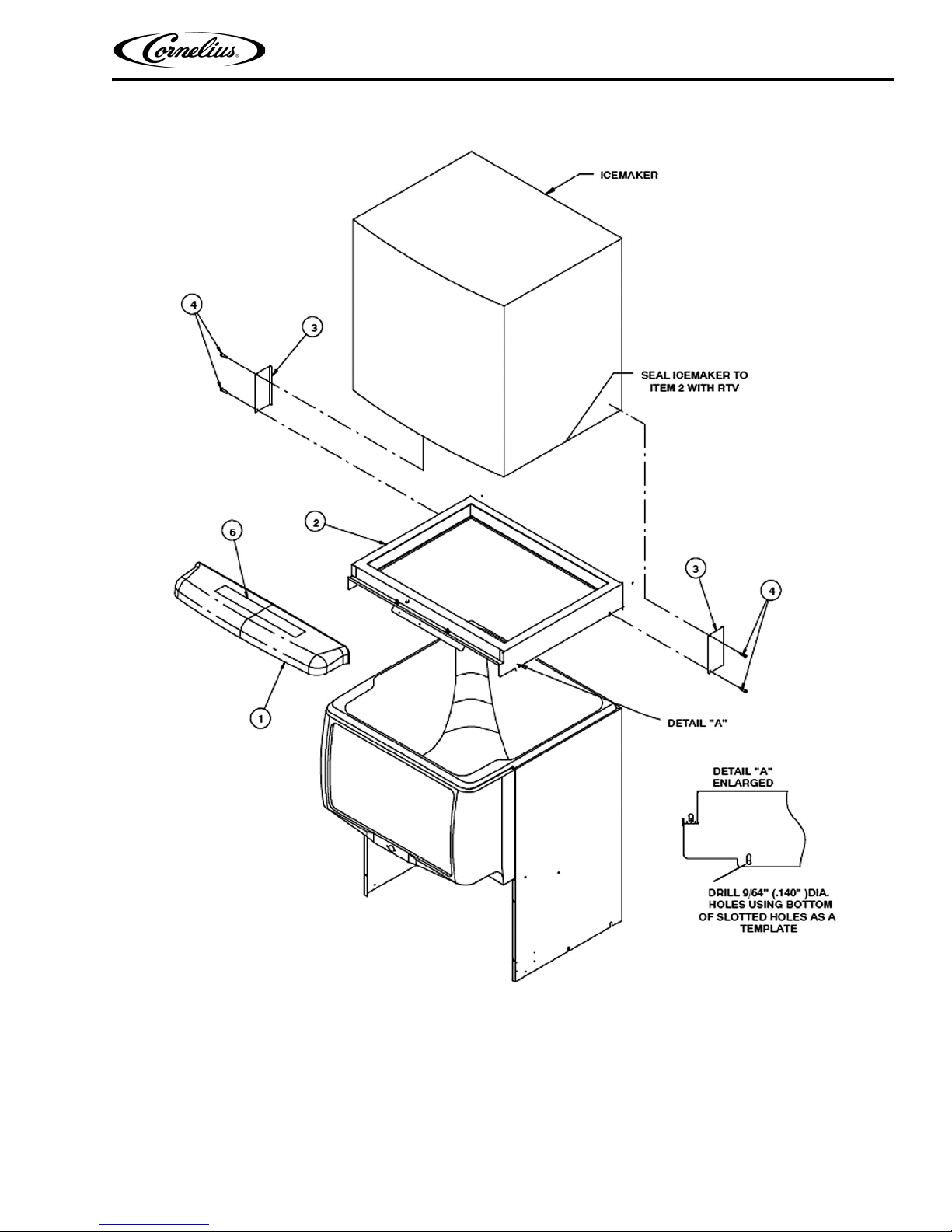

Figure 1. Dispenser Assembly

ED150 ‘’K’’ Style Lid Kit Installation Instructions

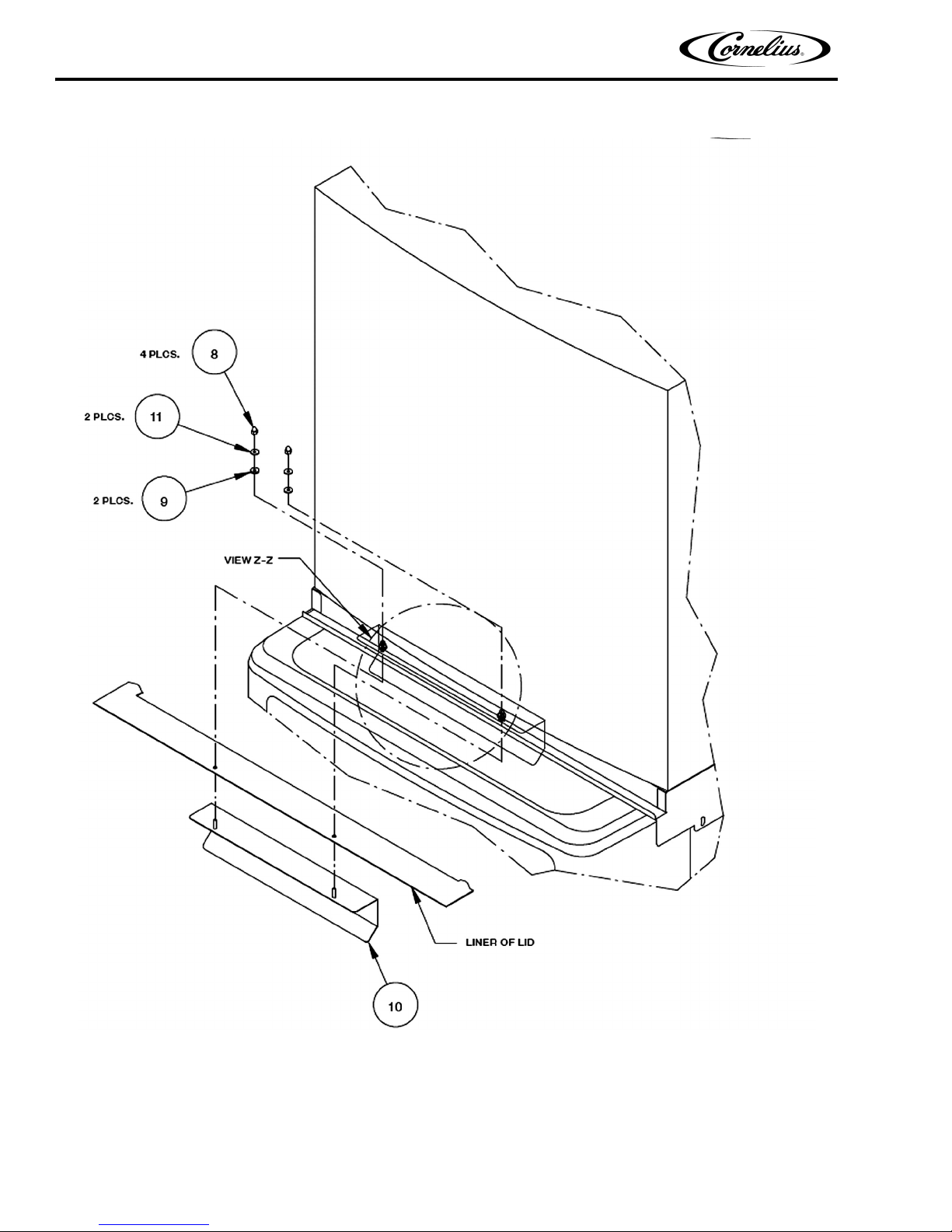

Figure 2. ED150 Kit

ED150 ‘’K’’ Style Lid Kit Installation Instructions

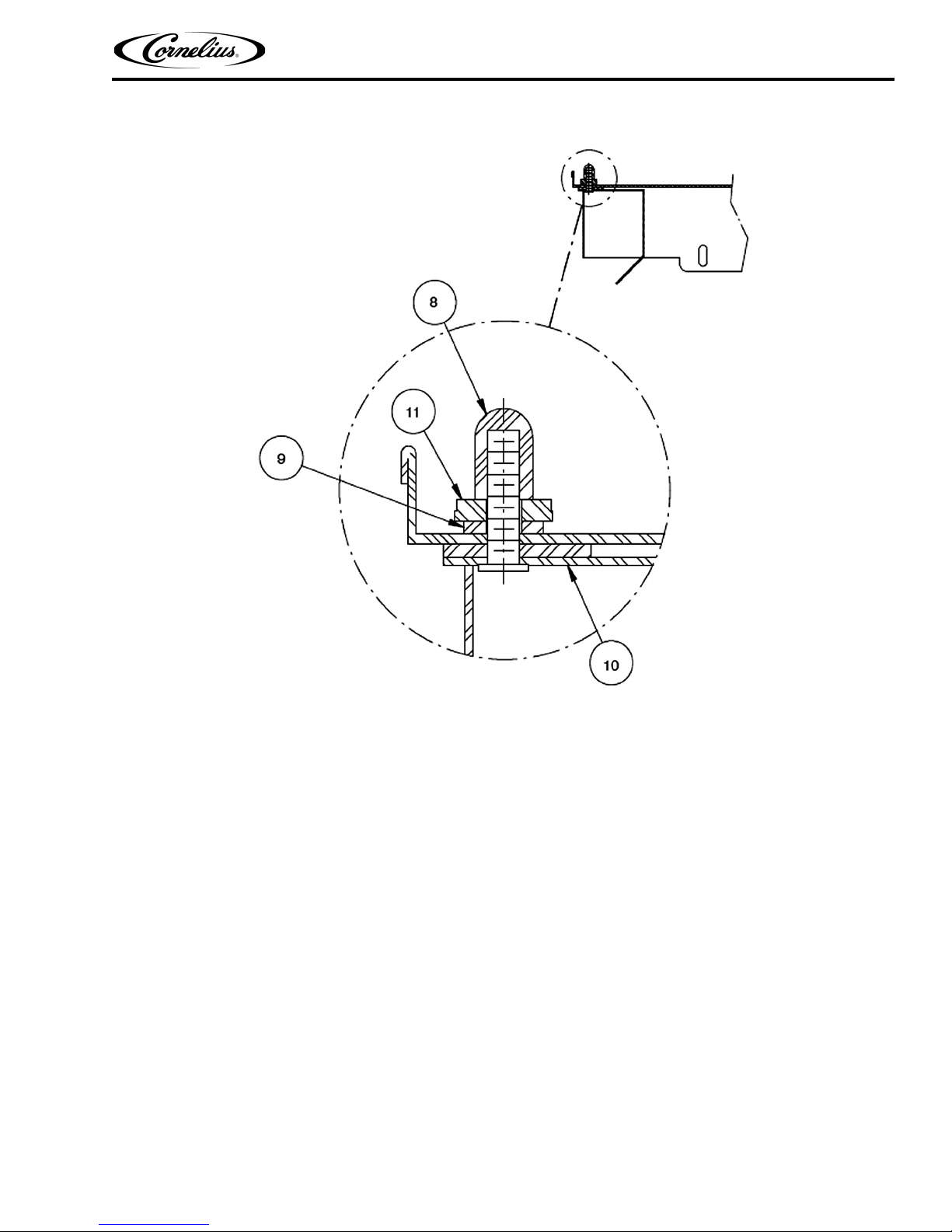

View Z-Z

Figure 3. ED150 Kit Detail
