Dual DF/ED 2XX Lid Kit Installation Instructions

INSTALLATION INSTRUCTIONS

DUAL DF/ED 2XX LID KIT FOR THE CORNELIUS EXTREME 522 AND

WILSHIRE WCC 700 ICE MAKERS

WARNING:

Disconnect power to the unit before installing the adaptor following all lockout/tag out procedures established by the

user. Verify that all the power is off to the unit before performing any work.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All ice baffle plates and bin stats, if included or recommended in this kit, must be installed as directed in this manual or

the equipment manufacturer’s instructions.

Failure to comply could result in serious injury, death or damage to the equipment.

WARNING:

All of the attachment screws and plates must be installed as directed in this manual.

Failure to comply could result in serious injury, death or damage to the equipment.

Perform the following procedure to install the adapter kit.

1. Unpack and inspect the kit. Refer to Figure 1 and Figure 2 for component details.

2. Attach the ice baffles (item 12) to the lid assemblies (items 2 & 3) using the gasket strips, washers and acorn nuts

provided (Figure 1).

3. Replace the center-mounting bracket supplied with the dual merchandiser kit with the top cover plate supplied

with this kit (item 15). Failure to do this prevents the adapter kit from functioning properly.

Table 1. Applicable Models

Dispenser DF/ED 2XX

Kit Number 629087947

Table 2. Loose Shipped Parts

Item No. Part No. Components Qty

1 620043547 Cover 2

2 620046064 Lid Assembly (XAC 522 Ice Maker) 1

3 620046060 Lid Assembly (WCC 700 Ice Maker) 1

4 22127 Mounting Bracket 4

5 70217 Screw, #8 SM 20

6 50904 RTV 1

7 91957 Label 2

8 620919550 Instructions 1

9 620701902 Nut, Nylon 4

10 620701903 Washer, Nylon 4

11 620701901 Washer, Sealing 4

12 620037003 Ice Baffle 2

13 620505802 Gasket Strip 2

14 631500109 Binstat Kit 1

15 620044644 Plate, Top Cover 1

Release Date: November 12, 2010 www.cornelius.com Revision: B

Dual DF/ED 2XX Lid Kit Installation Instructions

4. Set the lid assembly onto the dispenser. Using the slotted holes on the side of the lid as a template, drill four (4)

9/64” diameter holes at the bottom of the slots (Figure 2).

CAUTION:

Use extreme care not to drill into the hopper. Use a drill stop to ensure that the drill bit does not penetrate deeper than

¼” past the sheet metal. Failure to do so could result in a hole in the hopper, greatly reducing the efficiency of both the

dispenser and ice maker.

5. Fasten the lid to the dispenser with four (4) #8 sheet metal screws (item 5), two on each side.

6. Seal the ice maker to the top of the dispenser as follows:

A. Run beads of RTV (item 7) around the opening in the lid assembly and the inside of the perimeter of

the ice maker outline so that the ice maker sets on the RTV. Make sure that some RTV is applied

inside the nutserts on the lid assembly.

B. Set the ice maker onto the lid and position it as required.

C. Insert the thumbscrews (item 5) into the lid to attach the ice maker to the lid (Figure 3).

D. Wipe away the excess RTV.

7. Attach the mounting brackets (item 4) to the to the ice makers and lid assemblies with the #8 sheet metal screws

(item 5) (Figure 2).

8. Follow the ice maker manufacturer’s instructions to complete the installation of the ice maker.

9. Install the bin-stat (item 14) per the instructions provided with that kit.

10. Install the covers (item 1) into the slots on the lid assemblies (Figure 3).

11. Apply the label (item 6) on the front of the cover.

Dual DF/ED 2XX Lid Kit Installation Instructions

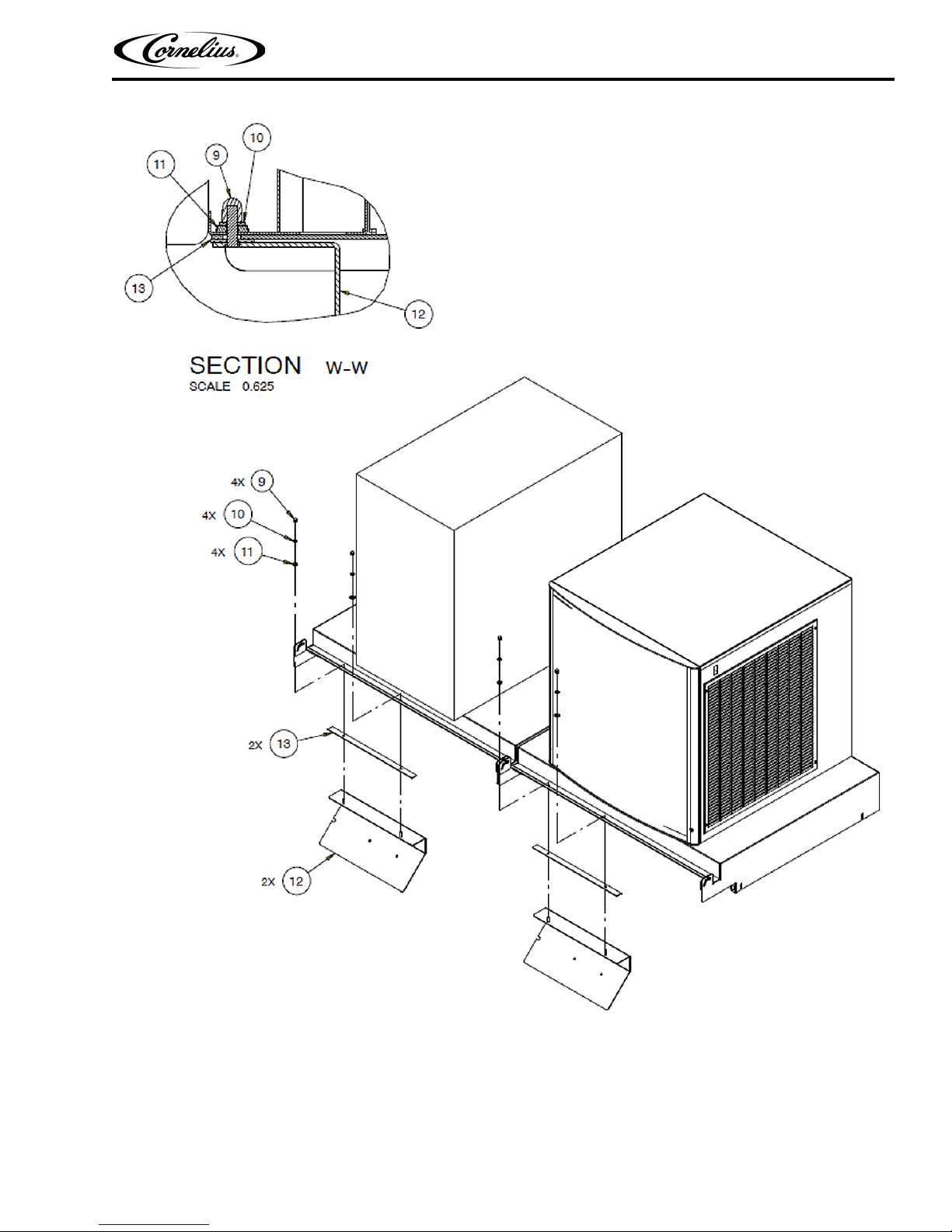

Figure 1. Parts

Dual DF/ED 2XX Lid Kit Installation Instructions

Figure 2. Dispenser Assembly

Dual DF/ED 2XX Lid Kit Installation Instructions

Figure 3A. Closed Position

Figure 3B. Open Position
