2014 Extreme Red 40 and 2014 Extreme Black 60

Covert Scouting Camera Instruction Manual

Black 60

Red 40

Page2

Table of Contents

Camera button info diagram: (Fig. 1) ...................... 3

Installing the batteries…………………………………………..4

Installing the SD card………………………………………...….5

Understand the main screen info………………………….6

Customizing the camera settings: ........................... 7

Setting the camera mode:....................................... 8

Camera mode settings: ........................................... 8

Video mode settings: (Fig. 6) .................................. 9

PIR tab:.................................................................. 11

SYS tab: ................................................................. 15

Viewing photos on the color display: .................... 19

Tricks and tips on field setup:................................ 21

Troubleshooting:................................................. ..21

Warranty:.............................................................. 24

Warranty Policy and Procedure: ........................... 25

Page3

Congratulations on your purchase of the 2014

Extreme Black 60/Extreme Red 40 Covert Scouting

Camera! We truly value your business and will

strive to provide you top quality customer service

should you ever need help with any of our products.

Check out our other products on our website at

www.covertscoutingcameras.com

Camera button info diagram: (Fig. 1)

Play

Color LCD

Navigation

arrows

Select/OK

Selector switch

Delete

Take photo

manually

Aux battery

jack

Mini

USB

SD card

slot

Figure 1

Page4

Installing the batteries:

Black 60/Red 40 can function short term on 4AA

batteries. Improved battery life on 8-AA, but we

suggest you use 12AA batteries to maximize camera

performance and battery life.Using Covert

2300mAh, NiMH rechargeable AA batteries can

extend the battery life significantly.

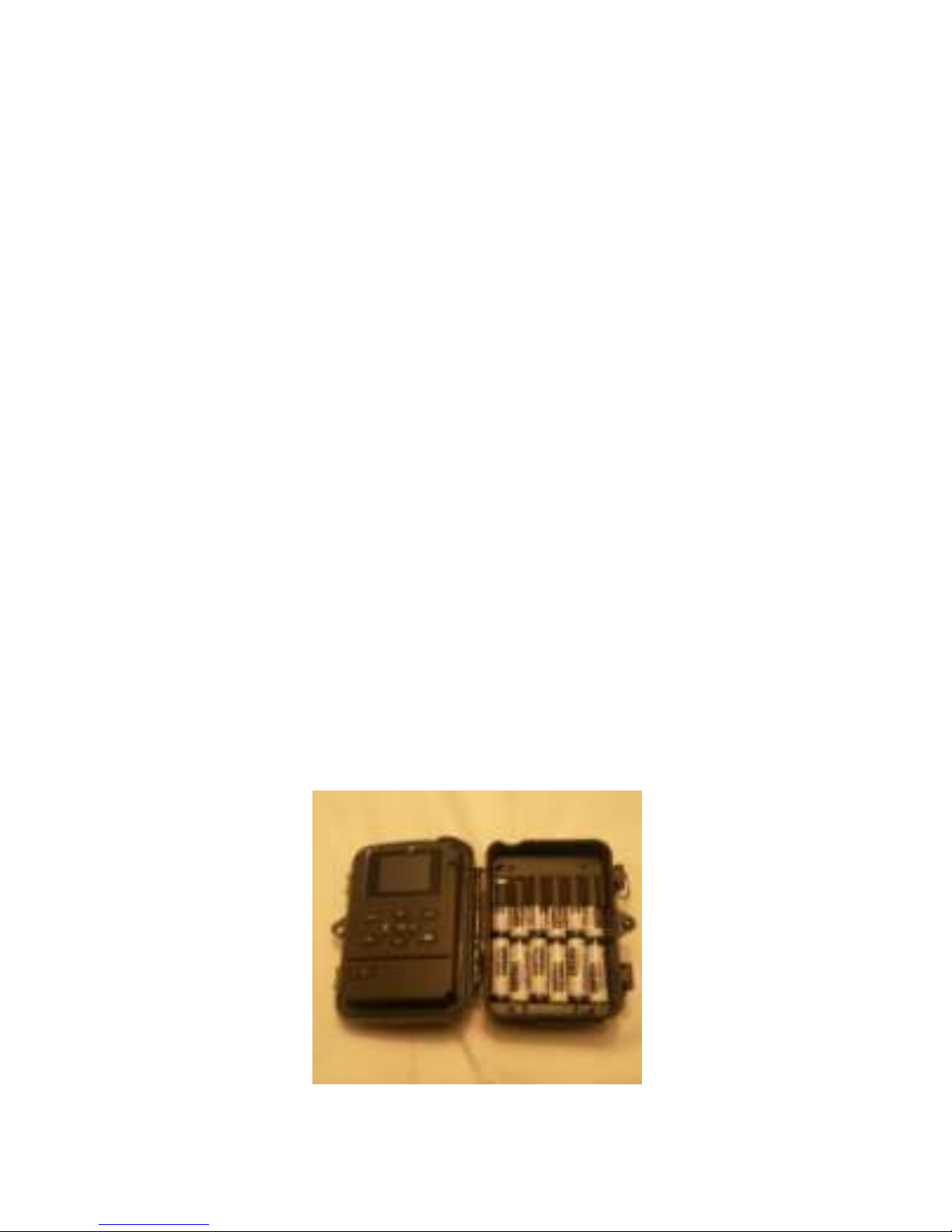

Install the batteries by sliding the top battery in to

the sleeve first, then depressing the spring with the

other battery and snapping down in place. Pay

attention to the (+) or (-) molded into each sleeve to

determine if you insert the positive or negative end

into the sleeve first.Negative battery terminal

always contacts the spring.

Figure 1

Page5

Installing the SD card:

To be able to power up the camera you will need to

install a Covert SD card in the slot in the bottom of

the camera. NOTE: You do not have to use a Covert

SD card. See figure 3 below for card orientation.

Push into the card slot until it clicks and release. To

remove, repeat that process, the card will pop out

enough to remove. You can use any SD card size up

to 32G. You must have the SD card in the camera to

be able to turn the camera on and set it up.

Figure 2

Page6

Understanding main screen info:

Camera/Video

icon

Mega Pixels

chosen

Battery life

indicator

# of photos

taken

# of photos

remaining on

card

Figure 4

Page7

Customizing the camera settings:

Your camera is set to function with the default

settings without any further customization.

However, you will likely want to at very least set the

clock and date. The following information will help

you customize your camera settings so you can get

the most out of the trail camera experience.

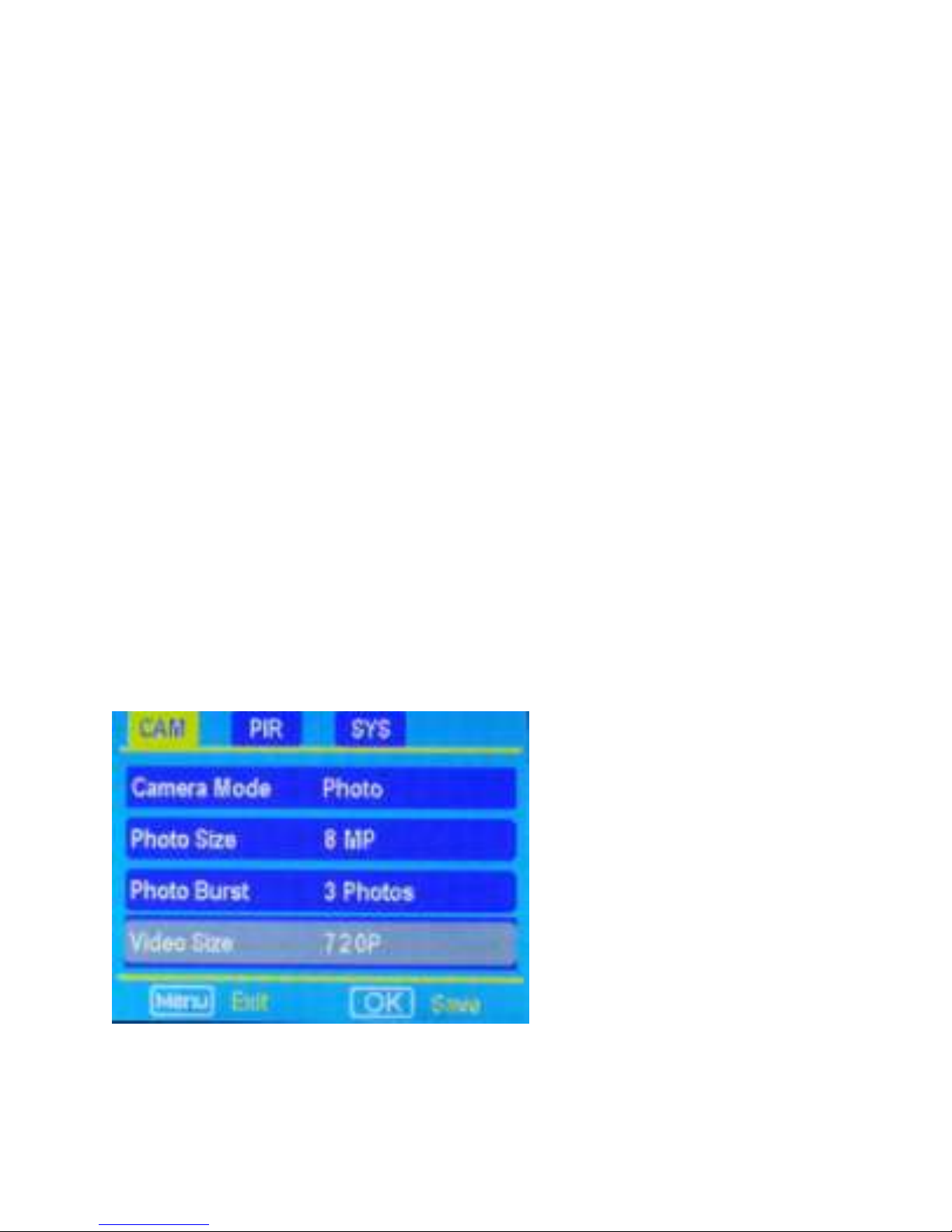

To start, Press the MENU button onceto open the

customization menus. We will start with the CAM

system tab. You will see CAM, PIR, and SYS tabs

across the top of the screen. CAM should be

highlighted in yellow. (Fig 5)

Figure 5

Page8

Setting the camera mode:

Press the ▼button to highlight the Camera Mode

option in yellow. Either Photo or Video will show

up in a white box to the right. Press the ►button

to toggle between Photo or Video until the option

you want shows in the white box. Press OK.

NOTE: If you do not press OK, your setting will

return back to the previous setting.

Camera mode settings:

PHOTO SIZE: Press the ▼or ▲button to highlight

Photo Size in yellow.

Press the ►arrow repeatedly to toggle between

3mp, 5mp, 8mp, and 12mp. Press OK once the

desired option shows in the white box.

PHOTO BURST: Your camera can take a 1, 2 or 3

shot burst every time the PIR is triggered to take a

photo.

Page9

Press the ▲or ▼buttons to highlight the PHOTO

BURST option: To set this function, press the

►repeatedly to show the 1 Photo, 2 Photos, or 3

Photos option. Press OK to save the desired setting.

Video mode settings: (Fig.6)

VIDEO SIZE: You can choose from WVGA(800x480),

QVGA(320x240), or 720P(1280x720).

Press the ►button to toggle between the 4

options. Press OK to save the setting.

VIDEO LENGTH: You can adjust the length of time

the camera takes a video from 5-60 seconds. Press

the ▲or ▼button to highlight the VIDEO LENGTH

option. Press the ►or ◄buttons repeatedly to

change the number of seconds shown in the white

box. Long videos fill the SD card up quickly. For

Figure 6

Page10

short night videos, we recommend a trigger interval

for double the amount of time of your video.

Example: 10 second videos=20 second trigger

interval.

VIDEO SOUND: Your camera can record sound on

videos. Press the ▼button to highlight the Video

Sound option. Press the ►button to toggle

between ON and OFF. Press the OK button to save

the setting.
