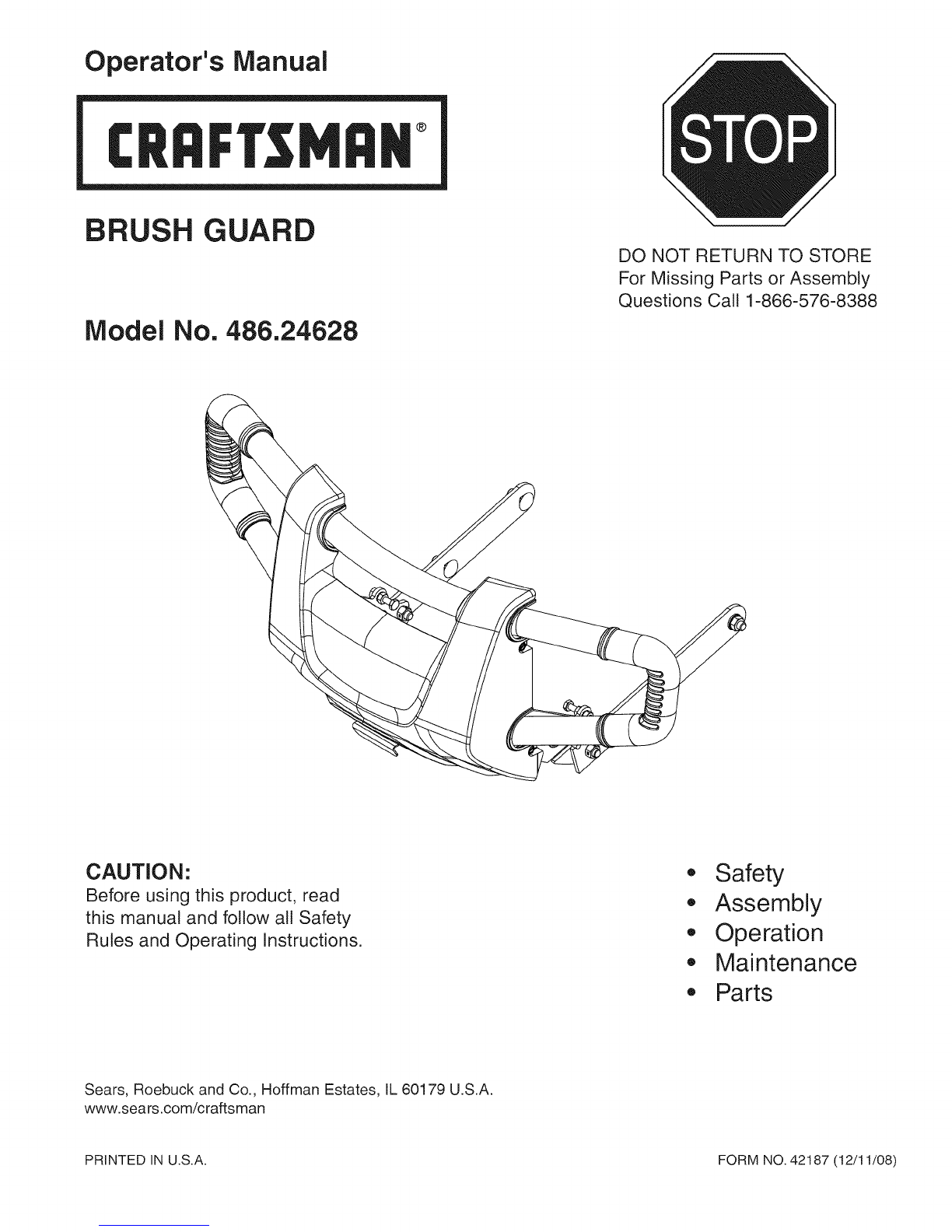

Operator's IVlanuai

BRUSH GUARD

Model No. 486.24628

DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

CAUTION:

Before using this product, read

this manual and follow all Safety

Rules and Operating Instructions.

,, Safety

,, Assembly

,, Operation

,, Maintenance

,, Parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

PRINTED IN U.S.A. FORM NO. 42187 (12/11/08)

WARRANTY .................................................................... 2

SAFETY RULES .............................................................. 2

CARTON CONTENTS ..................................................... 3

FULL SIZE HARDWARE CHART .................................... 3

ASSEMBLY ...................................................................... 4

OPERATION .................................................................... 5

REPAIR PARTS ILLUSTRATION ..................................... 6

REPAIR PARTS LIST ....................................................... 7

PARTS ORDERING/SERVICE ...................... BACK PAGE

ONE YEAR FULL WARRANTY

When operated and maintained according to all supplied instructions, if this Craftsman product fails due to a defect in

material or workmanship within one year from the date of purchase, return it to any Sears store or other Craftsman outlet in

the United States for free replacement.

This warranty applies for only 90 days if this product is ever used for commercial or rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179

Any power equipment can cause injury if operated improperly or ifthe user does not understand how to operate the equipment.

Exercise caution at all times when using power equipment.

• Refer to your tractor owners manual for "Rules For Safe Operation".

Look for this symbol to point out important safety precautions. It

means -- Attention!! Become alert!! Your safety is involved.

The model number and serial numbers will be found on a

decal attached to the Brush Guard.

You should record both the serial number and the date of

purchase and keep in a safe place for future reference.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

486.24628

2 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

REF QTY DESCRiPTiON REF QTY DESCRiPTiON

1 4 iBrush Guard 3 2 Frame Brace

2 2 Latch

______--

_____---

7_'F 8[__ _ 9___ 10

REF QTY DESCRiPTiON REF QTY DESCRiPTiON

1 4 Carriage Bolt, 3/8-16 x 1" 6 2 Washer, .5312 x 1 x .0598"

2 2 Hex Bolt, 3/8-1 x 1" 7 2 Spring

3 2 Hex Bolt, 1/4-20 x 1-1/4" 8 4 Hex Nut (SIMS), 1/4"

4 2 Shoulder Bolt, 3/8-16 9 4 Lock Nut, 3/8"

5 2 Washer, 3/8" 10 4 Whizlock Nut, 3/8"

Call 1-866-576-8388 for missing parts or assembly help 3

DO NOT RETURN TO STORE

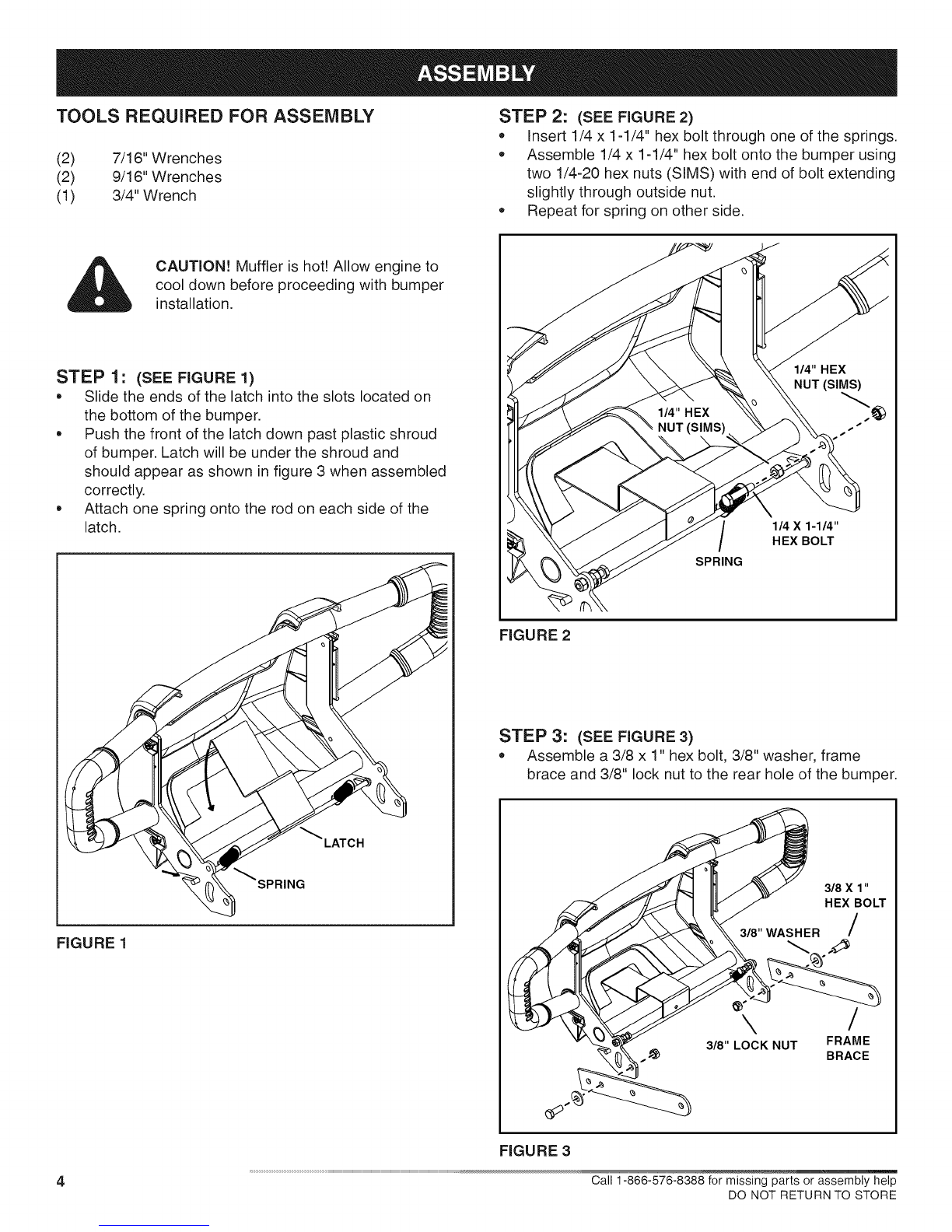

TOOLS REQUIRED FOR ASSEMBLY

(2) 7/16" Wrenches

(2) 9/16" Wrenches

(1) 3/4" Wrench

STEP 2: (SEE FIGURE 2)

*insert 1/4 x 1-1/4" hex bolt through one of the springs.

*Assemble 1/4 x 1-1/4" hex bolt onto the bumper using

two 1/4-20 hex nuts (SIMS) with end of bolt extending

slightly through outside nut.

*Repeat for spring on other side.

CAUTION! Muffler is hot! Allow engine to

cool down before proceeding with bumper

installation.

STEP 1: (SEE FIGURE 1)

• Slide the ends of the latch into the slots located on

the bottom of the bumper.

Push the front of the latch down past plastic shroud

of bumper. Latch will be under the shroud and

should appear as shown in figure 3 when assembled

correctly'.

Attach one spring onto the rod on each side of the

latch.

LATCH

_SPRING

FIGURE 1

1/4" HEX

NUT (SIMS)

114X 1-114"

HEX BOLT

SPRING

FIGURE 2

STEP 3: (SEE FIGURE 3)

Assemble a 3/8 x 1" hex bolt, 3/8" washer, frame

brace and 3/8" lock nut to the rear hole of the bumper.

318 X 1"

HEX BOLT

318" WASHER /

318" LOCK NUT FRAME

BRACE

FIGURE 3

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

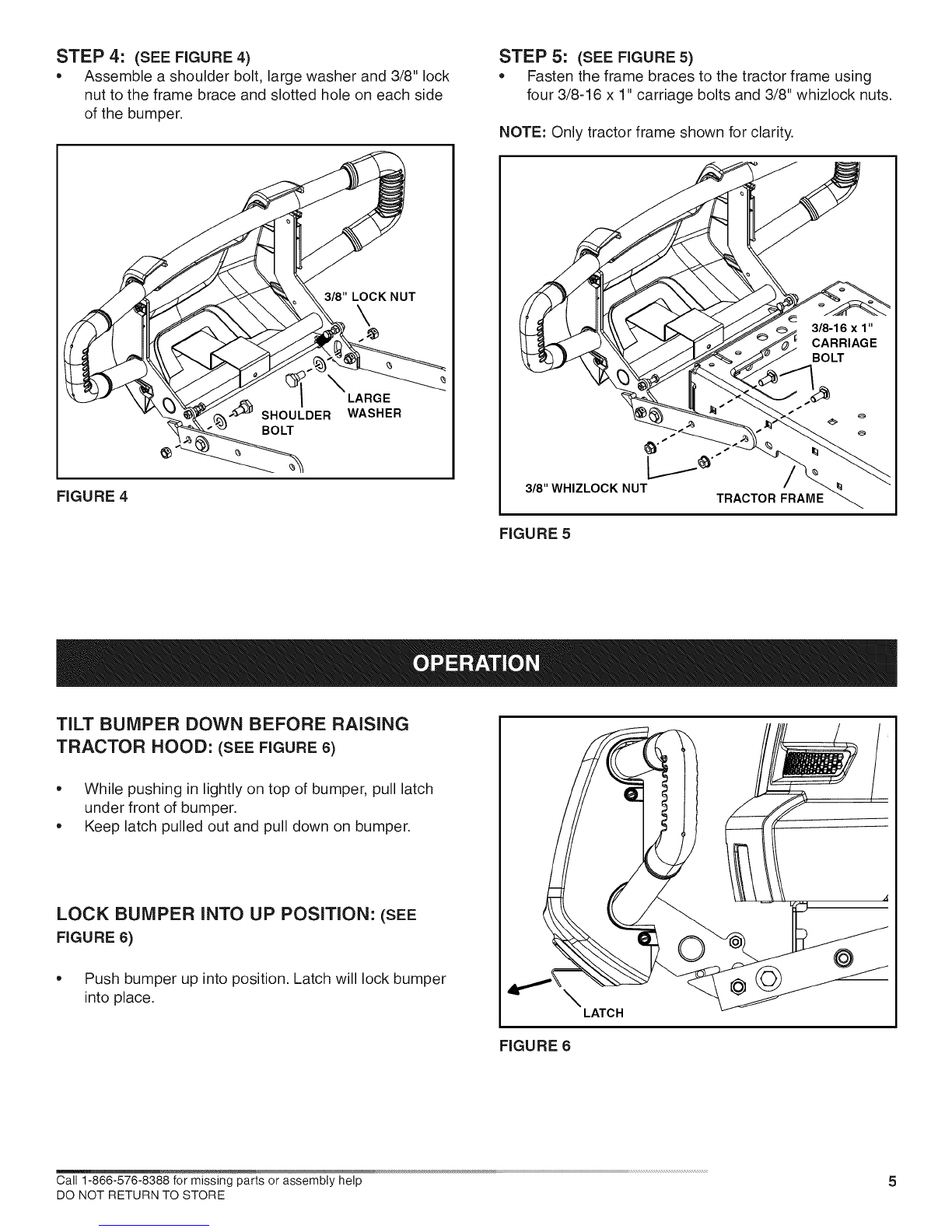

STEP 4: (SEE FIGURE 4)

*Assemble a shoulder bolt, large washer and 3/8" lock

nut to the frame brace and slotted hole on each side

of the bumper.

STEP 5: (SEE FIGURE 5)

*Fasten the frame braces to the tractor frame using

four 3/8-16 x 1" carriage bolts and 3/8" whizlock nuts.

NOTE: Only tractor frame shown for clarity.

FIGURE 4

3/8" LOCK NUT

\LARGE

"_ SHOULDER WASHER

BOLT

3/8-16 x 1"

CARRIAGE

BOLT

LJ /

3/8" WHIZLOCK NUT ._

TRACTOR FRAME

FIGURE 5

TiLT BUMPER DOWN BEFORE RAiSiNG

TRACTOR HOOD: (SEE FIGURE 6)

*While pushing in lightly on top of bumper, pull latch

under front of bumper.

*Keep latch pulled out and pull down on bumper.

LOCK BUMPER iNTO UP POSiTiON: (SEE

FIGURE 6)

*Push bumper up into position. Latch will lock bumper

into place. \LATCH

FIGURE 6

Call 1-866-576-8388 for missing parts or assembly help 5

DO NOT RETURN TO STORE

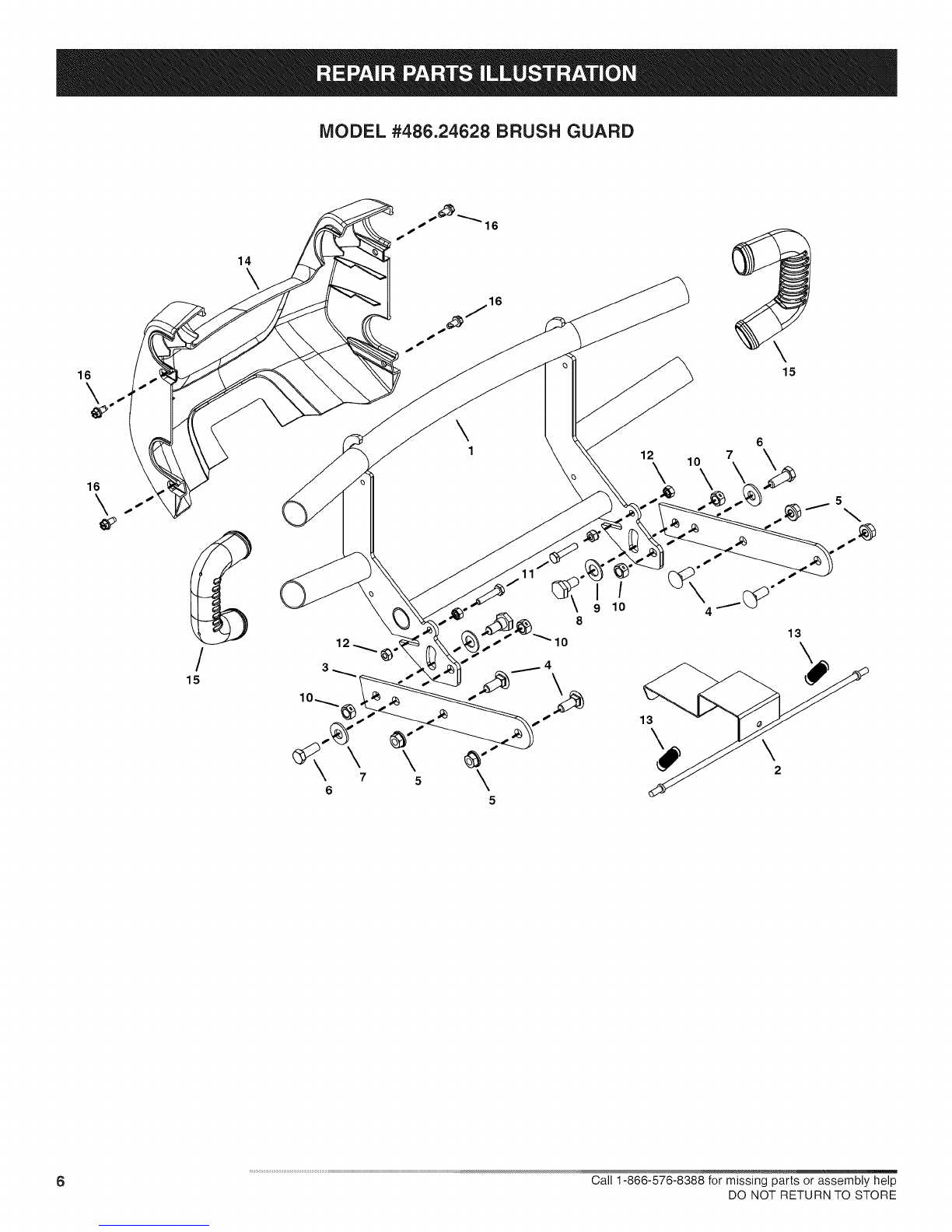

MODEL #486.24628 BRUSH GUARD

12 7

\ lo\

\15

9 10 4

6 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

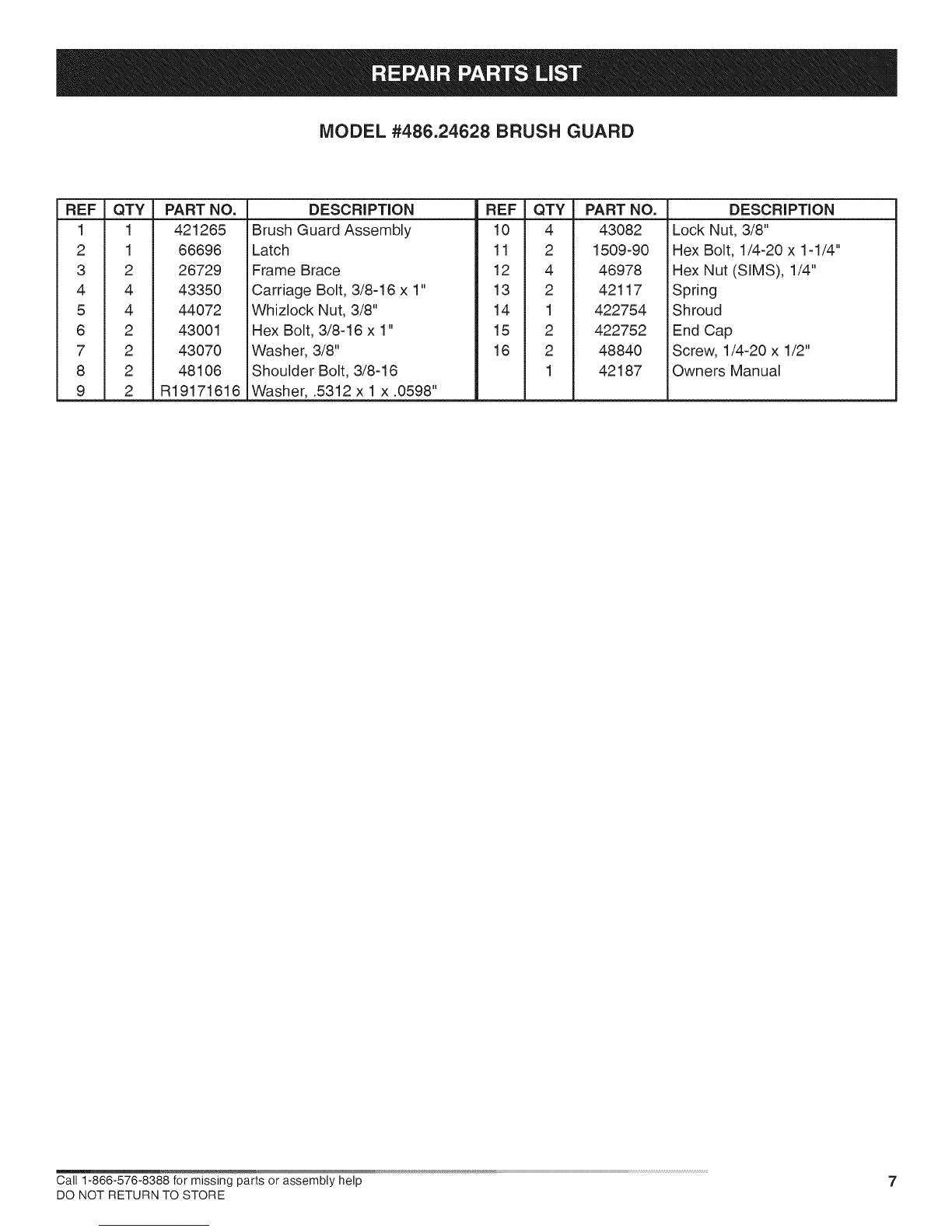

MODEL #486.24628 BRUSH GUARD

REF QTY PART NO.

1 1 421265

2 1 66696

3 2 26729

4 4 43350

5 4 44072

6 2 43001

7 2 43070

8 2 48106

9 2 R19171616

DESCRIPTION REF QTY PART NO.

Brush Guard Assembly 10 4 43082

Latch 11 2 1509-90

Frame Brace 12 4 46978

Carriage Bolt, 3/8-16 x 1" 13 2 42117

Whizlock Nut, 3/8" 14 1 422754

Hex Bolt, 3/8-16 x 1" 15 2 422752

Washer, 3/8" 16 2 48840

Shoulder Bolt, 3/8-16 1 42187

Washer,.5312 x 1 x.0598"

DESCRIPTION

Lock Nut, 3/8"

Hex Bolt, 1/4-20 x 1-1/4"

Hex Nut (SIMS), 1/4"

Spring

Shroud

End Cap

Screw, 1/4-20 x 1/2"

Owners Manual

Calll-866-576-8388formissingpartsorassemblyhelp 7

DO NOT RETURN TO STORE

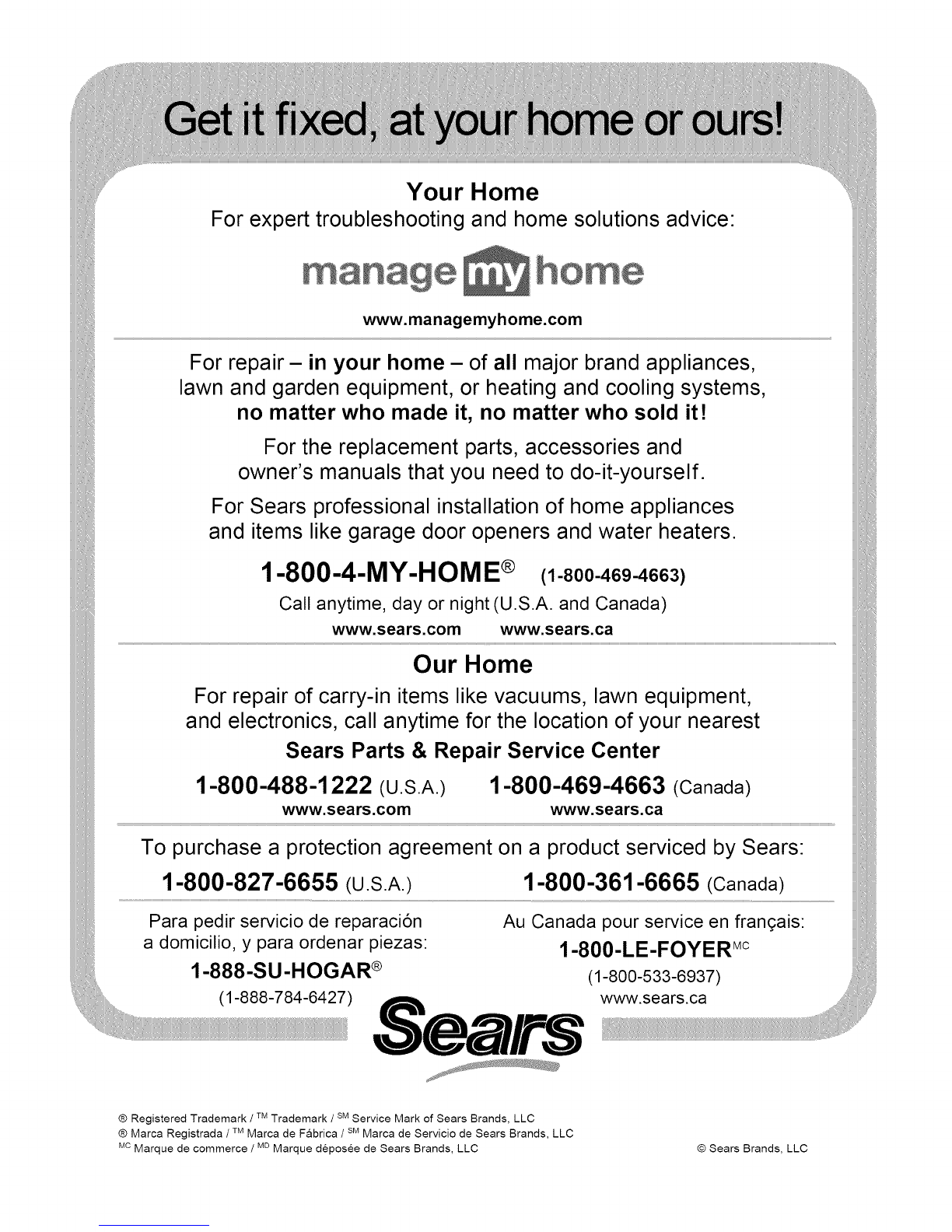

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER M°

(1-800-533-6937)

www.sears.ca

TM SM

® Registered Trademark /Trademark /Service Mark of Sears Brands, LLC

® Marca Registrada /Marca de F&brica /SMMarca de Servicio de Sears Brands, LLC

MCMarque de commerce /MDMarque depos6e de Sears Brands, LLC © Sears Brands, LLC
