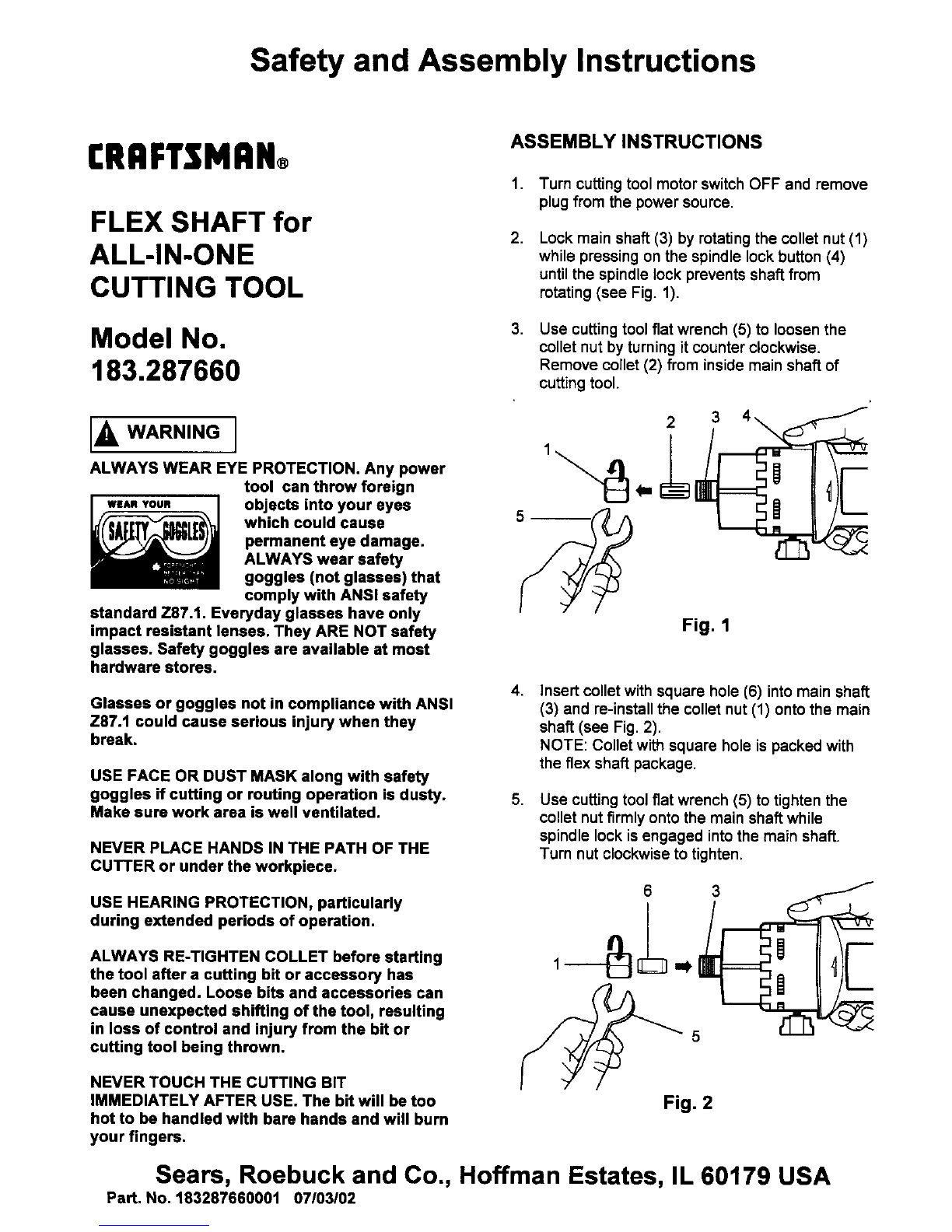

Safety and Assembly Instructions

CRRFTSMRN®

FLEX SHAFT for

ALL-IN-ONE

CUTTING TOOL

ASSEMBLYINSTRUCTIONS

Turn cutting tool motor switch OFF and remove

plug from the power source.

Lock main shaft (3) by rotating the collet nut (1)

while pressing on the spindle lock button (4)

until the spindle lock prevents shaft from

rotating (see Fig. 1).

Model No.

183.287660

.Use cutting tool fiatwrench (5) to loosen the

collet nut by turning itcounter clockwise.

Remove collet (2) from inside main shaft of

cutting tool.

AWARNING ]

ALWAYS WEAR EYE PROTECTION. Any power

tool can throw foreign

objects into your eyes

which could cause

permanent aye damage.

ALWAYS wear safety

goggles (not glasses) that

comply with ANSI safety

standard Z87.1. Everyday glasses have only

impact resistant lenses. They ARE NOT safety

glasses. Safety goggles are available at most

hardware stores.

Glasses or goggles not in compliance with ANSI

Z87.1 could cause serious injury when they

break.

USE FACE OR DUST MASK along with safety

goggles if cutting or routing operation is dusty.

Make sure work area is well ventilated.

NEVER PLACE HANDS IN THE PATH OF THE

CUTTER or under the workpiece.

USE HEARING PROTECTION, particularly

during extended periods of operation,

ALWAYS RE-TIGHTEN COLLET before starting

the tool after a cutting bit or accessory has

been changed. Loose bits and accessories can

cause unexpected shifting of the tool, resulting

in loss of control and injury from the bit or

cutting tool being thrown.

NEVER TOUCH THE CUTTING BIT

IMMEDIATELY AFTER USE. The bit will be too

hot to be handled with bare hands and will burn

your fingers.

Fig. 1

Insert collet with square hole (6) into main shaft

(3) and re-install the collet nut (1) onto the main

shaft (see Fig. 2).

NOTE: Collet with square hole is packed with

the flex shaft package.

Use cutting tool fiat wrench (5) to tighten the

collet nut firmlyonto the main shaft while

spindle lock isengaged into the main shaft.

Turn nut clockwise to tighten.

Fig. 2

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Part. No. 183287660001 07103102

Safety and Assembly Instructions

ASSEMBLY INSTRUCTIONS - cont'd

.Align the flex shaft connector cap (6) with the

cutting tool motor housing (8) (see Fig. 3).

NOTES:

a) Carefully align the square end of the flex

shaft center core so itwill engage into the

square hole in the collet.

b) Make sure the keyway (7) in the inside of

the connector cap aligns with the matching key

(8) on the motor housing.

c) Occasionally the flex shaft inner core may

slide out of the outer casing during handling. If

this should happen, simply reinsert the inner

core into the outer casing from the connector

cap end of the flex shaft. Rotate the inner core

to ensure the square end is properly engaged in

the collet assembly.

.When shaft center core and connector cap are

properly aligned, slide the connector cap fully

onto the motor housing. Lock connector cap

into place by pressing on the quick connect

lever (9).

Fig. 3

.To insert an accessory intothe flex shaft collet,

rotate collet nut (12) until hole in shaft aligns

with hole in flex shaft collar (11) (see Fig. 4).

Insert Allen key (10) into aligned holes and use

the small fiat wrench supplied (13) to turn collet

nut counter clockwise.

g* When collet is loose, insert accessory and turn

collet clockwise to tighten, making sure the

accessory is centered in the collet. Use the

small fiat wrench to tighten clockwise.

10. Remove Allen key and rotate the collet by hand

to ensure accessory does not wobble.

Fig. 4

To Change Collet Size

The flex shaft comes with two different collets. One

isfor 1/8" shank bits and the other is for 3/32"

shank bits.

1. Loosen collet nut on end of shaft as outlined in

step #8 above.

2. Remove collet nut (12) and remove collet (13)

from end of shaft (14) (see Fig. 5).

3. Insert correct collet in the end of the shaft.

4. Reinstall collet nut on shaft.

12 13 14

Fig. 5

IA CAUTION I

Do not store or operate flex shaft with a bend

radius of less than 6" (150mm) (see Fig. 5).

Fig. 6
