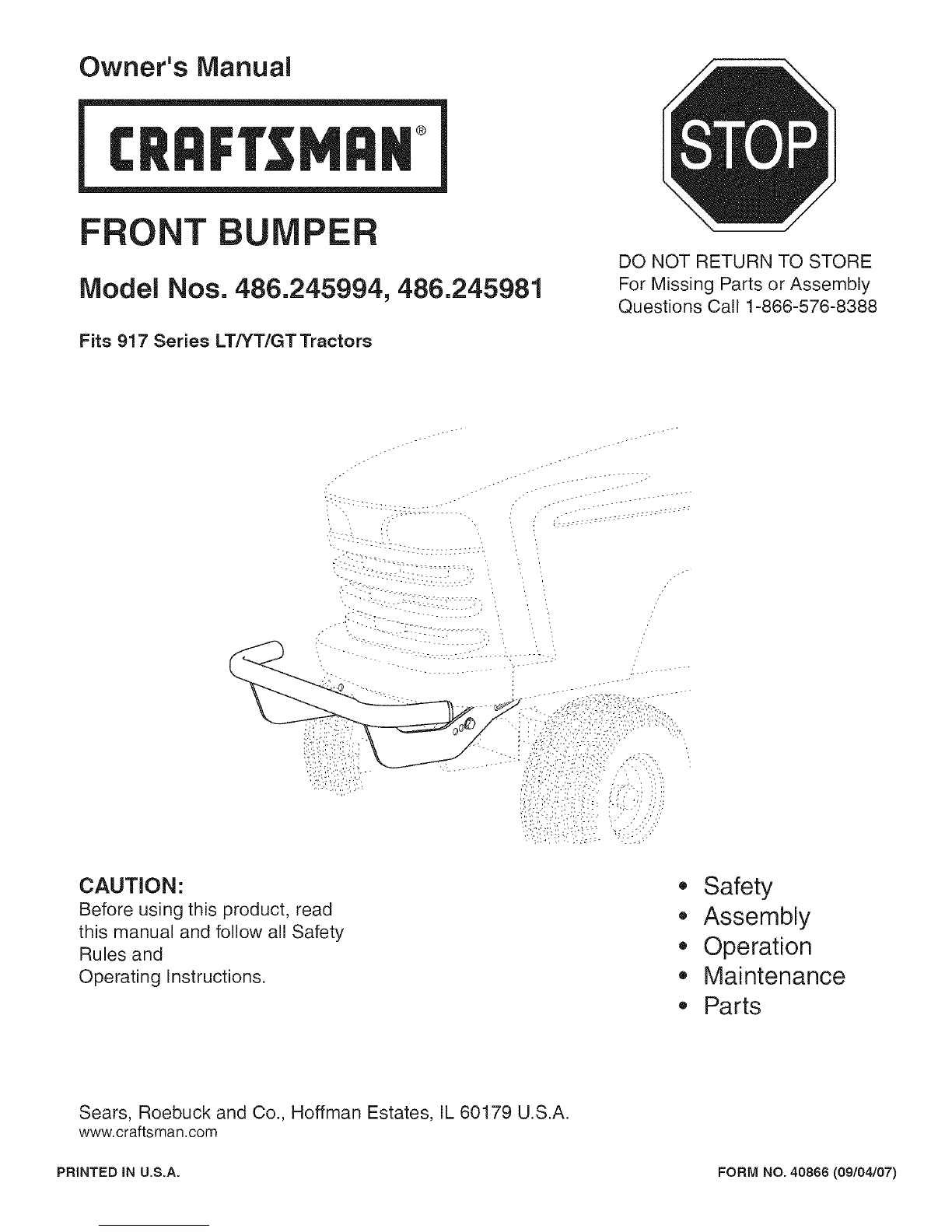

Craftsman FRONT BUMPER 486.245981 Manuale utente

Owner's Manual

CRRFr. NRN°

FRONT

Model Nos. 486.245994, 486.245981

Fits 917 Series LT/YT/GT Tractors

DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

CAUTION:

Before using this product, read

this manual and follow all Safety

Rules and

Operating Instructions.

•Safety

,, Assembly

,, Operation

,, Maintenance

,, Parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.craftsman.com

PRINTED IN U.S.A. FORM NO. 40866 (08/04/07)

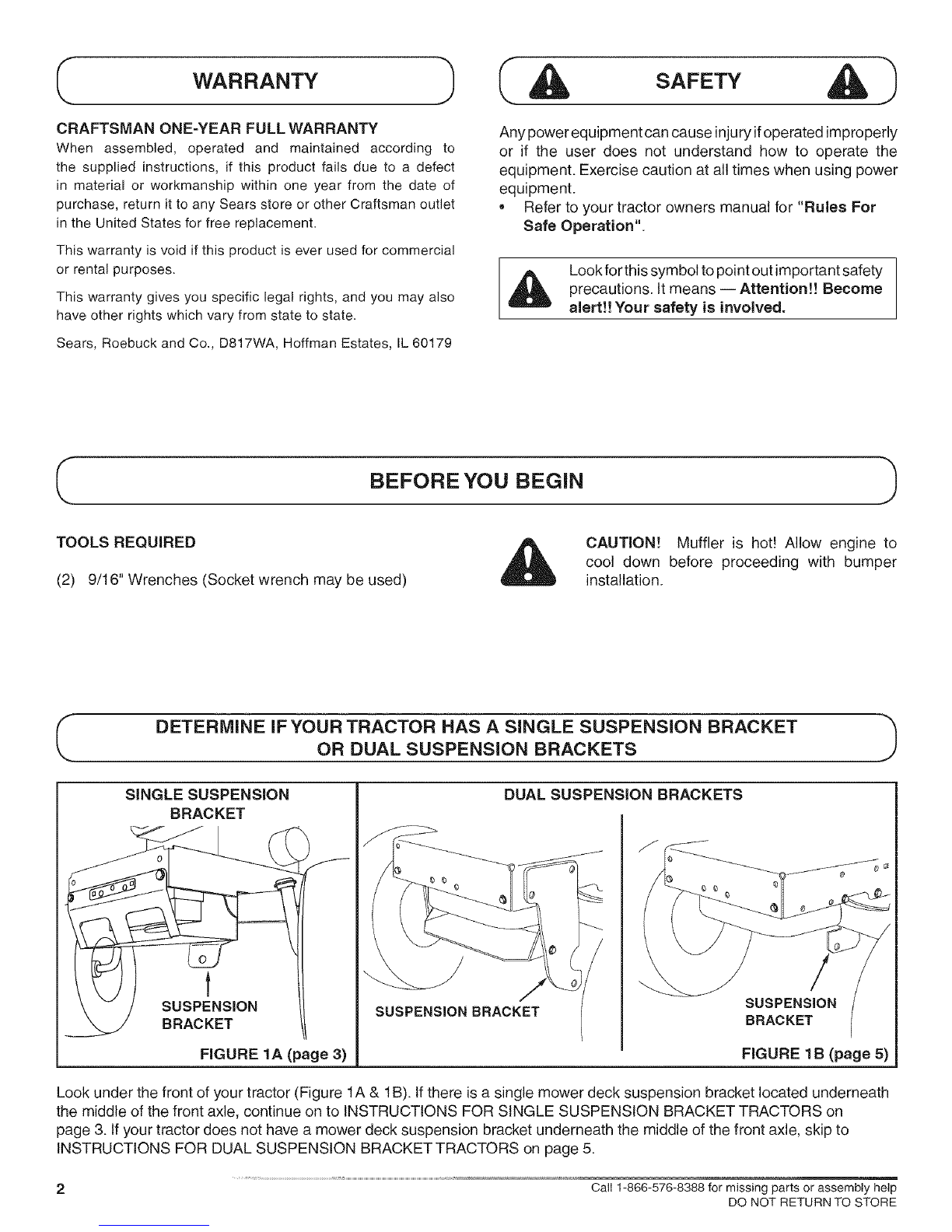

C WARRANTY

CRAFTSMAN ONE-YEAR FULL WARRANTY

When assembled, operated and maintained according to

the supplied instructions, if this product fails due to a defect

in material or workmanship within one year from the date of

purchase, return it to any Sears store or other Craftsman outlet

in the United States for free replacement.

This warranty is void if this product is ever used for commercial

or rentaJ purposes.

This warranty gives you specific JegaJrights, and you may also

have other rights which vary from state to state.

Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179

CSAFETY

Any power equipment can cause injury ifoperated improperly

or if the user does not understand how to operate the

equipment. Exercise caution at all times when using power

equipment.

• Refer to your tractor owners manual for "RuJes For

Safe Operation".

Look forthis symbol to point out important safety

precautions. It means -- Attention!! Become

alert!! Your safety is involved.

BEFORE YOU BEGIN ,_

TOOLS REQUIRED

(2) 9/16" Wrenches (Socket wrench may be used)

CAUTION! Muffler is hot! Allow engine to

cool down before proceeding with bumper

installation.

C DETERMINE IFYOUR TRACTOR HAS A SINGLE SUSPENSION BRACKET

OR DUAL SUSPENS!ON BRACKETS J

SINGLE SUSPENSION

BRACKET

SUSPENSION

BRACKET

FIGURE 1A (page 3)

DUAL SUSPENSION BRACKETS

SUSPENSION BRACKET SUSPENSION

BRACKET

FIGURE 1B (page 5)

Look under the front of your tractor (Figure 1A & 1B). If there is a single mower deck suspension bracket located underneath

the middle of the front axle, continue on to INSTRUCTIONS FOR SINGLE SUSPENSION BRACKET TRACTORS on

page 3. If your tractor does not have a mower deck suspension bracket underneath the middle of the front axle, skip to

INSTRUCTIONS FOR DUAL SUSPENSION BRACKETTRACTORS on page 5.

2 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

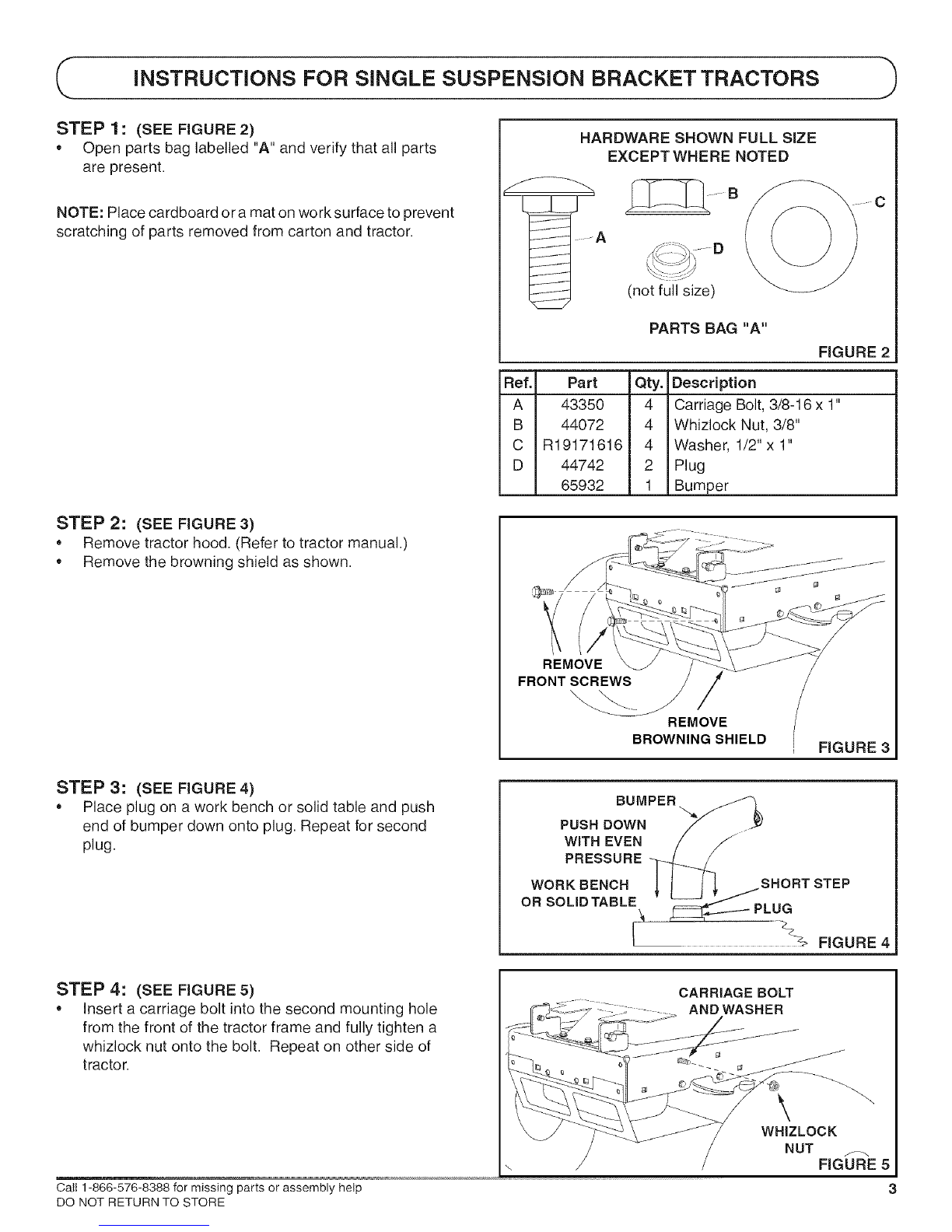

iNSTRUCTiONS FOR SINGLE SUSPENSION BRACKET TRACTORS

STEP 1:(SEE FIGURE 2)

Open parts bag labelled "A" and verify that all parts

are present.

NOTE: Place cardboard or a mat on work surface to prevent

scratching of parts removed from carton and tractor.

HARDWARE SHOWN FULL SiZE

EXCEPT WHERE NOTED

(not full size)

PARTS BAG "A"

..... C

FIGURE 2

Ref. Part Qty. Description

A 43350 4 Carriage Bolt, 3/8-16 x 1"

B 44072 4 Whizlock Nut, 3/8"

C R19171616 4 Washer, 1/2"x1"

D 44742 2 Plug

65932 1 Bumper

STEP 2: (SEE FIGURE 3)

Remove tractor hood. (Refer to tractor manual.)

Remove the browning shield as shown.

REMOVE

FRONT SCREWS

REMOVE

BROWNING SHIELD FIGURE 3

STEP 3: (SEE FIGURE 4)

Place plug on a work bench or solid table and push

end of bumper down onto plug. Repeat for second

plug.

BUMPER -.._

PUSH DOWN

WmTH EVEN

PRESSURE

WORK BENCH SHORT STEP

OR SOLID TABLE _ _,,_...----_ PLUG

_-_> F,GURE 4

STEP 4: (SEE FIGURE 5)

Insert a carriage bolt into the second mounting hole

from the front of the tractor frame and fully tighten a

whizlock nut onto the bolt. Repeat on other side of

tractor.

CARRIAGE BO_

AND WASHER

Catt1-866-576-8388formissingpartsorassemblyhelp

DO NOT RETURN TO STORE

WHIZLOCK

NUT FIGURE 5

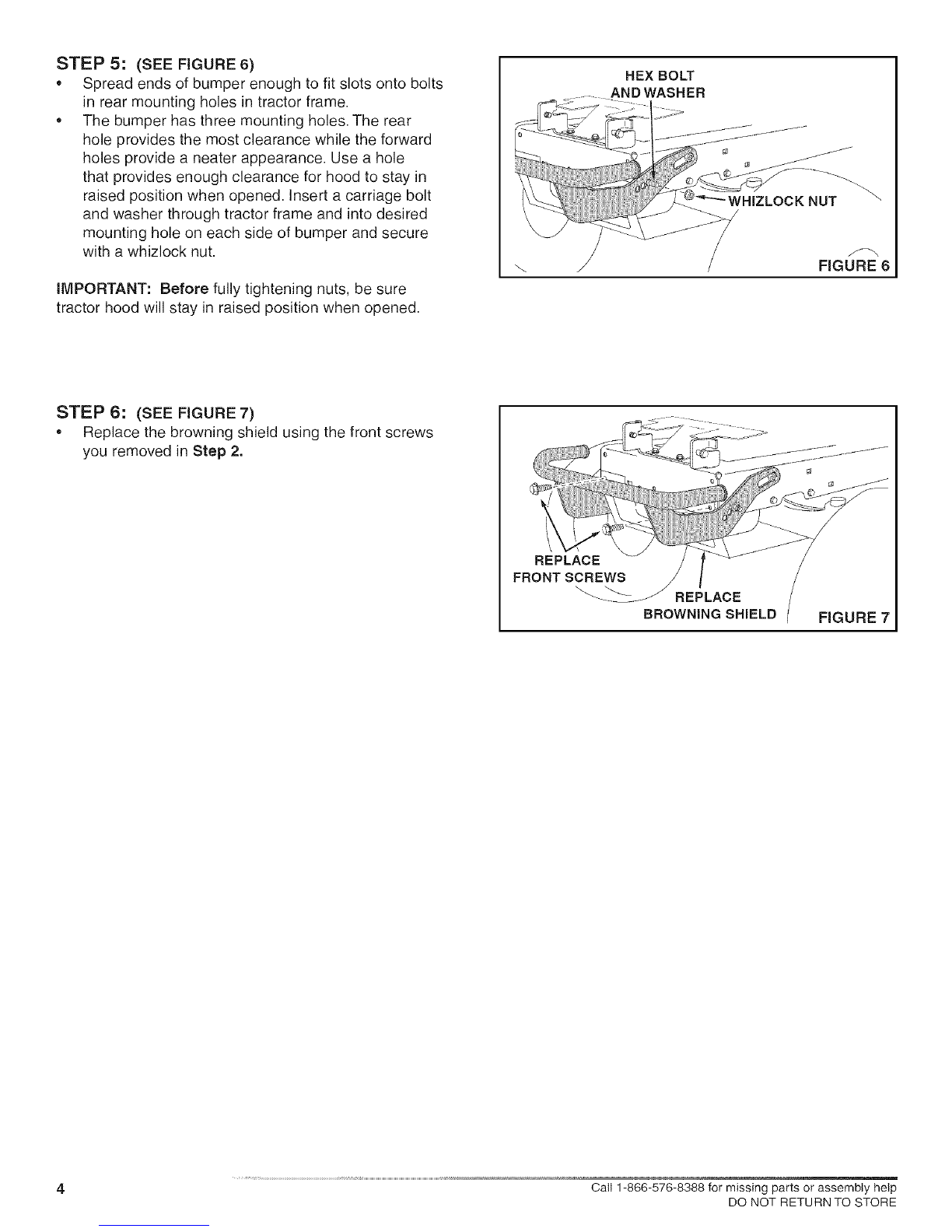

STEP 5: (SEE FIGURE 6)

Spread ends of bumper enough to fit slots onto bolts

in rear mounting holes in tractor frame.

The bumper has three mounting holes. The rear

hole provides the most clearance while the forward

holes provide a neater appearance. Use a hole

that provides enough clearance for hood to stay in

raised position when opened. Insert a carriage bolt

and washer through tractor frame and into desired

mounting hole on each side of bumper and secure

with a whizlock nut.

iMPORTANT: Before fully tightening nuts, be sure

tractor hood will stay in raised position when opened.

HEX BOLT

\ FIGURE 6

STEP 6: (SEE FIGURE 7)

Replace the browning shield using the front screws

you removed in Step 2.

REPLACE _'_

FRONT SCREWS

__._BEPLACE

BROWNING SHIELD i FIGURE 7

4 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

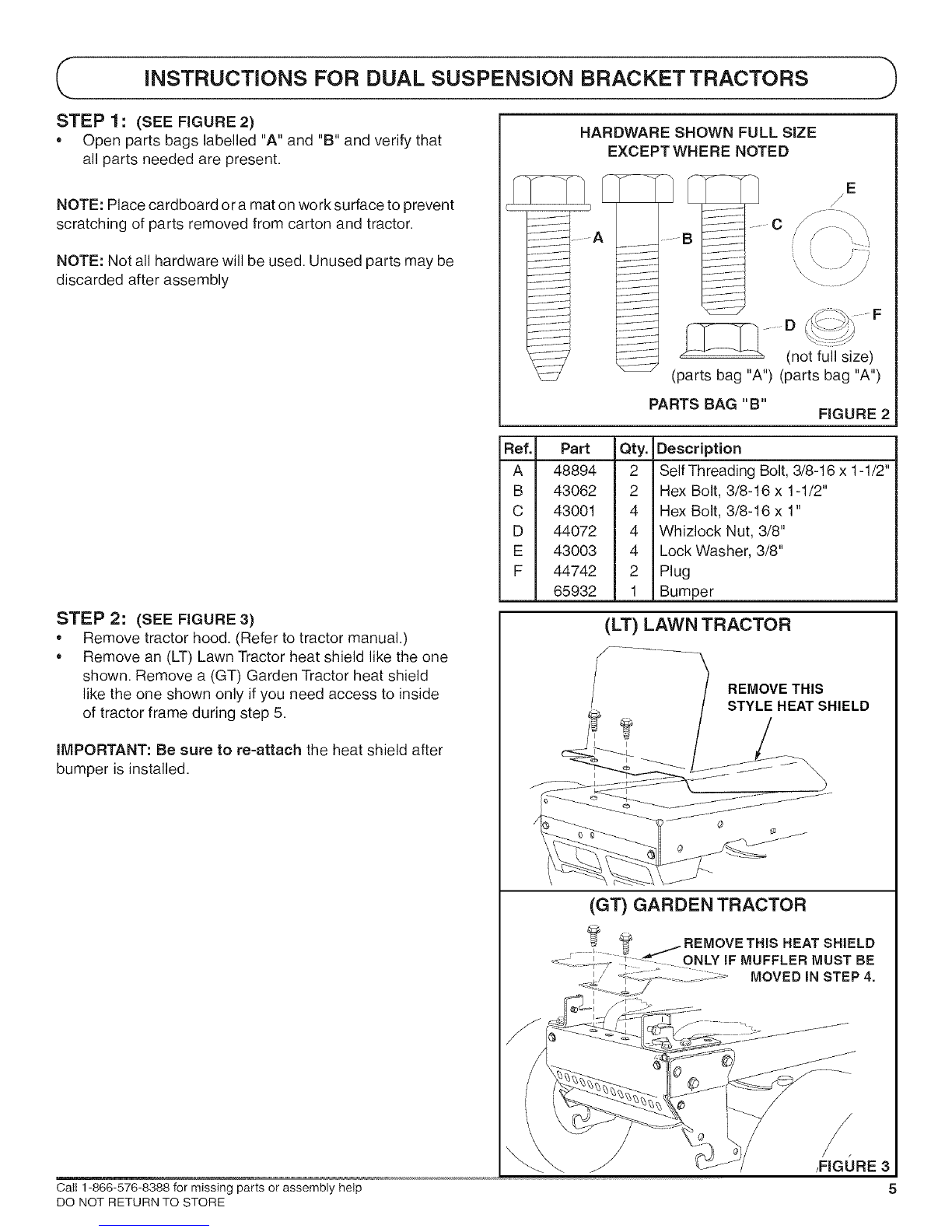

STEP 1:

*Open parts bags labelled "A" and "B" and verify that

all parts needed are present.

INSTRUCTIONS FOR DUAL SUSPENSION BRACKET TRACTORS

(SEE FIGURE 2) HARDWARE SHOWN FULL SIZE

EXCEPT WHERE NOTED

NOTE: Place cardboard or a mat on work surface to prevent

scratching of parts removed from carton and tractor.

NOTE: Not all hardware will be used. Unused parts may be

discarded after assembly

STEP 2: (SEE FIGURE 3)

*Remove tractor hood. (Refer to tractor manual.)

*Remove an (LT) Lawn Tractor heat shield like the one

shown. Remove a (GT) Garden Tractor heat shield

like the one shown only if you need access to inside

of tractor frame during step 5.

Part Qty. Description

48894 2 Self Threading Bolt, 3/8-16 x 1-1/2"

43062 2 Hex Bolt, 3/8-16 x 1-1/2"

43001 4 Hex Bolt, 3/8-16 x 1"

44072 4 Whizlock Nut, 3/8"

43003 4 Lock Washer, 3/8"

44742 2 Plug

65932 1 Bumper

iMPORTANT: Be sure to re-attach the heat shield after

bumper is installed.

Catt 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

Ref.

(LT) LAWN TRACTOR

REMOVE THIS

STYLE HEATSHIELD

I I

(GT) GARDEN TRACTOR

-REMOVETHiS HEAT SHIELD

°-: r_F irr " - ONLY iF MUFFLER MUST BE

--- MOVED,HS,E,,.

_FIGORE 3

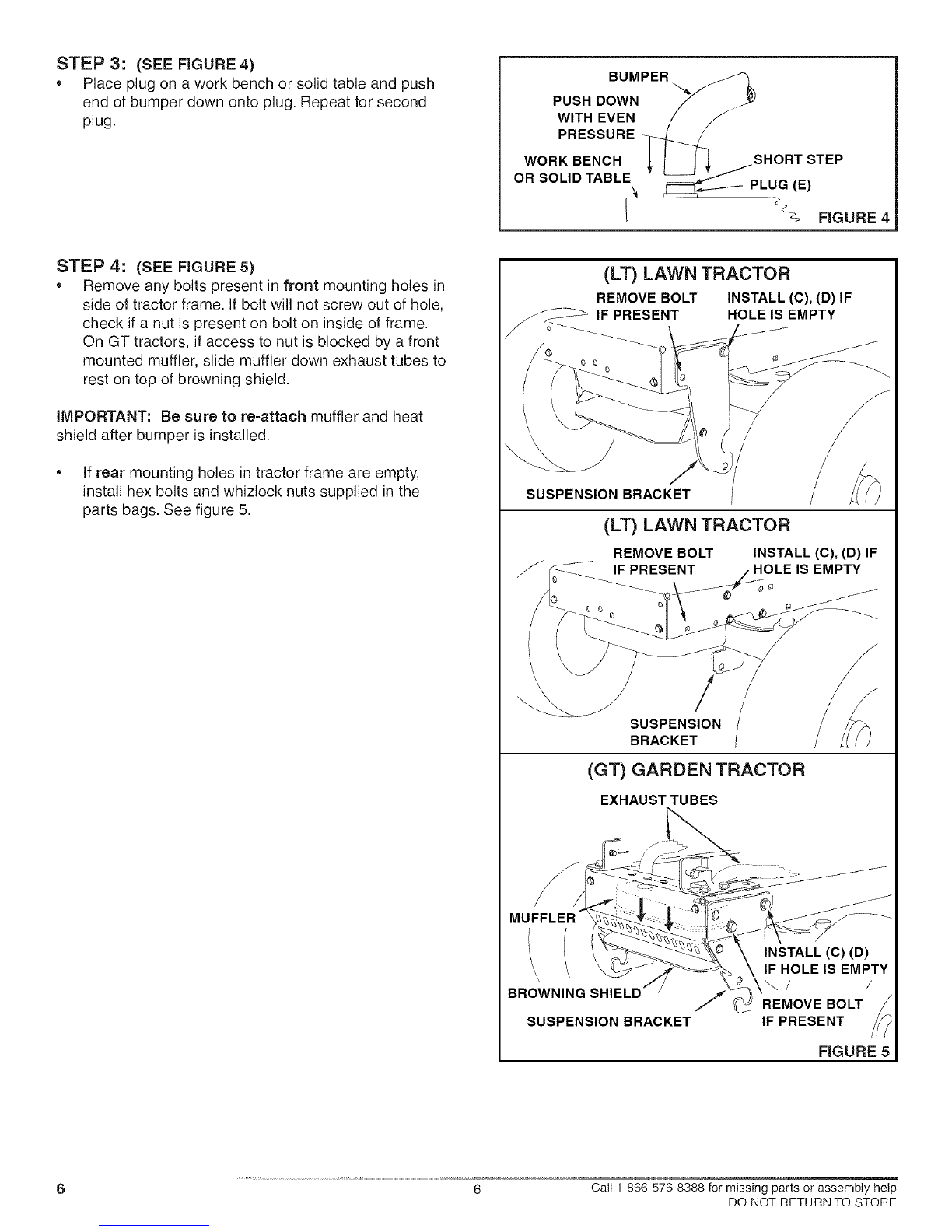

STEP 3: (SEE FIGURE 4)

• Place plug on a work bench or solid table and push

end of bumper down onto plug. Repeat for second

plug.

BUMPER

PUSH DOWN

WITH EVEN

PRESSURE

WORK BENCH

OR SOLID TABLE

STEP 4: (SEE FIGURE 5)

Remove any bolts present in front mounting holes in

side of tractor frame. If bolt will not screw out of hole,

check if a nut is present on bolt on inside of frame.

On GT tractors, if access to nut is blocked by a front

mounted muffler, slide muffler down exhaust tubes to

rest on top of browning shield.

iMPORTANT: Be sure to re-attach muffler and heat

shield after bumper is installed.

If rear mounting holes in tractor frame are empty,

install hex bolts and whizlock nuts supplied in the

parts bags. See figure 5.

(LT) LAWN TRACTOR

REMOVE BOLT INSTALL (C), (D) IF

IF PRESENT HOLE IS EMPTY

SUSPENSION BRACKET

(LT) LAWN TRACTOR

REMOVE BOLT INSTALL (C), (D) IF

HOLE IS EMPTY

ySUSPENSION

BRACKET

(GT) GARDEN TRACTOR

EXHAUST TUBES

MUFFLER

BROWNING SHIELD J

SUSPENSION BRACKET

REMOVE BOLT

IF PRESENT

FIGURE 5

6 6 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

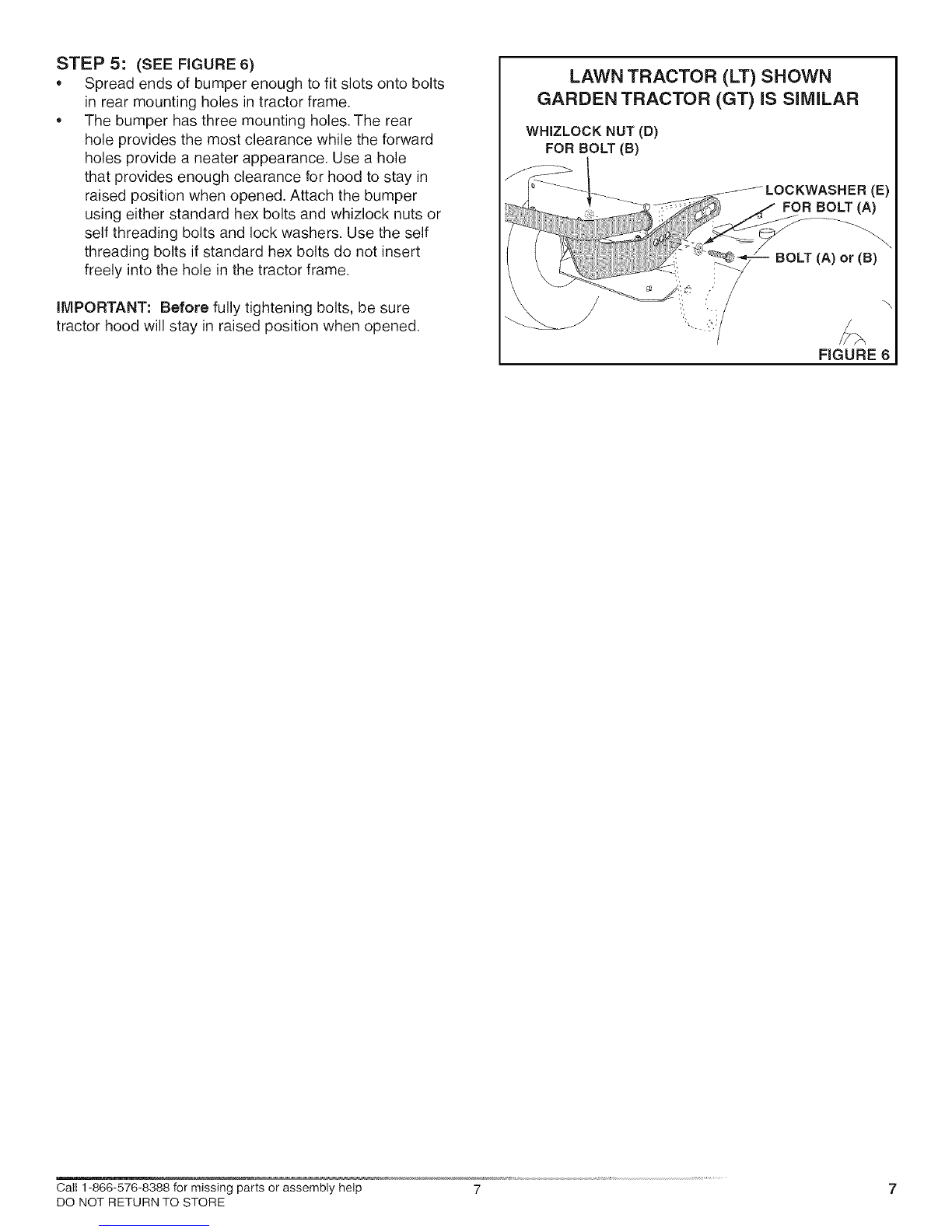

STEP 5: (SEE FIGURE 6)

Spread ends of bumper enough to fit slots onto bolts

in rear mounting holes in tractor frame.

The bumper has three mounting holes. The rear

hole provides the most clearance while the forward

holes provide a neater appearance. Use a hole

that provides enough clearance for hood to stay in

raised position when opened. Attach the bumper

using either standard hex bolts and whizlock nuts or

self threading bolts and lock washers. Use the self

threading bolts if standard hex bolts do not insert

freely into the hole in the tractor frame.

iMPORTANT: Before fully tightening bolts, be sure

tractor hood will stay in raised position when opened.

LAWN TRACTOR (LT) SHOWN

GARDEN TRACTOR (GT) IS SIMILAR

WHIZLOCK NUT (D)

FOB BOLT (B)

(E)

FOR BOLT (A)

BOLT(A) or (B)

FIGURE 6

Call 1-866-576-8388 for missing parts or assembly help 7 7

DO NOT RETURN TO STORE

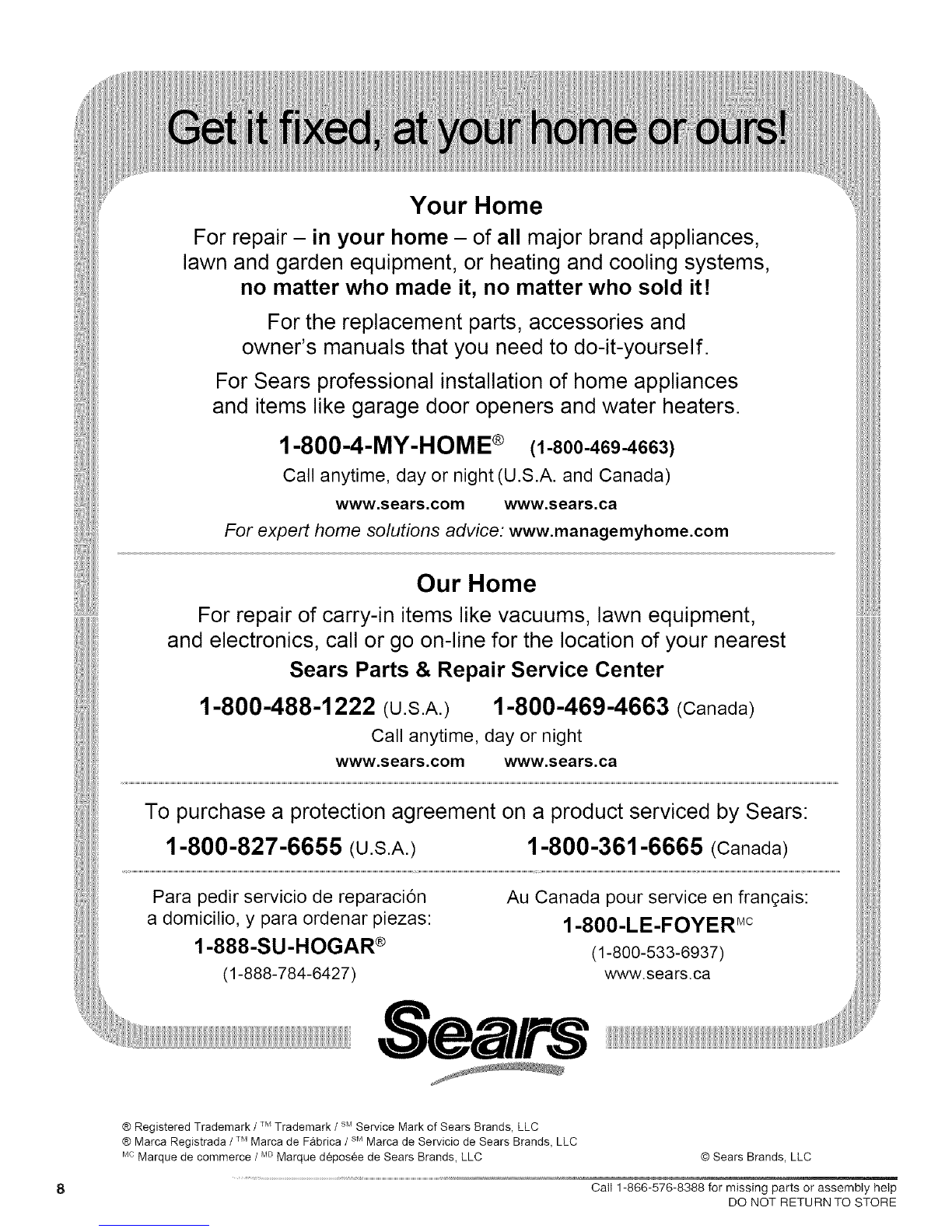

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

For expert home solutions advice: www.managemyhome.com

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime, day or night

www.sears.com www.sears.ca

To purchase aprotection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

TNI

® Registered Trademark /' Trademark /sMService Mark of Sears Brands, LLC

® Marca Registrada /T_,_Marca de F&brica /s_ Marca de Servicio de Sears Brands, LLC

Mc Marque de commerce /ND Marque d6posee de Sears Brands, LLC © Sears Brands, LLC

8 Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE
