Craftsman 919.167770 Manuale utente

PARTS

MANUAL

IMPORTANT:

Read the Safety Guidelines and

All Instructions Carefully Before

Operating.

MODEL NO.

919.167770

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

D20012 Rev. 1 4/28/00

2-STAGE OILFREE

AIR COMPRESSOR

SPECIFICATION CHART

919.167770

2.375"

High Pressure - .54"

Low Pressure - 1.45"

120

15 amps

Time Delay

20ASME

145

175

Model No.

Bore

Stroke

Voltage-SinglePhase

MinimumBranch Circuit Requirement

Fuse Type

Air Tank Capacity - Gallons

ApproximateCut-inPressure

ApproximateCut-outPressure

2 — ENG

D20012 Rev. 0 3/15/00

AIR COMPRESSOR DIAGRAM

Torque to

100-120 in.-lbs.

Torque to

9-12 ft.-lbs.

Torque to

5-7 in.-lbs.

Torque to

100-120 in.-lbs.

Torque to

15-25 in.-lbs.

35 33 Torque to

6-10 in.-lbs.

Torrque Cover

Screw Snug

40 18

3 — ENG D20012 Rev. 0 3/15/00

Key

No. Part Number Description

1 SSF-990 Screw 1/4-20UNC-2A THD (2 used)

2 ACG-18 Cup Saddle Mount (2 used)

3 GA-373 Gauge Back Mount 300 PSIG (2 used)

4 SST-107 Rubber Bumper

5 SSF-630 Screw 25 x 1.50 (2 used)

6 AC-0789 Pressure Switch

7 SSW-7385 Bushing Strain Relief

8 SSP-480 Nipple 1/4-18 NPT x 2.50

9 SUDL-413-2 Power Cord Assembly

10 AC-0014 Wheel 9"

11 AC-0609 Handle

12 SSF-981 Screw Hex HD Self Tapping (4used)

13 TA-4494 Tank 20G Vertical

14 D20584 Pressure Relief Tube

15 SSP-7811 Nut Sleeve Assembly 1/4"

16 SSP-7813 Nut Sleeve Assembly 3/8"

17 AC-0631 Check Valve 7/8 HEX x 1/4

18 CAC-60 Shoulder Bolt 3/8 - 16

19 TIA-4200 Safety Valve

20 AC-0774 Isolator (3 used)

21 H-2099 Adaptor 1/4NPT x 1/4 NPSM

22 AC-0790 Regulator

23 SS-1286 Nipple Close 1/4-18 NPT

24 SSW-7367 Bushing Strain Relief

25 SSP-6021 Busning Reducer 1/8-1/4 NP

26 ACG-61-2 Shroud, Rear

27 ACG-408 Fastener Assembly (3 used)

28 AC-0803 Outlet Tube

29 SSP-7821-1 Nut Tubing 3/8"0D TUB

30 SSG-3105 O-Ring

31 AC-0430 Drain Valve

32 AC-0780 Nut Tubing 1/2"OD TUB (2 used)

33 SSF-554 Screw 10-14 x 2.5 (2 used)

34 AC-0783 Intake Muffler Cover

35 ACG-12 Element Intake Filter

36 ACG-14 Shroud, Front

37 AC-0558 Grip .875 DIA

38 AC-0781 O-Ring .362ID x .103 width (2 used)

39 AC-0802 Interconnecting Tube

40 SSF-8080-ZN Hex Nut 3/8 - 16

41 LA-3105 Label, Craftsman

42 D20097 Label, Performance

43 D20096 Label, Billboard

PARTS LIST

4 — ENG

D20012 Rev. 0 3/15/00

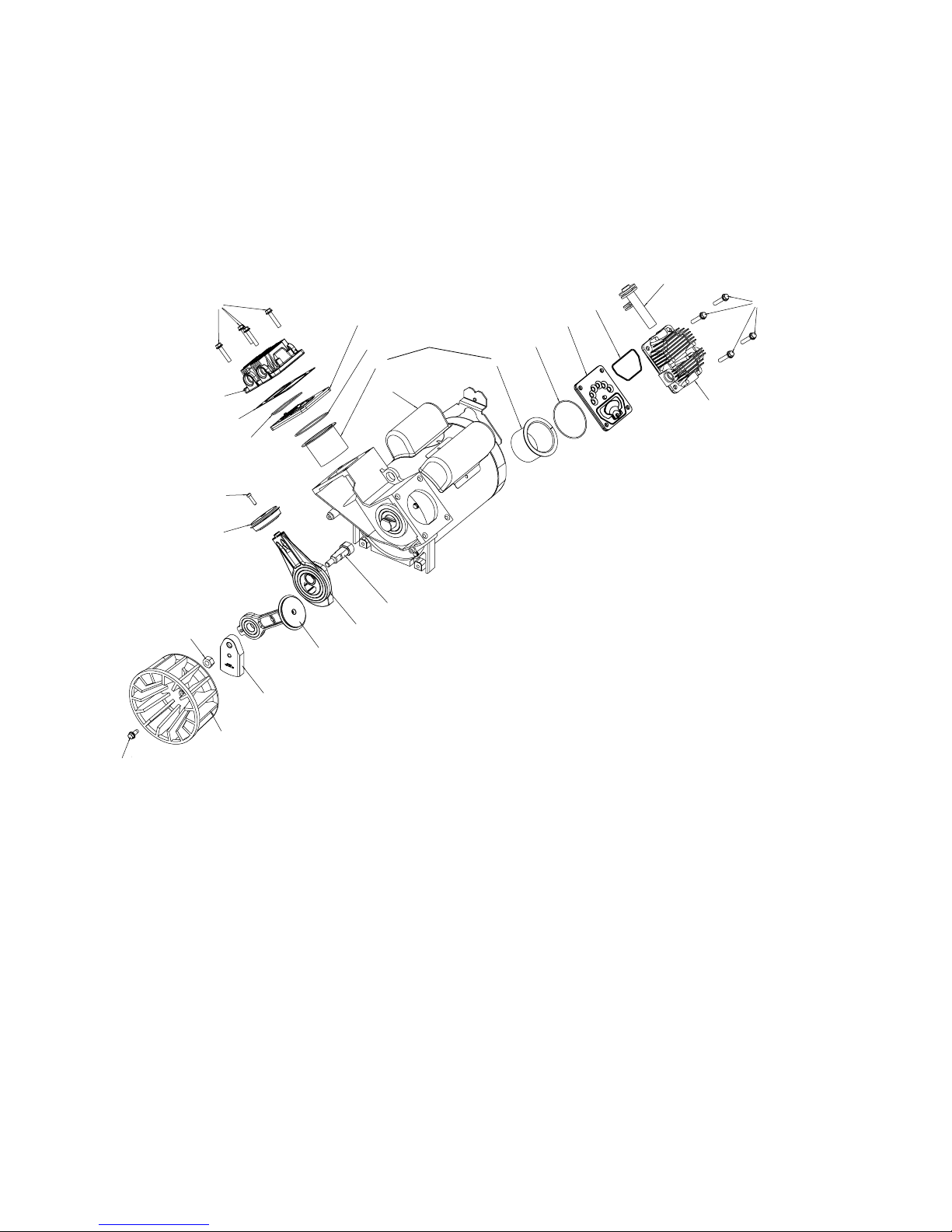

COMPRESSOR PUMP DIAGRAM

TORQUE

TO 37-43 FT.-LBS.

TORQUE TO 75-90 IN.-LBS.

TORQUE

7-10 FT.-LBS.

TORQUE 7-10 FT.-LBS.

TORQUE 51-63 IN.-LBS.

POSITION

LOCATION

MARK TOWARD

MOTOR

12 19

5 — ENG D20012 Rev. 0 3/15/00

PARTS LIST

Key

No. Part Number Description

1 MO-9089 Motor

2 AC-0797 Nut, Eccentic Pin

3 AC-0800 Eccentric Rod Bearing

4 AC-0793 Eccentric Outer

5 AC-0794 Eccentric Pin

6 ACG-22 Fan

7 39124607 Screw Self Tap 1/4 x 5/8

•x 8 AC-0788 Cylinder Sleeve

•9 ---- Connecting Rod Assembly

x10 AC-0810 Piston Assembly

x11 D20605 Screw 10-24 x .75 T25 TORX

12 ACG-11 Intake Muffler

•

x13 SSG-8156 O-Ring

14 AC-0032 Valve Plate Assembly

•

x15 ACG-45 O-Ring

16 AC-0779 Head Gasket

17 AC-0805 Head - Low Pressure

18 AC-0784 Head - High Pressure

19 AC-0798 Screw 1/4-20 x 1.25 HHW THD

NOT ILLUSTRATED

D20012 Parts Manual

D20451 Owner's Manual

919-16433 Replacement Filter

•Key No's 8, 9, 13, & 15 can be purchased as K-0651 Connecting Rod Kit.

Key No's 3, 11, 13, 15 & 16 can be purchased as K-0649 Connecting Rod Kit-

High Pressure.

xKey No's 8, 10, 11, 13, 15, & 16 can be purchased as K-0648 Compression Ring HP

Replacement Kit.

PARTS

MANUAL

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

2-STAGE OILFREE

AIR COMPRESSOR

For the repair or replacement parts you need

Call 7 am - 7 pm, 7 days a week

1-800-366-PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-REPAIR

(1-800-473-7247)

For the location of a

Sears Parts and Repair Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

call 9 am - 5 pm, Monday-Saturday

1-800-827-6655

FULL ONE YEAR WARRANTY

AIR COMPRESSOR

If this air compressor fails due to a defect in

material or workmanship within one year

from the date of purchase, RETURN IT TO

THE NEAREST SEARS REPAIR CENTER

THROUGHOUT THE UNITED STATES

AND SEARS WILL REPAIR IT, FREE OF

CHARGE. IF PURCHASED FROM OR-

CHARD SUPPLY HARDWARE, RETURN

TO THE NEAREST ORCHARD STORE

AND ORCHARD WILL REPAIR IT, FREE

OF CHARGE.

Ifthisaircompressorisusedfor commercial

or rental purposes, the warranty will apply

for ninety days from the date of purchase.

This warranty gives you specific legal rights

and you may have other rights which vary

from state to state.

MODEL NO.

919.167770

When requesting service or ordering

parts, always provide the following

information:

• Model Number

• Part Number

• Part Description

• Name of Item

MANUAL

DE PARTES

IMPORTANTE:

Leer las pautas de seguridad y

todas las Instrucciones Cuidado-

samente antes de operar.

MODEL NO.

919.167770

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

D20012 Rev. 1 4/26/00

COMPRESOR DE AIRE

DOS ETAPAS

SIN LUBRICACIÓN

TABLA DE ESPECIFICACIONES

Modelo No.

Orificio 2.375"

Carrera Presión de alto - .54"

Presión de mugir - 1.45"

Voltaje - Una Fase 120

Requerimientos Mínimos de Circuito 15 Amperios

Tipo de Fusible Retardo

Capacidad del Tanque de Aire - Galon 20 ASME

Presión de Arranque Aproximada 145

Presión de Corte Aproximada 175

919.167770

2 —SP

D20012 Rev. 0 3/15/00

DIAGRAMA DEL COMPRESOR DE AIRE

Torsión de

100-120 po.-lbs.

Torsión de

9-12 pies-lbs.

Torsión de

5-7 po.-lbs.

Torsión de

100-120 po.-lbs.

Torsión de

15-25 po.-lbs.

Torsión de

6-10 po.-lbs.

Torsión cubierta

tornillo de ajustado

3 —SP D20012 Rev. 0 3/15/00

LISTA DE PARTES

No. en

Diag. Número de Parte Descripción

1 SSF-990 Tornillo 1/4-20UNC-2A THD (se usan 2)

2 ACG-18 Montaje de la Monturat (se usan 2)

3 GA-373 Medidor

4 SST-107 Aislante

5 SSF-630 Tornillo 25 x 1.50 (se usan 2)

6 AC-0789 Interruptor de Presión

7 SSW-7385 Buje

8 SSP-480 Niple 1/4-18 NPT x 2.50

9 SUDL-413-2 Cordón

10 AC-0014 Rueda 9"

11 AC-0609 Mango (se usan 2)

12 SSF-981 Tornillo (se usan 4)

13 TA-4494 Tanque 20G Vertical

14 D20584 Tubo de Alivio de Presión

15 SSP-7811 Manga de Tuerca 1/4"

16 SSP-7813 Manga de Tuerca 3/8"

17 AC-0631 Válvula de Chequeo

18 CAC-60 Perno Tope 3/8 - 16

19 TIA-4200 Válvula de Seguridad

20 AC-0774 Aislante (se usan 3)

21 H-2099 Adaptador

22 AC-0790 Regulador

23 SS-1286 Niple 1/4-18 NPT

24 SSW-7367 Buje de Alivio de Tensión

25 SSP-6021 Reductor

26 ACG-61-2 Cubierta, Posterior

27 ACG-408 Sujetador (se usan 3)

28 AC-0803 Tubo de Salida

29 SSP-7821-1 Tubo Tuerca

30 SSG-3105 Anillo "O"

31 AC-0430 Válvula de Drenaje

32 AC-0780 Tubo Tuerca 1/2"OD TUB (se usan 2)

33 SSF-554 Tornillo 10-14 x 2.5 (se usan 2)

34 AC-0783 Cubierta de la Válvula de Entrada

35 ACG-12 Elemento del Filtro

36 ACG-14 Cubierta Frontal

37 AC-0558 Apretón

38 AC-0781 Anillo "O" (se usan 2)

39 AC-0802 Tubo

40 SSF-8080-ZN Tuerca Hexagonal 3/8 - 16

41 LA-3105 Rótulo de Craftsman

42 D20097 Rótulo de Redimiento 6 HP

43 D20096 Rótulo de Información de Sears

4 —SP

D20012 Rev. 0 3/15/00

DIAGRAMA DE LA BOMBA DEL COMPRESOR

TORQUE

TO 37-43 FT.-LBS.

TORQUE TO 75-90 IN.-LBS.

TORQUE

7-10 FT.-LBS.

TORQUE 7-10 FT.-LBS.

TORQUE 51-63 IN.-LBS.

POSITION

LOCATION

MARK TOWARD

MOTOR

12 19

ORIENTE LA MARCA DE

UBICACIÓN HACIA EL

MOTOR.

Torque 75-90 in.-lbs.

Torsiôn de 51-63 po-lbs.

Torsiôn de 37-43 pies-lbs

Torsiôn de

7-10 pies-lbs.

Torsiôn de 7-10 pies-lbs.
