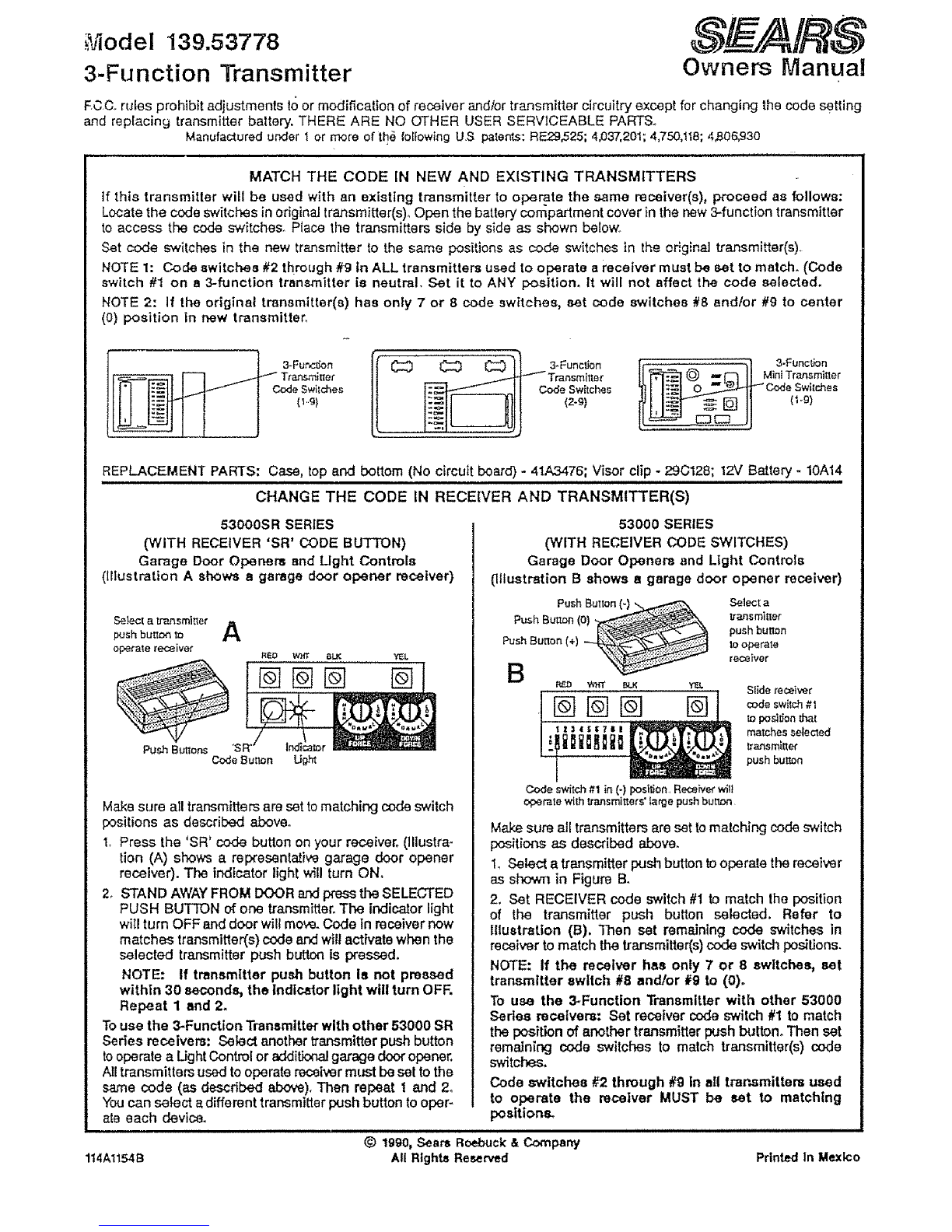

i Aodel 139.53778
3-Fu nction Transmitter Owners Manual
F+CC+rules prohibit adjustments to or modification of receiver andlor transmitter circuitry except for changing the code setting
and replacing transmitter battery. THERE ARE NO OTHER USER SERVICEABLE PARTS_
Manufactured under I or mors of th_ lot[owingUS palents: RE29,525; 4,037,201;4,750jt8; 4.806,930
MATCH THE CODE IN NEW AND EXISTING TRANSMITTERS
If this transmitter will be used wlth an existing transmitter to ope_te the same receiver(a), proceed as follows:
Locate the code switches in original transmitter(s), Open the battery compartment cover in the new 3-function transmitter
to access the code _witches, Place the transmitters side by side as shown below.+
Set code switches in the new transmitter to the same positions as code switches in the odglnal transmitter(s),
NOTE 1: Code switches #2 through #9 In ALL transmitters used to operate a receiver must be set to match. (Code
switch #1 on a 3-function transmitter is neutral, Set it to ANY position. It will not affect the code selected.
NOTE 2: If the original transmitter(s) has only 7 or 8 code switches, set code switches #8 and/or #9 to center
(0) position in new transmitter,
3-Fur_l_on
Transmitler
Cede Switches
(_._)
C:3 C:_ H J 3-Funclion
_ Transmitte,"
i_--"_1_""_ + tl CodeSwitches O "
3-Func_n
Mini Transrnirier
Code Switches
(_-9)
REPLACEMENT PARTS: Case, top and bottom (No circuit board) - 41A3476;Visor clip - 290128; 12V Battery. 10A14
CHANGE THE CODE IN RECEIVER AND TRANSMITTER(S)
530OOSR SERIES
0NITH REC-EIVER 'SR' CODE B_N)
Garage Door Openers and Light Controls
(ltlustration A shows e garage door opener receiver)
SeJec[atransmlt_er==
push buttc_to _,_
operatereceiver
PUsh Butlons Cede Bu_on u_
Makesure all transmitters areset tomatching code switch
positions as described above.
1+Press the 'SR' code button on your receiver+(illustra-
tion (A) shows a representative garage door opener
receiver). The indicator light will turn ON,
2, STANDAWAYFROM DOORar_ press theSELECTED
PUSH BUTTON ofone transmitter.The indicator light
will turn OFF and door will move.Code In receiver now
matches transmitter(s) code andwill activate when the
selected transmitter push button is pressed,
NOTE." If transmitter push button le not pressed
within 30 seconds, the lndic.slor light will turn OFF,
Repeat 1 and 2.
Touse the 3-Function Transmitterwith other 53000 SR
Series receivers: Selectanothertransmitter pushbutton
tooperatea Ught Control oradditbnal garagedooropener.
All transmitters usedtooperate receivermt_'t be set tothe
same code (as described abo_e).Then repeat t and 2.
Youcan select a different transmitter push button tooper-
ate each device.
114Al154B
53000 SERIES
(WITH RECEIVER CODE SWITCHES)
Garage Door Openers and Light Controls
(Illustration B shows n garage door opener receiver)
PushButlon(-)_
PushButton(0)
PushBunon(+)
B
t%%% []
l
Code switch #1 in (-) pos'll_on, Receiver w_lt
operate wibh transmitters' large push bullon
Select a
Iransmit[er
push but_c,n
to operate
receiver
Slide receiver
code switch # I
to posldon b"_t
matches selected
Iransmiller
push button
Make sure 811transmitters are set to malching code switch
positions as described above.
I. Select a transmitter push button to operate the receiver
as shown in Figure B,
2. Set RECEIVER code switch #1 to match the position
of the transmitter push button selected. Refer to
Illustration (B). Then set remaining code switches in
receiver to match the transmitter(s) code switch positions.
NOTE: if the receiver has only 7 or 8 switches, set
transmitter swttch #8 and/or #9 to (0)o
To use the 3-Function Transmitter with other 53000
Series receivers: Set receiver code swilch #1 to match
the position of another transmitter push button+ Then set
remaining code switches to match transmitter(s) code
switches+
Code switches #2 through #9 in all transmitters used
to operate the receiver MUST be set to matching
positions.
i ii ii ii i H ml ii i H ii ilmlll.,. ,ll.ll.llHll
@ 1990_Sears Roebuck &Company
All Rights Reserved Printed In Mexk:o

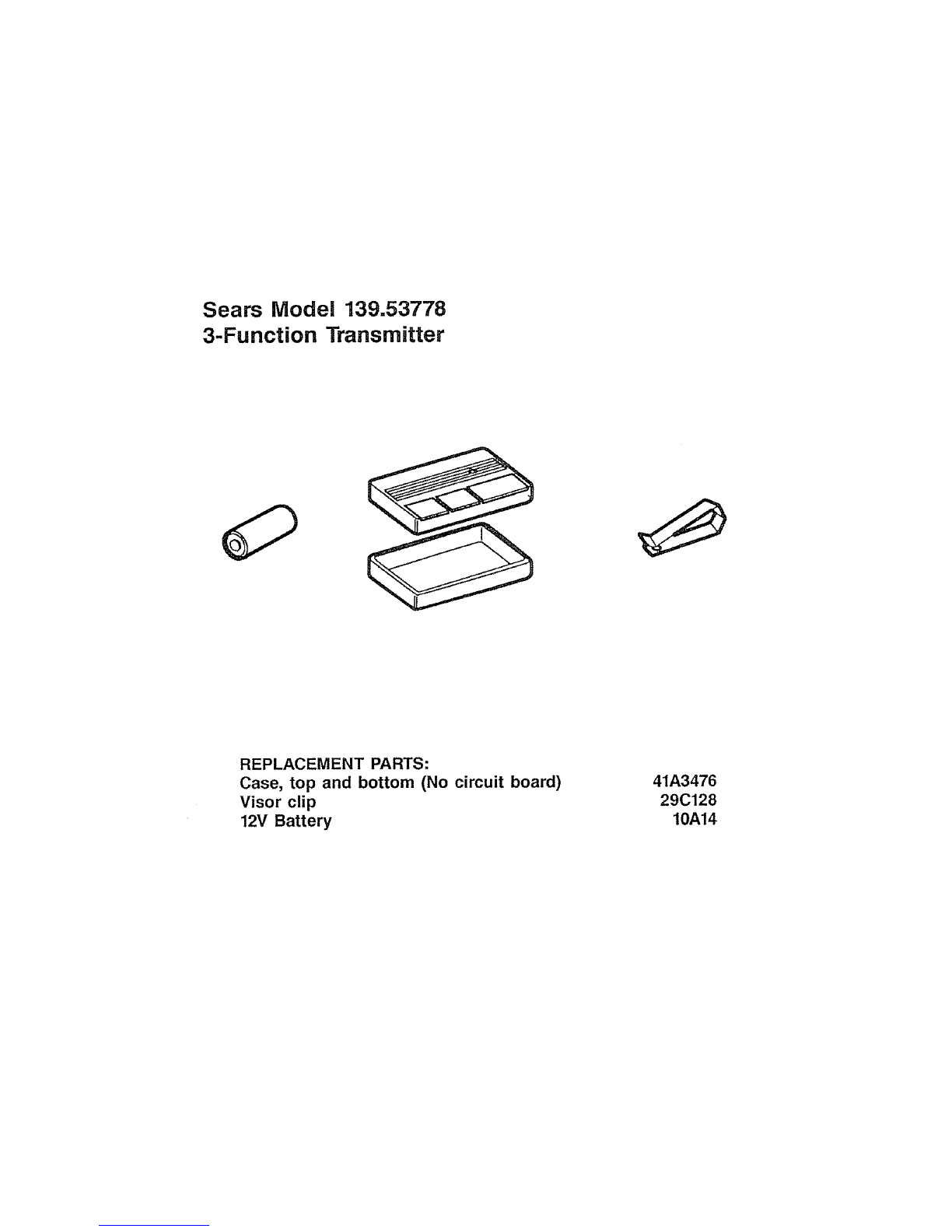

Sears Model 139.53778
3-Function Transmitter
REPLACEMENT PARTS:
Case, top and bottom (No circuit board)
Visor clip
12V Battery
41A3476
29C128
10A14
