Create WIND HELIX Manuale utente
ENENGLISH
WIND HELIX
CEILING FAN WITH LIGHT
MANUAL ASSEMBLY
4
WIND HELIX
EN
To download this user guide in your language, visit our website:
www.create-store.com/uk
ES
Para descargar el manual en su idioma, visite nuestra web:
www.create-store.com/es
PT
Para baixar o manual no seu idiomas, visite nosso site:
www.create-store.com/pt
FR
Pour télécharger le manuel dans votre langue, visitez notre site Web:
www.create-store.com/fr
IT
Per scaricare il manuale nella sua lingua, visitare il nostro sito Web:
www.create-store.com/it
DE
Um das Handbuch in Ihrer Sprachen herunterzuladen, besuchen Sie unsere
Website:
www.create-store.com/de
NL
Bezoek onze website om de handleiding in uw taal te downloaden:
www.create-store.com/nl
PL
Aby pobrać instrukcję w swoim języku, odwiedź naszą stronę internetową:
www.create-store.com/pl
5
INDEX
Box contents 6
Step 1. Wood roof 7
Step 1. concrete ceiling 8
Step 1. False ceiling 10
Choice of grab bar 11
Step 2. Assembly of the main body 12
Step 3. Driver connection 14
Step 4. Blade assembly 17
Step 5. Fitting the trim 18
Step 6. led board connection 19
Step 7. Placement of la tulipa 20
Blade balancing kit 21
WIND HELIX
EN ENGLISH
A B
E
I J K L
F
C D
M N
O
G H
P
Q
BOX CONTENTS
(1) EXPANSION SCREWS
FLOWER
EMBELLISHER
SPLICING TERMINALS
BALANCING KIT
(x7) BLADE SCREWS
(x3) BLADES
SHANK EXTENSION POST MOUNTING BRACKET
TULIPA
DRIVER
ENGINE
REMOTE CONTROL LED PLATE
SCREWS FOR
TRIM + ENGINE
(2) WOOD SCREWS
ATTENTION! Before starting the as-
sembly, remember to disconnect the
light from the electrical panel so as
not to suffer an electric shock.
ENGINE TRIM
ENENGLISH
K
STEP 1. WOOD ROOF
+ +
(2) WOOD SCREWS
OPTIONAL ACCORDING TO
TYPE OF ROOF
M
x4
1
3
5 6
4
If necessary, depending on the type of
roof, you will need to use a drill to make the
hole in the wood.
Repeat this step on all 3 holes
remaining.
Place the washer and then the
screw M2.
With the help of the screwdriver tighten
the screws M2.
Make sure the part K It is perfectly hooked
to the ceiling and that no cable is trapped.
Mark with a pencil the 4 holes of the piece
Kin the roof.
K
PARTS AND TOOLS
M2
M2
MATERIAL NOT INCLUDED
2
K
SUPPORT OF
MOUNTING
EN ENGLISH

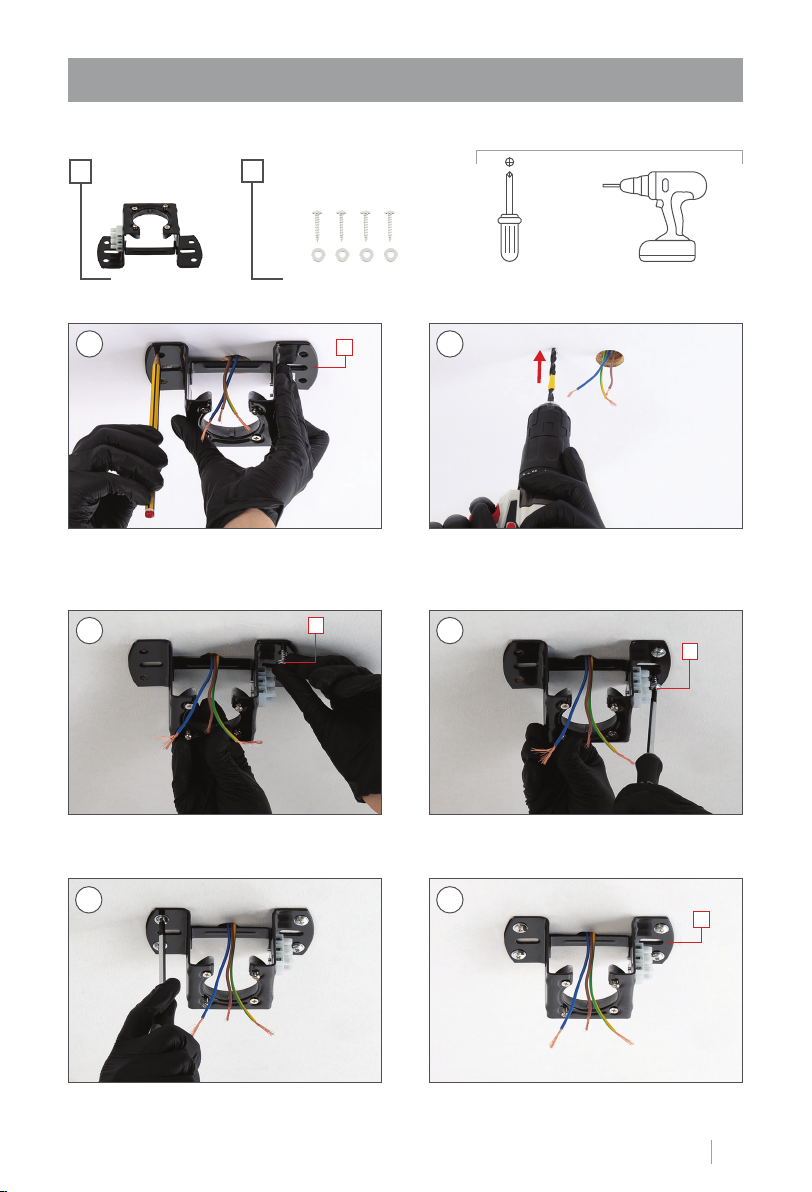

STEP 1. CONCRETE CEILING
(1) EXPANSION SCREWS
With the help of a drill, make the two cor-
responding holes with a Ø8 mm drill bit.
Mark with a pencil the 2 central holes of
the piece K on the ceiling using the same
piece as a guide.
K
M1 M2
M1 M2 M3 M4
Disassemble the part Mseparating it into pieces.
M
+ +
MK
PARTS AND TOOLS
MATERIAL NOT INCLUDED
Ø8mm
1
3
2
4
Only the thread part should protrude.Place the pieces M1 in the holes in the ceil-
ing.
SUPPORT OF
MOUNTING
ENENGLISH
Place the piece Kmatching their holes
with the screws M1. Make sure the ceiling
cables are on one side of the piece K.
K
M4
7 8
6
Enter the part in order M2, M3 and then
the nut M4.
Tighten the piece M4 with a No. 10 wrench,
until you feel it's ok xed.
Make sure the part K It is perfectly hooked
to the ceiling and no cable is trapped.
M2
M3
M4
M1 K
5
EN ENGLISH
+ ++
PARTS AND TOOLS
STEP 1. FALSE CEILING
FIXING SCREWS
WITH SPRING LEVER
SUPPORT OF
MOUNTING
MATERIAL NOT INCLUDED
Make sure the part Kis perfectly attached
to the ceiling to be able to continue with
the assembly.
With the help of a drill, make the 2 corre-
sponding holes.
Insert the xing screws into the holes and
make sure that the lever opens.
Place the piece K and screw the xing
screws to the false ceiling.
Mark the 2 central holes of the piece on
the ceiling with a pencil Kusing the same
piece as a guide.
K
X
3
5
4
2
K
K
1
