Crest Audio CC-IPB Manuale utente
Features
• Balanced input on barrier strip connector with .325" (8.3mm) screw center, .270" (6.9mm) lug space
• Removable gain pot knobs for security
• Input isolation transformers optional
Internal Features
• Jumper-selectable gain of X20 (26 dB), X40 (32 dB, factory setting), or constant sensitivity for full output at 0dBu (.775V) in.
Model
CC-BLK
d
in the USA by:
nc.
e
r Dr.
07652 USA
Model
Name
CKS 100
CKS 200
CKS 400
CKS 800
CKS 800-2
CKS 1200-2
CKS 1600-2
Output Power
@8Ω/Ch.
50W
100W
200W
400W
400W
600W
800W Level
B
Level
A
++–
–
78
9
5
2
0
1
346
10
78
9
5
2
0
1
346
10
Model
CC-IPB
Input A Input B
Input
Signal A Input
Signal B
CC-IPB Basic Input
Product Information
The CC-IPB Module fits in the Input Processing bay located on the rear
panel of Crest Audio CKS, CKV & CKX Series Power Processing
amplifiers. It is fitted standard to all models. CC-IPB provides balanced
inputs to the two amplifier channels.
An internal three-position jumper selects between gains of X20 (26 dB),
X40 (32 dB), or constant sensitivity for full output at 0dBu (.775V) in.
The standard factory setting is for X40 (32dB). Individual channel atten-
uators are provided with removable knobs for extra security.
CC-IPB is not programmable or NexSys®controllable.
INPUT PROCESSING MODULE
FOR CKS, CKV, CKX SERIES
POWER PROCESSING AMPLIFIERS
Architects and Engineers Specifications - CC-IPB
The module shall plug into Crest CKS or CKV Power Processing amplifiers in the Input
Processing bay. Barrier strip input connections shall be provided which feed two
electronically balanced inputs.
Two removable-knob gain pots shall be provided that control the level of each input. An
internal input sensitivity/voltage gain jumper shall be provided with selections of 0dBu, X20
and X40. The module shall be designated the Crest Audio model CC-IPB.

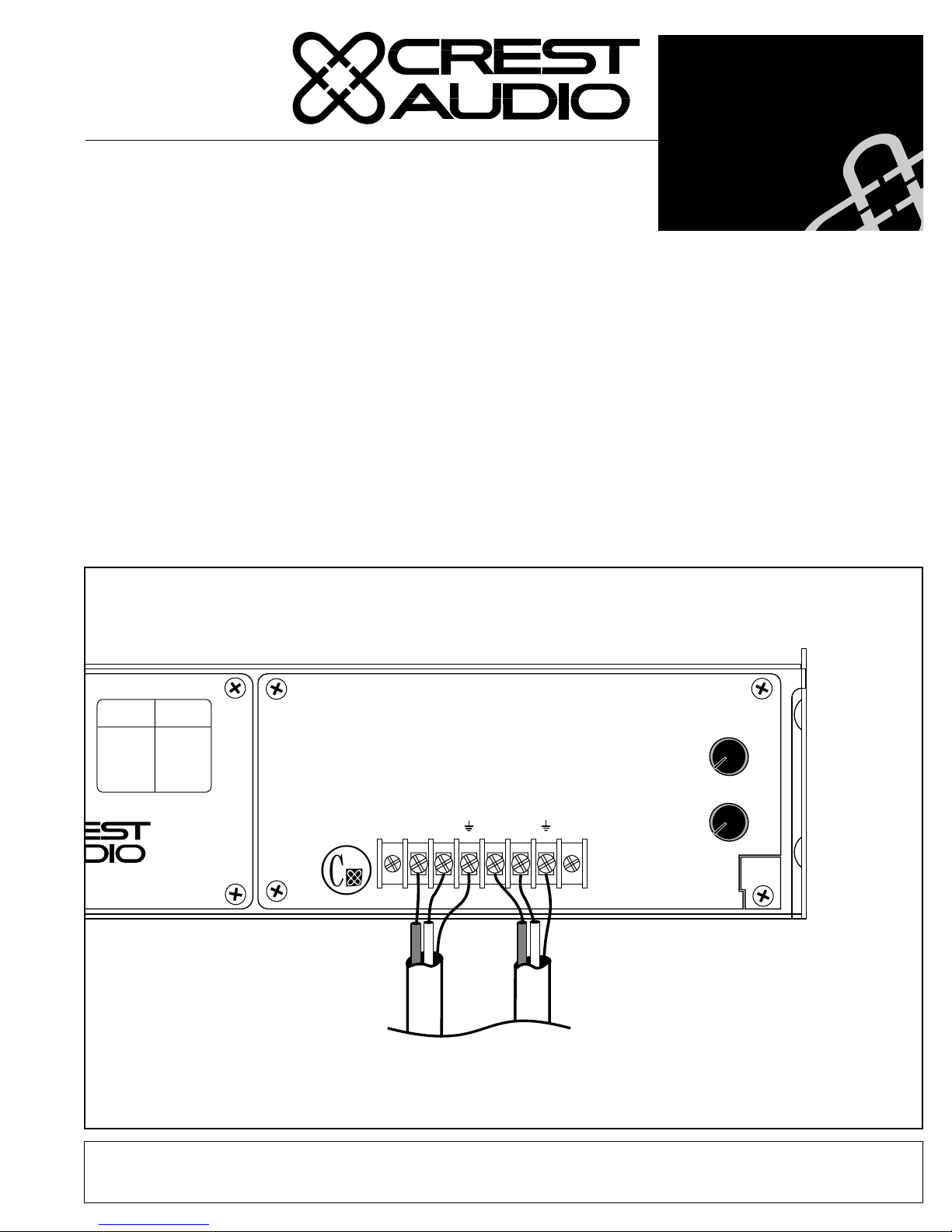

CC-IPB connections
Power
Processing
Modules
CH B Power Amp
Level
Gain
CH B
+
-
G
Optional
CH A Power Amp
Gain
CH A
+
-
G
Optional
Crest Audio Inc.
100 Eisenhower Dr., Paramus NJ 07652 USA
TEL: 201.909.8700 FAX: 201.909.8744
http://www.crestaudio.com
Printed in USA
v. 2.1 4/7/97
CC-IPB Input Processing Module
BLOCK DIAGRAM
SPECIFICATIONS
Input impedance: 20kΩ
Signal-to-noise ratio: 105dB
Common mode rejection: 60dB
Frequency response: 20Hz-20kHz
Voltage gain/input sensitivity: X20 (26 dB),
X40 (32 dB),
or constant sensitivity for full output at 0dBu (.775V) in
Connectors: Balanced inputs on barrier strip with 0.33" (8mm) center and 0.27" (7mm) lug space
Controls: 2 gain attenuators (w/removable knobs)
Basic Input
Crest Audio reserves the right to make improvements in manufacturing or design which may affect specification. Crest Audio specification literature is available in electronic form to qualified users.
Contact Crest Audio Inc. for more information. NexSys is a registered trademark of Crest Audio Inc. ©1996 Crest Audio Inc.
*A3300016*
