Crestron UC-MMX30-T-I Manuale utente
The UC-MMX30-T(-I) and UC-MMX30-T-L(-I) Crestron Flex advanced
tabletop conferencing systems provide small room video conference
solutions for use with Microsoft Teams® Rooms software. They support
single or dual video displays and feature a Crestron Flex tabletop
conference device, a UC presentation transmitter, a UC bracket
assembly, and a collaboration camera.
Minimum Requirements:
lA video display (not included) connected to the UC Engine. A second
display is optional.
lA Microsoft Teams or Skype® for Business account
lAn environment running Microsoft Exchange Server® software (2013
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud)
In the Box
Tabletop Conference Device
1 Flex MM Tabletop Conference Device, Microsoft Teams
video (6511613 or 6511614)
1 PoE+ Injector (2055605)
2 Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204)
1 Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579)
UC Presentation Transmitter
1 Power pack (2056363) with cord (2001134)
1 Bracket, power supply (2056257)
1 Cable, USB to USB, 6.56 ft (2 m) (2056116)
1 Cable, HDMI®, 6.56 ft (2 m) (2056117)
1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest
(UC-BRKT-250-P-T-ASSY,6511476 or
UC-BRKT-260-P-T-L-ASSY, 6512032)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x
12.7mm) (2052565)
2 EDID passthrough (2055728)*
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Collaboration camera (6510482)
1 Camera wall mount kit (6510998)
2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591)
*EDID passthroughs are not included in the UC-MMX30-T-L(-I) system.
1
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
Mount Devices
Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the UC
Bracket Assembly. Exercise caution when handling the UC Bracket
Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
Mount the UC Presentation Transmitter
Mount the UC Presentation Transmitter to the underside of a table
using the supplied screws. The supplied screws support installation on
tables with a thickness of 1 in. (25.4mm) minimum.
Mount the Camera
Mount the included camera according to the UC-CAM-WMK Quick Start
(Doc. 8257).
2
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
Connect

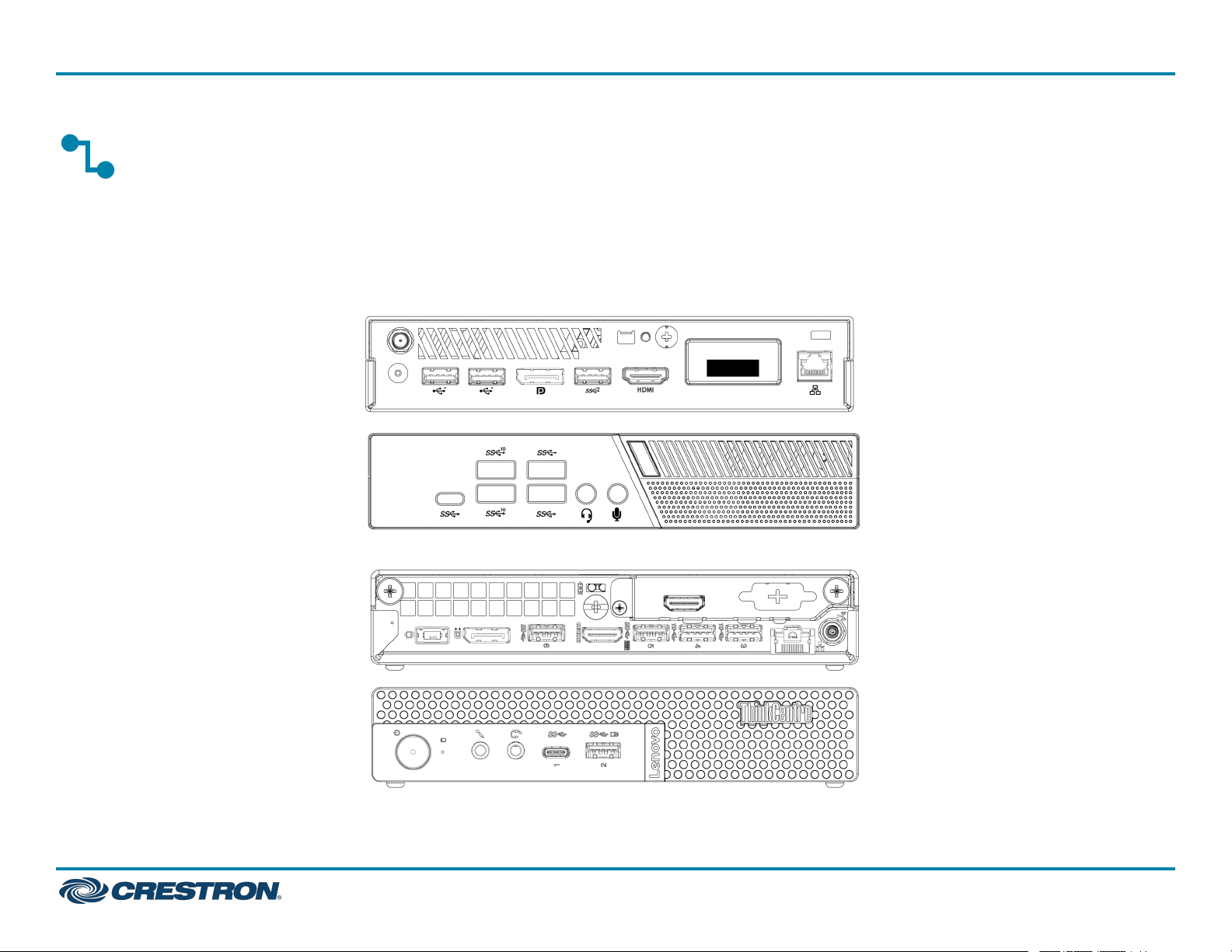

Identify the UC Engine
The UC Engine is available in two models. Identify the model included with your Crestron Flex system. Tap or click the corresponding image below to
navigate to the appropriate connection instructions.
ASUS® Mini PC (UC-MMX30-T(-I))
Lenovo® M920Q ThinkSmart™ Edition Tiny (UC-MMX30-T-L(-I))
3
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

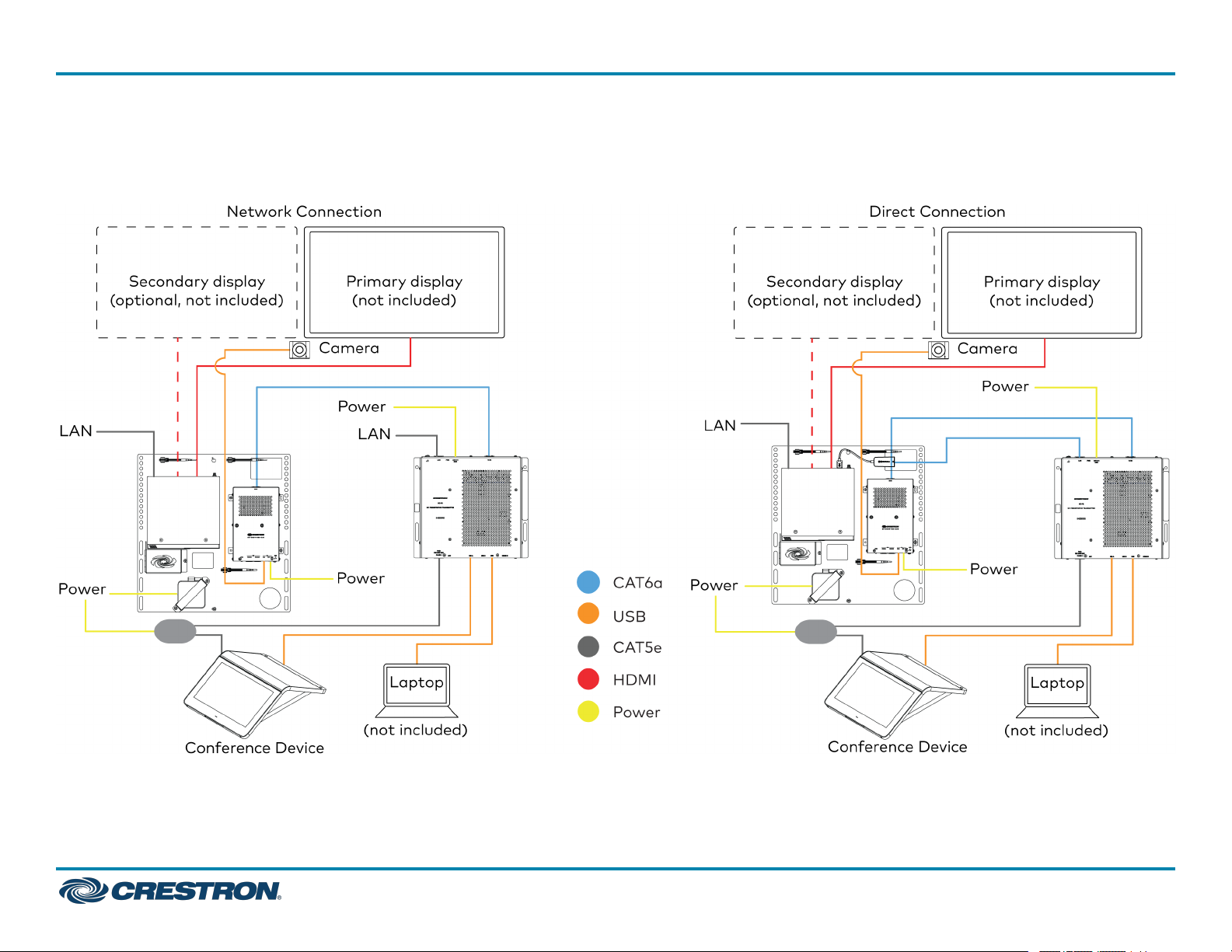

System Overview (UC-MMX30-T(-I))
When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected
connection method. Refer to Make Connections (UC-MMX30-T(-I)) for detailed connection instructions.
4
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
Make Connections (UC-MMX30-T(-I))

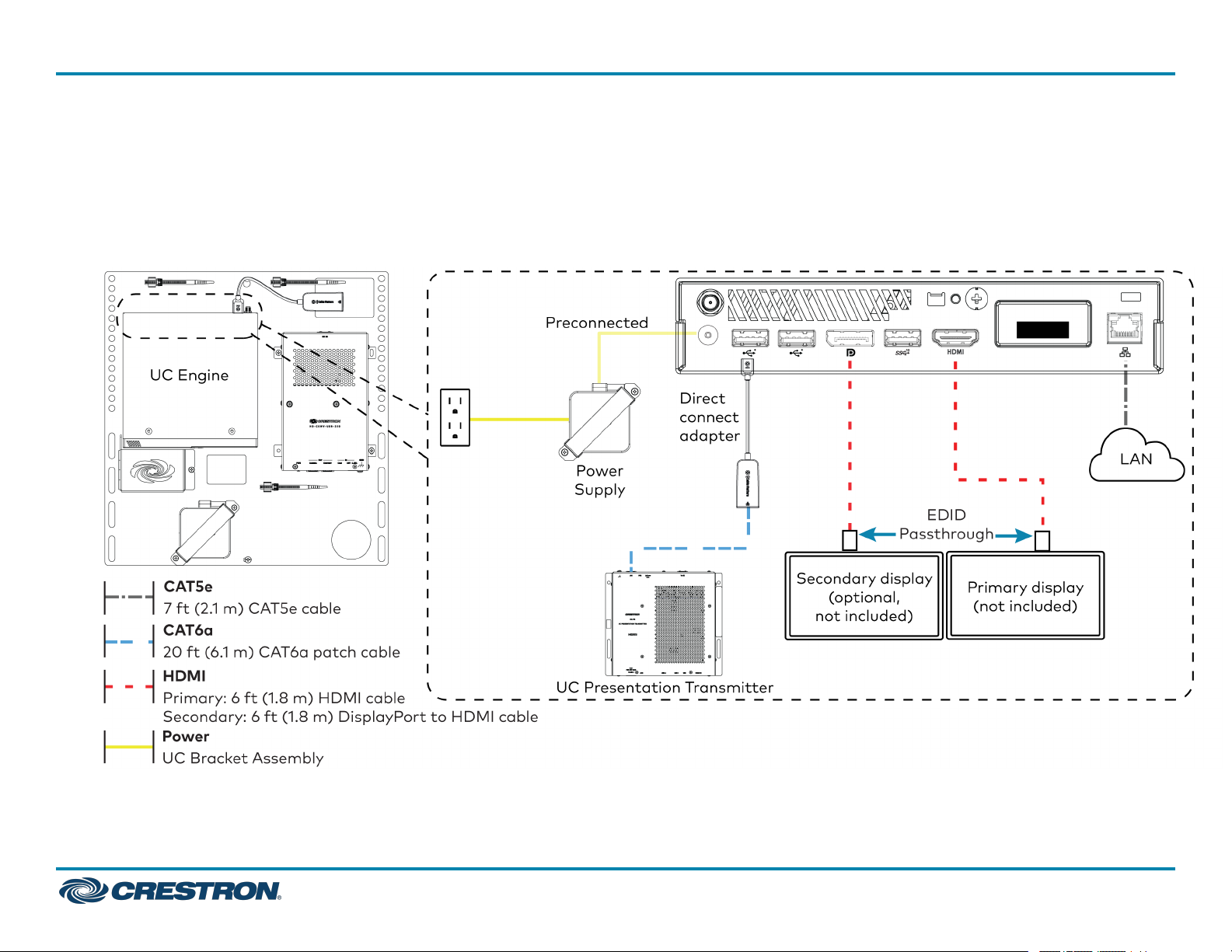

1. Make UC Engine connections as shown in the following illustrations. The UC Presentation Transmitter can communicate with the UC Engine over
a direct connection or a network connection. Select one of the connection types as described below.
lMake a direct connection for simple installation and setup. Only use the direct connect adapter to connect the UC Presentation Transmitter to
the UC Engine. Do not use the direct connect adapter to connect the UC Engine to the network.
Direct Connection
5
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

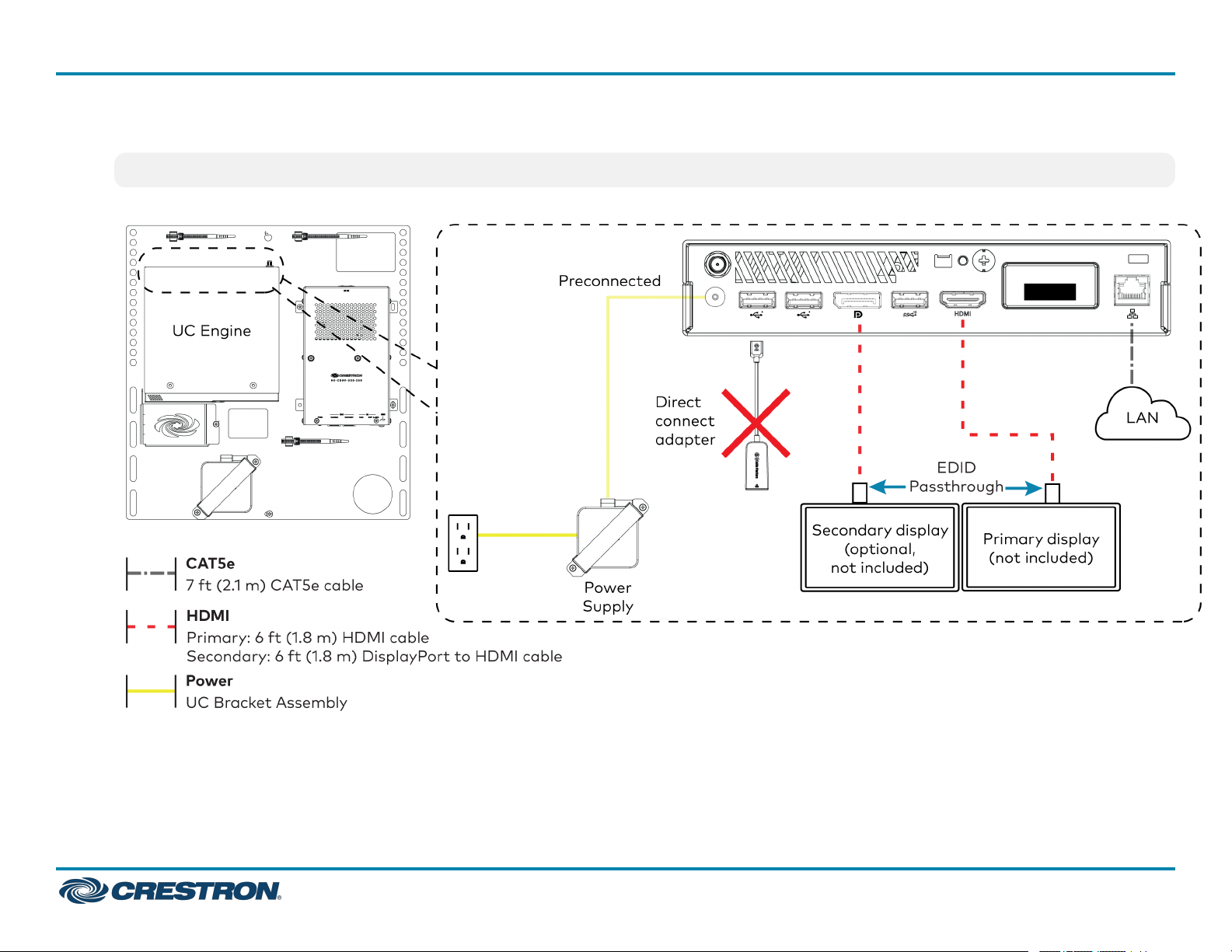

lMake a network connection if the system is to be managed by the XiO Cloud® service.
NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.
Network Connection
6
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

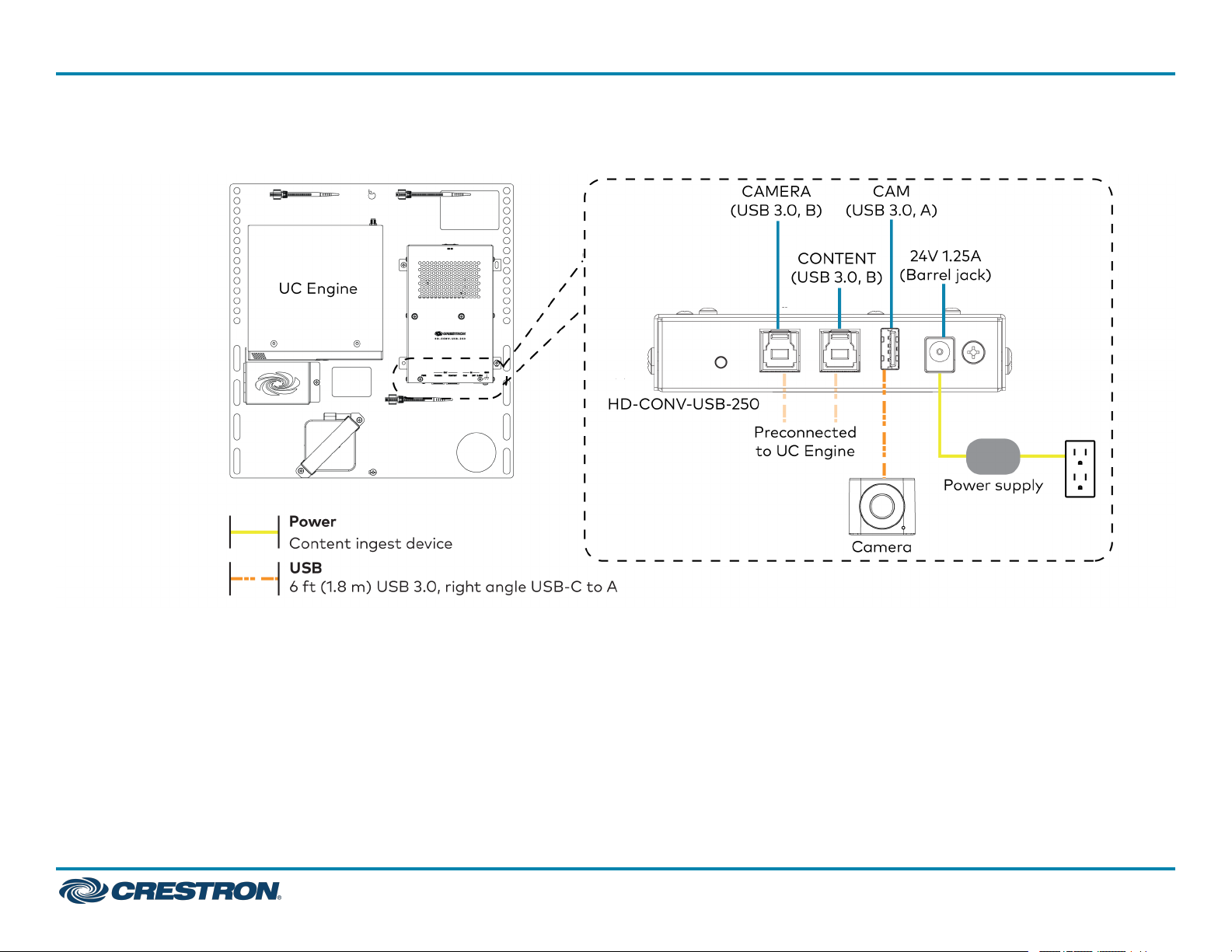

2. Connect the power supply and camera to the bottom of the content ingest device (HD-CONV-USB-250). Connect the power supply to an AC
power outlet.
7
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

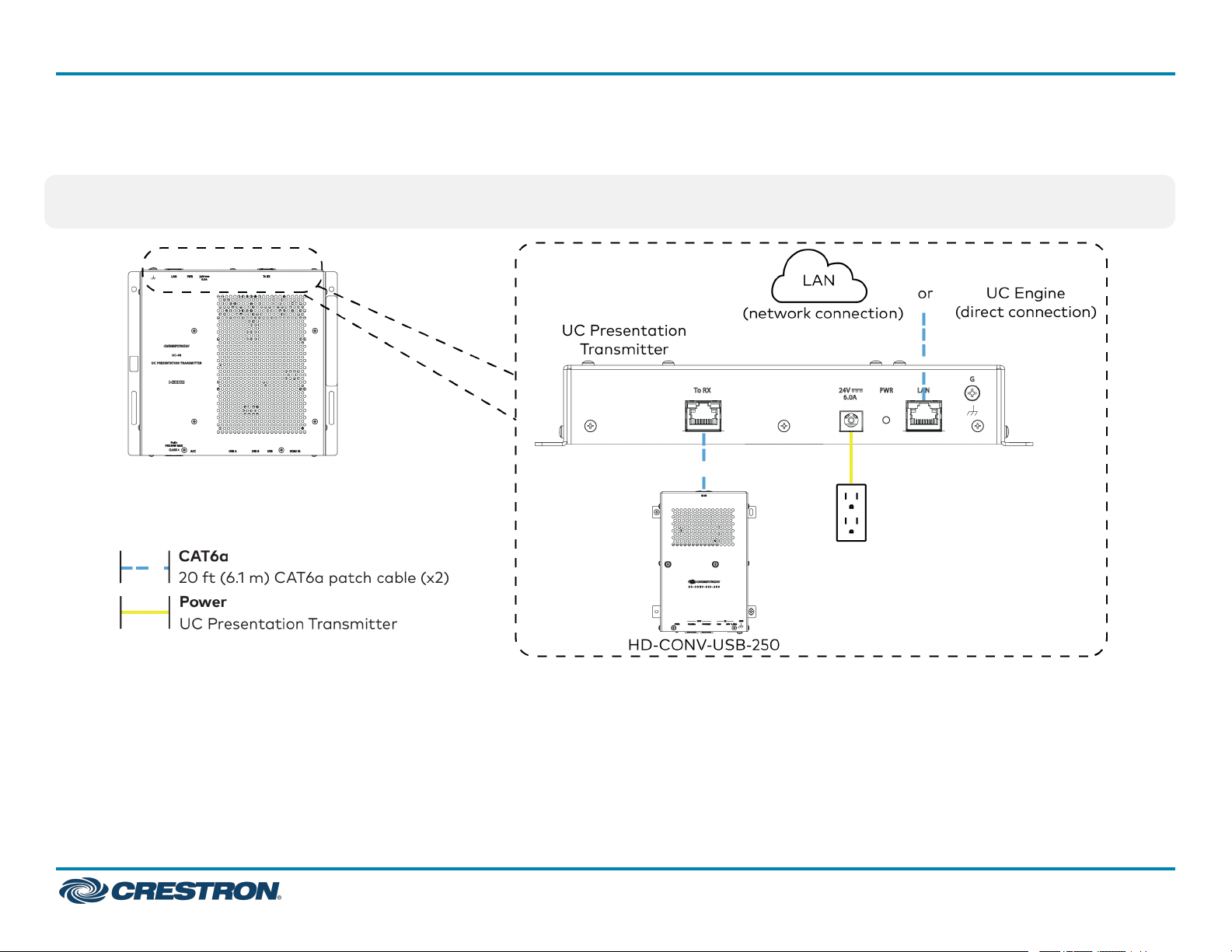

3. Connect power and the content ingest device (HD-CONV-USB-250) to the top of the UC Presentation Transmitter. Connect the UC Engine or
LAN to make a direct or network connection as described in step 1.
NOTE: If a longer cable between the UC Presentation Transmitter and the HD-CONV-USB-250 is needed, use a DigitalMedia™ Ultra cable only. The
maximum supported cable length is 300ft (91.4 m).
8
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
4. Connect the conference device using the included PoE+ injector and USB A to Micro-B cable to the bottom of the UC Presentation Transmitter.
9
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

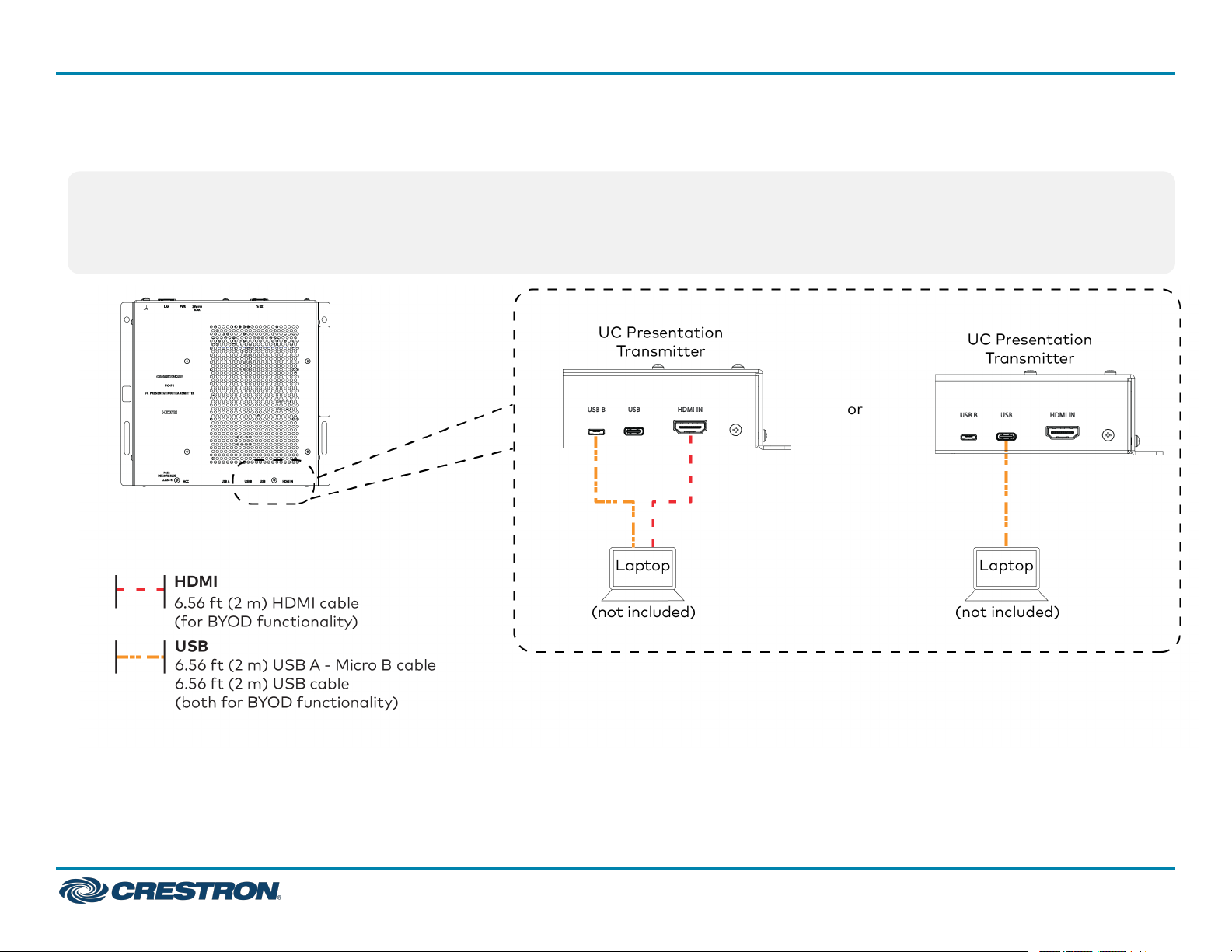

5. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a
connection type based on the available ports on the user's laptop.
NOTES:
lIf the USB port is used along with either the HDMI or USB B port, the UC Presentation Transmitter will communicate via the USB port by
default.
lWhen connecting a laptop for BYOD presentation, select the audio source on the connected laptop.
6. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
10
UC-MMX30-T(-I) and UC-MMX30-T-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
