Crestron IPAC Manuale utente

IPAC

Introduction This document contains instructions for installing the IPAC series of wall-mounted,

Integrated Professional Automation Computers.

The IPAC is designed for installation in a standard 3-gang electrical box.

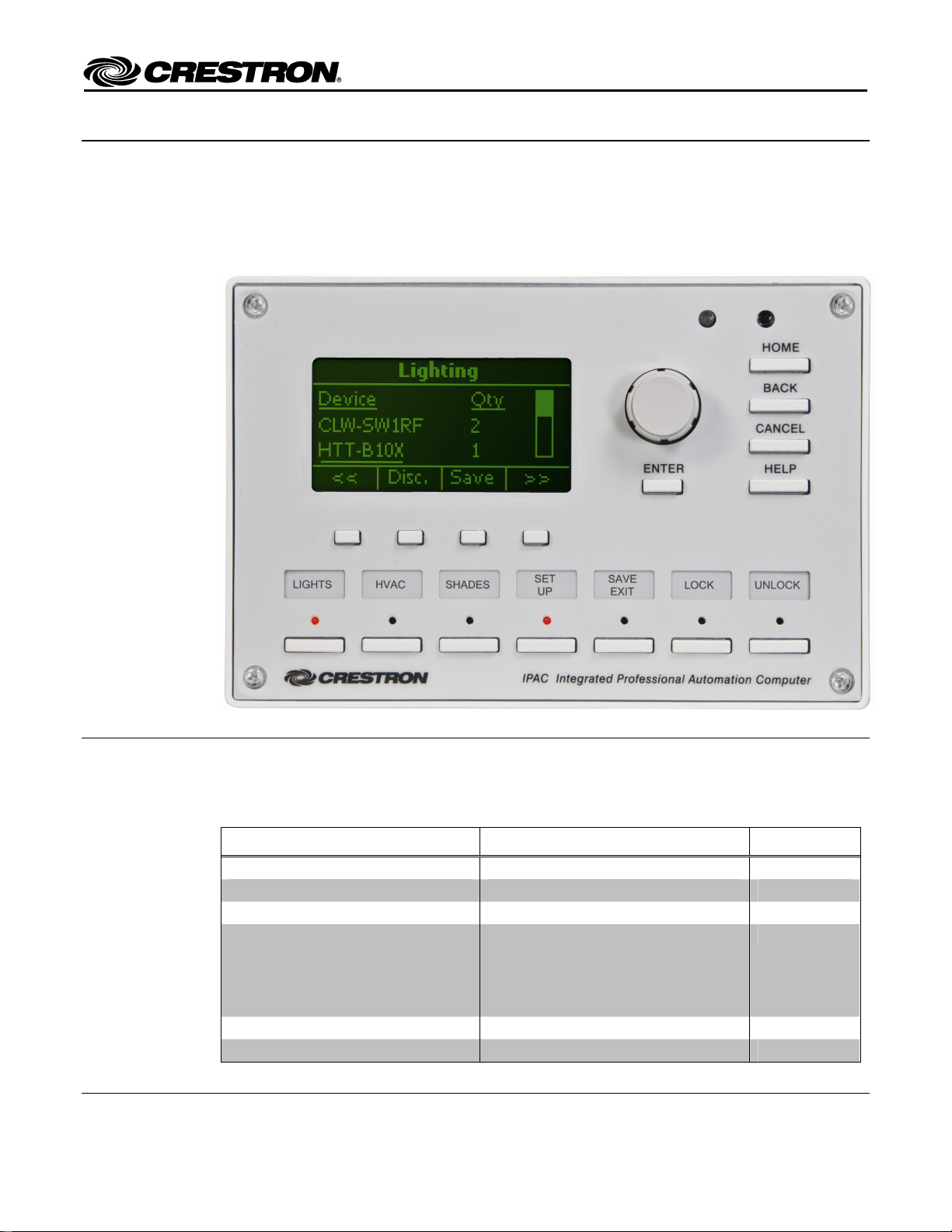

IPAC-GL1-W-T Physical View (shown in white)

Supplied Parts The parts supplied with the IPAC are listed in the following table.

Supplied Hardware for the IPAC

DESCRIPTION PART NUMBER QUANTITY

Mounting Plate with Ground Wire 4506280 1

Screws, 06-32 x ¾”, Combo Head 2009211 4

Screws, 04-40 x ¼”, Pan, Phil 2007156 2

Screws, 04-40, 7/16", Pan, Phil, Blk

(for Black units) OR

Screws, 04-40, 7/16", Pan, Phil, Zinc

(for White units)

2022900

2013409

Label Sheet 4505784 (Black) OR 4506570 (White) 1

Front Cover 4505711 (Black) OR 4505867 (White) 1

Crestron Electronics, Inc. Installation Guide – DOC. 6696A

15 Volvo Drive Rockleigh, NJ 07647 (2022187)

Tel: 888.CRESTRON 12.08

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Integrated Professional Automation Computer Crestron IPAC

Installation The following tools are required for installation of an IPAC:

•Philips screwdriver

•Flat screwdriver; 3/32” (2.4 mm) blade size

Install the Mounting Plate

Use the four included 06-32 x ¾” screws to install the mounting plate on the electrical

box. Refer to the diagram below.

NOTE: The ground wire from the mounting plate must be attached to an earth ground.

Wiring

Make the necessary connections as called out in the illustration below. Details for each

connector can be found below and on the following pages.

NOTE: Complete all other connections before wiring the 4-position NET connector.

Hardware Connections for the IPAC (Shown with Mounting Plate Attached)

2 •Integrated Professional Automation Computer: IPAC Installation Guide – DOC. 6696A

Crestron IPAC Integrated Professional Automation Computer

WARNING: Prior to connecting the IPAC, turn off power at the power supply. Failure

to do so may result in serious personal injury or damage to the device. Restore power

after all connections have been made.

When making connections to the IPAC, note the following:

•All terminals accept one 26-16 AWG wire.

•Use Crestron®power supplies for Crestron equipment.

NOTE: The IPAC can only be powered by either of the 4-position NET connectors.

NET Connectors

Refer to the illustration below when wiring the NET connectors.

24 V

(RED)

GROU ND

(BLACK)

24 V

(RE D)

GROUND

(BLACK)

(BLUE)

GLA-PWS50

(WHITE)

NETWORK DEVICE

When wiring the NET connectors, consider the following:

•Use Crestron Certified Wire such as CRESNET-NP or CRESNET-P. Failure to

do so may incur additional charges if support is required to identify performance

deficiencies because of using improper wire.

•Use Crestron power supplies for Crestron equipment.

•Provide sufficient power to the system.

CAUTION: Insufficient power can lead to unpredictable results or damage to the

equipment. Please use the Crestron Power Calculator to help calculate how much power

is needed for the system (www.crestron.com/calculators).

•For networks with 20 or more devices, use a Cresnet®Hub/Repeater

(CNXHUB) to maintain signal quality.

Installation Guide – DOC. 6696A Integrated Professional Automation Computer: IPAC •3

Integrated Professional Automation Computer Crestron IPAC

LAN Connector

The following illustration shows the pin assignments of the RJ-45 LAN connector.

WARNING: Incorrect wiring may damage the IPAC.

GREEN

LED

YELLOW

LED

PIN 8 PIN 1

PIN SIGNAL PIN SIGNAL

1 TX + 5 N/C

2 TX - 6 RC -

3 RC+ 7 N/C

4 N/C 8 N/C

COM Connector

Refer to the illustration below when wiring the COM connector.

WARNING: Incorrect wiring may damage the IPAC.

RS-232 DEVICE

WITH HARDWARE

HANDSHAKING

RX TX GCTS RTS

RS-232 DEVICE

WITHOUT

HARDWARE

HANDSHAKING

RX TX G

4 •Integrated Professional Automation Computer: IPAC Installation Guide – DOC. 6696A

Crestron IPAC Integrated Professional Automation Computer

RELAYS Connector

Refer to the illustration below when wiring the RELAYS connector.

WARNING: Incorrect wiring may damage the IPAC.

INPUTS Connector

The illustration below is an example of what could be connected to the INPUTS

connector.

WARNING: Incorrect wiring may damage the IPAC.

Installation Guide – DOC. 6696A Integrated Professional Automation Computer: IPAC •5

Integrated Professional Automation Computer Crestron IPAC

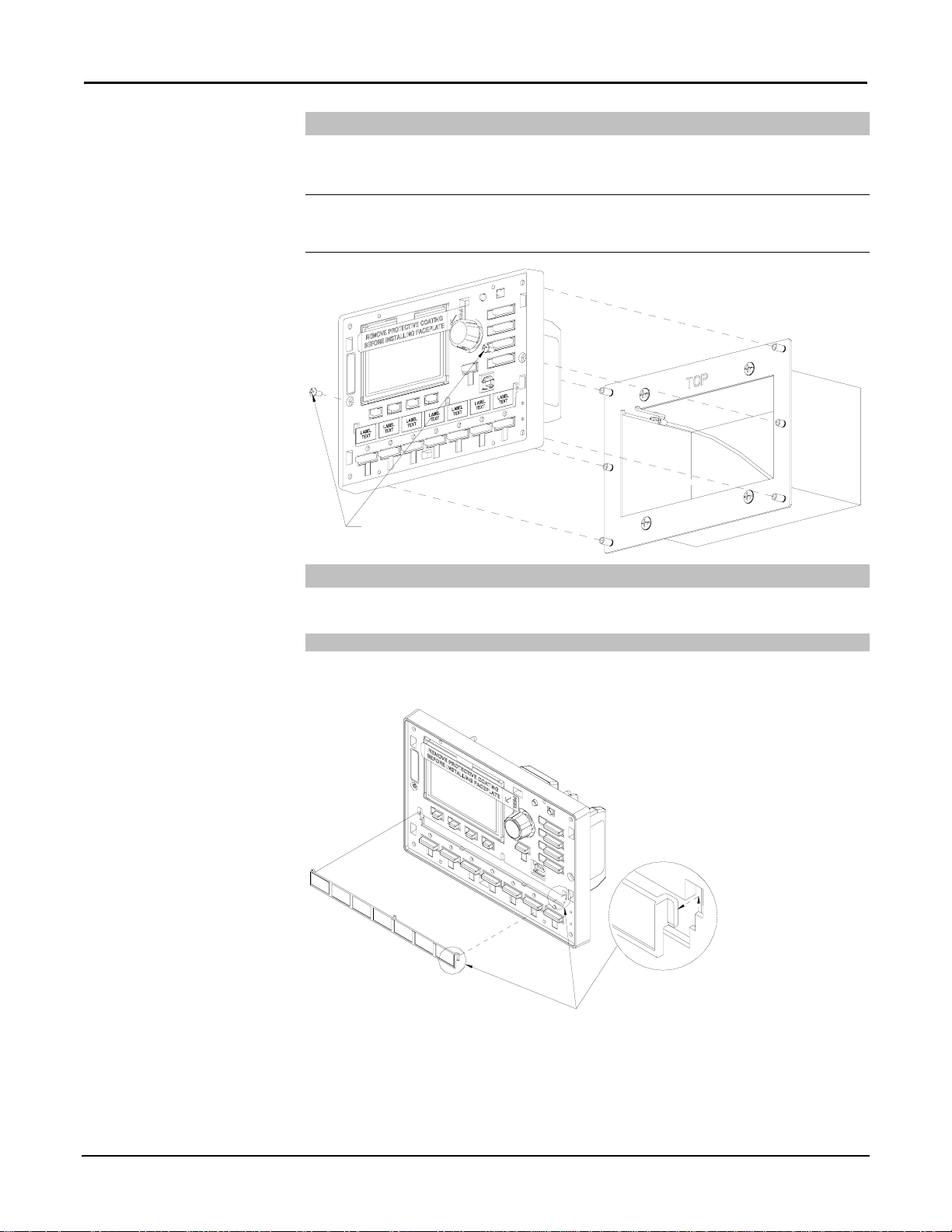

Attach the IPAC to the Mounting Plate

Use the two included 04-40 x ¼” screws to attach the IPAC to the mounting plate as

shown in the following diagram.

CAUTION: Excess wire that is pinched between the IPAC and the electrical box could

short out. Make sure that all excess wire is completely inside the electrical box and not

pinched between the box and the IPAC or the mounting plate.

SCREWS (2) 04-40 x ¼"

(2007156)

Apply Custom Labels

Pre-printed labels for the seven buttons on the IPAC can be applied to the label strip.

Remove the Label Holder

As shown in the following diagram, slide the label holder up and remove it from the

IPAC.

PUSH LABEL HOLDER UP

AND PULL AWAY FROM THE

IPAC

6 •Integrated Professional Automation Computer: IPAC Installation Guide – DOC. 6696A

Crestron IPAC Integrated Professional Automation Computer

Affix Labels to the Label Holder

As shown in the following diagram, attach labels to the label holder. The included labels

are shown in the appendix on page 11.

Install the Label Holder

As shown in the following diagram, attach the label holder by placing the holder tabs in

the slots and sliding them downward into position.

PLACE LABEL HOLDER TABS

IN SLOTS.

SLIDE TABS DOWN TO

SECURE IT.

Attach the Faceplate to the IPAC

Use the included 04-40, 7/16” screws to attach the faceplate to the IPAC as shown in the

following diagram.

AFTER ATTACHING FACEPLATE,

VERIFY FACEPLATE PLACEMENT BY PUSHING

ALL BUTTONS TO ENSURE SMOOTH OPERATION.

IF ANY BUTTONS STICK, LOOSEN SCREWS,

REPOSITION FACEPLATE AND RETIGHTEN SCREWS.

SCREWS (4) 04-40 x 716"

(2022900 or 2013409)

Installation Guide – DOC. 6696A Integrated Professional Automation Computer: IPAC •7

Integrated Professional Automation Computer Crestron IPAC

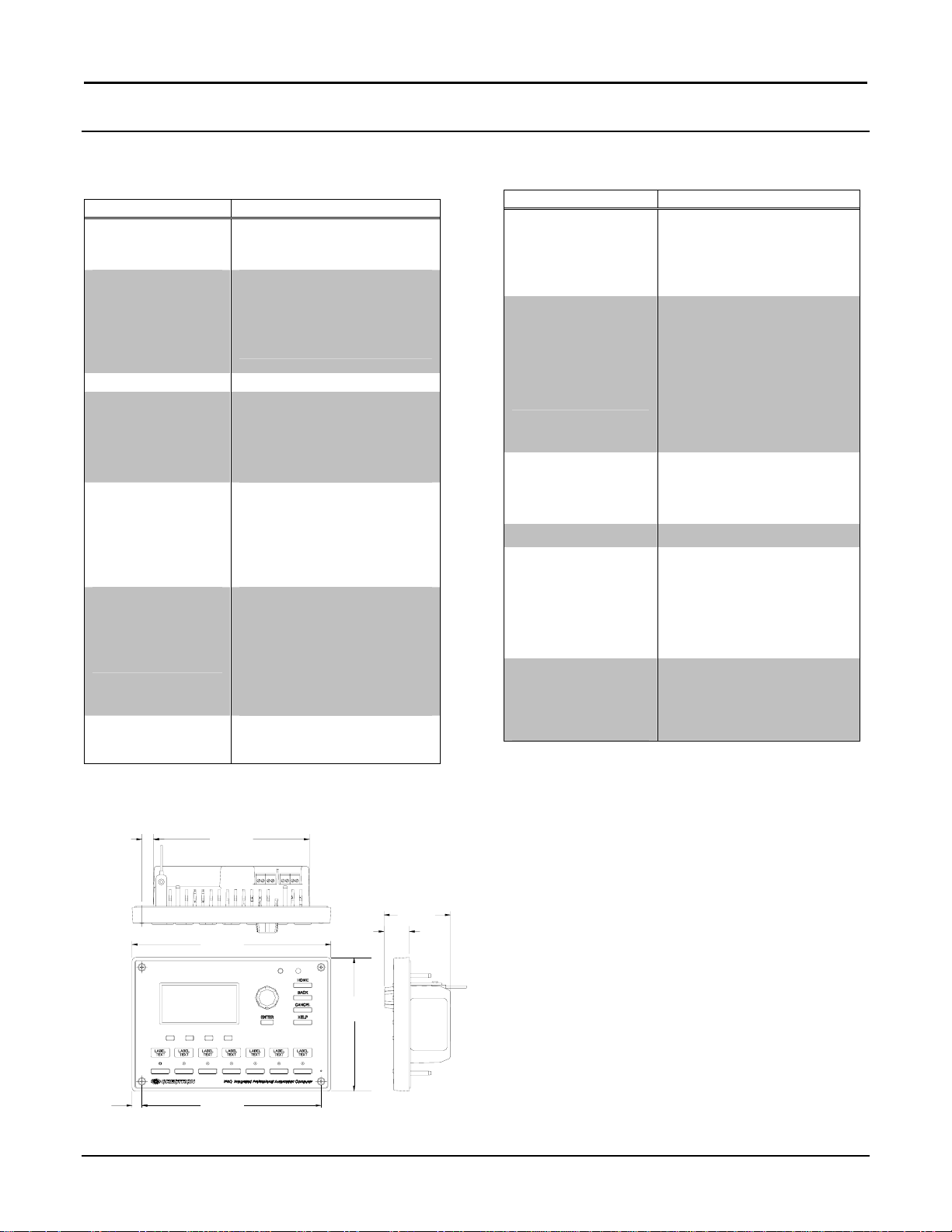

Specifications

IPAC Specifications

SPECIFICATION DETAILS

Processor

CPU

32-bit Freescale ColdFire®

Microprocessor

Memory

SDRAM

NVRAM

Flash

Power Failure

Memory

32 MB

1 MB

8 MB

10 years

Time Clock Accuracy ±1 minute per year

Operating System Real-time, preemptive multi-

threaded/multitasking kernel;

FAT32 file system with long

names; includes default program

for Green Light Power Switching

systems

Ethernet 10/100BASE-T, auto-negotiating,

full/half duplex, static IP or DHCP,

DNS, SSL, TCP/IP, UDP/IP, CIP,

SMTP, SNMP, built-in Web server

and e-mail client; supports

Crestron e-Control®2 XPanel and

RoomView®applications.

IR Receiver

Reception

Frequency

Formats

Range

36 to 38 kHz IR

Crestron format, RC5

Up to 50 feet (15 meters) line of

sight typical, dependent on angle,

obstructions, IR interference and

IR remote signal strength

Power Requirements 10 Watts (0.42 A @ 24 VDC);

GLA-PWS50 or equivalent power

supply required (sold separately)

(Continued on following column)

IPAC Specifications (Continued)

SPECIFICATION DETAILS

Environmental

Temperature

Humidity

Heat Dissipation

32º to 104 º F (0 º to 40 º C)

10% to 90% RH

(non-condensing)

20 BTU/Hr

Enclosure

Faceplate

Chassis

Mounting

High-impact plastic, black or

white, with polycarbonate label

overlay

Injection-molded plastic with

steel mounting plate

Requires 3-gang plaster ring or

electrical box (not included),

≥2.5 in (6.4 cm) deep

recommended

Dimensions

Height

Width

Depth

4.50 in (115 mm)

6.70 in (171 mm)

2.24 in (57 mm)

Weight 1.32 lbs (0.60 kg)

Available Models

IPAC-GL1-B-T

IPAC-GL1-W-T

IPAC Integrated Professional

Automation Computer for Power

Switching (Black)

IPAC Integrated Professional

Automation Computer for Power

Switching (White)

Available Accessories

GLA-PWS50

MP/MPC/IPAC_FRO

NT_LABEL-[B,W]-T

Wall Mount 50 Watt Cresnet

Power Supply

Set of Engravable Backlit Labels

IPAC Overall Dimensions

4.50 in

(115 mm)

5.25 in

(134 mm)

0.40 in

(11 mm)

6.70 in

(171 mm)

0.33 in

(9 mm)

6.04 in

(154 mm)

2.24 in

(57 mm)

0.85 in

(22 mm)

8 •Integrated Professional Automation Computer: IPAC Installation Guide – DOC. 6696A

Integrated Professional Automation Computer Crestron IPAC

Industry Compliance

This unit has been manufactured to comply with UL’s Standards for Safety in Canada

and the United States. Formal approval is pending.

As of the date of manufacture, the IPAC has been tested and found to comply with

specifications for CE marking.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

9 •3-Phase Power Loss Sensor: IPAC Installation Guide – DOC. 6696A

Integrated Professional Automation Computer Crestron IPAC

Problem SolvingTroubleshooting

The following table provides corrective action for possible trouble situations. If further

assistance is required, please contact a Crestron customer service representative.

IPAC Troubleshooting

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

Display is dark. Power is not present. Verify that power is properly connected to the

IPAC.

For issues encountered during operation, refer to the latest version of the IPAC-GL1

Setup Guide (Doc. 6660) which can be downloaded from the Crestron website

(www.crestron.com/manuals).

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from the

Crestron website (www.crestron.com/manuals). This link will provide a list of product

manuals arranged in alphabetical order by model number.

List of Related Reference Documents

DOCUMENT TITLE

IPAC Setup Guide

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide,

please take advantage of Crestron's award winning customer service team by calling the

Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876].

You can also log onto the online help section of the Crestron website

(www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time

users will need to establish a user account to fully benefit from all available features.

10 •Integrated Professional Automation Computer: IPAC Installation Guide – DOC. 6696A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Crestron Controllori

Crestron

Crestron CEN-TVAV Manuale utente

Crestron

Crestron 3 Series Manuale utente

Crestron

Crestron 4 Channel Motor Control Module CLX-1MC4 Manuale utente

Crestron

Crestron CN-TVAV Manuale utente

Crestron

Crestron 3 Series Manuale utente

Crestron

Crestron 4K DigitalMedia 3-Series Disegno dimensionale

Crestron

Crestron TSW-1050-FMKT Manuale utente

Crestron

Crestron DM-RMC-4K-SCALER-C Manuale utente

Crestron

Crestron MC2W Manuale utente

Crestron

Crestron 4K DigitalMedia 3-Series Manuale utente

Crestron

Crestron DigitalMedia 8G+ DM-RMC-200-C Disegno dimensionale

Crestron

Crestron PC-350V-12 Manuale utente

Crestron

Crestron MPC-M10 Istruzioni per l'installazione e il funzionamento

Crestron

Crestron ST-VC Manuale utente

Crestron

Crestron infiNET EX CLC-FANDELVEX-W Manuale utente

Crestron

Crestron DigitalMedia 8G DM-RMC-200-S Disegno dimensionale

Crestron

Crestron Zum ZUMMESH-CCO Manuale utente

Crestron

Crestron INET-IOEX-IRCOM Manuale utente

Crestron

Crestron DigitalMedia DM-RMC-100-1 Come usare

Crestron

Crestron C2N-SDC Come usare

Crestron

Crestron MPC-M10 Disegno dimensionale

Crestron

Crestron 302 Manuale utente

Crestron

Crestron onCue BPC-8 Disegno dimensionale

Crestron

Crestron CP3-R Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
