Crestron CNX-B2/B4/B6/B8/B12

Single Gang Keypads

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron CNX-B2/B4/B6/B8/B12 Single Gang Keypads

Operations & Installation Guide - DOC. 8173A Contents •i

Contents

Single Gang Keypads: CNX-B2/B4/B6/B8/B12 1

Introduction......................................................................................1

Features and Functions ..........................................................1

Specifications.........................................................................3

Physical Description ..............................................................4

Industry Compliance..............................................................7

Setup.................................................................................................7

Network Wiring.....................................................................7

Identity Code .........................................................................8

Installation ...........................................................................12

Programming Software ..................................................................14

Programming with Crestron AppBuilder or D3 Pro ...............15

Programming with SIMPL Windows..................................15

Programming with VT Pro-e ...............................................21

Uploading and Upgrading..............................................................22

Communication Settings......................................................23

Uploading a SIMPL Windows Program..............................27

Uploading a VT Pro-e WAV File Project ...........................28

Firmware Upgrade...............................................................30

Serial Number Assignment..................................................32

Problem Solving.............................................................................33

Troubleshooting...................................................................33

Further Inquiries ..................................................................34

Future Updates.....................................................................34

Software License Agreement.........................................................35

Return and Warranty Policies ........................................................37

Merchandise Returns / Repair Service .......................37

CRESTRON Limited Warranty ...................................37

Crestron CNX-B2/B4/B6/B8/B12 Single Gang Keypads

Operations & Installation Guide - DOC. 8173A Single Gang Keypads: CNX-B2/B4/B6/B8/B12 •1

Single Gang Keypads:

CNX-B2/B4/B6/B8/B12

Introduction

Features and Functions

The CNX-B2/B4/B6/B8/B12-series Single Gang Keypads are wall-

mounted user interfaces that can be part of a Crestron solution total

control system. The keypads are standard Cresnet®devices, and provide

fingertip control when the control system is properly programmed using

SIMPL Windows. The number in the product’s name corresponds to the

number of buttons on the panel. Each of these panels is available in three

colors: almond, black, and white. A letter at the end of the product name,

‘A’, ‘B’, or ‘W’, denotes the color; i.e., CNX-B12B is a black 12-button

unit. For simplicity within this guide, the letter designating color is

omitted. Furthermore, even though the CNX-B12 is featured in

descriptions and illustrations throughout this guide, the information

herein applies to the other keypads as well. Exceptions are noted.

NOTE: Keypads can also be mounted in groups. For more information,

refer to the latest version of the B-G2-FP and B-G3-FP, Double and

Triple Gang Keypads (Doc. 8182).

Functional Summary

• Ergonomic buttons are easy to read from any angle

• Backlit buttons are easy to locate

• LED indicators provide visual feedback of commands

• A speaker provides audio feedback of WAV files

• A temperature sensor reports to Cresnet for environment

monitoring

Single Gang Keypads Crestron CNX-B2/B4/B6/B8/B12

2 •Single Gang Keypads: CNX-B2/B4/B6/B8/B12 Operations & Installation Guide - DOC. 8173A

The keypads feature backlit-capable ergonomic buttons and are designed

for wall mounting in a standard single-gang electrical box. The keypad’s

colors and finishes can be used to accent a home’s colors, wall coverings,

or décor.

NOTE: The CNX-B12 keypad is supplied with 12 blank pushbuttons.

As an option, custom-engraved keys can be designed and obtained by

using the Crestron Engraver software. Version 2.0.1.5 or later is available

from the Downloads | Software Updates section of the Crestron website

(www.crestron.com).

NOTE: Designer series faceplates are also available for customized

single-, double-, and triple-gang configurations. Contact a Crestron

customer service representative for details.

NOTE: Temperature reading accuracy is affected by unit indicators and

backlight state.

All buttons on the keypad are functionally identical and have associated

light emitting diodes (LEDs) that serve as user feedback indicators. Each

LED’s illumination is independently addressable, and is programmable

using SIMPL Windows. The keypad also contains a temperature sensor

that reports to the Cresnet control system, and an audio speaker that can

provide audio feedback via WAV sound files.

In the program, the backlight and button LED intensity levels can be set

from 0 to 100%. Similarly, the speaker volume level can be set from 0 to

100%. Refer to “CNX-B12 Symbol in Programming Manager” on page

18 for details. Refer also to the note concerning temperature sensor

accuracy and LED settings on page 13.

Crestron CNX-B2/B4/B6/B8/B12 Single Gang Keypads

Operations & Installation Guide - DOC. 8173A Single Gang Keypads: CNX-B2/B4/B6/B8/B12 •3

Specifications

The following table provides specifications for the keypads.

Specifications for the Keypads

SPECIFICATION DETAILS

Power Re

uirements 3 Watts

(

0.125 Amp

24 VDC

)

Default Network ID 60

Tem

erature Sensor

eLinear, di

ital

Precision 0.18°F

(

0.1°C

)

Accurac

1.8°F

(

1.0°C

)

Ran

e32°F - 113°F

(

0°C - 45°C

)

LED T

e Red, dimmable via pro

ram

Backli

ht T

eWhite, dimmable via pro

ram

Wave File Format/Size Limit 8-bit, 8Khz, PCM/512K total

acit

max. of 101 WAV files3

Source File Format projectname. vtp

Compiled File Format projectname. hex

Control System Update Files4, 5, 6

2-Series Control System Update Version C2-1001.CUZ or later

CEN/CN-TVAV Update File Version 5.10.13V.UPZ or later

CNMSX-AV/Pro Update File Version 5.10.11X.UPZ or later

CNRACKX/-DP Update File Version 5.10.11W.UPZ or later

ST-CP Update File Version 4.02.04S.UPZ or later

Dimensions and Weight Height: 4.76 in (12.1 cm)

Width: 2.91 in (5.57 cm)

Depth: 1.54 in (3.90 cm)7

Weight: 2.60 oz (75 g)

Environmental Temperature 32°F - 113°F (0°C - 45°C)

1. Temperature accuracy with backlight and indicator LEDs off.

2. Sensor reads temperature in degrees Centigrade; keypad firmware converts

reading to Fahrenheit.

3. The button panel can store up to 101 wav files that produce a total maximum of

approximately 60 seconds playback.

Single Gang Keypads Crestron CNX-B2/B4/B6/B8/B12

4 •Single Gang Keypads: CNX-B2/B4/B6/B8/B12 Operations & Installation Guide - DOC. 8173A

4. The latest software versions can be obtained from the Downloads | Software

Updates section of the Crestron website (www.crestron.com). Refer to the NOTE

following these footnotes.

5. Crestron 2-Series control systems include the AV2, CP2/CP2E, MP2/MP2E,

PAC2, PRO2 and RACK2.

6. CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP.

Filenames for CNX update files have a UPZ extension, and ST-CP files are in one

EXE or zipped UPZ file. To avoid program problems, make sure you are using

the update file with the correct suffix letter (e.g., S, V, W, X).

7. The depth of the Keypad is listed without the Cresnet connector (approximately

0.45 in) plus clearance for the wiring.

NOTE: Crestron software and any files on the website are for

Authorized Crestron dealers and Crestron Authorized Independent

Programmers (CAIP) only. New users may be required to register to

obtain access to certain areas of the site (including the FTP site).

Physical Description

Refer to the figures on pages 5 and 6. The number of buttons on a keypad

can be 2, 4, 6, 8, or 12. They are arranged numerically from left to right,

top to bottom and each has an associated LED window.

NOTE: The Keypad Physical Views illustrations show examples of 12-

button and 8-button keypads; other models have different configurations.

Refer to the button arrangement illustration on page 19.

The removable faceplate and divider attach to the button unit once it is

mounted.

Each keypad has a button unit with a membrane switch, a rear speaker,

and a male Cresnet network port labeled 24 Y Z G. The port provides for

operating power and for communications to/from the keypad.

Crestron CNX-B2/B4/B6/B8/B12 Single Gang Keypads

Operations & Installation Guide - DOC. 8173A Single Gang Keypads: CNX-B2/B4/B6/B8/B12 •5

Keypad Physical Views

12-button Model 8-button Model

(White Color) (Black Color)

Keypad Overall Dimensions

2.912 in

4.762 in

(12.096 cm)

1.067 in

(2.710 cm)

1.536 in

(3.902 cm)

Buttons 1-12

ide View

Front View

(5.568 cm)

LED

window

NOTE: Illustration is for 12-button keypad,

other models have fewer buttons.

Button numbers are for programming purposes only.

Refer to the illustrations on page 19 for more button arrangement details.

Single Gang Keypads Crestron CNX-B2/B4/B6/B8/B12

6 •Single Gang Keypads: CNX-B2/B4/B6/B8/B12 Operations & Installation Guide - DOC. 8173A

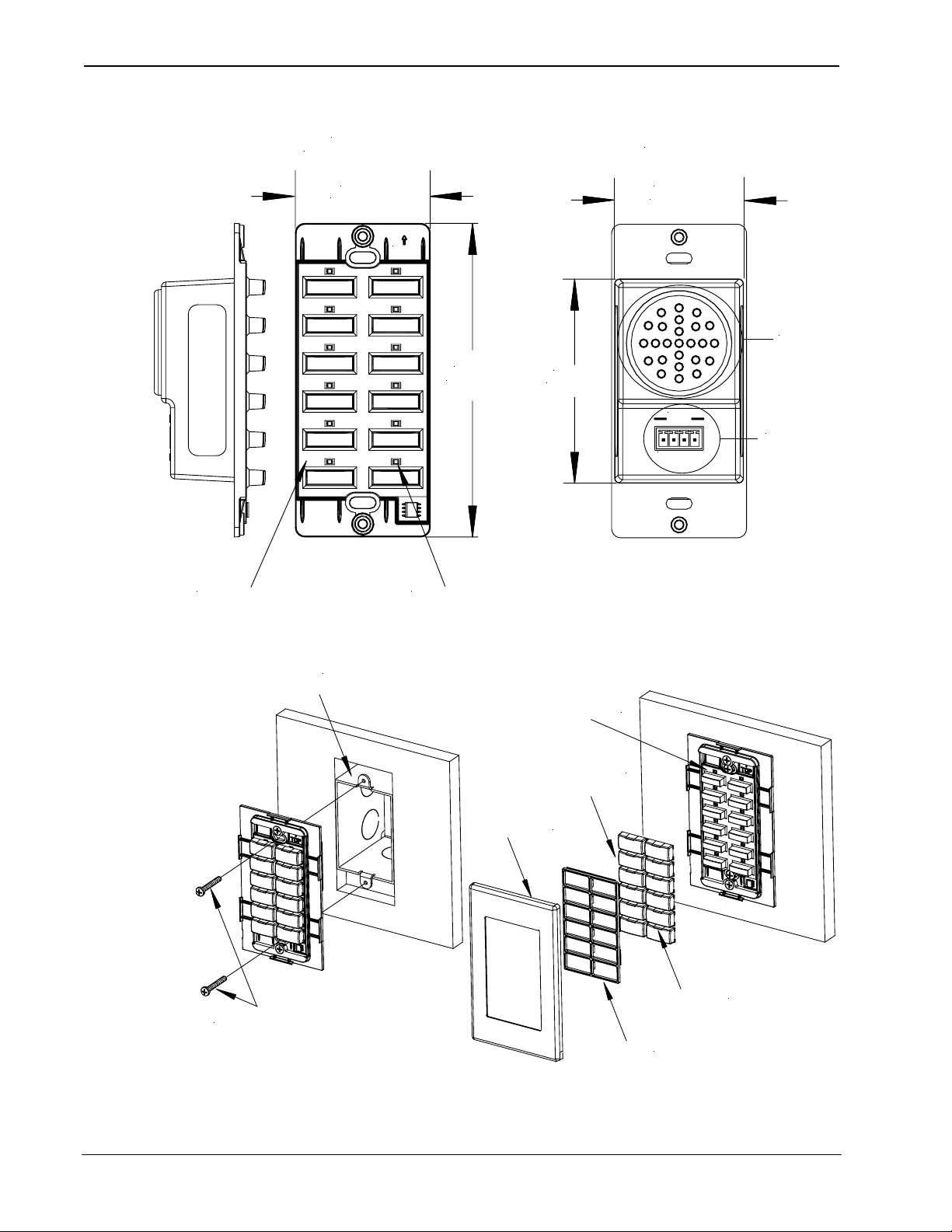

Button Unit Detail View

1.788 in

4.158 in

Rubber Membrane

(4.541 cm)

(10.56 cm)

Indicator LED

Speaker

Cresnet port

TOP

NET

24 Y Z G

2.696 in

(6.848 cm)

1.696 in

(4.301 cm)

Front View

with buttons removed Back View

Installation View

Faceplate

Divider

Removable

buttons

Button unit

LED window

1 in. pan head

ingle gang electrical box

(2.5 in. depth recommended)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Crestron Tastiera

Crestron

Crestron Horizon infiNET EX HZ-KPEX Manuale utente

Crestron

Crestron HZ-BTN Manuale utente

Crestron

Crestron Horizon HZ-KPCN Series Manuale utente

Crestron

Crestron Zum ZUMMESH-KPBATT Manuale utente

Crestron

Crestron GLPPA-KP Manuale utente

Crestron

Crestron Cameo C2N-CBD Come usare

Crestron

Crestron C2N-LCDB3 Disegno dimensionale

Crestron

Crestron HTT-B10EX Come usare

Crestron

Crestron Lutron CNWM-LU12 Come usare

Crestron

Crestron Cameo C2NI-CB Series Come usare

Crestron

Crestron CN-WP12FW Manuale utente

Crestron

Crestron CLWI-KPLEX Manuale utente

Crestron

Crestron C2N-DBF12 Come usare

Crestron

Crestron INET-CBDEX-E Istruzioni operative originali

Crestron

Crestron Cameo C2N-CBD-P Istruzioni operative originali

Crestron

Crestron Cameo C2NI-CB Series Manuale utente

Crestron

Crestron black nova AXES Series Manuale utente

Crestron

Crestron CNWM-10A Manuale utente

Crestron

Crestron CNX-BF12 Come usare

Crestron

Crestron C2N-DB12 Come usare

Crestron

Crestron C2NI-AG Creslight II Come usare

Crestron

Crestron Zum Series Manuale utente

Crestron

Crestron Cameo INET-CBDEX Series Come usare

Crestron

Crestron ZUM ZUMMESH-KP Manuale utente

Manuali Tastiera popolari di altre marche

BFT

BFT SELETTO Manuale utente

Micro Id

Micro Id MP7G3BL Manuale di istruzioni

WindowMaster

WindowMaster WLI 130 Manuale utente

ACT

ACT ACT PRO 1030 Manuale utente

Cardin

Cardin SSB Series Manuale utente

Harman Kardon

Harman Kardon KP 1 Manuale utente

Chamberlain

Chamberlain KPR2000 Guida utente

CYP

CYP CR-KP1 Manuale utente

Aeware

Aeware k-35 Series Guida di riferimento

Aritech

Aritech CS-175 Series Manuale utente

GE NetworX NX-1600E Series Manuale utente

Lenze AC Tech

Lenze AC Tech MC SERIES Manuale utente

Burg Wächter

Burg Wächter secuENTRY 7711 Manuale utente

Aeware

Aeware in.k450 Manuale utente

Lenze

Lenze EPM-H410 Manuale utente

Toshiba

Toshiba RKP007Z Manuale utente

Gemini

Gemini GEM-DXK1 KEYPAD Manuale utente

Russound

Russound MDK-C5 Manuale operativo
