Crestron HZ-BTN Manuale utente

Crestron® HZ-BTN-series button caps

provide Horizon™ keypads with a flexible

user interface. Configure the keypad with

up to five laser-engraved button caps to

provide custom control in any environment.

Button caps without custom laser-engraving

are also available which provide a simple, yet

elegant look.

Check the Box

Item Qty

HZ-BTN, HZ-BTN-RKR1,

HZ-BTN-RKR3, or HZN-BTN-RKR51

Button Cap2

HZ-BTN, HZ-BTN-RKR1,

HZ-BTN-RKR3, or

HZN-BTN-RKR51Engraved

Button Cap2

Tool, Spudger (P/N 2039565) 1

1 Refer to the HZ-BTN, HZ-BTN-RKR1, HZ-BTN-RKR3, or

HZN-BTN-RKR5 product pages at www.crestron.com

for a complete list of color, texture, and engraving

variations.

2 Quantity depends on purchase order.

Replace the Button Caps

1. Remove the top and bottom trim

pieces.

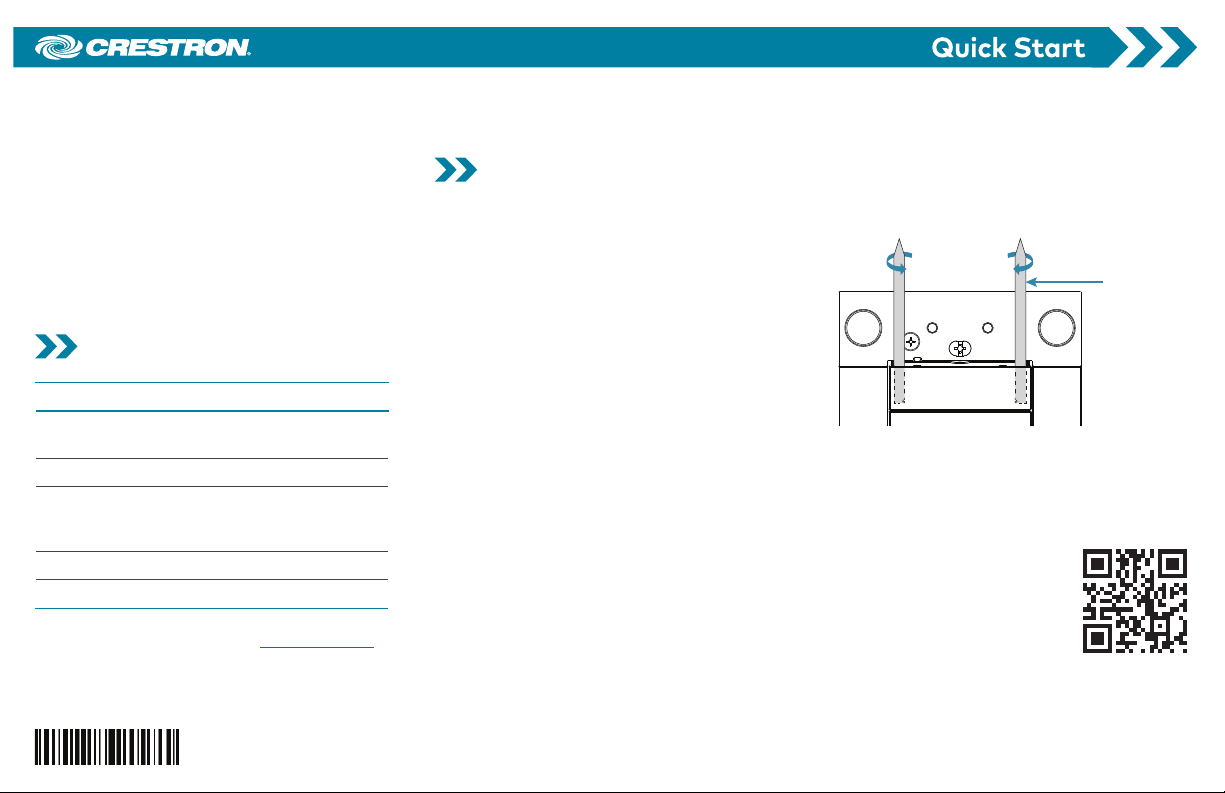

2. Remove the old button cap using the

flat end of the spudger (supplied with

engraved buttons):

a. Insert the spudger between the

top of the button cap and the

keypad near the left edge of the

button. Rotate the spudger tool

counterclockwise to remove the left

side of the button cap.

b. Insert the spudger between the top

of the button cap and the keypad

near the right edge of the button.

Rotate the spudger tool clockwise

to remove the right side of the

button cap.

NOTE: For the 3 and 5 position button

caps, repeat step 2 but insert the

spudger between the bottom of the

button cap and the keypad.

Spudger

tool

3. Align the posts on the back of the new

button cap with the slot in the keypad

and press firmly onto the keypad.

Ensure that the button cap actuates

without sticking.

4. Replace the trim

pieces.

Scan or click the QR code to

view a video tutorial of the

button cap replacement

process.

HZ-BTN

Button Caps for Horizon™ Keypads

For Additional Information

Scan or click the QR code for detailed product information.

HZ-BT N

Compliance and Legal

Original Instructions: The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, please

visit www.crestron.com/opensource.

Crestron, the Crestron logo, and Horizon are either trademarks or registered trademarks

of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks,

registered trademarks, and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Crestron disclaims any

proprietary interest in the marks and names of others. Crestron is not responsible for errors

in typography or photography.

Crestron Electronics, Inc.

15 Volvo Drive, Rockleigh, NJ 07647

Tel: 888.CRESTRON

Fax: 201.767.7576

www.crestron.com

Quick Start - Doc. 8329C

(2053092)

12.18

Specifications subject to

change without notice.
