Crestron MMK-1000L & WMKM-1000L Mud Mount Kits

Mud Mount Kits: MMK-1000L &

WMKM-1000L

Description

Mud Mount Kits are the preferred mounting option for the Series 1000 wall mounted

touchpanels when cutouts made for the touchpanel are too large. These kits fill in the

gaps with additional plastering and provide the support to hide large irregularities in

the touchpanel cutout.

There are two Mud Mount Kits. The MMK-1000L is a pre-construction accessory.

Pre-construction refers to framed walls prior to hanging drywall. This accessory is

designed for use with the Pre-Construction Mount Kit (PMK-1000L) or Back Box

Kit (BB-1000L).

The WMKM-1000L is a post-construction kit. Post-construction refers to framed

walls with drywall hung. This accessory is designed with a mounting plate so that it

can be placed anywhere on a wall without the support from a stud.

NOTE: If necessary, consult the latest revision of the Series 1000 Operations Guide

(Doc. 5813) for a complete list of mounting options.

Supplied Hardware

The MMK-1000L consists of three parts. These parts produce an assembly that

attaches to the PMK-1000L or BB-1000L. The WMKM-1000L consists of the same

three parts that make up the MMK-1000L as well as one mounting plate. The

mounting plate is the part that provides the necessary support for post-construction

applications.

Supplied Hardware of the MMK-1000L and WMKM-1000L

DESCRIPTION PART NUMBER QUANTITY

Metal Plate, Mounting

(WMKM-1000L only)

MTPL02832-1 1

Metal Plate, Mud Ring MTPL02835-1 1

Metal Plate, Fastener MTPL02833-1 2

Hardware, Push-On Fastener MMHO-11 4

Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •1

Mud Mount Kits Crestron MMK-1000L & WMKM-1000L

Installation

This section provides an installation procedure for each Mud Mount Kit. The

procedure for the MMK-1000L starts below and the “WMKM-1000L Procedure”

starts on page 4.

MMK-1000L Procedure

The procedure in this section provides the necessary steps for the assembly of the

MMK-1000L to either the PMK-1000L or BB-1000L. It is assumed that the

PMK-1000L or BB-1000L has been secured to the stud according to the procedures

in the latest revisions of their respective Installation Guides (Doc. 6061 and Doc.

6060, respectively). Also, it is assumed that drywall is in place and a square cutout

for the touchpanel is made in the drywall measuring 4½ inches wide (114 mm) x 4½

inches high (114 mm).

Complete the steps in the order provided. The only tools or materials required and

not supplied are a drywall saw or equivalent, four standard drywall screws, #2

Phillips screwdriver, a level, and tools/material to apply drywall joint compound.

NOTE: The illustrations in this procedure show the installation of the MMK-1000L

with the PMK-1000L. Even though the illustrations only show the PMK-1000L, they

are identical for the BB-1000L as well.

1. Pass a fastener plate through the opening and align its two center holes

with the top two pins on the PMK-1000L. Verify that the pins on the

fastener plate are not between the fastener plate and the PMK-1000L.

Refer to the illustration after this step for visual guidance.

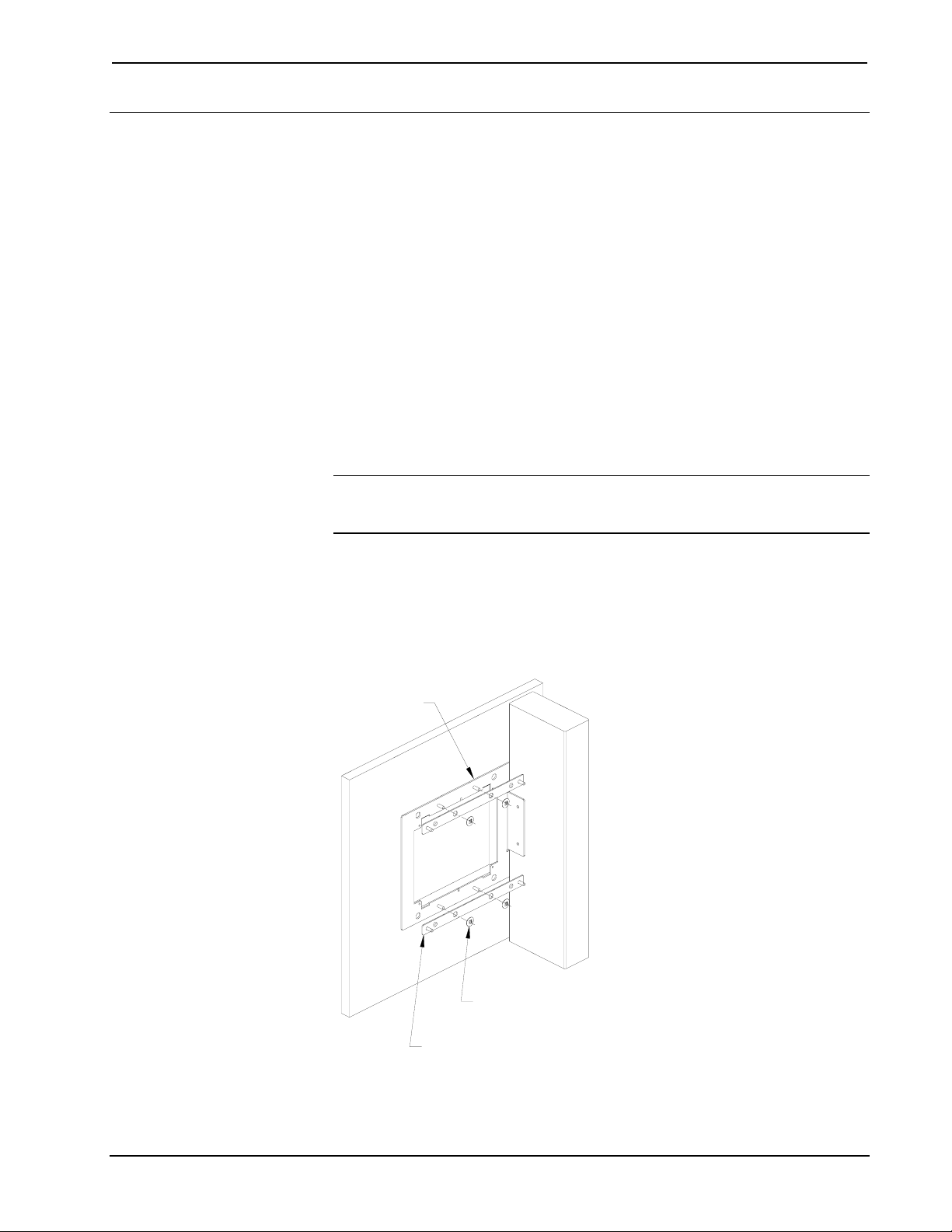

Secure Fastener Plates to PMK-1000L (or BB-1000L)

QTY.4

PUSH-ON FASTENER

QTY.2

FASTENER PLATE

PMK-1000L

2 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062

Crestron MMK-1000L & WMKM-1000L Mud Mount Kits

2. Slide a push-on fastener over each of the top pins on the

PMK-1000L (or BB-1000L). Do not push the fasteners all the way

down onto the pins. Slide them on enough to keep the fastener plate

and mounting plate as one fastener/mounting plate assembly. This

allows for minor mounting adjustments.

3. Use the second fastener plate and repeat steps 1 and 2 using the lower

two PMK-1000L pins.

NOTE: When installing into the PMK-1000L, verify that the 18 AWG bus wire

securing the cables for the touchpanel remain attached.

4. Verify that the square cutout in the drywall measures 4½ inches wide

(114 mm) x 4½ inches high (114 mm) and is level.

5. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

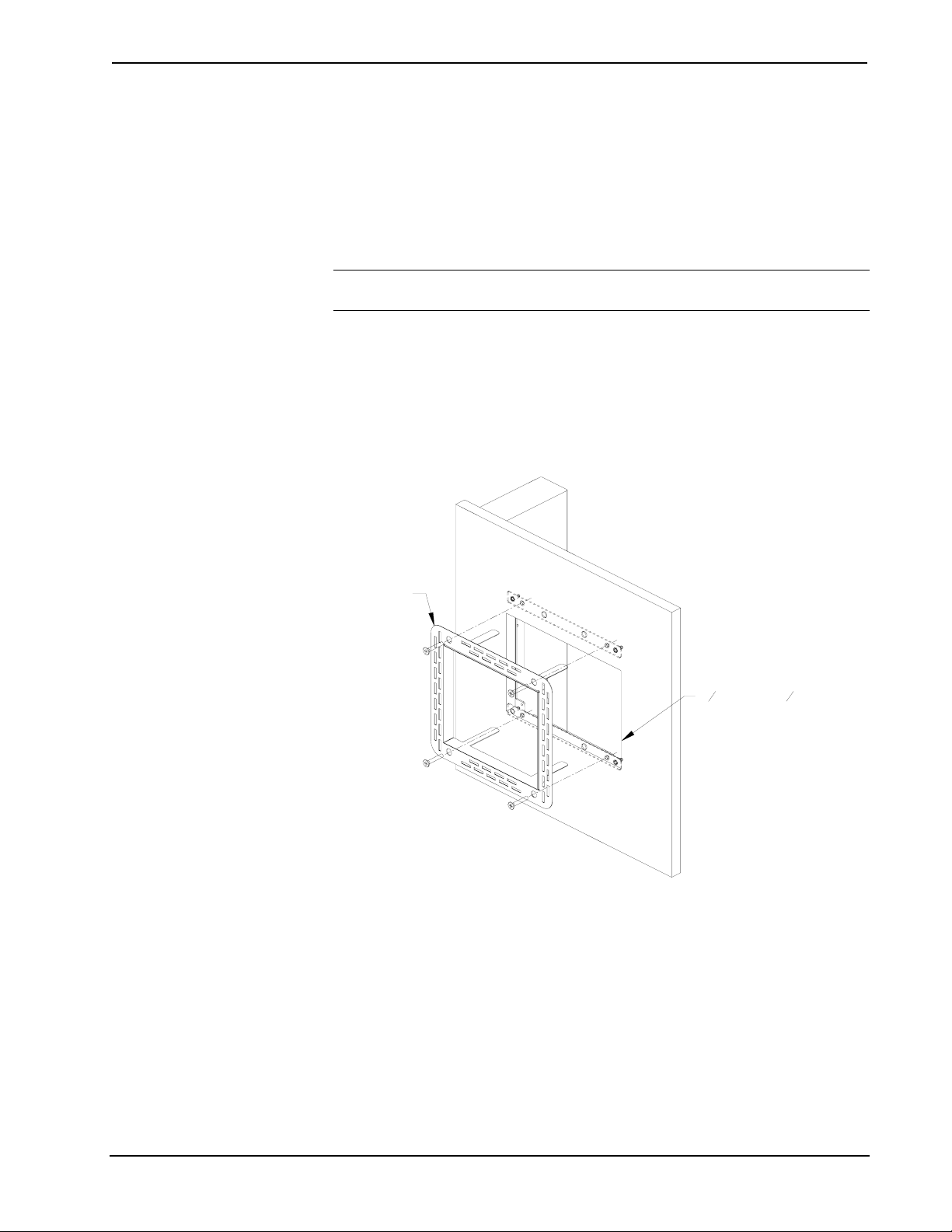

Insert and Secure Mud Ring Plate into PMK-1000L (or BB-1000L)

QTY.1

MUD RING

DRYWALL CUTOUT:

412in WIDE x 412in HIGH

(114 mm WIDE x 114 mm HIGH)

6. When the mud ring plate is in position, bend the top two flanges of the

plate upward and the bottom two flanges downward.

• If mounting into the PMK-1000L, bend the flanges

approximately 90 degrees.

• If mounting into the BB-1000L, bend the flanges back as far

as they can go.

7. Use four standard drywall screws (of adequate length) to secure the

mud ring plate to the rest of the assembly. The screws pass through the

Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •3

Mud Mount Kits Crestron MMK-1000L & WMKM-1000L

clearance holes in the PMK-1000L (or BB-1000L) and are secured in

the extruded holes of the fastener plates.

8. Verify that the mud ring plate is level.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the mud ring

plate.

9. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

10. Apply drywall joint compound as needed to finish the cutout.

11. When dry, the Series 1000 touchpanel can be installed using the four

tapped holes in the PMK-1000L. Refer to the latest revision of the

Series 1000 Operations Guide (Doc. 5813) for details.

WMKM-1000L Procedure

The procedure in this section provides the necessary steps for the assembly and

installation of the WMKM-1000L into a wall. Complete the steps in the order

provided. The only tools or materials required and not supplied are a drywall saw or

equivalent, a level, four standard drywall screws, #2 Phillips screwdriver, and

tools/material to apply drywall joint compound.

1. Insert the two pins on one fastener plate into the top two outer holes on

the mounting plate, as shown in the illustration after this step.

Create the Fastener/Mounting Plate Assembly

MOUNTING PLATE

PUSH-ON FASTENER

FASTENER PLATE

QTY.2

QTY.4

QTY.1

4 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062

Crestron MMK-1000L & WMKM-1000L Mud Mount Kits

2. Slide a push-on fastener over each pin on the top fastener plate. Do not

push the fasteners all the way down onto the pins. Slide them on

enough to keep the fastener plate and mounting plate as one

fastener/mounting plate assembly. This allows for minor mounting

adjustments.

3. Use the second fastener plate and repeat steps 1 and 2 on the lower part

of the mounting plate.

4. Locate an area on the wall that is free of miscellaneous wiring and

studs.

5. Make a small hole near the middle of the designated site; verify that the

location is suitable.

NOTE: Make the cutout as level as possible. The mounting plate allows for only

minor leveling adjustments.

6. Use the drywall saw or equivalent to produce a level, square cutout in

the drywall that measures 4½ inches wide (114 mm) x 4½ inches high

(114 mm).

7. Insert the symmetrical mud ring plate into the opening, as shown in the

illustration after this step.

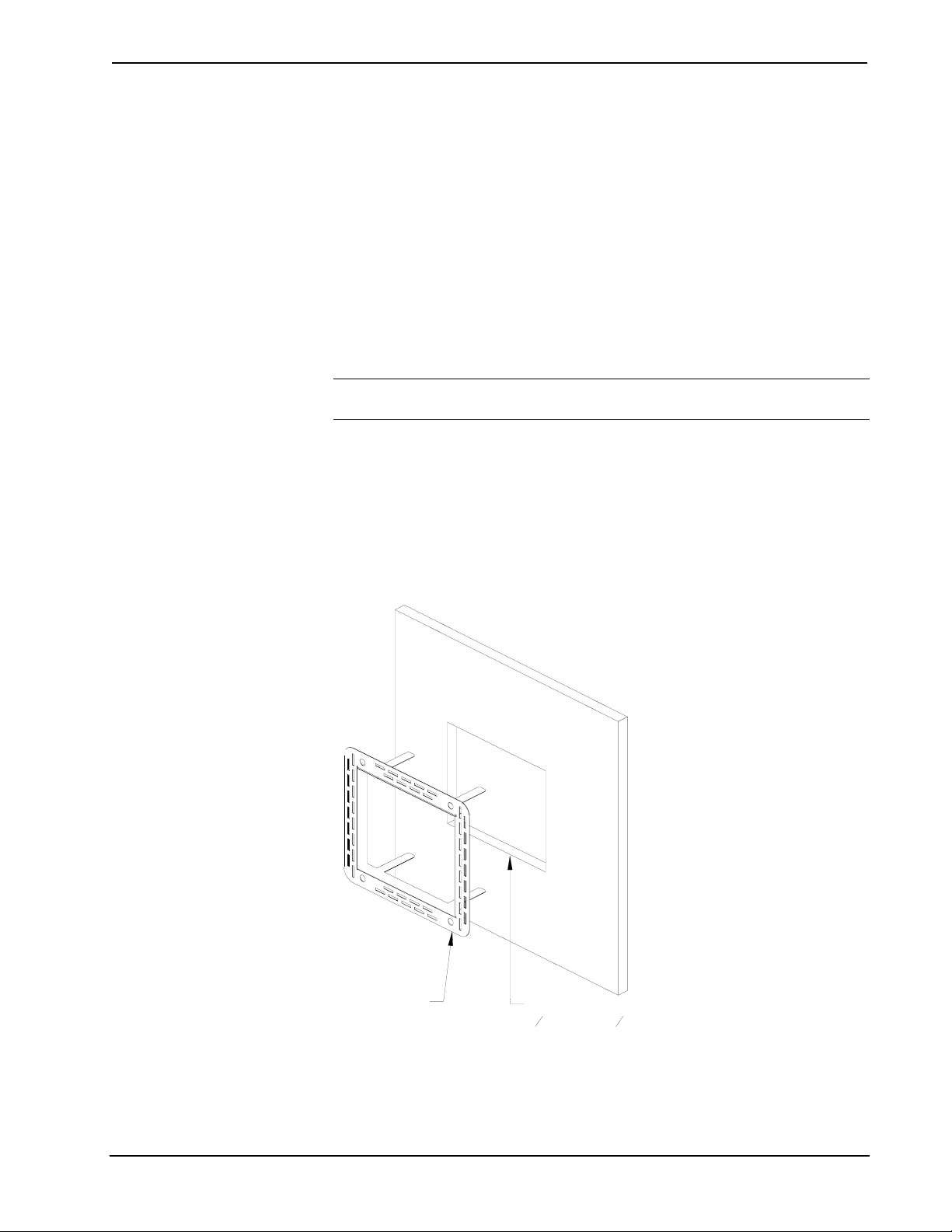

Insert the Mud Ring Plate into the Opening

MUD RING DRYWALL CUTOUT:

412in WIDE x 412in HIGH

(114 mm WIDE x 114 mm HIGH)

8. Carefully pass the fastener/mounting plate assembly through the

opening and rest the assembly against the interior surface of the

Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •5

Mud Mount Kits Crestron MMK-1000L & WMKM-1000L

drywall. Verify that the fastener plates are between the mounting plate

and the drywall.

9. When the fastener/mounting plate assembly is in position, bend the top

two flanges of the mud ring upward (approximately 90 degrees) and the

bottom two flanges downward (approximately 90 degrees). Refer to the

illustration after this step.

NOTE: Fastener/mounting plate assembly will have slight play; this is normal. It

allows for minor adjustments to the touchpanel during installation.

Bend Flanges

APPROX. 90°

TABS UP

BEND THESE

APPROX. 90°

TABS DOWN

BEND THESE

10. Use four standard drywall screws (of adequate length) to secure the

plate to the fastener/mounting plate assembly. The screws pass through

the tapped holes in the mounting plate and are secured to the extruded

holes of the fastener plates.

11. Verify that the plate is level before tightening.

NOTE: Do not over tighten screws. Doing so may over-dimple or rip the plate.

12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand

so that they slightly dimple into the holes in the mud ring plate.

6 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062

Crestron MMK-1000L & WMKM-1000L Mud Mount Kits

13. Run the necessary cable for the touchpanel and secure it behind the

drywall.

14. Apply drywall joint compound as needed to finish the cutout. Avoid

covering the 4 tapped mounting holes.

15. When dry, the 1000 Series touchpanel can be installed using the four

tapped holes in the mounting plate. Refer to the latest revision of the

Series 1000 Operations Guide (Doc. 5813) for details.

Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •7

Mud Mount Kits Crestron MMK-1000L & WMKM-1000L

Further Inquiries

If after reviewing this Installation Guide, you cannot locate specific information or

have questions, please take advantage of Crestron's award winning customer service

team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at

1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at +32-15-50-99-50.

• In Asia, call Crestron Asia at +852-2341-2016.

• In Latin America, call Crestron Latin America at +5255-5093-2160.

• In Australia and New Zealand, call Crestron Pacific at

+613-9480-2999.

As of the date of manufacture, the MMK-1000L and WMKM-1000L have been

tested and found to comply with specifications for CE marking.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of

the MMK-1000L or WMKM-1000L, additional information may be made available

as manual updates. These updates are solely electronic and serve as intermediary

supplements prior to the release of a complete technical documentation revision.

Check the Crestron website (www.crestron.com) periodically for manual update

availability and its subjective value. Updates are available from the Download |

Product Manuals section and are identified as an “Addendum” in the Download

column.

8 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Crestron Rack e supporto

Crestron

Crestron TMK-4L Manuale utente

Crestron

Crestron TMK-17L Manuale utente

Crestron

Crestron CPC-WMT Come usare

Crestron

Crestron MMK-2000L Manuale utente

Crestron

Crestron CT-1000 Manuale utente

Crestron

Crestron BB-1550CW Manuale utente

Crestron

Crestron RMK-6L Manuale utente

Crestron

Crestron PMK-6X-DSW Manuale utente

Crestron

Crestron TMK-2000L Manuale utente

Crestron

Crestron TSS-752-MSMK Manuale utente

Crestron

Crestron PMK-1000L Manuale utente

Crestron

Crestron TMK-12L Manuale utente

Crestron

Crestron ST-RMK Manuale utente

Crestron

Crestron TMK-4000L Manuale utente

Crestron

Crestron BB-1000L Manuale utente

Crestron

Crestron RMK-1600 Manuale utente

Crestron

Crestron MP-WP-2XLRO-1G Manuale utente

Crestron

Crestron RMK-9L Manuale utente

Crestron

Crestron Pre-Construction Wall Mount Back Box... Manuale utente

Crestron

Crestron CPC-CMT Come usare

Crestron

Crestron TSW-570P Manuale utente

Crestron

Crestron UCA-SMK-UC2 Manuale utente

Crestron

Crestron RMK-17L Manuale utente

Crestron

Crestron TSW-770-MSMK-ANG Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
