Crestron PMK-6X-DSW Manuale utente

Crestron PMK-6X-DSW

Pre-ConstructionWallMountKitfor

TPS-6X-DSW

InstallationGuide

Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

Contents

Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW 1

Description.................................................................................................................................1

Setup..........................................................................................................................................4

Mounting.....................................................................................................................4

Installation...................................................................................................................6

Other Mounting Option Accessories...........................................................................7

Resources...................................................................................................................................8

Industry Compliance ...................................................................................................8

Reference Documents..................................................................................................8

Further Inquiries..........................................................................................................8

Future Updates ............................................................................................................8

Return and Warranty Policies....................................................................................................9

Merchandise Returns / Repair Service ........................................................................9

CRESTRON Limited Warranty...................................................................................9

All brand names, product names and trademarks are the property of their respective owners.

Installation Guide – DOC. 6778A Contents •i

Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

Pre-Construction Wall Mount Kit

for TPS-6X-DSW: PMK-6X-DSW

Description

The PMK-6X-DSW is a pre-construction mount kit for the TPS-6X-DSW Wall

Mount Docking Station. The PMK-6X-DSW is used for installation on a stud. For

custom placement of the TPS-6X-DSW without a stud, use the WMKT-6X-DSW or

WMKM-6X-DSW.

The PMK-6X-DSW includes a 12-inch long, 18 AWG jumper wire to secure

docking station cabling prior to drywall installation and to avoid damaging the cables

when the opening is routed. Refer to the physical views of the PMK-6X-DSW shown

on the following pages. The table that follows lists all parts included with the

PMK-6X-DSW.

NOTE: If mounting into a material other than drywall (for example, wood lectern,

concrete or rock) use the cutout template, available in the post-construction kit

WMKM-6X-DSW or WMKT-6X-DSW. For concrete and rock mounting material,

allow for proper ventilation before mounting the TPS-6X-DSW.

NOTE: This mounting kit is to be used only with the TPS-6X-DSW Wall Mount

Docking Station.

Supplied Hardware for the PMK-6X-DSW

DESCRIPTION PART NUMBER QUANTITY

Metal, Plate, Pre-Construction 4507464 1

Metal, Plate, Cover 2022825 1

Screw, #06-32 x 1-1/2”, Pan, Phil 2007254 4

Jumper wire, 12”, 18 AWG, Black 2007838 1

Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW •1

Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW

The dimensions of the PMK-6X-DSW are shown below and on the following page.

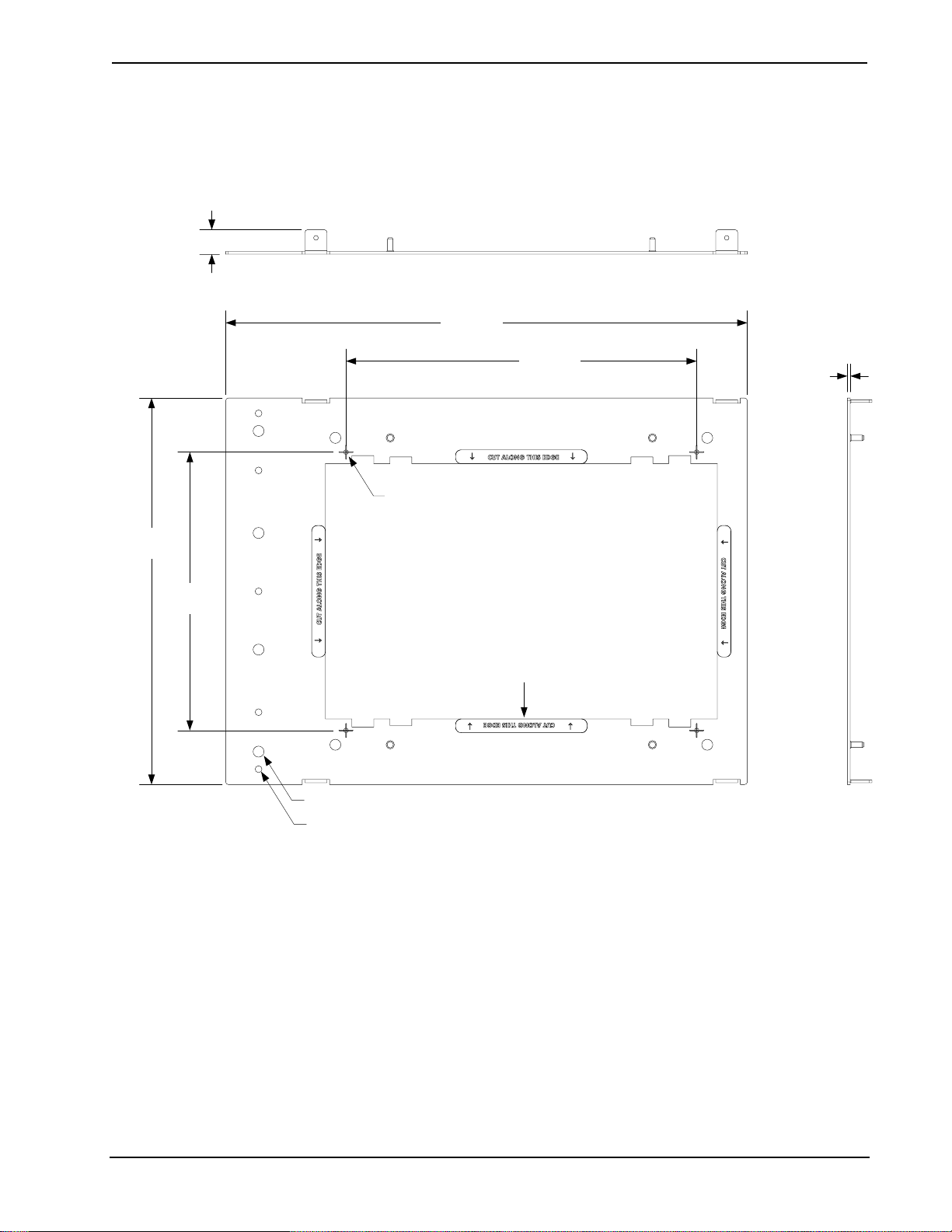

Dimensional Drawing (1 of 2)

0.56 in

(1.42 cm)

11.90 in

(30.23 cm)

8.00 in

(20.32 cm) 0.06 in

(0.15 cm)

6.35 in

(16.13 cm)

8.82 in

(22.41 cm)

#06-32 TAPPED HOLE IN EACH CORNER

SECURE 18 AWG JUMPER WIRE IN

NOTCH TO HANG CABLES AWAY FROM

CUTTING TOOLS

FOR DRYWALL SCREWS(NOT INCLUDED)

FOR DRYWALL NAILS(NOT INCLUDED)

2 •Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A

Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

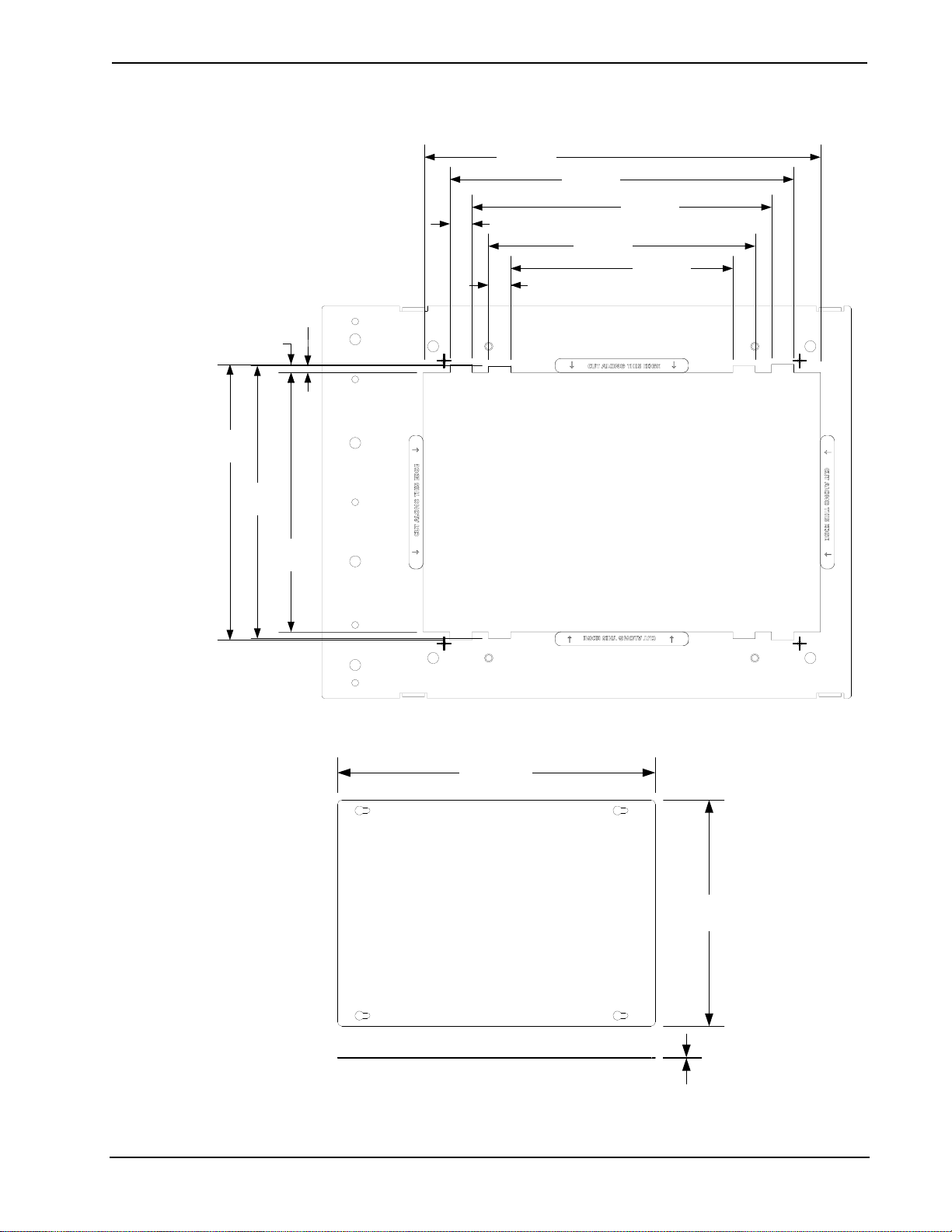

Dimensional Drawing (2 of 2)

1/8 in

(4 mm)

3/16 in

(5 mm)

5 13/16 in

(148 mm)

1/2 in

(13 mm) 6 in

(152 mm)

7 3/4 in

(196 mm) 6 3/4 in

(171 mm)

5 in

(127 mm)

6 3/16 in

(158 mm)

6 1/8 in

(156 mm)

1/2 in

(13 mm)

8 15/16 in

(226 mm)

Dimensional Drawing - Cover Plate

5.85 in

(14.86 cm)

4.16 in

(10.57 cm)

0.02 in

(0.05 cm)

Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW •3

Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW

Setup

Mounting

The PMK-6X-DSW consists of a single metal plate, which fastens to the stud of a

framed wall prior to hanging drywall. Standard drywall nails or screws to attach the

PMK-6X-DSW are not supplied (length can vary).

The plate is designed to provide the necessary support for the TPS-6X-DSW and can

mount to the right or left side of a stud. Confirm that the PMK-6X-DSW is level

before applying drywall.

Mounting the PMK-6X-DSW

NOTE: BE SURE

THE PLATE IS

LEVEL WHEN

MOUNTED.

PMK-6X-DSW

(4507464 )

CAUTION: Allow an air gap of at least 12 inches (30.48 cm) in the wall cavity

above and below the TPS-6X-DSW for heat dissipation.

After drywall is positioned, a rectangular opening must be made. Position the

opening to expose the #06-32 tapped holes just outside the four corners of the plate.

NOTE: Cut the drywall along the inside edge of the front of the mounting plate.

The labels on the front of the mounting plate indicate the perimeter of the opening

that should be cut out. Refer to the NOTE in “Mounting the PMK-6X-DSW” shown

in the illustration above.

4 •Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A

Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

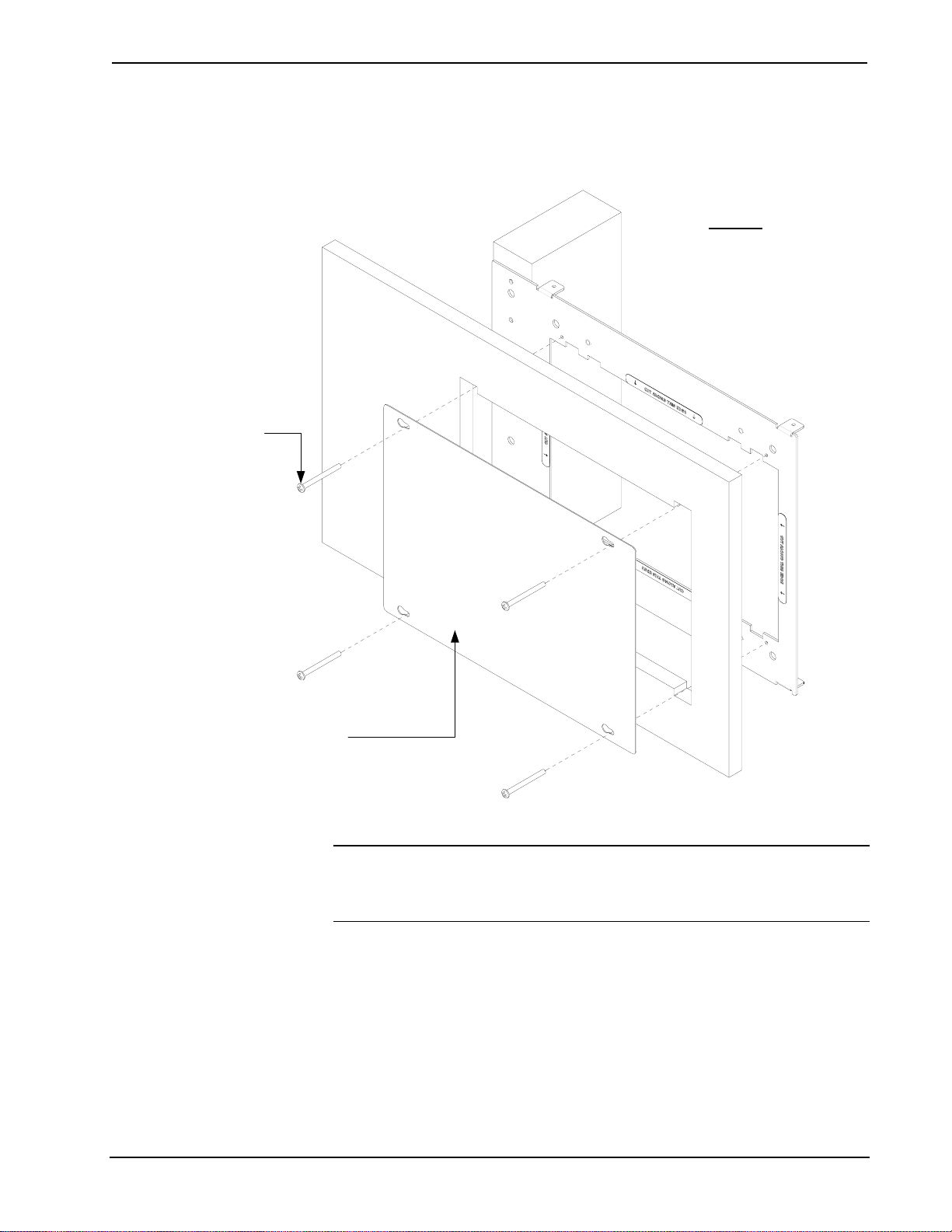

Mounted View with Cover Plate (Mounting Example Prior to Drywall Installation)

SCREWS (4)

#06-32 X 1 1/2" PAN,

HEAD (2007254 )

NOTE: MOUNTING PLATE

IS TO BE COVERED WITH

DRYWALL AND THEN

CUTOUT MADE AROUND

THE INSIDEOF THE

OPENING.

METAL COVER PLATE

(2022825 ) TO COVER DRYWALL

BEFORE TPS-6X-DSW IS

INSTALLED (MAY BE REQUIRED

BY LOCAL BUILDING CODES).

NOTE: BE SURE TO LEAVE

THE FOUR TAPPED HOLES

ON THE FRONT OF THE

PLATE EXPOSED TO ACCEPT

THE MOUNTING SCREWS.

NOTE: The four tapped holes on the front of the mounting plate must be exposed to

accept the TPS-6X-DSW mounting screws. These holes are found beneath the

drywall just outside the four corners of the opening and made by cutting out the

drywall. Refer to the NOTE in “Mounted View with Cover Plate” illustration above.

Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW •5

Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW

Installation

Complete the installation by either installing the wall mount docking station, leaving

the hole open (if permitted by local building codes) or installing the optional cover

plate with the included #06-32 x 1-1/2” screws. If the TPS-6X-DSW is to be

installed, refer to the latest revision of the TPS-6X-DSW Operations and Installation

Guide (Doc. 6708) for installation instructions. The document is available from the

Crestron®website (www.crestron.com/manuals). Refer also to the comprehensive

illustration below.

TPS-6X-DSW Mounting – Exploded View

PMK-6X-DSW

TPS-6X-DSW

DRYWALL

SCREWS(4) #06-32 X 1 1/2"

PAN HEAD(2007254 )

6 •Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A

Crestron PMK-6X-DSW Pre-Construction Wall Mount Kit for TPS-6X-DSW

Other Mounting Option Accessories

If too much of the mounting plate is exposed after the drywall is cut, you may need

to patch the area. Crestron provides the following accessories:

• MMK-6X-DSW (Doc. 6779) - for larger repairs and to fill in larger

irregularities around the opening (requires plastering).

• TMK-6X-DSW (Doc. 6780) - for smaller repairs and to provide a smooth

edge at the opening. This option provides a finished appearance and is

preferred when wallpaper is hung.

The manuals for the MMK-6X-DSW and TMK-6X-DSW are available from the

Crestron website.

Installation Guide – DOC. 6778A Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW •7

Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW

Resources

Industry Compliance

As of the date of manufacture, the PMK-6X-DSW has been tested and found to

comply with specifications for CE marking.

Reference Documents

The latest version of all documents mentioned within the guide can be obtained from

the Crestron website (www.crestron.com/manuals). This link will provide a list of

product manuals arranged in alphabetical order by model number.

List of Related Reference Documents

DOCUMENT TITLE

MMK-6X-DSW Mud Mount Kits for the TPS-6X-DSW

TMK-6X-DSW Trim Ring Mount Kits for the TPS-6X-DSW

TPS-6X-DSW Wall Mount Docking Assembly for TPS-6X

Further Inquiries

If you cannot locate specific information or have questions after reviewing this

guide, please take advantage of Crestron's award winning customer service team by

calling Crestron at 1-888-CRESTRON [1-888-273-7876].

You can also log onto the online help section of the Crestron website

(www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time

users will need to establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of

the PMK-6X-DSW, additional information may be made available as manual

updates. These updates are solely electronic and serve as intermediary supplements

prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its

relevance. Updates are identified as an “Addendum” in the Download column.
