Crestron Adagio®ATC-AMFMSRD

AM/FM and SIRIUS®Satellite Radio

Tuner Card with Digital Output

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Introducing SIRIUS Satellite Radio

Over 130 channels of the best entertainment and completely commercial-free music

for your car, home or office.

Only SIRIUS has more than 69 original music channels, from today’s hits to R&B

oldies to classical masterpieces. From authentic country and real bluegrass to cool

jazz, hot Latin, reggae, rock and many more. Best of all, it is all completely

commercial-free.

SIRIUS also has more than 60 channels of world-class sports, news and entertainment.

Included as part of your subscription, you get up to 16 NFL games a week, up to 40

NBA games a week and up to 40 NHL games a week. (Games are broadcast during

their respective seasons.) Coupled with great sports news from ESPN, the SIRIUS

sports offering is unrivaled. And do not forget a host of other great news and

entertainment like NPR, CNBC, Fox News, Radio Disney and E! Entertainment

Radio. For more information, visit www.sirius.com.

Activating your SIRIUS Subscription

You must activate your SIRIUS tuner before you can begin to receive the SIRIUS

Satellite Radio service.

In order to activate your radio subscription, you will need the SIRIUS ID (SID) which

uniquely identifies your tuner. The SID may be found on a sticker located on the

ATC-AMFMSRD card or by selecting channel 0 on the radio, in which case the SID

will appear on your Ad

tent.

agio®system or CEN-TRACK screen. Note channel 0 has no

audio con

A tuner that has not been activated will automatically tune to the SIRIUS preview

channel.

Contact SIRIUS on the Internet:

https://activate.siriusradio.com/

Follow the prompts to activate your subscription or you can also call SIRIUS toll-free

at:

1-888-539-SIRIUS (1-888-539-7474)

Once the subscription process is completed, your tuner is ready to use.

All brand names, product names and trademarks are the property of their respective owners.

Crestron Adagio®ATC-AMFMSRD AM/FM/SR Tuner Card

Contents

AM/FM and SIRIUS Satellite Radio Tuner Card with Digital Output:

Adagio®ATC-AMFMSRD 1

Introduction ...............................................................................................................................1

Features and Functions................................................................................................1

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Industry Compliance ...................................................................................................5

Setup ..........................................................................................................................................6

Installation................................................................................................................... 6

Regional Configuration ...............................................................................................7

Hardware Hookup ....................................................................................................... 8

Antenna Orientation .................................................................................................... 8

Uploading and Upgrading........................................................................................................ 11

Establishing Communication..................................................................................... 11

Firmware ...................................................................................................................11

Operation .................................................................................................................................12

Problem Solving ...................................................................................................................... 13

Troubleshooting......................................................................................................... 13

Reference Documents................................................................................................13

Further Inquiries ........................................................................................................ 14

Future Updates .......................................................................................................... 14

Appendix: RBDS/RDS Function Support...............................................................................15

Return and Warranty Policies .................................................................................................. 17

Merchandise Returns / Repair Service ...................................................................... 17

CRESTRON Limited Warranty.................................................................................17

Operations & Installation Guide – DOC. 6629A Contents •i

Crestron Adagio®ATC-AMFMSRD AM/FM/SR Tuner Card

AM/FM and SIRIUS Satellite Radio

Tuner Card with Digital Output:

Adagio®ATC-AMFMSRD

Introduction

The ATC-AMFMSRD tuner card is designed for use with the Crestron®

CEN-TRACK Tuner Rack multi-tuner. On a single card, the ATC-AMFMSRD

provides one AM/FM tuner and one SIRIUS Satellite Radio tuner. Each tuner may

be operated independently and simultaneously.

In addition to its two analog audio output signals, the ATC-AMFMSRD also

supports digital output from the satellite radio tuner portion, making it ideal for use

with the CEN-TRACK. It can also be used with any Adagio®system that features

tuner card slots. Except where noted, references to Adagio systems will be used to

describe both Adagio systems featuring tuner card slots and the CEN-TRACK.

Features and Functions

• AM/FM/SR Tuner Card slides easily into place to become an integral

part of its control system

• Independent AM/FM/SIRIUS Satellite Radio tuners on a single plug-in

card

• Tuners are ready for routing to additional rooms on attached Adagio®

Audio Expanders (AAE)

• Adagio®system front panels and other supported user interfaces control

the tuners with out-of-the-box functionality (Does not pertain to

CEN-TRACK).

• Full control of each tuner is available through the CEN-TRACK LCD

front panel, and from Crestron touchpanels.

• RBDS/RDS compatible*

* The Radio Broadcast Data System (RBDS), a North American standard and Radio Data System

(RDS), a European standard, permit broadcasters to use a sub-carrier frequency to transmit inaudible

digital data along with their regular FM programming to receivers equipped to process the data. Refer

to “Appendix: RBDS/RDS Function Support” on page 15 for more information.

Operations & Installation Guide – DOC. 6629A AM/FM/SR Tuner Card: ATC-AMFMSRD •1

AM/FM/SR Tuner Card Crestron Adagio®ATC-AMFMSRD

Specifications

Specifications for the ATC-AMFMSRD are listed in the following table.

ATC-AMFMSRD Specifications

SPECIFICATION DETAILS

Audio

Maximum Output 1 Vrms @ 1 kHz (AM/FM);

2 Vrms (SIRIUS)

FM Tuner

Frequency Range 87.50 to 108 MHz (50 or 100 kHz steps)

Intermediate Frequency 10.7 MHz

Usable Sensitivity 11 dBf mono

S/N Ratio 64 dB @ 65 dBf mono;

60 dB @ 65 dBf stereo

IF Rejection 100 dB

AM Rejection 55 dB

Stereo Separation 40 dB

AM Tuner

Frequency Range 530 to 1710 kHz (10 kHz steps)

Sensitivity 3.5 µV (RF input level 10dB S+N/N)

Selectivity 10 kHz

Up/Dn Freq Increments (US) 10 kHz

Up/Dn Freq Increments (Europe) 9 kHz

Alternate Channel Selectivity 55 dB

Image Rejection 35 dB

IF Rejection 60 dB

Power Requirements 24 VDC provided from backplane at

400 mA max. (estimated 9.6 Watts)

Environmental

Temperature 32º to 140ºF (0º to 60ºC)

Humidity 10% to 90% RH (non-condensing)

Dimensions

Height 1.39 in (3.51 cm)

Width 4.91 in (12.46 cm)

Depth 6.69 in (16.98 cm)

2 •AM/FM/SR Tuner Card: ATC-AMFMSRD Operations & Installation Guide – DOC. 6629A

Crestron Adagio®ATC-AMFMSRD AM/FM/SR Tuner Card

Physical Description

This section provides information on the connections, controls and indicators

available on your ATC-AMFMSRD.

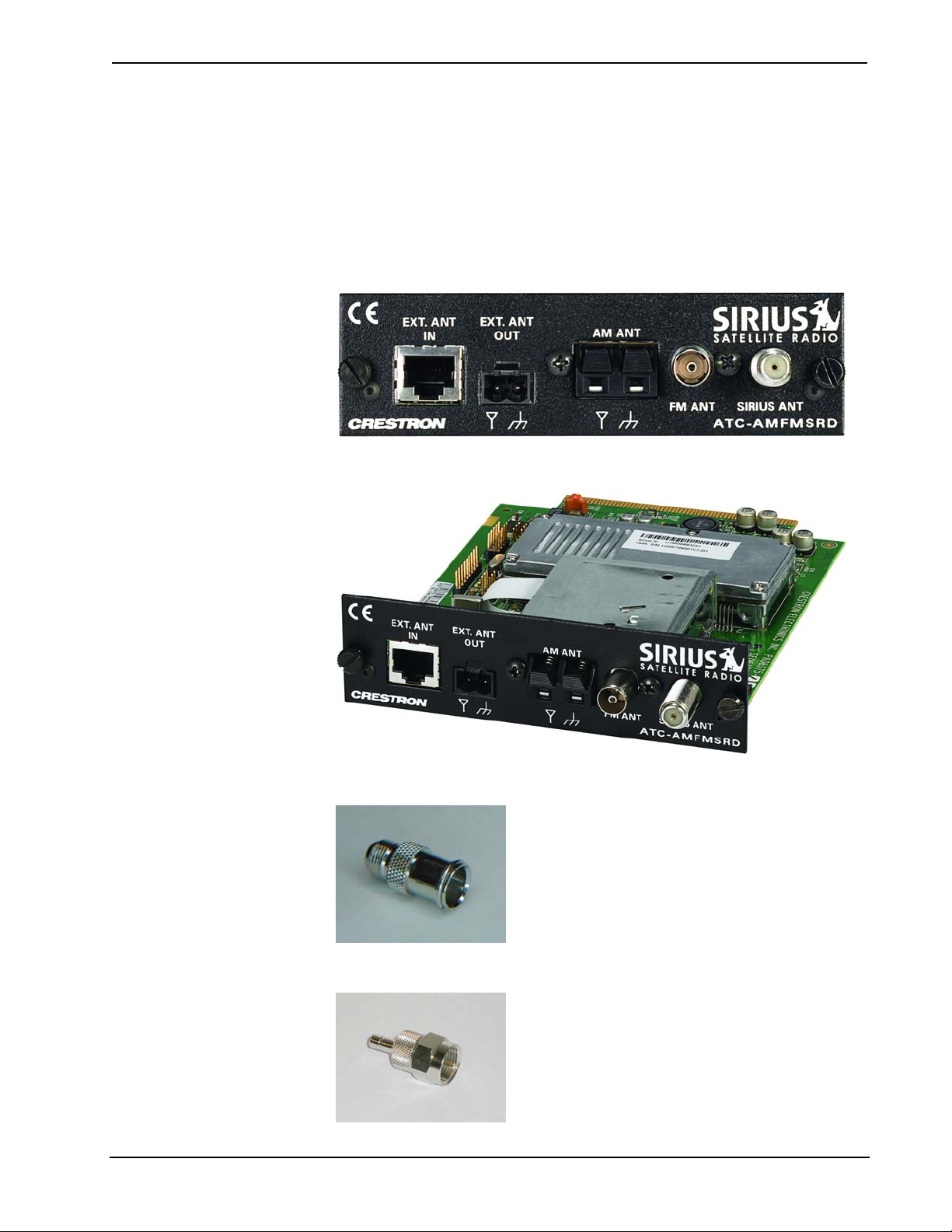

ATC-AMFMSRD Physical View (Head On)

ATC-AMFMSRD Physical View (Angled)

Conversion Connector Coax (RG6)/F Type (Antenna) to IEC Type Connector (Tuner)

Conversion Connector Coax (RG6)/F Type (Tuner) to SMB Type Connector (Antenna)

Operations & Installation Guide – DOC. 6629A AM/FM/SR Tuner Card: ATC-AMFMSRD •3

AM/FM/SR Tuner Card Crestron Adagio®ATC-AMFMSRD

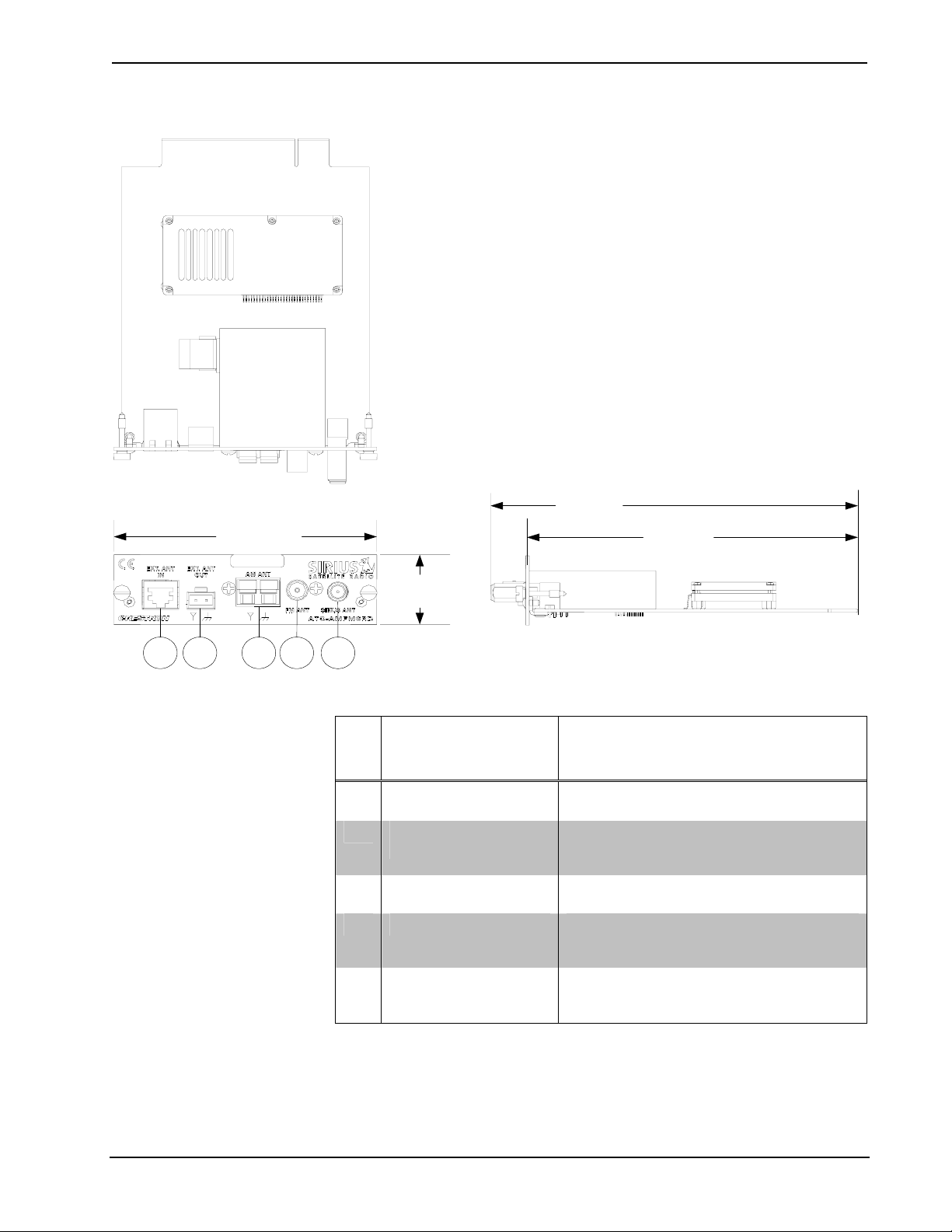

ATC-AMFMSRD Overall Dimensions

6.69 in

(16.98 cm)

6.19 in

(15.72 cm)

4.91 in

(12.46 cm)

1.39 in

(3.51 cm)

Connectors, Controls & Indicators

# CONNECTORS,

CONTROLS &

INDICATORS

DESCRIPTION

1 EXTERNAL AM

ANTENNA IN

(1) 8-wire RJ-45 female; Reserved for future

remote AM antenna (not yet available).

2 EXTERNAL AM

ANTENNA OUT

(1) 2-pin detachable terminal block; AM

antenna signal pass-through from remote

antenna.

3 AM ANTENNA

(1) 2-pin spring-loaded terminal; AM shielded

loop antenna included; Impedance: 50 Ω.

4 FM ANTENNA (1) IEC 169-2 coaxial (IEC to F adapter

included); FM wire antenna included;

Impedance: 75 Ω.

5 SIRIUS ANTENNA

(1) F-type coaxial (F to SMB adapter

included); Indoor/outdoor high-gain antenna

included; Impedance: 75 Ω.

4 •AM/FM/SR Tuner Card: ATC-AMFMSRD Operations & Installation Guide – DOC. 6629A

Crestron Adagio®ATC-AMFMSRD AM/FM/SR Tuner Card

Industry Compliance

As of the date of manufacture the ATC-AMFMSRD has been tested and found to

comply with specifications for CE marking and standards per EMC and

Radiocommunications Compliance Labelling.

NOTE: This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Operations & Installation Guide – DOC. 6629A AM/FM/SR Tuner Card: ATC-AMFMSRD •5

AM/FM/SR Tuner Card Crestron Adagio®ATC-AMFMSRD

Setup

This section contains hardware installation and setup instructions for the

ATC-AMFMSRD.

Required Tools/Hardware

1. Small flat bladed screwdriver

2. Grounding strap (encouraged)

Installation

CAUTION: The ATC-AMFMSRD and the Adagio®systems contain electrostatic

discharge (ESD) sensitive devices. Crestron encourages you to wear a grounding

strap to avoid damaging the card and/or the host system.

When inserting a card into an Adagio system you may need to move other source

connections if designated connectors are occupied by other sources. For

programming purposes, slots and source connections are matched according to the

following table:

Slot 1 Slot 2 Slot 3

Source

Connections 1&2 3&4 Refer to

note below.

CAUTION: Do not connect external sources to SOURCES connectors used by tuner

cards.

CAUTION: Be certain to insert tuner card before applying power to the Adagio

system.

NOTE: If the user intends to use the out-of-the-box functionality, do not to use

SLOT 3 for tuner cards; otherwise, SLOT 3 uses source connections 5 and 6. Does

not pertain to the CEN-TRACK.

Begin the card insertion procedure with these steps:

Disconnect power from the Adagio system.

Remove the slotted screws securing any cover plate that may be

fastened the slot you intend to use. Set the screws and the cover plate

aside.

Unpack the ATC-AMFMSRD card.

As shown in the photo following this step, position the

ATC-AMFMSRD card so the print on the faceplate is right side up and

the side rails of the card slide into the plastic slots mounted on the left

and right inside walls of the Adagio system.

6 •AM/FM/SR Tuner Card: ATC-AMFMSRD Operations & Installation Guide – DOC. 6629A

Indice

Altri manuali Crestron Radio

Crestron

Crestron ATC-AMFMXM Come usare

Manuali Radio popolari di altre marche

EisSound

EisSound KBSound iSelect Manuale utente

Midland

Midland 1001LWX Manuale utente

Konig

Konig HAV-SR41 Manuale utente

Roberts

Roberts exprssion Manuale utente

VDigi

VDigi DD3.0 Manuale utente

Radio Shack

Radio Shack 21-1863 Manuale utente

Roberts

Roberts Stream 207 Manuale utente

Sony

Sony Walkman SRF-M97 Manuale utente

Stanley

Stanley FatMax FMC770 Manuale utente

auna

auna DAB-Radio 10026947 Manuale utente

SOUNDMASTER

SOUNDMASTER UR190 Manuale utente

HYT

HYT TC-320 Manuale utente

auna multimedia

auna multimedia Yellowstone 10026851 Manuale utente

B-Tech

B-Tech GMRS-V2 Manuale utente

Weierwei

Weierwei VEV-V8 Manuale utente

SOUNDMASTER

SOUNDMASTER DAB750 Manuale utente

Telefunken

Telefunken TF-1505 Manuale utente

Makita

Makita LXRM03 Manuale utente
