CrimeStopper CS-8050 Manuale

CS-8050

HANDS-FREE KEYLESS ENTRY / IMMOBILIZER SYSTEM

INSTALLATION & OPERATING INSTRUCTIONS

INTRODUCTION

CONGRATULATIONS on your choice of a Hands-Free Keyless Entry & Immobilizer System by Crimestopper

Security Products Inc. This booklet contains the information necessary for installing, using, and maintaining

your alarm system. If any questions arise, contact your installation dealer or Crimestopper Security Products

Inc. at the Tech Support number below.

*IMPORTANT INFORMATION: Primary and Optional Features:

-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the

+12V Power, Ground, Ignition, LED, Override/Program/Valet Button etc.

-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These

features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e.

Domelight Illumination, Armed Output etc.

This device complies with FCC Rules part 15. Operation is subject to the

following two conditions: 1) This device may not cause interference, and (2)

this device must accept any interference that may be received, including

interference that may cause undesired operation. The manufacturer is not

responsible for any radio or TV interference caused by unauthorized

modification to this equipment. Such modification could void the user's

authority to operate the equipment.

TECH SUPPORT

Mon-Fri 8:00 AM-4:30 PM Pacific Time

(800) 998-6880

REV. C 5/2002 SW: IC

INSTALLATION PRECAUTIONS & WARNINGS

BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR

BAGS, ABS BRAKES, AND BATTERY).

DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with brake, and gas pedals, steering

column, or any other moving parts in the vehicle.

COMPONENT MOUNTING

Control Unit: DO NOT mount or wiring harness where they can become entangled with moving parts such as

brake/gas/clutch pedals, or the steering column! The alarm control module should be mounted in a concealed

location. Do not mount the control unit in the engine compartment. The antenna wire should be routed away

from any metal if possible. Do not alter the length of the antenna wire or ground the antenna wire.

LED: Mount in a visible location on the dashboard or console.

Valet/Program Button: Mount button in a hidden but accessible location. It is REQUIRED for emergency

disarm, programming, and valet mode.

WIRING

Note: This unit includes High-Security wiring with the critical connection wires being the same BLACK

color to deter or confuse someone from tampering with this unit. Please match the appropriate wire

number with the number on the diagram for proper connection. DIAGRAM : PAGE 8

WIRE #1: Immobilizer Circuit #2 Output:

This is part of the immobilizer circuit (on-board relay). Cut the Starter wire and connect ONE end to this wire.

WIRE #2: Immobilizer #2 Input:

This is part of the immobilizer circuit (on-board relay). Connect the other end of the Starter wire to this wire.

WIRE #3: Chassis Ground:

This wire must be connected to chassis metal of vehicle. Use a sheet metal screw and star washer to insure a

good connection. Keep the ground wire short and try not to use factory ground locations.

WIRE #4: Ignition Switched "ON" and "START" +12Volts:

Connect to an Ignition Wire (or fuse in the fuse box) that shows +12 Volts Power when the key is in "ON" and

"START" (cranking) position.

WIRING

WIRE #5: +12Volt Power Input:

Connect to Battery Positive Terminal.

WIRE #6: Immobilizer Circuit #1 Output:

This is part of the immobilizer circuit (on-board relay). Cut the Ignition wire and connect ONE end to this wire.

WIRE #7: Immobilizer #1 Input:

This is part of the immobilizer circuit (on-board relay). Connect the other end of the Ignition wire to this wire.

WIRE #8: (-) Horn Honk Output (Optional, may require relay):

Connects to (-) Negative Horn activation circuit on vehicle to honk vehicle’s horn when the system is triggered.

If the vehicle has a +12V positive horn circuit, then a relay is required. Connect to terminal 85 of a relay.

Connect terminals 86 & 87 to +12V Constant Power. Connect terminal 30 to the Positive horn activation

circuit.

WIRE #9: (-) Neg. Dome Light Illumination or Factory Disarm Output (Optional, requires relay):

This output can be programmed to turn on the Domelight for 30 seconds upon disarming for illuminated entry

at night, or to be a .5 Second negative disarm pulse for Factory Alarm system. When used a Domelight

output, a relay is required: Connect the #9 wire to terminal 85 of a relay. Connect terminal 86 to +12V

Constant. Connect terminal 87 to +12V or Ground depending on the type of dome light circuit in the vehicle.

Connect terminal 30 to the dome light circuit.

WIRE #10: (-) Negative Armed Output (Optional):

Provide (-) 500mA output when armed. This wire can be used to add an additional Immobilizer Circuit or other

accessory such as scanner type LEDs or window roll up modules (not included).

MINI PLUGS: LED / VALET-PROGRAMMING SWITCH / DOOR LOCKS

Mount the LED in a visible location, then connect 2-pin Red plug to the Red Connector on the module

Mount the Override/Valet button and connect 2-pin Blue plug to the Blue connector on the module.

Blue Wire: (-) Negative Door Unlock Output

Red Wire (+) +12Volts Constant Output: Connect to terminal 86 (relay coil power) of Aftermarket relay for

activating positive, reverse polarity, and after market door locking systems.

Green Wire: (-) Negative Door Lock Output

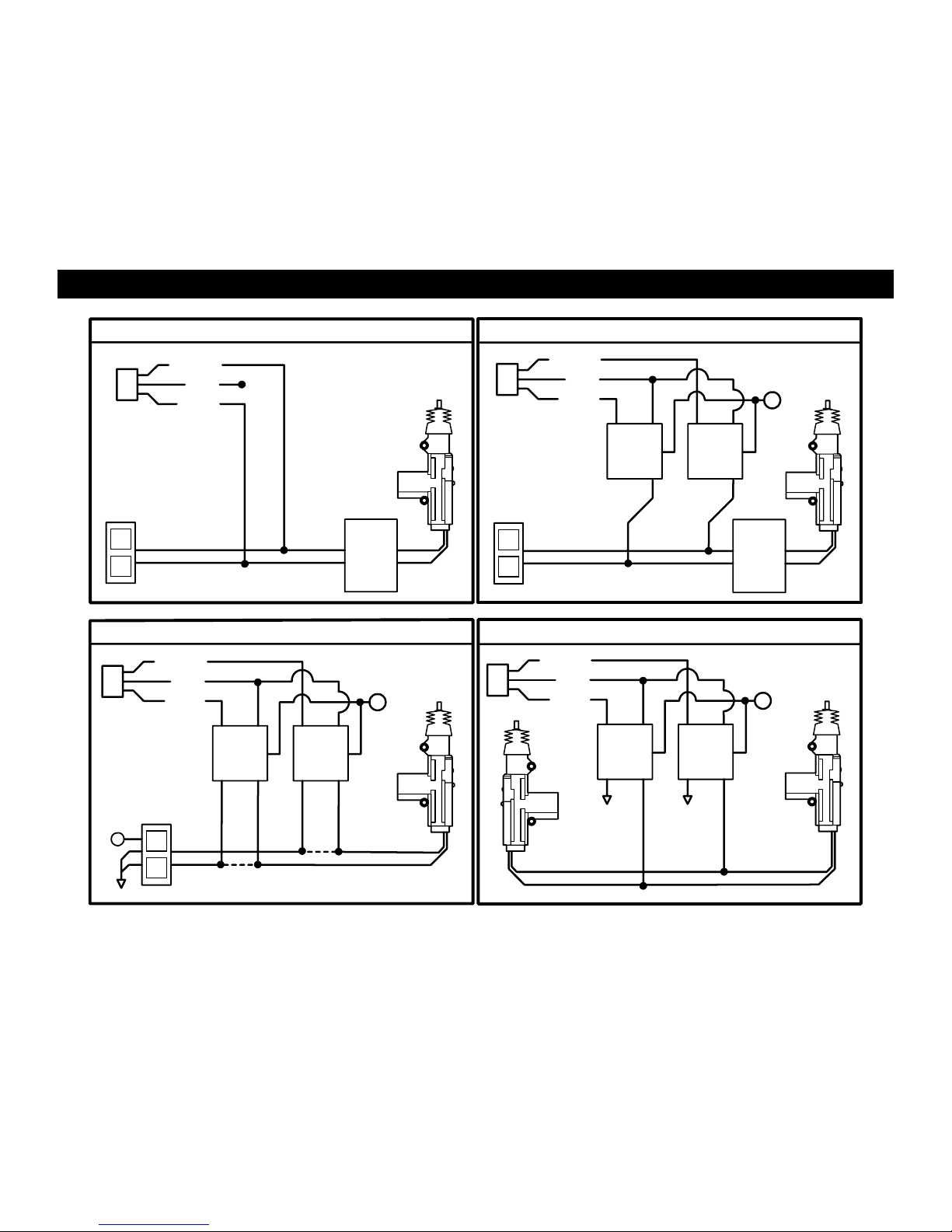

POWER DOOR LOCK WIRING

NEGATIVE TRIGGER DOORLOCK WIRING POSITIVE TRIGGER DOORLOCK WIRING

GREEN

GREEN FUSED

RED +12VRED

BLUE +

BLUE

858685

8787

3087A30

87A

FACTORY

POWER

LOCKING

UL UL

RELAYS RELAYS

ACTUATOR DOOR LOCK WIRINGREVERSE POLARITY DOOR LOCK WIRING

GREEN

GREEN FUSED

FUSED RED

RED +12V

+12V

BLUE

BLUE +

86858685

8787

3087A3087A

CUT

MASTER

SWITCH

OPERATING INSTRUCTIONS

How the System Works: (Hands-Free Mode)

As you turn your Ignition OFF and leave your vehicle, the system will automatically arm. The tiny hands-free

remote transmitter on your key chain emits a low power signal every few seconds. As you return to your

vehicle (approximately within 15-30 feet), the immobilizer system will “pick up” the signal from the tiny remote

and disarm/unlock your vehicle. To operate in hands-free mode, the remote transmitter must be turned ON.

Turning the Remote ON (Start sending signals):

Press and hold the remote button for about 5 seconds until LED on remote flashes once (Ignore first double

flash). The remote is now ON and will send a signal every few seconds. If you remain near your vehicle with

the remote arm is will never arm. (Note: The remote is OFF when this system is shipped from the factory to

save battery life.)

Arming:

When exiting the vehicle, (Ignition turned off) there will be a 15-second delay before the system

AUTOMATICALLY arms. Again if your remote is turned on and you are within range your vehicle may not arm

because it is receiving signal from the remote. The In-Dash LED will begin to flash rapidly after the Ignition is

turned off as a visual indication that the countdown has begun. After the delay, the system will arm.

Immobilizer circuits will become active, the doors will lock and the LED will now flash slowly.

NOTE: If your remain in or near your vehicle, the system will not arm because it is receiving

signals from the hands-free transmitter.

Disarming: (Hands Free Mode)

As you return to your vehicle (approximately within 15-30 feet), the immobilizer system will “pick up” the signal

from the tiny remote and disarm/unlock your vehicle. Dome light will also turn on if this optional feature is

installed.

Manual Arming/Disarming:

If desired, this system can be armed and disarmed by pressing the button on the remote. YOU MUST HAVE

THE REMOTE OFF WHEN MANUALLY ARMING AND DISARMING. When exiting the vehicle, (Ignition

turned off) there will be a 15-second delay before the system AUTOMATICALLY arms or you can arm it by

pressing the button on the remote before the 15 second countdown ends. When returning to your vehicle

press the button on your remote to disarm. Remember to turn your ignition on within 15 seconds or the

system will try to arm again. See “Active Re-arm” below

ORERATING INSTRUCTIONS

Turning the Remote OFF (Stop sending signals):

Press and hold the remote button for 5 seconds until LED on remote flashes twice (Ignore first single flash).

The remote is now OFF and will not send signals. When you are going to be away from your vehicle for

extended periods of time, it is advisable to turn the remote off to save its battery life. However before you

return to your car, you must re-activate the remote or press the button using it manually.

Remote Status: ON or OFF? (How to check it):

Press the button on the remote and observe the LED. If it flashes ONCE, then it is on, or if the remote flashes

TWICE it is OFF. You can perform this simple check at anytime to check the status of the remote.

Active Re-Arming:

Once the system is disarmed, it will automatically re-arm itself after 30 seconds unless the Ignition is turned

on.

Alarm System Trigger:

Once the system is armed, it will trigger if an attempt is made to turn the Ignition ON or “Hot-Wire” the vehicle.

The horn will honk for a 30-second duration and will automatically reset if no further attempts are made.

NOTE: This is an immobilizer only, therefore it WONT: warn away, trigger upon door opening, or utilize

a siren.

Care of the Remote:

You should care for your hands-free remote transmitter just as you would for an alarm system remote control.

Do not submerge the remote in water or subject it to severe abuse.

Valet Mode:

Your CS-8050 system can be temporarily disabled from automatically arming for vehicle servicing or valet

parking. Turn the key on, then press and hold the Valet button for 5 seconds to put the system into Valet

mode. Repeat this procedure to exit the Valet mode. Once the system is in the Valet mode, the LED will stay

on when the Ignition is turned on and it will flash when the Ignition is off. The system will still arm/disarm

manually with the remote button during valet.

Emergency Override:

If you lose your remote or it becomes damaged and your immobilizer system is armed, you must perform an

Emergency Disarm in order to operate your vehicle. Turn the key on, then press and hold the Valet button for

10 seconds to disarm.

HANDS-FREE TRANSMITTER PROGRAMMING

This system can code learn up to 4 different transmitters. All transmitters must be learned at one time.

1. Turn ignition switch on and off 3 times leaving it on the 3rd time. (on/off, on/off, on) LED will Flash 3 times.

2. Push the Valet/Programming button for 5 seconds until the in-dash LED flashes 5 times.

3. Press the Button on the hands-free transmitter once – The dash LED will flash once to confirm

programming. Repeat this step within 5 seconds for up to 3 additional transmitters.

4. Turn off ignition.

FEATURE PROGRAMMING

NOTE!: YOU MUST TURN OFF ALL REMOTES BERORE PROGRAMMING ANY FEATURES! SEE

OPERATION INSTRUCTIONS FOR TURNING OFF REMOTE.

1. Turn Key to the ON position

2. Within 10 seconds press the Valet/Program button 5 times. The System LED will flash 3 times to confirm

you are in programming mode.

3. Now press the Valet/Program Button the number of times that corresponds the option in the list below. The

System LED will flash once each time you press the Valet/Program button.

4. Once you are at the desired feature, momentarily press the Button on the Remote Transmitter to change

the option. The System LED will flash ONCE to turn the feature ON, or flash TWICE to turn the feature

OFF.

Feature Feature Description ON (Default) LED OFF LED

1. Auto Lock With Ignition ENABLED 1 DISABLED 2

2. Unlock when disarmed ENABLED 1 DISABLED 2

3. Horn Chirp for Arm/Disarm DISABLED 1 ENABLED 2

4. Single/Double Unlock

Pulse

1 Pulse 1 2 Pulses 2

5. 1 or 3 Second Lock Pulse 1 Second 1 3 Second 2

6. Wire #9 Function 30 Sec

Domelight

1 Factory Disarm 2

Restore All Options:

To restore all features to the Factory Default (“ON” column) position, follow steps 1 & 2 above, then

immediately press the button on the remote transmitter one time. The system LED should flash 4 times and

the programmable features 1-6 will operate as in the “ON” default column listed above.

IMMOBILIZER CIRCUIT #1

#1 #2

RED PLUG: LED

BLUE PLUG: VALET

CS-8050

LED

VALET/

PROGRAM

SWITCH

BATTERY

(-) NEGATIVE

ARMED OUTPUT

IGNITION

+12V

GROUND

(-) NEG. DOME

OR OEM

DISARM

(-) NEGATIVE

HORN OUTPUT

#10

IMMOBILIZER

CIRCUIT #2

(On Board Relay)

WHITE PLUG: DOOR LOCKS

BLUE

RED

WHITE

GREEN (-) LOCK OUTPUT

BLUE (-) UNLOCK OUTPUT

RED +12V FOR RELAYS

MAY REQUIRE RELAY

ANTENNA

Some systems may not include

a large connector here, however

the wiring diagram is identical.

CS-8050 SYSTEM DIAGRAM

Indice

Altri manuali CrimeStopper Avviamento remoto

CrimeStopper

CrimeStopper PS01-G5 Manuale utente

CrimeStopper

CrimeStopper Ezee Start EZ-777 FM Manuale utente

CrimeStopper

CrimeStopper REVO-1 Series Manuale utente

CrimeStopper

CrimeStopper RS800ER Manuale utente

CrimeStopper

CrimeStopper ezee Start EZ-777 VII Manuale utente

CrimeStopper

CrimeStopper EZEE START EZ-10 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-7 Manuale utente

CrimeStopper

CrimeStopper Pro Start LCPRO-3 Manuale utente

CrimeStopper

CrimeStopper RS-800.IV Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-850 Manuale utente

CrimeStopper

CrimeStopper CS-830RKE Manuale utente

CrimeStopper

CrimeStopper RS-800.III Manuale utente

CrimeStopper

CrimeStopper REVO-1 Series Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-3 Manuale utente

CrimeStopper

CrimeStopper EZEE Start EZ-45DP Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-1405DP Manuale utente

CrimeStopper

CrimeStopper cool start RS2-G3 Manuale utente

CrimeStopper

CrimeStopper RS700 IIIER Manuale utente

CrimeStopper

CrimeStopper CoolStart RS900ER Manuale utente

CrimeStopper

CrimeStopper EZ-777 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS7-G5 FM Manuale utente

CrimeStopper

CrimeStopper RSX-G6 Manuale utente

CrimeStopper

CrimeStopper Cool Start RS-1405DP Manuale utente

CrimeStopper

CrimeStopper RS700 IIIER Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Code Alarm

Code Alarm CA-535 Manuale utente

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale
