Instruction Manual

Model 2416-x02

Multi Channel Downconverter

2416-402 Four Channel • 2416-302 Three Channel • 2416-202 Two Channel • 2416-102 One Channel

May 2014, Rev. B

EXECUTE

MODEL 2416

CROSS TECHNOLOGIES INC.

DOWNCONVERTER

REMOTE POWER

ALARMS

1674.125 1926.250

1926.375 2086.625

------ CH 1 -------- ------ CH 2 --------

1234

------ CH 3 -------- ------ CH 4 --------

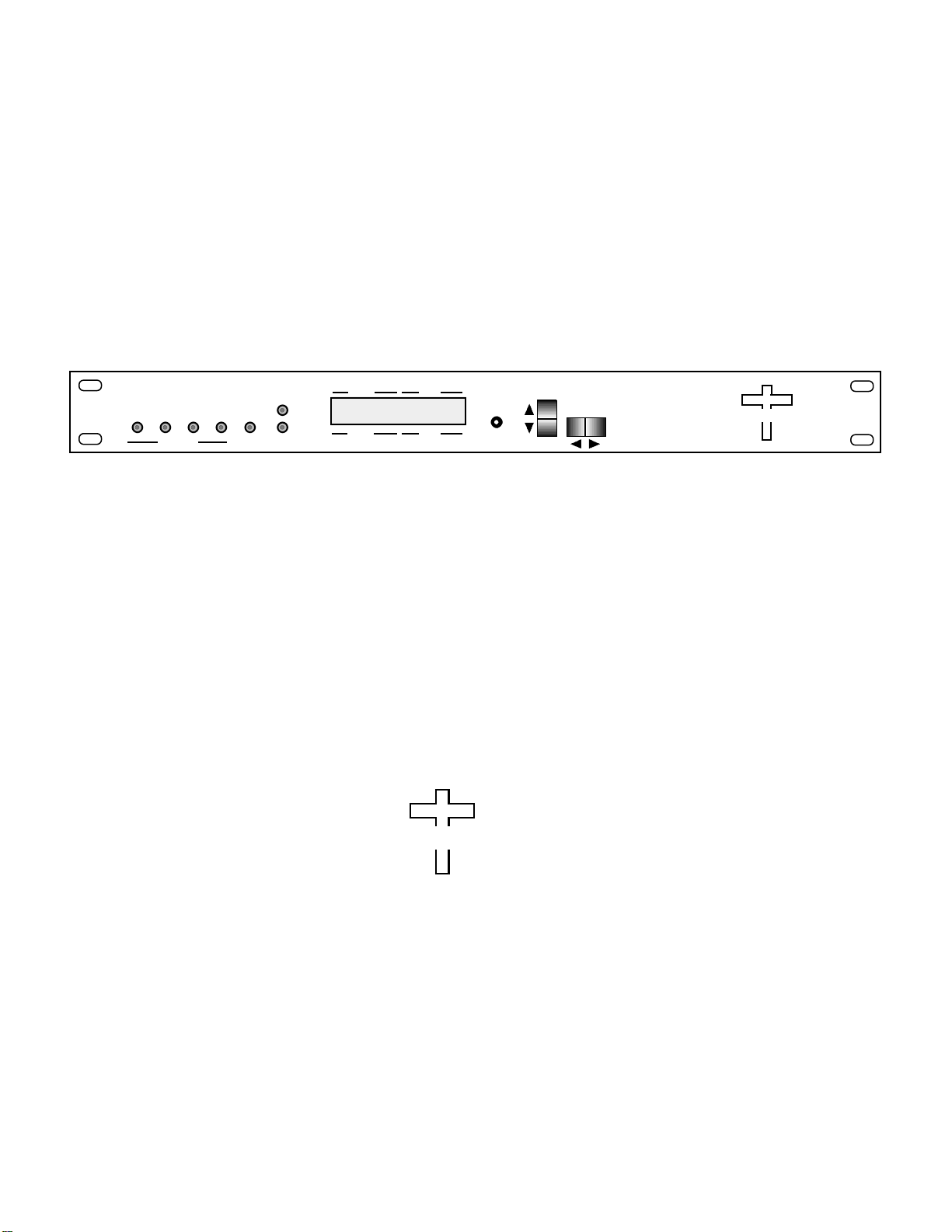

(Shown, Model 2416-402 - Four Channel, Front Panel)

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

Model 2416-x02 Multi Channel Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Specifications 4

1.3 Monitor & Control Interface 6

1.4 Environmental Use Information 10

2.0 Installation 11

2.1 Mechanical 11

2.2 Rear Panel Inputs & Outputs 12

2.3 Front Panel Controls & Indicators 13

2.4 Operation 14

2.5 Menu Settings 17

3.0 Ethernet Interface 18

3.1 Connection 18

3.2 Ethernet Configuration 18

3.3 Webpage M&C 21

3.4 SNMP Configuration 22

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

WEB www.crosstechnologies.com

E-MAIL [email protected]

2416-402 Manual, Rev. B Page 2 05/14/14

Model 2416-x02

Multi Channel Downconverter

2416-402 Four Channel • 2416-302 Three Channel • 2416-202 Two Channel • 2416-102 One Channel

1.0 General

1.1 Equipment Description

The 2416-402 Downconverter has four individual channels, each one converts 950 to 2150 MHz to 70 MHz in

125 kHz steps (NOTE 1) with low group delay and flat frequency response. Synthesized local oscillators (LO)

(NOTE 1) provide frequency selection. Multi-function push button switches select the input frequency, gain,

and other parameters. Front panel LEDs provide indication of DC power, PLL alarm or Remote operation. Gain

is adjustable manually over a 0 to +30 dB range. The frequency and gain of each channel are also remotely

selectable. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are

Type F female for the RF, and BNC female for the IF and external 10 MHz reference input and output. The

table below shows available options. LNB +24 VDC (option L1, on channel 1 only) and 10 MHz reference can

be inserted on the RF lines. The 2416-402 is powered by a 100-240 ±10% VAC, 47-63 Hz power supply, and is

contained in a 1 3/4” X 19” X 16” rack mount chassis.

* 2416-x02, Four (4) Channels, 2416-302, Three (3) Channels, 2416-202, Two (2) Channels, 2416-102, One (1) Channel.

EXECUTE

MODEL 2416

CROSS TECHNOLOGIES INC.

DOWNCONVERTER

REMOTE POWER

ALARMS

1674.125 1926.250

1926.375 2086.625

------ CH 1 -------- ------ CH 2 --------

1234

------ CH 3 -------- ------ CH 4 --------

FRONT PANEL (2416-402 - Four Channel show)

PSA

GND

J11 J12

AND

MONITOR

CONTROL

CHANNEL 4

RF IN

J10

VDC

RF OUT

CHANNEL 3

RF IN

VDC

RF OUT

CHANNEL 1

RF IN

VDC

RF OUT 10 MHZ REF

OUTPUT

10 MHZ IN/OUT

10 MHZ REF

INPUT

CHANNEL 2

RF IN

VDC

RF OUT

PSB

234 6789

REAR PANEL (2416-402 - Four Channel show with optional Ethernet)

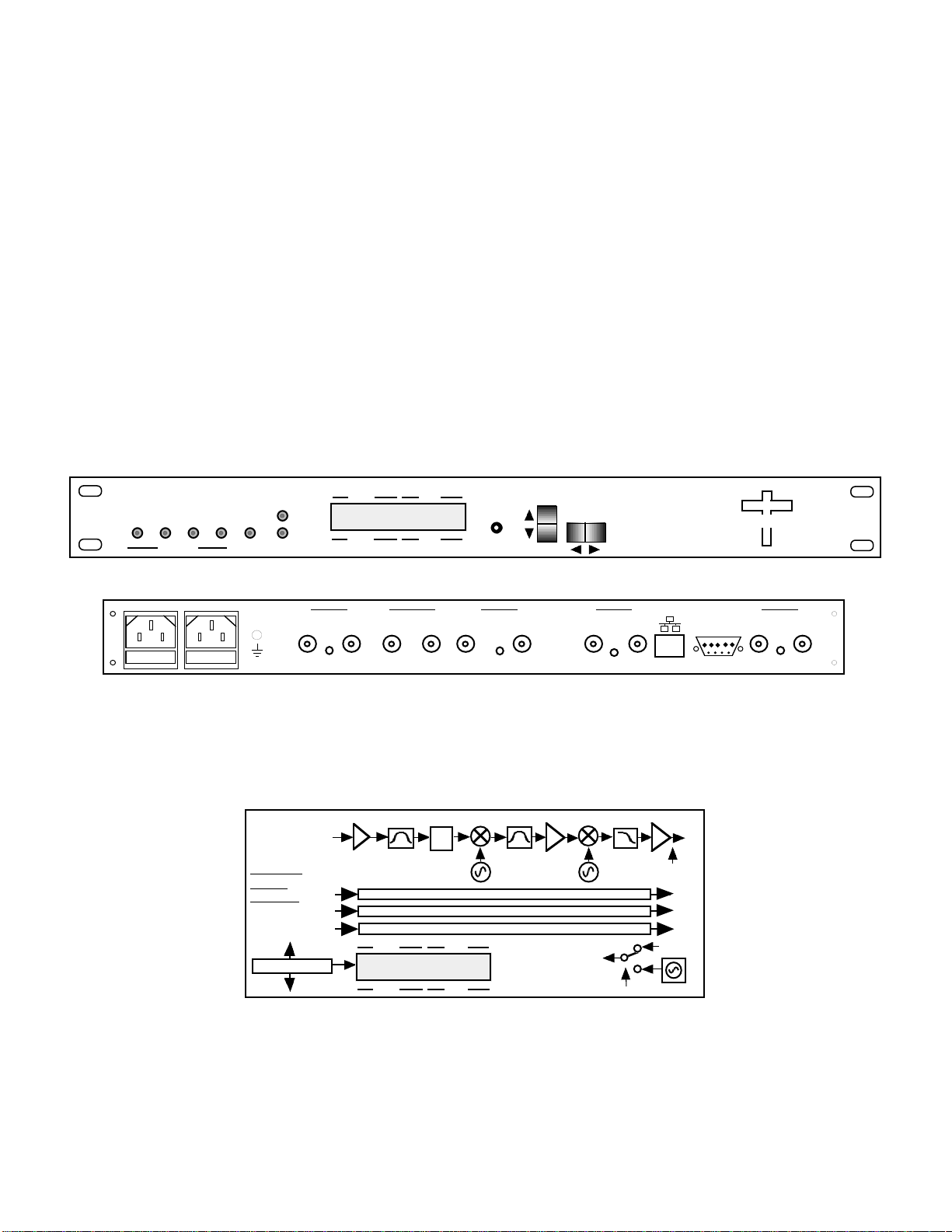

FIGURE 1.1 Model 2416-x02 Front and Rear Panels

SW,PLL,ATT,

10M CONTROL

M&C

CONTROLLER

EXT

10MHz

INT 10MHz

10MHz

VCOs

2416-x02

Block

Diagram

0.95 to 2.15 BP 2400 MHz BP

3.35 to

4.55 GHz

var

atten 70

MHz

OUT

2470

MHz

200 MHz LP

0.95

2.15

GHz

SAME FOR FREQUENCY CHANNEL 2

SAME FOR FREQUENCY CHANNEL 3

SAME FOR FREQUENCY CHANNEL 4

------ CH 1 -------- ------ CH 2 --------

------ CH 3 -------- ------ CH 4 --------

1674.125 1926.250

1926.375 2086.625

10 MHz, std.,

DC - O

t L4

FIGURE 1.2 Model 2416-x02 Downconverter Block Diagram

(Block Diagram applies to Models 2416-102, 202, 302 & 402)

2416-402 Manual, Rev. B Page 3 05/14/14

<-60 dB t

ical

<-50 dB min.

;

G = 30

-30 dBm in

ut levelChannel to Channel isolation

-50 to -20 dBmInput Level Range

Input Characteristics

Out

ut Characteristics

Channel Characteristics

nthesizer Characteristics (See Note 1 on next pa

> 50 dB, min.Ima

e Re

ection

-20 to -10 dBmOut

ut Level Ran

TABLE 1.0 2416-x02 Multi-Channel Downconverter Technical S

ecifications**

125 kHz

(

as low as 1 kHz ste

s available

)

(

NOTE 1

)

Fre

uenc

Ste

±1.0

m max. over tem

(

±0.01

m, O

tion H

)

(

NOTE 1

)

Fre

uenc

Accurac

Non-invertin

or Invertin

(

Selectable

)

Fre

uenc

Sense 0.015 ns/MHz2

arabolic

;

0.05 ns/MHz linear

;

1 ns ri

leGrou

Dela

max.

< -50 dBc

in bandS

urious Res

onse

±1.5 dB

950 - 2150 MHz

;

±0.5 dB

36 MHz BW

±1.0 dB

40 MHz BWFre

uenc

Res

onse

0.0 to +30.0 dB

1±1 dB Ste

sGain Ran

(

ustable

)

0 dBmOut

ut 1 dB com

ression

70 ±18 MHzFre

uenc

75Ω/ 18 dB (See Table 2.2 for connector options)

edance/Return Loss

15 dB maximum

ainNoise Fi

ure, Max. 950 to 2150 MHzFre

uenc

75Ω/10 dB

(

See Table 2.2 for connector o

tions

)

edance/Return Loss

-105-90-80-75-70

1MHz100kHz10kHz1kHz100 Hz -

X1002-1kHz steps: dBC/Hz

Phase Noise @ Frequency

19 inch, 1RU standard chassis, 1.75” hi

h x 16.0” dee

Size

Controls

Indicators

Other

75ΩBNC

(

female

)

, 50/75ΩBNC

(

female

)

IF, 10 MHz Connectors

Direct readout LCD; manual or remote selectionGain Selection

3 dBm, ± 3 dB, 75 ohms10 MHz Level

(

In or Out

)

100-240 ±10% VAC

47- 63 Hz

45 watts maximumPower

RS232C / RS485 Selectable,

(

Ethernet O

tional

)

Remote

Direct readout LCD; manual or remote selectionFre

uenc

Selection

DB9

(

female

)

- NO or NC contact closure on AlarmConnector, Alarm, Remote

e F

(

female

)

See table 2.2 for other o

tionsRF Connector

Green LED

;

Red LED

;

Yellow LEDPower

;

Alarm

;

Remote

(Technical Specifications continued on page 5...)

2416-402 Manual, Rev. B Page 4 05/14/14

(Technical Specifications continued from page 4...)

140 ±36/70 ±18 MHz SelectableW140/70-x

Ethernet with Web BrowserW8 -

Redundant Power Su

R -

h Stabilit

(

±0.01

)

internal ref.H -

1 kHz Fre

uenc

Ste

Size

(

NOTE 1

)

X1002 - x

Ethernet with TCP/IP, Telnet®W28 -

LNB Volta

+24 VDC

0.4 am

sL1 -

Available O

tions

140 ±36 MHzW140-x

Ethernet with Web Browser & SNMPW18 -

See TABLE 2.2Connectors/Im

edance

**+10˚C to +40˚C; S

ecifications sub

ect to chan

e without notice Cross Technologies, Inc. 2014

Channel Model Numbers:

Model 2416-402 - (4) Channels

Model 2416-302 - (3) Channels

Model 2416-202 - (2) Channels

Model 2416-102 - (1) Channel

NOTE 1:

Uses Fractional PLLs -

See PLL Application Note

2416-402 Manual, Rev. B Page 5 05/14/14

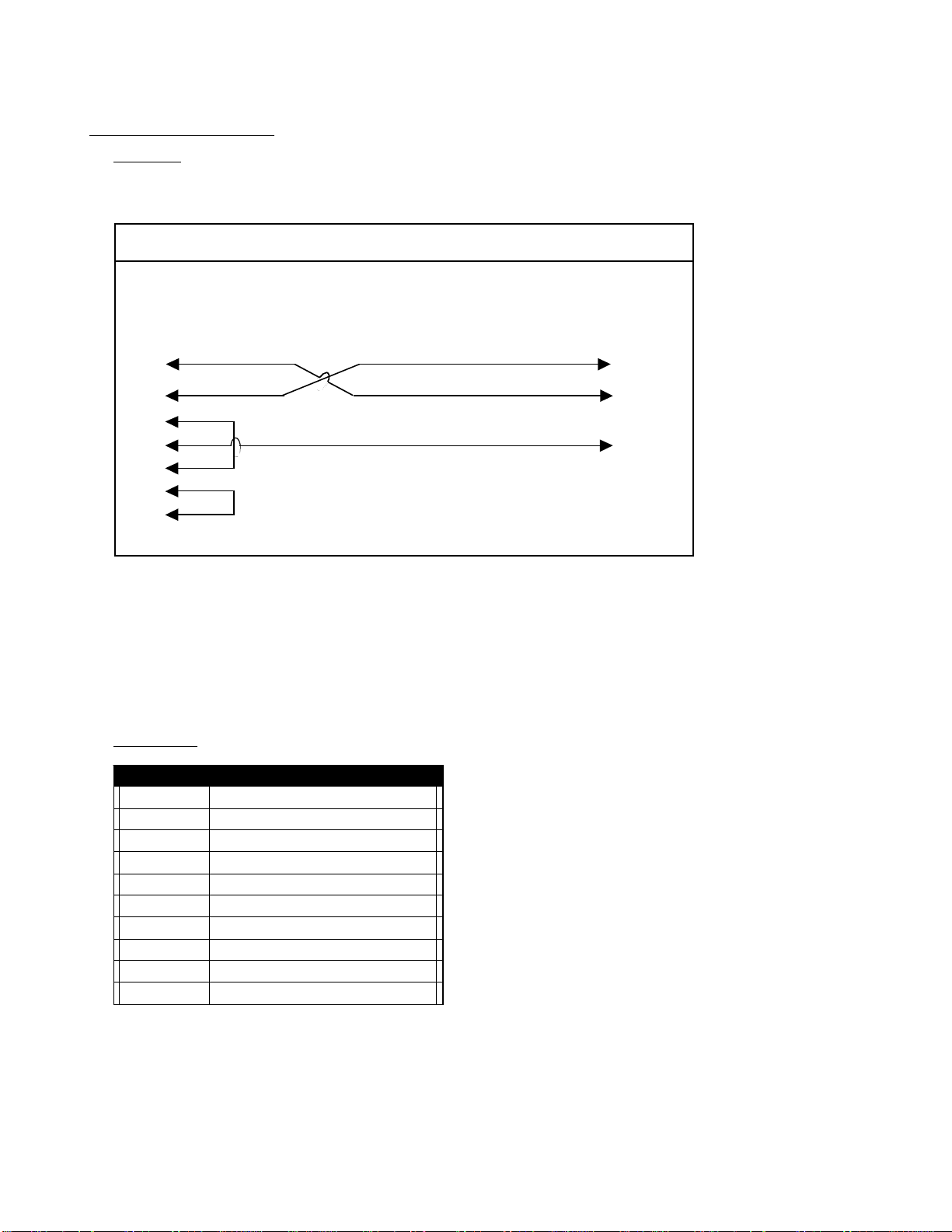

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485)

Female DB-9

PC Com Port Male DB-9

2416-x02 M&C Port

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 female

J10 Pinouts (RS-232C/422/485)

Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

2416-402 Manual, Rev. B Page 6 05/14/14

B) Status Requests

Table 1.1 lists the status requests for the 2416-x02 and briefly describes them.

PLEASE NOTE:

Status requests of values specific to a channel

must be preceded by a *i where *i is the channel number.

PLEASE NOTE:

The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485 is selected.

TABLE 1.1 2416-x02 Statuus

Status Requests

TABLE 1.1 2416-x02 Status Requests

Command Syntax* Description

Get channel frequency {aa*iSF} Returns {*iSFxxxxxxx} where :

• i = 1, 2, 3 or 4 designating the channel number

• xxxxxxx = frequency in KHz

Get channel gain {aa*iSG} Returns {*iSGxxx} where:

• i = 1, 2, 3 or 4 designating the channel number

• xxx = gain to nearest 1.0 dB (e.g., +14 = 14 dB)

Get spectrum inversion setting {aa*iSX} Returns {*iSXx} where :

• i = 1, 2, 3 or 4 designating the channel number

• x = 0 for non-invert; 1 for invert

Get reference status {aaSE} Returns {SExy} where :

• x = setting: 0 for internal 10 MHz;

1 for external 10 MHz; 2 for auto detect

• y = currently selected in hardware :

0 for internal 10 MHz; 1 for external 10 MHz

Get setting for reference {aa*iSL} Returns {*iSLx} where :

insertion on output • i = 1, 2, 3 or 4 designating the channel number

• x = 0 for non-insertion; 1 for insertion

Get reference offset (Option O) {aaSO} Returns {SOxxxxx} where :

• xxxxx = an offset amount between -2000 & +2000

Get LNB current (Option L) {aa*iS3} Returns {*iS3xxx} where :

• i = 1, 2, 3 or 4 designating the channel number

• xxx = LNB current in amps to 2 decimal places

(e.g., 065 = 0.65 amps)

(Status Requests continued on page 8...)

2416-402 Manual, Rev. B Page 7 05/14/14

(Status Request continued from page 7...)

TABLE 1.1 2416-x02 Statuus

Status Requests Coontinued

TABLE 1.1 2416-x02 Status Requests Continued

Command Syntax* Description

Get IF Frequency {aa*iSY} Returns {*iSYx} where :

(Option W160/70) • i = 1, 2, 3 or 4...

• x = 0 for 70 MHz IF, 1 for 160 MHz IF

Get IP address {aaSi} Returns {Sixxx.xxx.xxx.xxx} where :

(If Ethernet Option, W8, W18, or W

8, enabled) • xxx.xxx.xxx.xxx = IP address

Get subnet mask {aaSs} Returns {Ssxxx.xxx.xxx.xxx} where :

(If Ethernet Option, W8, W18, or W

8, enabled) • xxx.xxx.xxx.xxx = subnet mask

Get channel base parms {aa*iS1} Returns {*iS1tfffffffgggha} where :

• i = 1, 2, 3 or 4 designating the channel number

• t=channel type: 0 for unused;

1 for upconverter; 2 for downconverter

• fffffff = frequency in KHz

• ggg = gain to nearest 1.0 dB (e.g., +25 = 25 dB)

• h = spectrum output: 0 for non-invert; 1 for invert

• a = alarm: 0 for alarm off; 1 for alarm on

Get alarm status {aaSA} Returns {SAabcd} where:

• a=channel 1 alarm state (0 for alarm off; 1 for alarm on)

• b=channel 2 alarm state (0 for alarm off; 1 for alarm on)

• c=channel 3 alarm state (0 for alarm off; 1 for alarm on)

• d=channel 4 alarm state (0 for alarm off; 1 for alarm on)

Get product/model info {aaSV} Returns {SV2416-x02xxxver5.00} where:

• 2416-x02 = product model

• xxx = list of options, if any

•"ver"=separates model & options from firmware version

• 5.00 = firmware version

2416-402 Manual, Rev. B Page 8 05/14/14

Table 1.2 lists the commands for the 2416-x02 and briefly describes them. After a command is sent the

2416-x02 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE:

Commands specific to a channel must be preceded

by *i where i is the channel number.

*PLEASE NOTE:

The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485 is selected.

Table 1.2 2416-x02 Commandds

Commands

Table 1.2 2416-x02 Commands

Command Syntax* Description

Set Channel Frequency

{aa*iCFxxxxxxx}

where i = :

• 1, 2, 3 or 4 designating the channel number

• xxxxxxx = frequency in KHz

Set Channel Gain {aa*iCGxx} where i = :

• 1, 2, 3 or 4 designating the channel number

• xx = gain to nearest 1.0 dB (e.g., {1CG15} sets channel 1 gain to 15 dB.)

Spectrum invert on output {aa*iCXx} where i = :

• 1, 2, 3 or 4 designating the channel number

• x = 0 for non-invert; 1 for invert

10 MHz reference mode {aaCEx} where x = :

• 0 for internal 10 MHz; 1 for external 10 MHz; 2 for auto detect

Reference insertion on output {aa*iCLx} where :

• i = 1, 2, 3 or 4 designating the channel number

• x = 0 for non-insertion; 1 for insertion

Reference offset/adjust {aaCOxxxxx} where x = :

(Option O) • xxxxx = an offset amount between -2000 & +2000

IF Output Frequency {aa*iCYx} where i = :

(Option W160/70) • 1, 2, 3 or 4 designating the channel number

• x = 0 for 70 MHz IF, 1 for 160 MHz IF

2416-402 Manual, Rev. B Page 9 05/14/14

1.4 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch

(use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2416-402 Manual, Rev. B Page 10 05/14/14
