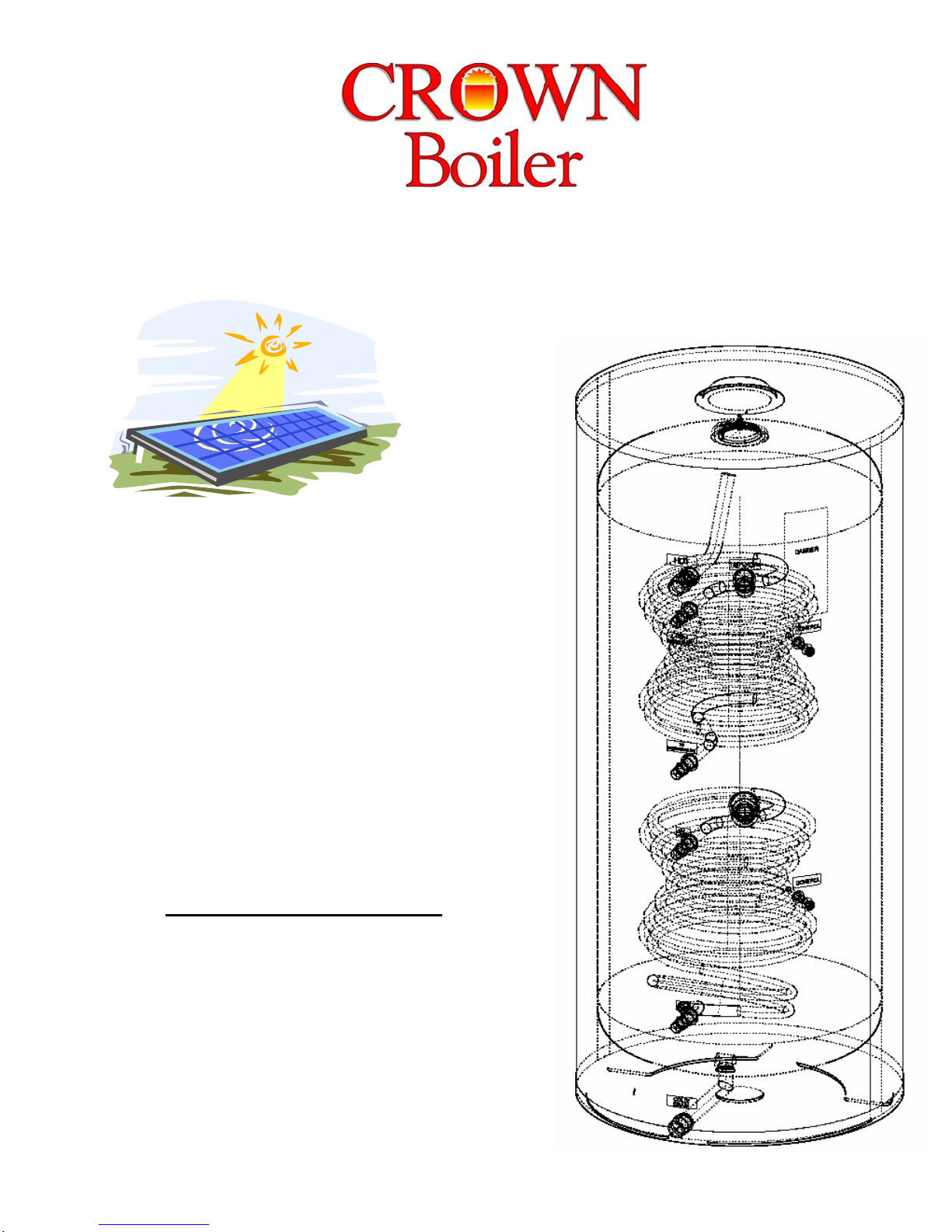

Today’s growing demands for systems

utilizing alternative energy sources require

innovative products to meet these needs. The MSS

Solar tank from Crown Boiler is designed to

provide abundant domestic hot water from a

combination of energy sources such as solar,

ground water source heat pumps, and high

efficiency condensing or non-condensing boilers.

STANDARD FEATURES

•316L Stainless Steel Tank

•Convenient access cap for easy service

•Dual coils

•Two control locations

•1 ¼ Domestic connections

•Additional 1 ¼ connection located on the

side of the tank

•15 Year Limited Warranty

Mega-Stor Solar Tank

DIMENSIONS and SPECIFICATIONS

MSS79 MSS119

1 Cold Water Inlet 1 M 1-1/4 M

2 Lower Coil Return 3/4 M 3/4 M

3 Lower Coil Supply 3/4 M 3/4 M

4 Upper Coil Return 3/4 M 3/4 M

5 Upper Coil Supply 3/4 M 3/4 M

6 Hot Water Outlet 1 F 1-1/4 M

7 Additional Tank Tapping 1-1/4 F 1-1/4 F

8 T&P Valve Tapping 1 F 1 F

9 & 10 Control Well N/A N/A

Size (NPT)

CONNECTIONS

Key # Description

Coil Surface

Sq. ft.

A B C D E F G H I J K Upper/Lower

MSS-79S 76 2 10 21-3/4 26 35 42-1/4 50-1/2 56-1/2 59-1/2 24 68-3/4 9.47/10.14 126

MSS-119S 116 2 11-1/2 22-1/2 27-1/2 30-1/4 35 46 49-1/4 52-1/2 29 67 9.47/10.14 210

Weight

(lbs)

Model Approx.

Volume

(Gal)

Dimensions in Inches

3633 I Street, Philadelphia, PA 19134

Phone: (215) 535-8900 Fax: (215) 535-9736

email: [email protected] website: www.crownboiler.com 4/09
