PARTS MANUAL 10266R0
PARTS LIST
'LUHFW6WHDP.HWWOHVRQ&DELQHW%DVH
'07'07'07
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read
the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Printed in Canada
PARTS LIST, DIRECT STEAM KETTLES MOUNTED ON CABINET BASE,
MODELS DMT-6-(6, 10, 12), DMT-10-(6, 10, 12), DMT-12-(6, 10, 12)
FIGURE 1
Part No. 10266R0 2 2019-06-04
PARTS LIST, DIRECT STEAM KETTLES MOUNTED ON CABINET BASE,
MODELS DMT-6-(6, 10, 12), DMT-10-(6, 10, 12), DMT-12-(6, 10, 12)
FIGURE 1
ITEM PART NO. DESCRIPTION QTY.
1. 3819-1 Hole Plug 2
2. 9061-9 Hex Socket Set Screw, Cup Point 2
5/16-18 UNC x 3/8 Lg.
3. 9047-87 External Retaining Ring, i7/8 Shaft 2
4. 2-115R O Ring Seal, 7/8 OD x 11/16 ID 4
5. 2-014R O Ring Seal, 5/8 OD x 1/2 ID 2
6. 3796-1 Foot Nut, Brass, 1/2-14 NPSL 2
7. 2-W0C7 Flat Washer, 1-3/4 OD x 31/32 ID x 1/8 Thk 2
8. 3-D034 Nut, Brass, 1/2-14 NPS 2
9. 3-SC06 Steam Control Knob 1
10. 3-SC11 Steam Control Valve 1
11. 3520-1 Foot, Nylon 1
12. 9031-7 Acorn Nut, 3/8-16 UNC 1
13. 3589-1 Tilt Handle 1
14. 2-KB01 Knob, Red 1
** 15. 3799-1 Condensate Leg Assembly (6 Gallon) 1
3799-2 Condensate Leg Assembly (10, 12 Gallon) 1
** 16. 3800-1 Steam in Leg Assembly (6 Gallon) 1
3800-2 Steam in Leg Assembly (10, 12 Gallon) 1
** 17. 9085-1 O Ring Lubricant, 2 Grams, - 65EF to 400EF 1
* NOT SHOWN.
** SELECT AS REQUIRED.
Part No. 10266R0 3 2019-06-04
PARTS LIST, DIRECT STEAM KETTLES MOUNTED ON CABINET BASE,
MODELS DMT-6-(6, 10, 12), DMT-10-(6, 10, 12), DMT-12-(6, 10, 12)

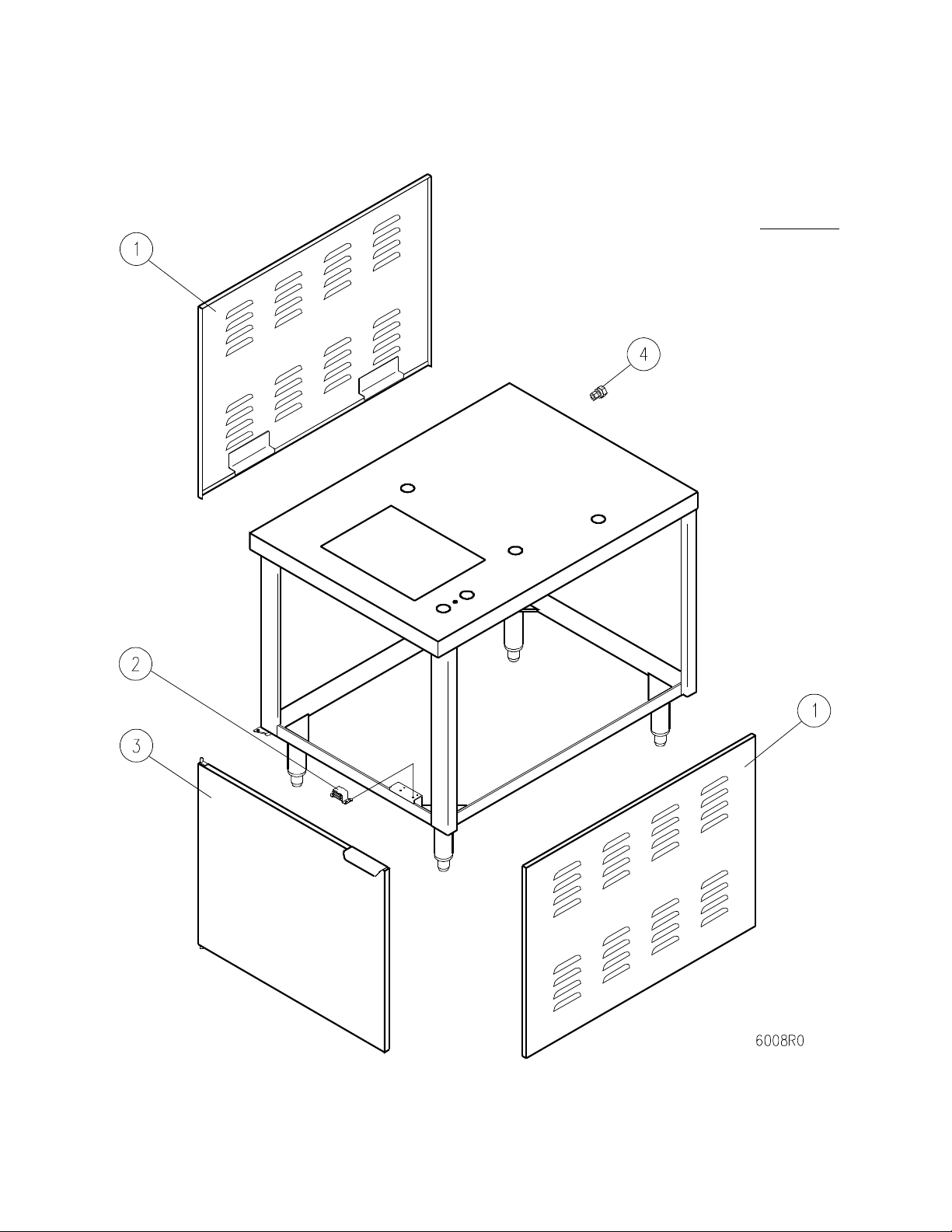

FIGURE 2
Part No. 10266R0 4 2019-06-04
PARTS LIST, DIRECT STEAM KETTLES MOUNTED ON CABINET BASE,
MODELS DMT-6-(6, 10, 12), DMT-10-(6, 10, 12), DMT-12-(6, 10, 12)
FIGURE 2
CABINET 28" HEIGHT
ITEM PART NO. DESCRIPTION 24" WIDE
QTY.
36" WIDE
QTY.
42" WIDE
QTY.
1. 3563-1 Lower Panel Assembly 2 2 2
2. 5-MC02 Magnetic Catch 1 2 2
* M93X-632-14 Pan Hd. Screw,
# 6-32 UNC x 1/4 Lg.
4 8 8
** 3. 3373-1 Door Assembly,
23-3/4W x 20H
1
* 3204-1 Door Assembly, R.H.
17-7/8W x 20H
1
* 3209-1 Door Assembly, L.H.
17-7/8 W x 20 H
1
* 6009-1 Door Assembly, R.H.
20-7/8 W x 20H
1
* 6010-1 Door Assembly, L.H.
20-7/8 W x 20 H
1
4. 3-666D Connector, Brass,
3/8 C x 1/2 FPT
1 1 1
* NOT SHOWN.
** SELECT AS REQUIRED.
Part No. 10266R0 5 2019-06-04
