AIRFRAME™ATX HELMET OPERATOR’S MANUAL
THIS MANUAL MUST BE CAREFULLY READ BY ALL PERSONS WHO HAVE OR WILL HAVE
THE RESPONSIBILITY FOR USING OR MAINTAINING THIS PRODUCT. FAILURE TO USE AND
MAINTAIN THE PRODUCT ACCORDING TO ITS INSTRUCTIONS MAY RESULT IN THE PRODUCT
FAILING TO PERFORM AS DESIGNED, AND/OR THE PERSONS RELYING ON THIS HELMET
SUSTAINING SERIOUS PERSONAL INJURY AND/OR DEATH.
Any warranties made by Crye Precision LLC with respect to this product are voided if the product is
not used and maintained in accordance with the instructions in this manual. For any questions relative
to the use or repair of this product, please write Crye Precision LLC or call 1-718-246-3838 during
regular business hours.
WARNINGS
The following are general safety warnings intended to call attention to fundamental performance
limitations and areas of the helmet where proper usage must be followed. Failure to adhere to the below
instructions and warnings could result in serious personal injury or death to the wearer.
This helmet is designed to protect the wearer against a specic range of projectile threats while
benetting from a minimal overall weight. This protection does have its limits and will not protect
the wearer against all threats. Certain threats may exceed the helmets capabilities and cause serious
injury including severe brain damage and death. Refer to helmet specications for performance
related data.
It is important to note that certain regions of the helmet provide less protection than others.
Specically, this helmet shell is not intended to protect against impacts that occur within 1 inch of
any peripheral edges.
Inspect the helmet before and after EACH use. Do not alter the helmet in any way.
This helmet is not to be relied upon to protect the wearer from falls from motor vehicles or bicycles,
or for similar activities.
Fit problems, such as excessive tightness, should be corrected by adjusting helmet pad locations as
instructed in this manual and by ensuring that the appropriate helmet shell size is being used.
All replacement parts should be acquired from Crye Precision or a licensed distributor.
The most current version of this manual may be found at www.cryeprecision.com.
EQUIPMENT INFORMATION
01 INTRODUCTION
02 COMPONENT DESCRIPTIONS
OPERATOR INSTRUCTIONS
05 NVG MOUNTING OPTIONS
06 SHELL SIZING
07 PAD PLACEMENT
08 DONNING
09 FIT ADJUSTMENT
10 CLEANING INSTRUCTIONS
10 PREVENTIVE MAINTENANCE CHECKLIST
11 REASSEMBLY
13 SERIAL NUMBERS
CONTENTS
1AIRFRAME™ATX HELMET
INTRODUCTION
The AirFrame™ ATX is our law enforcement focused ballistic helmet—designed to offer the
same advantages of our original AirFrame™ helmet while meeting IIIA ballistic requirements.
The unique overlapping shell design of the AirFrame™ creates an integrated vent that
provides passive cooling and can reduce the damaging effects of explosive blast waves.
Each AirFrame™ helmet features an Ops-Core®H-Nape Head-Loc™ retention system for
unmatched stability, comfort, and ease of adjustment. Up armoring the AirFrame™ with
ballistic ear or face protection is simple and fast (see our Ears™ and Chops™ for more info).
All helmets and components are compatible with common ear-pro systems like Peltors®and
Sordins®
. Made in the US from US materials.
FEATURES
Meets IIIA ballistic requirements
Revolutionary vented shell design for passive cooling
Covers more of wearer’s nape than traditional designs
Modular ear and face protection available
Modular ARC Rail™ system available (O2compatible)
Contain 3/4” pads
Can be pre-drilled at factory for 3-hole or 4-hole NVG mounts (conguration compatible
with Ops-Core®and Wilcox®3-hole mounts)
2EQUIPMENT INFORMATION
COMPONENT DESCRIPTIONS
HELMET STRAP9
SMALL T-NUT (x4)
5
FRONT SHELL
1
TRAPEZOIDAL PADS (x2)11
HELMET STRAP BOLTS (x4)
7
SHELL SCREW SHORT (x2)3
MD (x6)
LG (x7)
xL (x8)
OBLONG PADS10
NYLON INSERT (x2)
6
REAR SHELL
2
LARGE T-NUT (x4)8
SHELL SCREW LONG (x2)4
(IMAGES NOT TO SCALE)
OPERATOR INSTRUCTIONS
5OPERATOR INSTRUCTIONS
NVG MOUNTING OPTIONS
AirFrame™ATX helmets can be ordered with pre-drilled mounting holes for standard 3-hole or 4-hole night vision mounts. This must be
specied at the time of order.
Standard 3-hole conguration for night vision mounts
Standard 4-hole conguration for night vision mounts
3-hole night vision mount installed
4-hole night vision mount installed
A
D
B
C
6AIRFRAME™ATX HELMET
SHELL SIZING
Follow the instructions below in order to ensure a correct shell size selection. Select the
proper helmet size based on your head circumference. If a measurement falls directly in
between two sizes, select the larger size. See the note at bottom of the page for exceptions.
Whenever possible, try on a helmet and allow the pads to adjust for ve minutes in order to
determine which size has the best t.
MEASURING HEAD CIRCUMFERENCE
Sit straight with your head level. Wrap a vinyl tape measure around your head. Start just
above eyebrow ridges and wrap around widest part of the head as shown in the diagram.
Pull the tape measure tight and record the measurement. Use the table below to determine
the correct helmet size.
NOTE: HEAD SHAPES DIFFER
Users on the threshold of two sizes, but with a narrower head (6” width and below), may be
able to t into the smaller sized shell, where users with a wider head (over 6” width) should
move to the larger size.
MEDIUM
20½”–22½”
LARGE
22½”–24½”
X-LARGE
>24½”
*Note: Pads affect sizing—if using an alternative pad set, try on the helmet to choose the proper size.
7AIRFRAME™ATX HELMET
PAD PLACEMENT

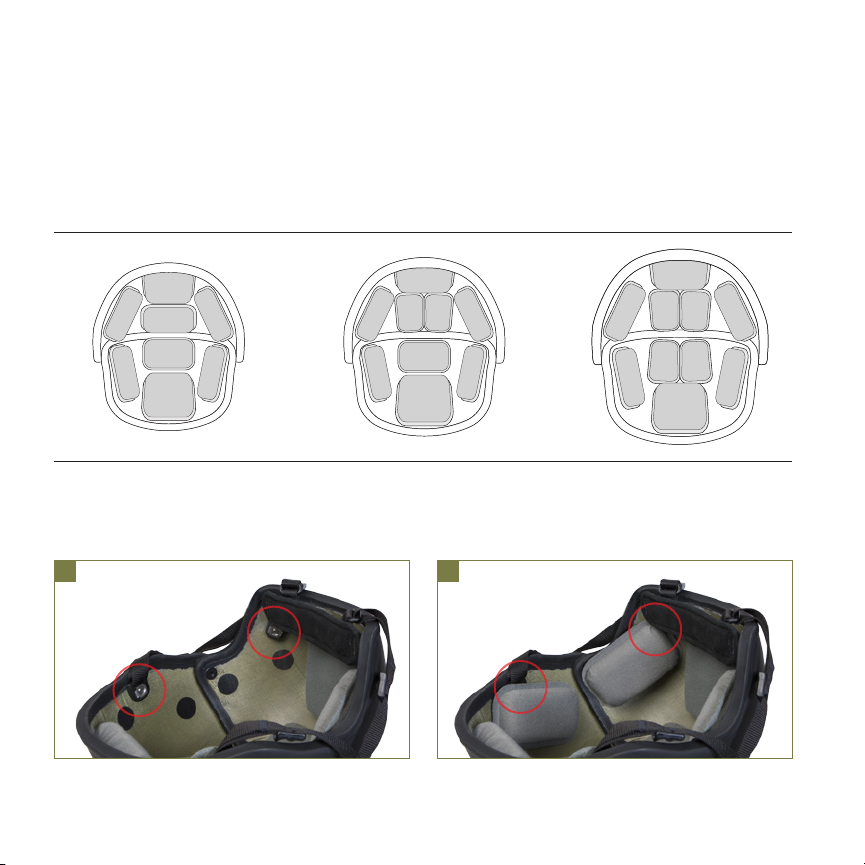

Standard AirFrame™pad placement is shown below. The number of oblong pads varies with helmet size. MEDIUM helmets require 6 oblong
pads, LARGE helmets require 7 oblong pads, and EXTRA LARGE helmets require 8 oblong pads. All helmets require two trapezoidal pads.
EXTRA LARGELARGE
FRONT OF HELMET
BACK OF HELMET
MEDIUM
Pad placement is designed to offer optimal protection and comfort. It is critical that pads are placed as shown in the below diagrams and that
the pads nearest chinstrap hardware mounting points are situated to overlap said hardware—failure to do so may result in injury or death.
A B
