Crystal Vision DDA208B Manuale utente

Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.

E-mail: [email protected] Website: www.crystalvision.tv Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059

DDA208B

Dual channel SDI distribution amplifier

Crystal Vision DDA208B User Manual R1.0

DDA208B User Manual R1.0 1 24/05/05

Contents

1 Introduction 2

Firmware covered 3

2 Card edge operation 4

3 Hardware installation 5

Universal rear connectors 5

Rear module connections with RM01 5

Rear module connections with RM18 6

Rear module connections with RM02 7

General purpose interface 8

4 Problem solving 11

5 Specification 12

Crystal Vision Introduction

DDA208B User Manual R1.0 2 24/05/05

1 Introduction

The DDA208A is a dual non-reclocking serial digital video and ASI distribution amplifier

with up to four outputs per channel. It has auto-equalisation for up to 250 metres of

coaxial cable.

The universal connection system allows a mixture of Crystal Vision modules in the frame.

The modules plug in the front and the rear connectors plug in the rear. Depending on

frame design, a hinged or removable front panel reveals LED indication of input and PSU

status when opened.

DDA208A dual non reclocking ASI/SDI distribution amplifier

The single slot rear connector provides two DVB-ASI compliant serial digital outputs per

channel with 12 modules in 2U of rack space. Alternative rear modules provide more

outputs but with fewer modules per frame.

It may be used with the RM01 single slot rear connector, the RM02 quadruple slot rear

connector or the RM18 double slot rear connector. The RM18 provides access to all four

outputs per channel, with 6 modules in 2U of rack space.

Further rear connector details may be found in the Installation chapter.

/ASI

Crystal Vision Introduction

DDA208B User Manual R1.0 3 24/05/05

The main features are as follows:

•Dual 1-in 4-out DVB-ASI/SDI distribution amplifier

•Automatic equalisation for up to 250 metres of coaxial cable

•LED input presence indication

•Card edge control

Firmware covered

The following table shows the firmware covered by this manual:

Module type Manual revision Firmware covered Comments

DDA208A R1.0

Crystal Vision Card edge operation

DDA208B User Manual R1.0 4 24/05/05

2 Card edge operation

The front edge of the DDA208B card provides power rail monitoring and signal status.

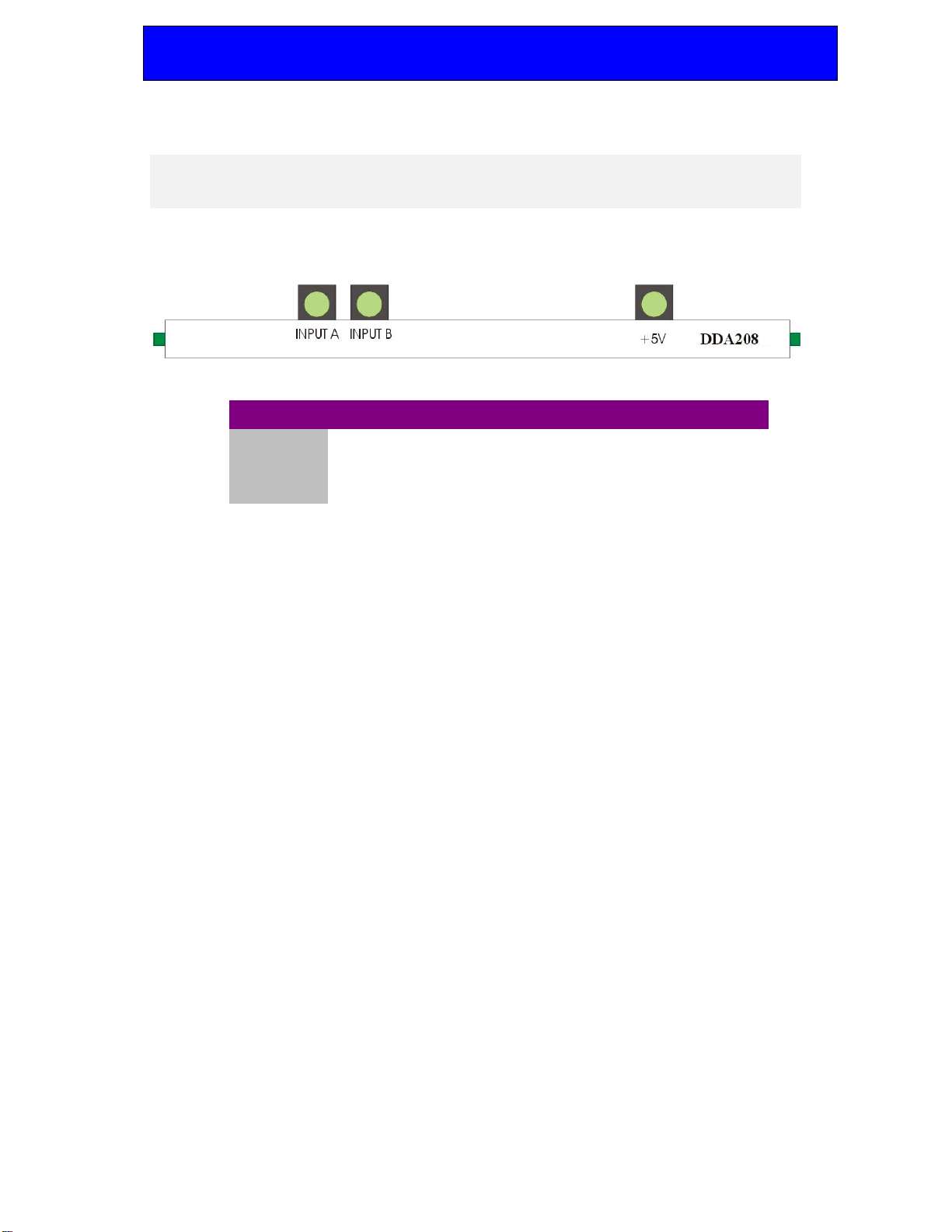

DDA208B front edge view

LED Location/colour Meaning when lit

INPUT A Green Valid DVB-ASI/SDI input detected.

INPUT B Green Valid DVB-ASI/SDI input detected.

PSU Green Power supply voltage present.

Cable equalisation

Cable equalisation is automatically adjusted for up to 250 meters of Belden 8281 or

similar cable. There are no user adjustments.

Crystal Vision Hardware installation

DDA208B User Manual R1.0 5 24/05/05

3 Hardware installation

The DDA208B digital video distribution amplifier fits into all Crystal Vision rack frames.

All modules can be plugged in and removed while the frame is powered without damage.

Universal rear connectors

When used with a single height rear connector, the 2U Indigo or FR2AV frame will house

up to 12 modules and dual power supplies, the 1U Indigo or FR1AV frame will house 6

modules and a single power supply. The 1U Desk Top Box has a built-in power supply

and will house up to 2 modules with a single height rear connector.

The 2U and 1U frames have a hinged front panel which gives access to the PSU and all

modules. The Desk Top Box has a removable front. The universal frame wiring system

allows any of the interface range of modules to be fitted in any position with the use of

removable rear modules.

The DDA208A may be used with the RM01 single slot rear connector, the RM02

quadruple slot rear connector and the RM18 double slot rear connector.

Rear module connections with RM01

RM01 fits in all frames Description

RM01

•12 modules in 2U, 6 in 1U &

2 in a DTB

•All frame slots can be used

BNC I/O assignment

OUT(B) DVB-ASI/SDI Output (B)

SDI IN CH(A) DVB-ASI/SDI Input (A)

OUT(A) DVB-ASI/SDI Output (A)

OUT(B) DVB-ASI/SDI Output (B)

SDI IN CH(B) DVB-ASI/SDI Input (B)

Crystal Vision Hardware installation

DDA208B User Manual R1.0 6 24/05/05

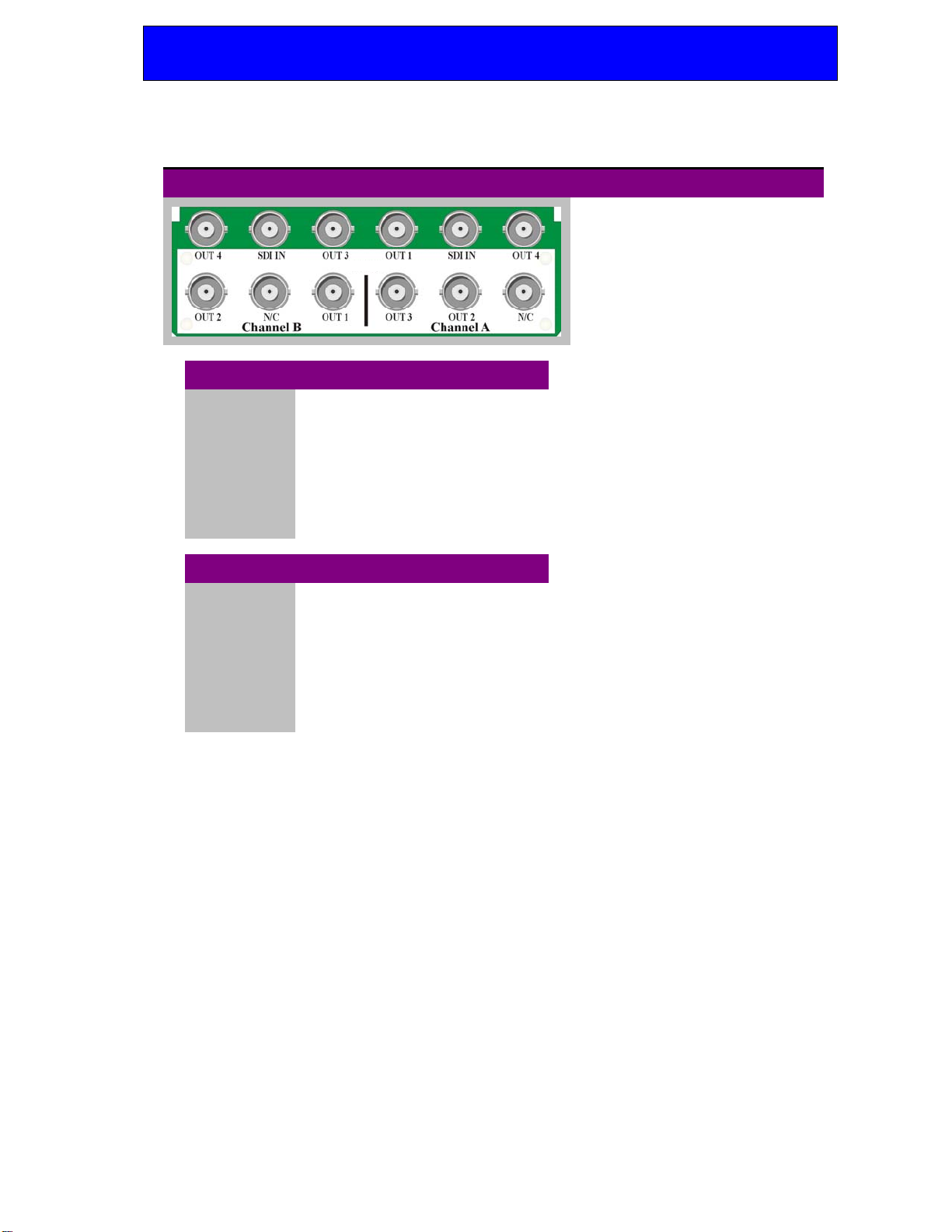

Rear module connections with RM18

RM18 fits in all frames Description

RM18

•6 modules in 2U , 3 in 1U, 1 in a

DTB

•1 module per rear connector

•6 connections available

•Card fits in upper slot

•No card fits in lower slot

Channel A I/O assignment

OUT 4 DVB-ASI/SDI Output (A)

SDI IN DVB-ASI/SDI Input (A)

OUT 1 DVB-ASI/SDI Output (A)

OUT 3 DVB-ASI/SDI Output (A)

OUT 2 DVB-ASI/SDI Output (A)

N/C Unassigned

Channel B I/O assignment

OUT 3 DVB-ASI/SDI Output (B)

SDI IN DVB-ASI/SDI Input (B)

OUT 4 DVB-ASI/SDI Output (B)

OUT 2 DVB-ASI/SDI Output (B)

N/C Unassigned

OUT 1 DVB-ASI/SDI Output (B)

Crystal Vision Hardware installation

DDA208B User Manual R1.0 7 24/05/05

Rear module connections with RM02

RM02 fits in a 2U Indigo or FR2AV frame Description

RM02

•9 modules per 2U frame

•3 modules per rear connector

•9 connections available

•Card 1 fits in slots 1, 5 and 9

•Card 2 fits in slots 2, 6 and 10

•Card 3 fits in slots 4, 8 and 12

•No card fits in 3, 7 or 11

BNC I/O assignment

IN DVB-ASI/SDI Input (A)

1DVB-ASI/SDI Output (A)

2DVB-ASI/SDI Output (A)

3SDI Output (A)

4DVB-ASI/SDI Output (B)

5DVB-ASI/SDI Output (B)

6DVB-ASI/SDI Output (B)

7DVB-ASI/SDI Output (B)

8/IN2 DVB-ASI/SDI Input (B)

Crystal Vision Hardware installation

DDA208B User Manual R1.0 8 24/05/05

General purpose interface

The external GPI control lines 'a' to 'f' at the frame remote connectors are provided to

allow remote control and/or remote status indication. Line 'a' is assigned as a GPI output

to provide remote indication of input presence.

GPI lines are pulled up to +5V through 6k8 Ohm, 270 Ohm series resistor so they can

drive an LED directly. If the series resistor is shorted out, the GPI output can drive a bulb

at +45V 100mA max.

GPI Connections

OPEN CONNECT TO GROUND

‘a’ Input A Present Input A Absent

‘b’ Input B Present Input B Absent

‘c’ Not assigned Not assigned

‘d’ Not assigned Not assigned

‘e’ Not assigned Not assigned

‘f’ Not assigned Not assigned

The following tables show the GPI pin-out for each frame:

4U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)

27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)

38 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)

47 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)

55 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)

64 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)

75 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)

84 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)

93 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)

10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)

11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)

12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

18 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)

27 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)

38 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)

47 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)

55 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)

64 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)

75 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)

84 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)

93 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)

UpperLower

Crystal Vision Hardware installation

DDA208B User Manual R1.0 9 24/05/05

10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)

11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)

12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)

Table shows pin number (Remote number)

Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26 way high-density D-Type female

sockets and frame ground is pin 2 and +5V @500mA is pin 1 in each case.

Remote 2 and Remote 4 are 26 way high-density D-Type male plugs and frame ground is

pin 6 and +5V @500mA is pin 15 in each case.

2U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)

27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)

38 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)

47 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)

55 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)

64 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)

75 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)

84 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)

93 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)

10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)

11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)

12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)

Table shows pin number (remote number)

Note: Remote 1 and Remote 3 are 26 way high-density D-Type female sockets and frame ground

is pin 2 and +5V @500mA is pin 1 in each case.

Remote 2 and Remote 4 are 26 way high-density D-Type male plugs and frame ground is

pin 6 and +5V @500mA is pin 15 in each case.

1U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)

27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)

35 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)

44 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)

53 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)

610 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)

Table shows pin number (remote number)

Note: Remote 1: 26 way high-density D-type socket. Frame ground is pin 2 and +5V @500mA is

pin 1.

Remote 2: 26 way high-density D-Type plug. Frame ground is pin 6 and +5V @500mA is

pin 15.
