Cub Cadet 53AH8CTX750 Guida all'installazione

Hydrostatic Zero-Turn

Commercial Riding Mower

Professional Turf Equipment

ILLUSTRATED PARTS LIST

60" Fabricated Deck

TABLE OF CONTENTS

Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

60" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . . . 4 and 5

60" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 6 and 7

Hydro Hose and Pump Assembly. . . . . . . . . . . . . . . .8 and 9

Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 and 11

Fuel Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Rear Bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . 14 and 15

Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 16 and 17

Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Seat/Floor Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . 19

27 HP Kohler Engine Assembly . . . . . . . . . . . . . . . 20 and 21

25 HP Kawasaki Engine Assembly. . . . . . . . . . . . . 22 and 23

Electrical Assembly Kohler . . . . . . . . . . . . . . . . . . . 24 and 25

25 HP Electrical Assembly Kawasaki . . . . . . . . . . . 26 and 27

Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 and 29

MODELS LISTED IN THIS MANUAL

25HP Tank, 27HP Tank,

53AI8CTX750 53AH8CTX750

27HP Tank

53CB5DBX630

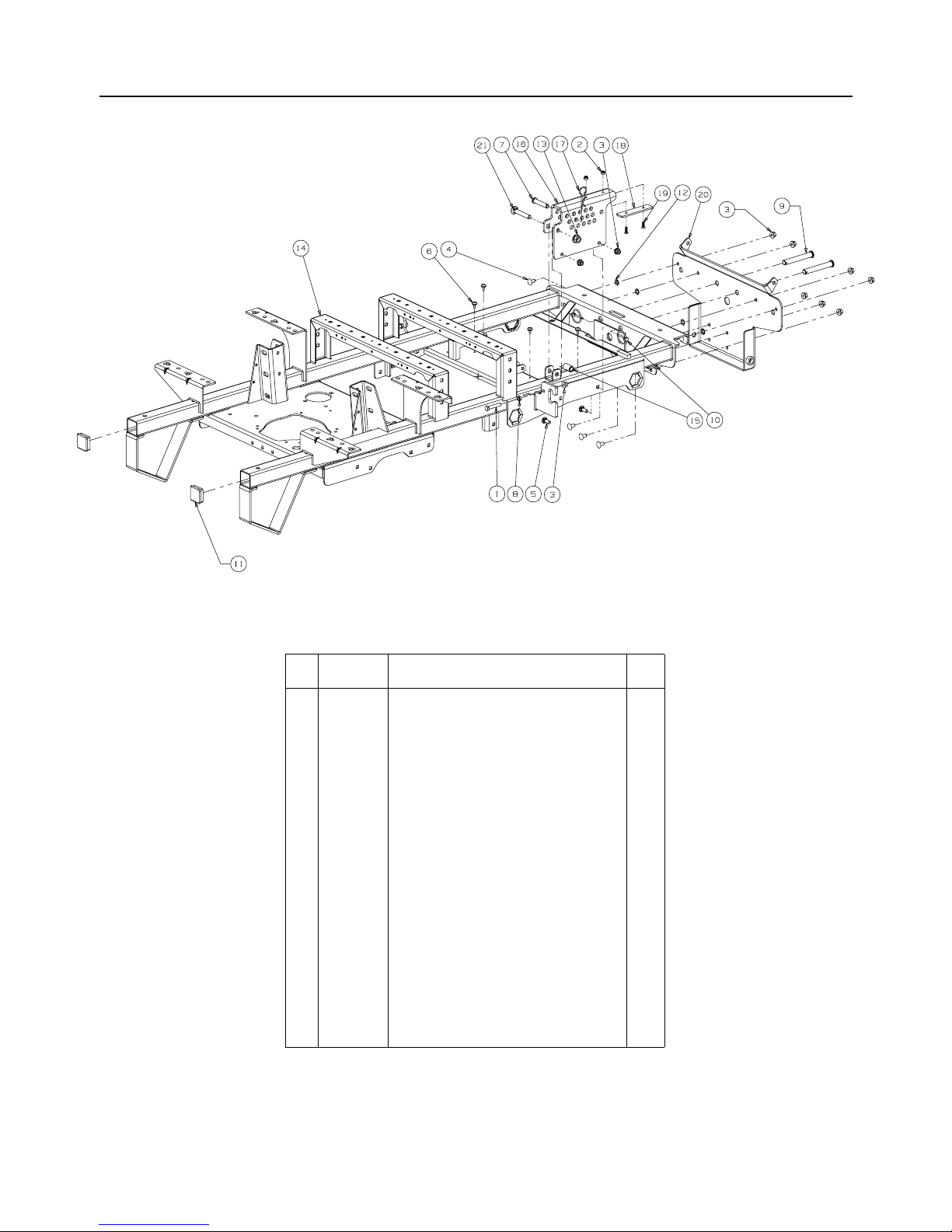

Frame Assembly

GD: 02002665-10/09/06

- Figure 1 and Parts List

Ref.

No. Part No. Description Qty.

100002528 Hex Cap Screw 3/8-16 x 2.00 2

200012152

Lock Nut w/Nylon Insert

300022560 Hex Nut, 3/8-16 Flange Lock 11

401000372 Carriage Bolt, 3/8-16 x .75 Long 7

501000643 Carriage Bolt, 3/8-16 x 1 2

601001170 Rubber Bumper, .62 OD x .22 Thick 4

701001776 Clevis Pin, .500 Dia. x 2.50 Lg. 1

801002511

Nut, 3/8-16, Jam

901003282

Clevis Pin, .625 Dia x 4.375 Long

10 01003993 Linch Pin, 3/16 Dia. 2

11 01005160 Plug, Square Tube 2

12 01008225 Push Retainer, 3/8 4

13 01010119 Nut, 1/2-13, Flangelock 1

14 02002599 Frame Assembly 1

15 02002655 Spacer, .51 ID x .75 OD x 1.40 1

16 02003055 Lift Index Bracket 1

17 02003074 HitchPin, .120 Dia. x 3.0 1

18 02003501 Wear Plate, 1.25 x 5.00 1

19 02003505 Flat Head Cap Screw, 1/4-20 x .75 2

20 02003524 Bracket Assembly, Frame, Front 1

21 02003563 Carriage Bolt, 1/2-13 x 3.00 1

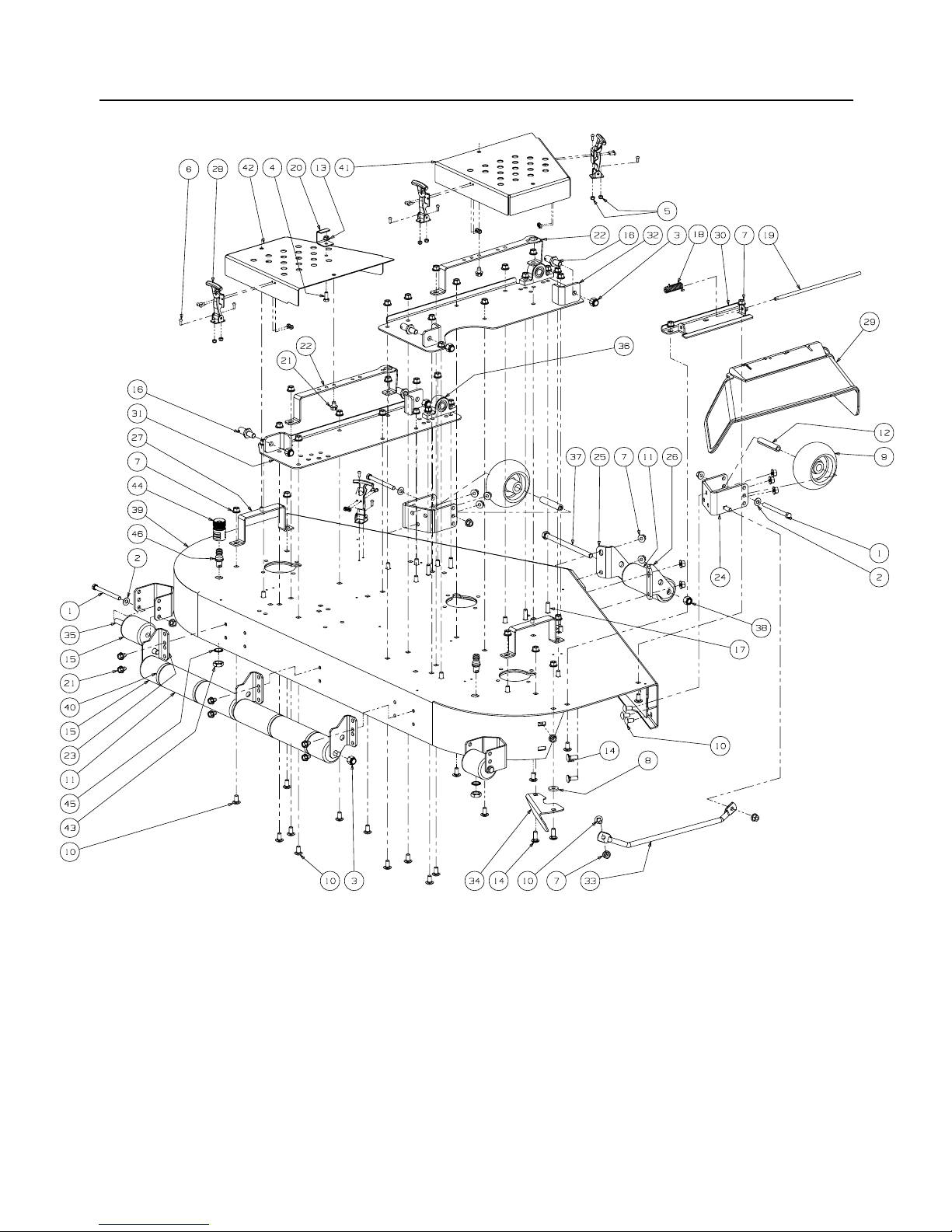

60" Fabricated Cutter Deck - Figure 2

GD: 02002835-01/24/07

60" Fabricated Cutter Deck - Parts List for Figure 2

Ref.

No. Part No. Description Qty.

100011925 Hex Cap Screw, 3/8-16, 3.75 4

200012158

Flat Washer, 3/8

300012428 Lock Nut, Nylon Insert, 1/2-13 5

400013406 Hex Cap Screw, 5/16-18 x .75 1

500014608

Lock Nut, Nylon Insert, 10-32

600017778

Phillips Head Screw, 10-32

700022560 Flange Lock Hex Nut, 3/8-16 50

800083192 Idler Washer 1

901000343

Complete Wheel, 5.00 Dia.

10 01000372 Carriage Bolt, 3/8-16 x .75 Lg. 35

11 01000385 Front Roller 5

12 01000398 Wheel Spacer 2

13 01000635

Nut, 5/16-18, Hex Flange Lock

14 01000643 Carriage Bolt, 3/8-16 x 1 7

15 01001169

Grass Catcher Roller

16 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4

17 01002010

Carriage Screw, 3/8-16 x 1.25

18 01003253 Torsion Spring, 0.4ID x 2.16Lg 1

19 01003254 Chute Deflector Rod 1

20 01004109

Stop Bracket

21 01004304 Hex Index Washer Screw, 3/8-16, .5 8

22 01004685 Belt Cover Support 2

23 01005364 Deck Roller Mount Bracket 3

24 01005260

Anti-Scalp Wheel Front Mount Bracket

01005256 Left Hand Front Roller Mount Bracket

26 01005258

Right Hand Front Roller Mount Bracket

27 01005437 Outer Belt Cover Support Assembly 2

28 01005869

T-Handle Latch Draw

29 01006693 Chute Deflector 1

30 01008226

Chute Deflector Bracket

31 01008633 Left Hand Mount Deck Bracket Assembly 1

01008635 Right Hand Deck Bracket Assembly 1

33 01008644 Finger Guard 1

34 01009300 Chute Bracket 1

35 01009808 Spacer, .385 x .50 x 3.045 2

36 02000109

Pillow Block

37 02002154 Hex Cap Screw, 1/2-20 x 7.25 1

38 02002299 Lock Nut, Nylon Insert, 1/2-20 1

39 02002531 60 Deck Assembly 1

40 02002800 J-Hook w/ Threaded Roller 1

41 02002831

Right Hand Deck Belt Cover

42 02002832

Left Hand Deck Belt Cover

43 712-0641 Hex Nut, M16-1.5 2

44 721-04041 Water Nozzle Adaptor 1

45 736-0760 Lock Washer, 17 x 23.8 x 1.95 2

46 737-04003B Deck Water Nozzle 2

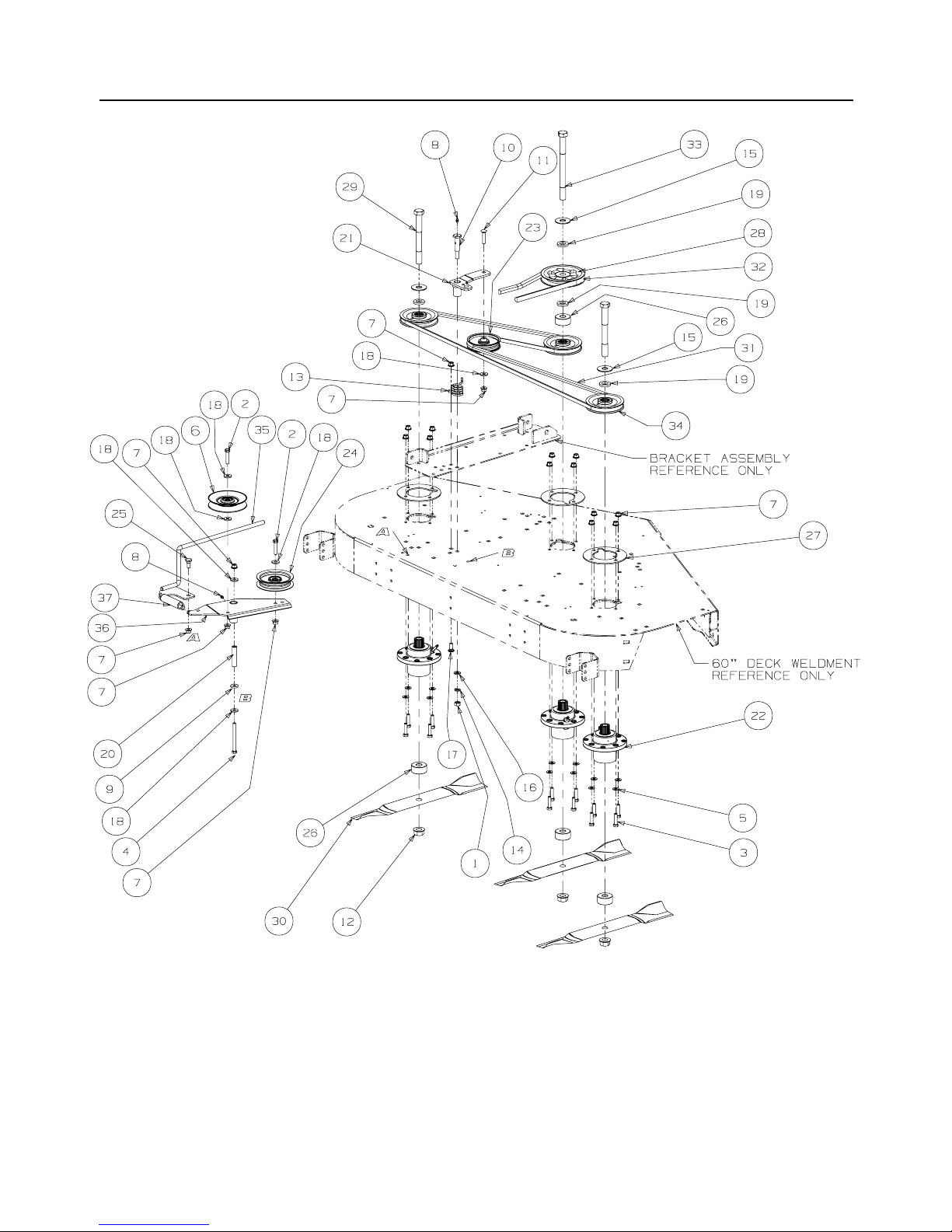

60" Fabricated Deck Spindle Assembly - Figure 3

GD: 02003629-11/02/06

60" Fabricated Deck Spindle Assembly

- Parts List for Figure 3

Ref.

No. Part No. Description Qty.

100005763 Hex Nut, 7/16-14 1

200008495 Hex Cap Screw, 3/8-16 x 1-3/4 2

300011438 Hex Cap Screw, 3/8-16 x 1-1/2 12

400011925

Hex Cap Screw, 3/8-16, 4.00

500012158

Flat Washer, 3/8

6756-3045 Idler Pulley, 5.06 Dia. 1

700022560 Flange Lock Hex Nut, 3/8-16 18

800060078 Grease Fitting, 1/4-28 x 3/16 2

900083192 Idler Washer 1

10 01000302 Shoulder Screw, 7/16-14 1

11 01000364 Hex Carriage Screw, 3/8-16, 1.75 1

12 01000380 Flange Hex Nut, 3/4-16 3

13 01000387

Torsion Idler Spring

14 01000389 Lock Washer, 7/16 1

15 01000392 Flat Washer, .781 ID 2.00 OD, .105 3

16 01000393 Flat Washer, .469 ID, .875 OD, .105 1

17 01000643

Carriage Bolt, 3/8-16 x 1

18 01000723

Flat Washer, .406 ID, 1.0 OD, .105

19 01003123 Spacer .812 ID x .268 LG 4

20 01003245

Spacer, .39 ID x .625 OD x 2.75

21 01005737

Idler Arm Assembly, Deck Spindle includes:

01000308

Bearing

22 01003532 Aluminum Spindle Assembly 3

23 01004081 Flat Pulley 1

24 01004101

Idler Pulley, 4.06 OD

25 01004118 Shoulder Screw, .50 x .27 Lg., 3/8-16 1

26 01004415 Spacer, .760 ID x 2.00 OD x 1.1 4

27 01005434

Aluminum Spindle Support Plate

28 01005203 V-Pulley, 5.774 OD 1

29 01005213 Hex Cap Screw, 3/4-16, 7.00 2

30 01005338 Hi-Lift Blade, 21.0, 0.756 ID 3

31 01005376 V-Belt, A Section x 122.3 1

32 01005377 V-Belt, B Section x 91.2 1

33 01005388

Hex Cap Screw, 3/4-16, 9.00

34 01005616

V-Pulley, 5.00 OD

35 01005690

Spring Tension Rod Assembly

36 02003489 Idler Arm Assembly includes: 1

01000308 Bearing 2

37 02003712 Extension Spring, .94 x OD x 7.57 1

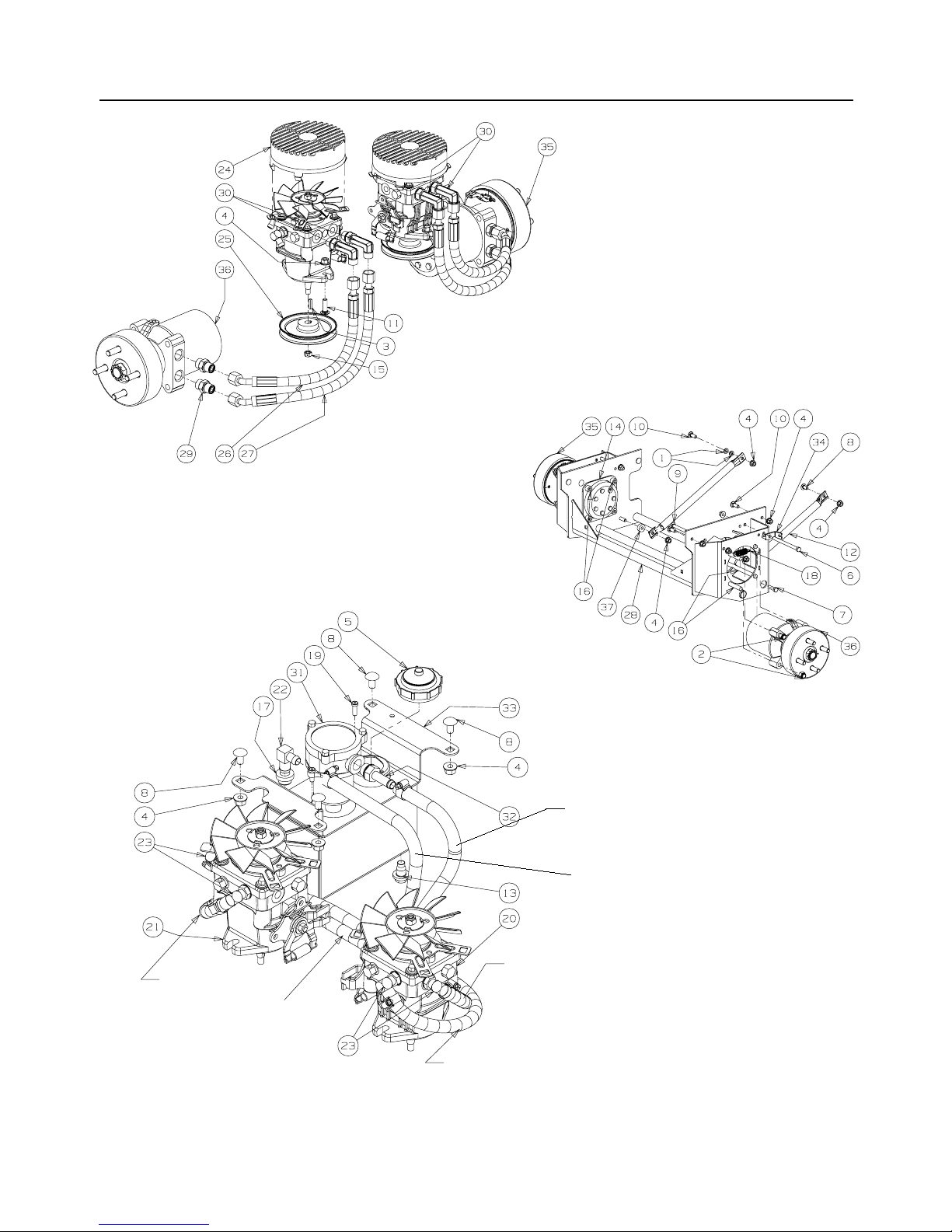

Hydro Hose and Pump Assembly

Pump & Motor Systems

3/4" Hose

11.0" LG.

3/4" Hose

16.0" LG.

3/4" Hose

16.0" LG.

3/4" Hose

12.0" LG.

3/4" Hose

12.0" LG.

3/4" Hose

12.0" LG.

Pilot &Drain Systems

Motor Mount Systems

GD: 02002830-10/05/06

- Figure 4

Hydro Hose and Pump Assembly- Parts List for Figure 4

Ref.

No. Part No. Description Qty.

100012157 Washer lock 3/8 zinc 2

200012428 Washer lock 3/8 zinc 8

300020628 Key, 3/16" x 7/8" 2

400022560

Flange Lock Hex Nut, 3/8-16

500030261 Cap, Hydro Oil Tank 1

600034167 Hex Cap Screw 3/8-16 x 5.00 2

701000369 Hex Cap Screw, 3/8 -16 x 1.25 2

801000372 Carriage Bolt, 3/8-16 x .75 LG. 5

901000642 Carriage Bolt, 3/8-16 x 5.50

10 01000643 Carriage Bolt, 3/8-16 x 1 5

11 01002010 Carriage Screw, 3/8-16 x 1.25 4

12 01001618

Strut Frame

13 01004192 Oil Pan Drain Plug w/ Seal 1

14 01006948

Hydro Wheel Motor Backup Plate

15 01007309

Hex Nut, 3/8-24

16 01008449

Socket Head Capscrew, 1/2-13; 6-1/2

17 02000296 Grommet Fitting, .54 ID x .78 OD 1

18 02000401 Spring Extension, .740 OD x 2.656 2

19 02000841

Socket Low Head Cap Screw, 1/4-20 x 0.75

20 02000905

Hydro Pump, BDP-12, RH

01009631

Kit, Fan

21 02000906

Hydro Pump, BDP-12, LH

01009631

Kit, Fan

22 02001151

Fitting Elbow Spur, 5/8 x 1/2

23 02001160

Fitting Elbow, 9/16 x 1/2

24 02001169

Fan Pump Shroud

25 02001172

Hydro Pump Pulley

26 02001178

Short Pressure Hose Assembly

27 02001179

Long Pressure Hose Assembly

28 02001492

Hydro Motor Frame Assembly

29 02001715

Adaptor Fitting, 8 x 10

30 02002003

Adaptor, 8 x 8

31 02002257

Hydraulic In-Tank Filter includes:

02002258

Replacement Filter

32 02002557

Fitting, 3/4 ORB x 1/2 Tube

33 02002703

Hydraulic Tank Assembly

34 02002899

Rear Cable Mounting Bracket

35 02002967

Hydro Motor, Left Hand Assembly w/ Brake & Drum

36 02002968

Hydro Motor, Right Hand Assembly w/ Brake & Drum

37 750-3119 Spacer .406 ID x 1.0 OD 2

38 --

Fuel Hose, .50 ID x .75 OD (in inches)

39 02001175 Tee Fitting, 1/2 2

40 02002392

Hose Clamp, 1/2

NOTE: Lubricant, 02002058 Quarts, 2.00

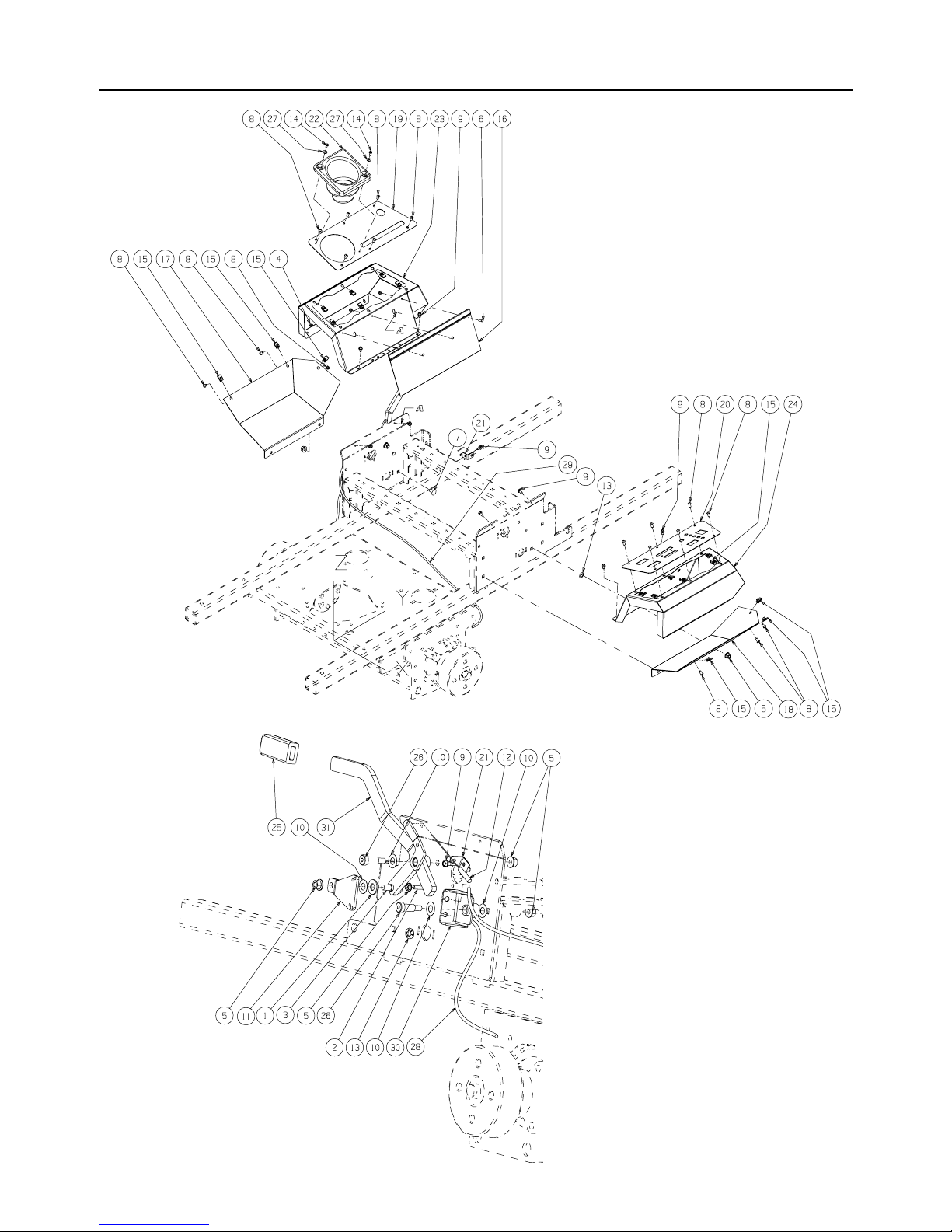

Brake Assembly

GD: 02002926-01/11/07

- Figure 5
