Cub Cadet SC2450 Scheda tecnica

Form No. 769-05301

(09/09)

Sc2450

Sc Series Sc24502

NOTES:

Sc Series Sc2450

FIG. NO. GROUP NAME

1 CYLINDER BLOCK

2 GEAR HOUSING

3 OIL PAN & REAR ENGINE PLATE

4 CYLINDER HEAD & VALVE COVER

5 AIR CLEANER

6 EXHAUST MANIFOLD & MUFFLER

7 CAMSHAFT & TIMING PARTS

8 CRANKSHAFT & PISTON

9 LUBRICATING PARTS

10 COOLING WATER SYSTEM

11 FUEL INJECTION PUMP

12 GOVERNOR

13 FUEL SUPPLY PARTS

14 STARTER

15 ALTERNATOR

TRACTOR SECTION STARTS ON PAGE 32

ENGINE SECTION INDEX

Sc Series Sc24504

NOTES:

Sc Series 5 Sc2450

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-719517-01560 BLOCK ASSY, CYLINDER 1

4 CY-124060-01050 PLUG PT1/8 1

5 CY-105311-01090 PLUG 30 (SUS) 4

6 CY-119623-01250 PLUG 45 1

7 CY-124160-01910 PLUG PT1/4 1

8 CY-119285-01990 PLUG 25 3

9 CY-119620-02020 BOLT 8

12 CY-119717-02411 BUSH, CAMSHAFT 1

13 CY-27241-120000 PLUG 12 1

14 CY-719717-02901 MAIN BEARING SET 4

26 CY-119717-02930 BEARING, THRUST 2

29 CY-119515-01200 BOLT, CYLINDER HEAD 14

30 CY-119517-01330 GASKET, CYL.HEAD 1

31 CY-119810-02941 BEARING,THRUST Over-size 0.25 2

34 CY-719717-02911 MAIN METAL Under-size 0.25 4

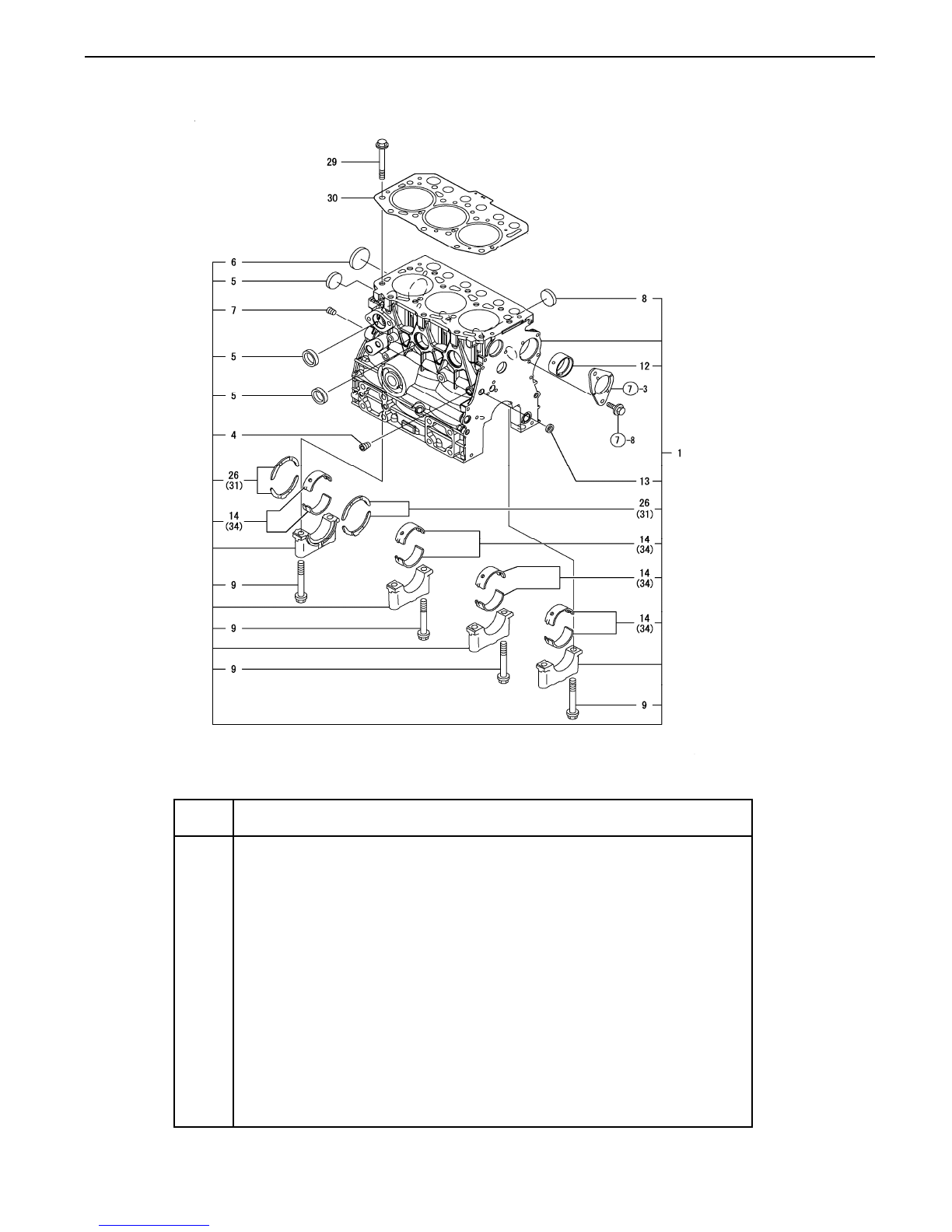

FIG. 1. CYLINDER BLOCK

Sc Series 6 Sc2450

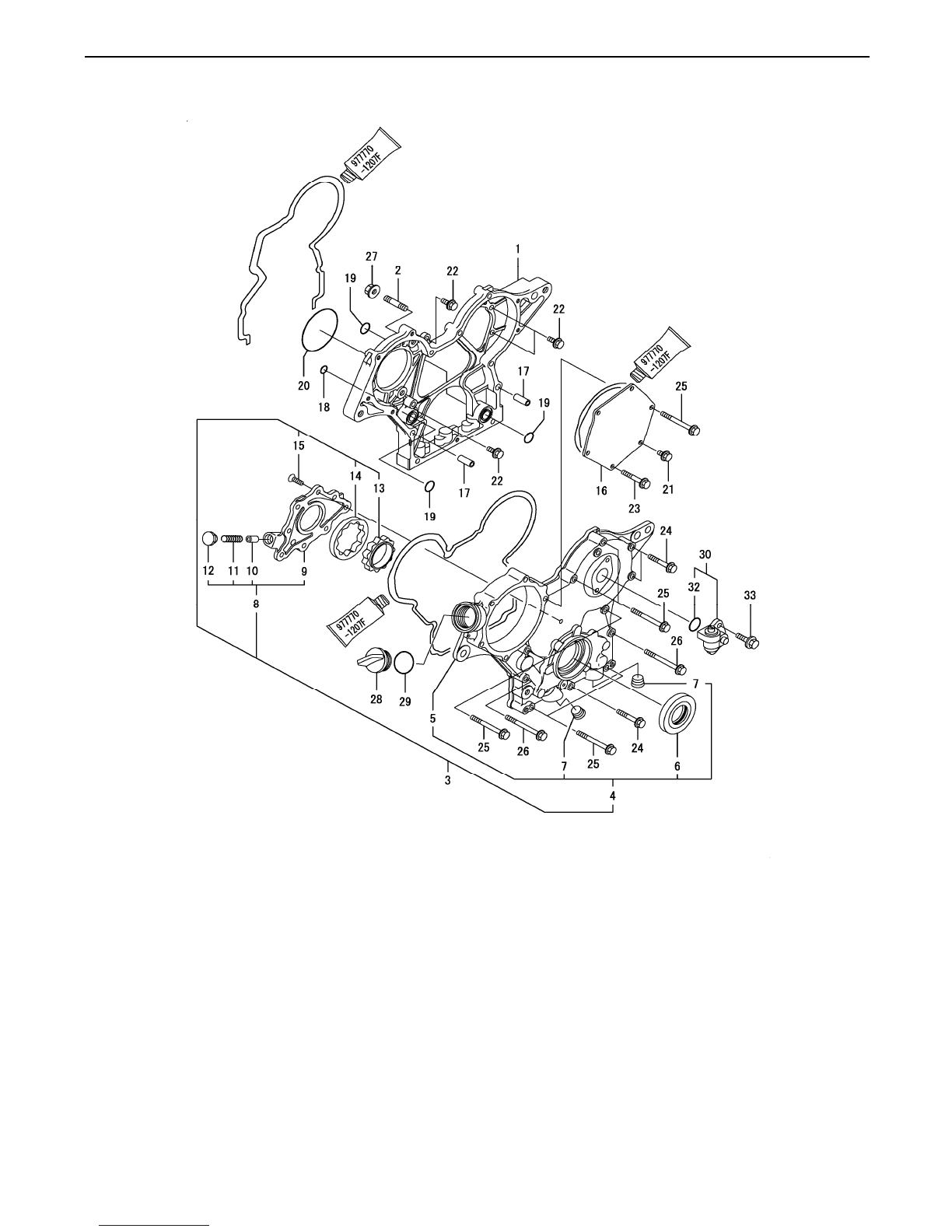

FIG. 2. GEAR HOUSING

Sc Series 7 Sc2450

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-119717-01501 CASE, GEAR 1

2 CY-119717-01570 BOLT, STUD M8 3

3 CY-119734-01580 COVER ASSY,GEAR CASE 1

4 N/A COVER ASSY,GEAR CASE (ORDER REF NO.3) 1

5 N/A COVER, GEAR CASE (ORDER REF NO.3) 1

6 CY-119717-01800 SEAL, OIL 1

7 CY-23876-030000 PLUG PT3/8,SCREW 2

8 CY-119717-32100 COVER ASSY, PUMP 1

9 N/A COVER, LUB.OIL PUMP (ORDER REF NO.8) 1

10 CY-129900-32130 VALVE, RELIEF 1

11 CY-129001-32320 SPRING 1

12 CY-129001-32330 PLUG 1

13 CY-119717-32110 ROTOR, INNER 1

14 CY-119717-32120 ROTOR, OUTER 1

15 CY-119802-32130 SCREW, M6X16 8

16 CY-119717-01750 COVER, PUMP TIMING 1

17 CY-119660-01911 PIPE, KNOCK 4

18 CY-119624-32040 O-RING P 12.0 1

19 CY-119717-32050 O-RING, P17.0 3

20 CY-121850-51960 O-RING, F.I.PUMP 1

21 CY-26106-060122 BOLT M 6X 12 PLATED 1

22 CY-26106-060162 BOLT M 6X 16 PLATED 4

23 CY-26106-060402 BOLT M 6X 40 PLATED 4

24 CY-26106-060402 BOLT M 6X 40 PLATED 3

25 CY-26106-060602 BOLT M 6X 60 PLATED 7

26 CY-26106-060652 BOLT M 6X 65 PLATED 2

27 CY-26306-080002 NUT 3

28 CY-124160-01751 COVER,FILLER 1

29 CY-24311-000320 O-RING 1A P-32.0 1

30 CY-129150-91400 GEAR UNIT,TACHOMETER 1

32 CY-24341-000240 O-RING 1A S-24.0 1

33 CY-26106-060162 BOLT M 6X 16 PLATED 2

FIG. 2. GEAR HOUSING

Sc Series 8 Sc2450

THIS PAGE INTENTIONALLY LEFT BLANK

Sc Series 9 Sc2450

REF

NO. PART NUMBER DESCRIPTION QTY

1 CY-129100-01580 PARALLEL PIN 8X16 2

2 CY-119517-01600 FLANGE, MOUNT. 1

3 CY-26206-100202 BOLT M10X20 10

4 CY-119620-01620 PARALLEL PIN 6X10 2

5 CY-119527-01640 CASE ASSY, OIL SEAL 1

7 CY-124085-02220 SEAL, OIL 1

8 CY-26106-060222 BOLT M 6X 22 PLATED 10

9 CY-119515-01720 SPACER, OIL SUMP 1

10 CY-119517-01750 SUMP ASSY, LUB.OIL 1

11 CY-129054-01640 DRAIN PLUG 1

13 CY-22190-120002 SEAL WASHER 12 1

14 CY-26106-060122 BOLT M 6X 12 PLATED 1

15 CY-26106-060252 BOLT M 6X 25 PLATED 1

16 CY-26106-060452 BOLT M 6X 45 PLATED 17

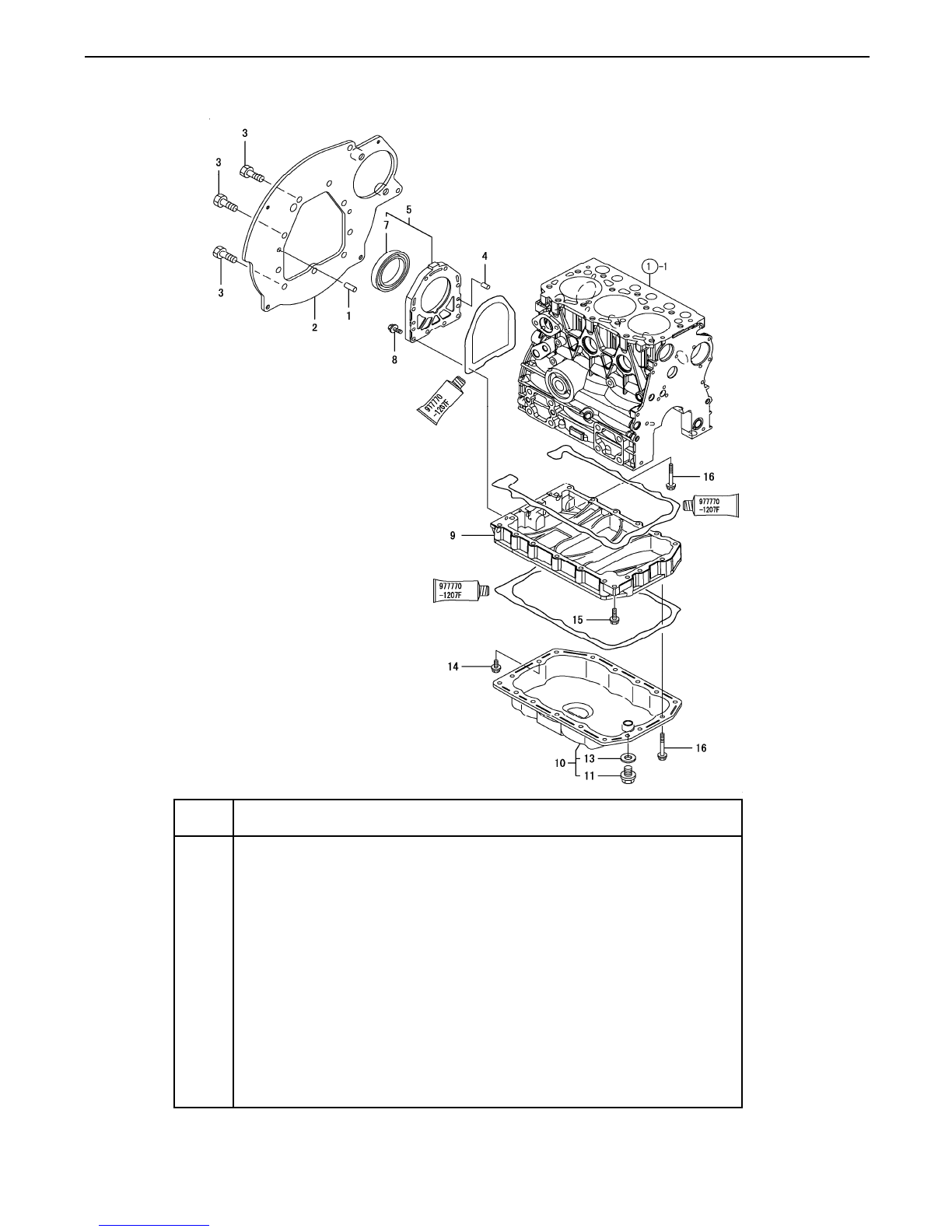

FIG. 3. OIL PAN & REAR ENGINE PLATE

Sc Series 10 Sc2450

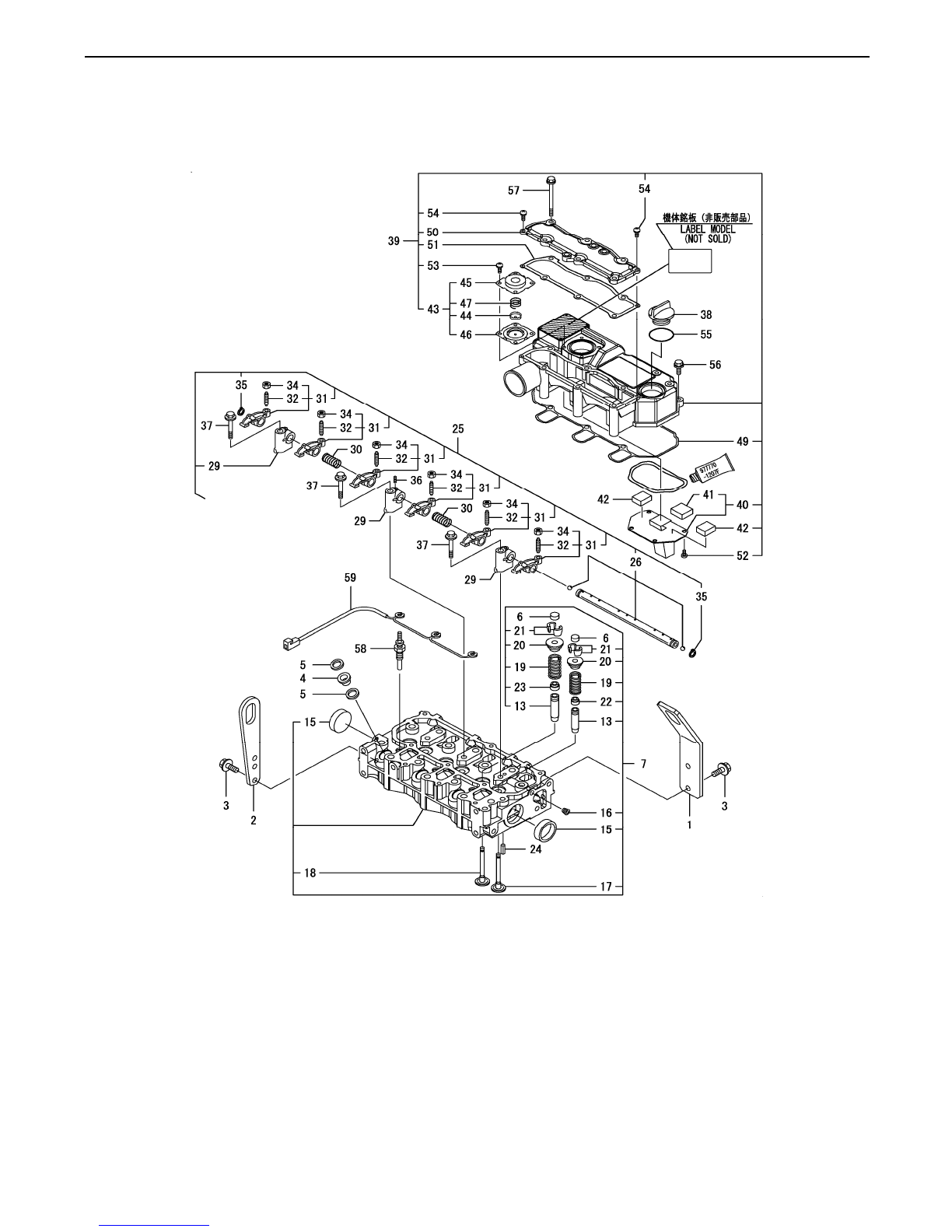

FIG. 4.CYLINDER HEAD & VALVE COVER
