Cuisinart DBM8U Manuale utente
Professional Burr Mill
DBM8U
3
Congratulations on your purchase of the Cuisinart Professional Burr Mill.
For over 30 years Cuisinart’s aim has been to produce the very nest kitchen equipment
so that cooks at home as well as professional chefs have the tools to express their
creativity.
All Cuisinart products are engineered for exceptionally long life, and designed to be
easy to use as well as to give excellent performance day after day.That is why they have
come to be regarded as the dening machines in their eld by chefs across the world.
Whatever you cook, cook it better with Cuisinart.
4
Contents
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Instructions for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hints & Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
UK After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5

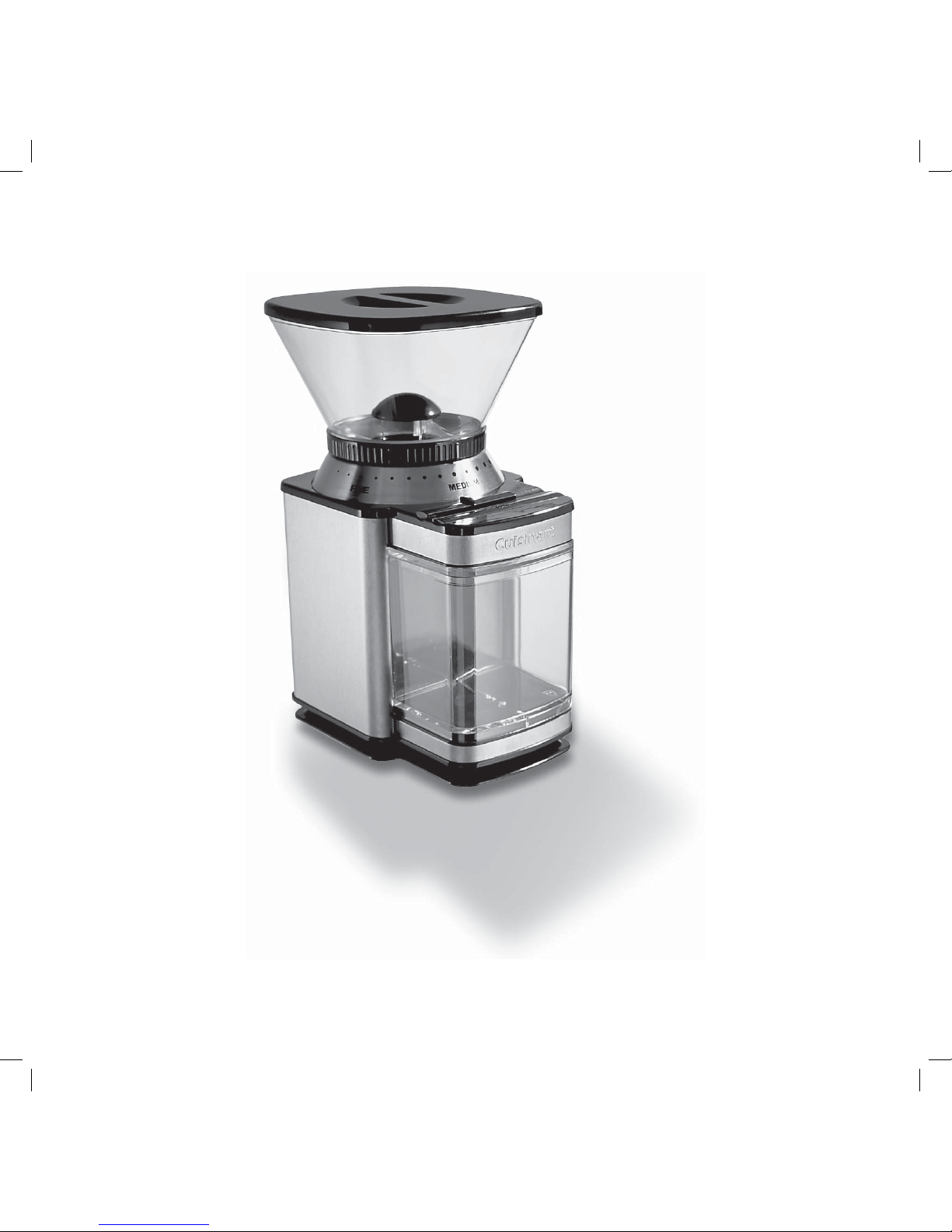

Product Description
Bean Hopper
Hopper Lid
Start Button
18 Position Grind Selector
Removable Grind Chamber with Lid
Burr Grinding Plates
(not shown)
Housing Base
Cup Quantity Selector
Cord Wrap (not shown)
6
Read all the instructions thoroughly before using the appliance and keep in a safe place for future
reference
Safety Cautions
Always follow these safety cautions when using this appliance to avoid personal injury or damage to the
appliance.This appliance should be used only as described within this instruction book.
ßDo not immerse motor unit in water or any other liquid or put in a dishwasher.
ßAlways disconnect the appliance immediately after use and before cleaning.
ßNever leave the appliance unattended when plugged in.
ßNever pull the plug out of the mains socket by the lead.
ßDo not allow the lead to overhang the kitchen table or worktop.
ßAvoid contact between the lead and hot surfaces.
ßDo not use this appliance if the lead is damaged. In the event of damage, discontinue use immediately. If the
lead is damaged it must be replaced by a special lead available from the manufacturer or its service agent.
(See “UK After Sales Service”section).
ßDo not use the appliance if it has fallen, shows signs of damage or cuts out in use. Discontinue use
immediately and contact Cuisinart (See “UK After Sales Service”section).
7
ßNo repair can be carried out by the user. Return the appliance to ‘Cuisinart Service Centre’ for inspection
or repair / replacement (See “UK After Sales Service” section).
ßUse this appliance for grinding coffee beans as described within the instructions for use which accompany
it. Please retain these for future reference.
ßFor indoor use only.
ßFor domestic use only.
ßAlways ensure that your hands are dry before removing the plug from the mains socket.
ßThis appliance complies with the requirements of Directives 04/108/EEC (Electromagnetic Compatibility)and
06/95/EEC (Electrical Safety of Domestic Appliances) amended by Directive 93/68/EEC (CE Marking).
ßAlways ensure the voltage to be used corresponds with the voltage on the appliance, which is indicated on
the bottom of the motor unit.
ßDo not use any attachments other than those recommended or sold by Cuisinart.
ßDo not touch moving parts whilst in use.
ßThis appliance should not be used by adults or children whose lack of experience, product knowledge or
disability might cause a hazard, unless they have been correctly instructed and are adequately supervised.
ßChildren should always be supervised to ensure that they do not play with this product.
ßWARNING: A cut off plug inserted into a 13 amp outlet is a serious safety (shock) hazard. Ensure the cut
off plug is disposed of safely.
ßWARNING: Polythene bags over the product or packaging may be dangerous. To avoid danger of
suffocation, keep away from babies and children. These bags are not toys.
ßThe symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it should be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed information about the recycling of this
product, please contact your local council ofce or your household waste disposal service.
8
Instructions for Use
ßRemove all packaging and plug the appliance into a suitable mains socket.
ßRemove the bean hopper lid and ensure that the bean hopper is securely in place.
ßFill bean hopper to top, making sure that the lid closes securely. (Maximum ll is 250g).
ßSet the grind selector to the desired setting by twisting in a clockwise or anticlockwise direction.
The ‘I’ mark on the hopper base should be aligned with the desired grind setting.
ßSlide the cup quantity selector to the desired number of cups, between 4 and 18.
ßPress and release start button to begin grinding.
N.B. If the bean hopper and grind chamber are not properly in place, the grinder wil not operate
ßGrinding will automatically stop once the pre-set quantity of beans have been ground.
ßTo manually stop the operation, slide the cup quantity selector all the way to the left to the ‘Off’ position
and the appliance will stop. To restart, reposition the cup quantity selector to the desired number of cups
and press and release the start button.
ßTo remove the grind chamber, simply pull away form the mains unit. Always ensure the motor has stop-
ped completely before removing any parts. The coffee can be used or stored with the grind chamber lid
tted, ready for use.
9
Hints & Tips
ßThe following table highlights the general grind settings required for basic types of coffee. As there are 6
settings per grind type, you will have to experiment with different grind settings to determine the right
consistency to suit your taste.
ßWhen choosing ne settings, you may need to set the cup selector at a higher number of cups to get
the desired amount of coffee, as ne grinds are very compact. The opposite is true for coarse settings.
You may need to set the cup selector at a lower number of cups to get the desired amount of coffee, as
coarse grinds are very loose.
ßYou may also vary the strength of the coffee by increasing or decreasing the quantity of cups, i.e. select a
greater quantity than actually required for a stronger avour and vice versa.
Grind Position Grind Result
Coarse Percolator/Cafetière
Medium Filter
Fine Espresso
10
Cleaning &Maintenance
ßAlways ensure the plug has been removed from the mains before cleaning.
ßThe bean hopper and grind chamber are dishwasher safe, and we recommend washing them on the top
rack of the dishwasher. Due to high water temperature, washing these parts on the bottom rack may cause
damage over time.
ßNever immerse the housing base in water or other liquid.
ßDo not use abrasive cleaners on the housing base. To clean, simply wipe with a damp cloth and dry thorou-
ghly. Apply any cleaning agent to the cloth, not directly to the housing base.
ßUse the cleaning brush provided to clean the grind release area.
ßUse the cord wrap on the underside of the housing base to store excess cord.
