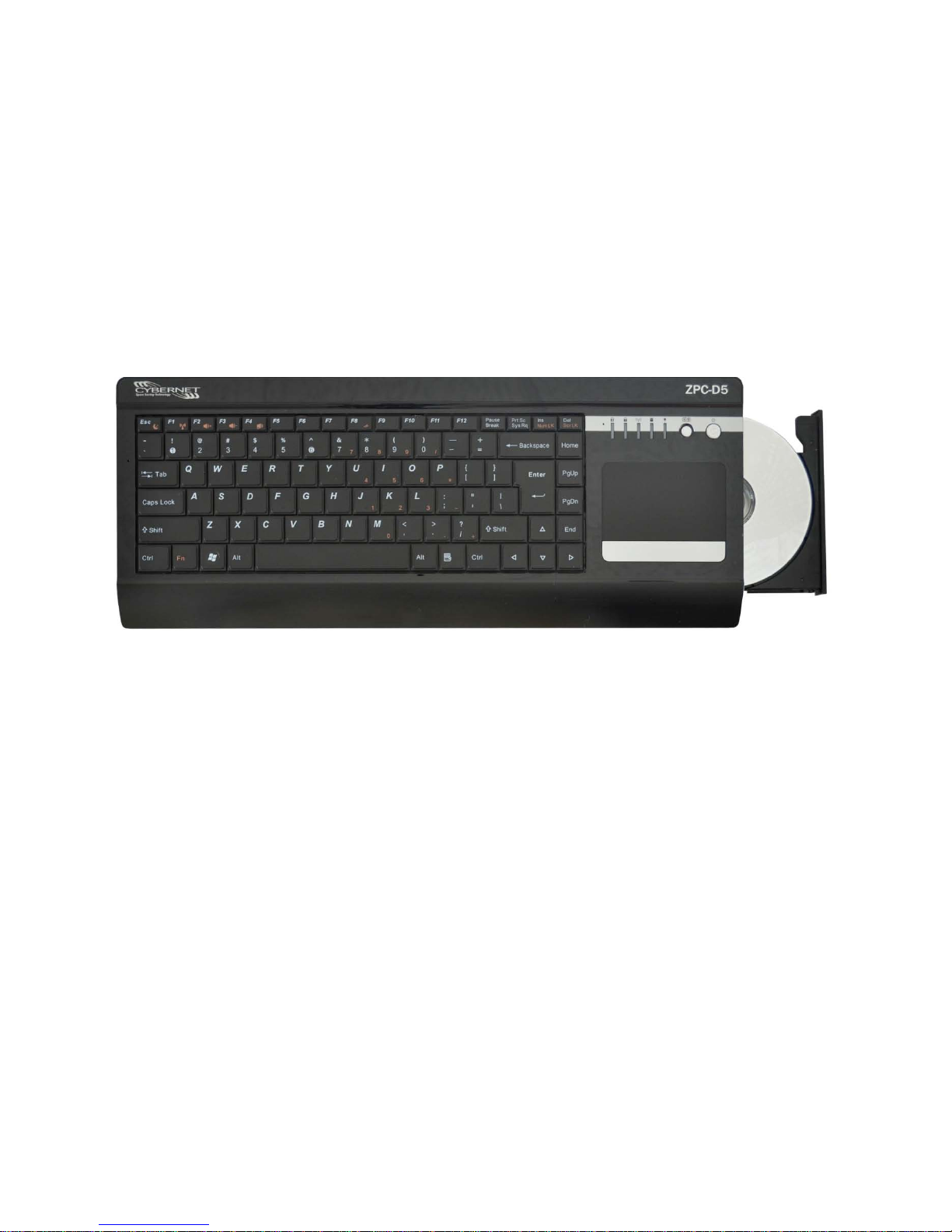

CYBERNET ZPC-D5 Series

User Guide

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with

the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

measures listed below.

•Reorient or relocate the receiving antenna.

•Increase the distance between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/television technician for help.

Notice 1 The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in order

to comply with the emission limits.

Trademarks

All trademarks are the properties of their respective owners.

Intel®, Atom™ and Pineview® are registered trademarks of Intel Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.Windows® 7/Vista/XP/NT/2000/98/95 are registered trademarks of Microsoft

Corporation. Netware® is a registered trademark of Novell, Inc. Award® is a registered

trademark of Phoenix Technologies Ltd. AMI® is a registered trademark of American

Megatrends Inc

Safety Instructions

1. Always read the safety instructions

carefully.

2. Keep this equipment away from humidity.

3. Lay this equipment on a reliable flat surface before setting it up.

4. The openings on the enclosure are for air convection hence protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

5. Confirm the voltage of the power source and adjust accordingly to 110/220V

before connecting the equipment to the power inlet.

6. Place the power cord in such a way that it cannot be stepped on. Do not

place anything over the power cord.

7. Always unplug the Power Cord before inserting any add-on card or module.

8. All cautions and warnings on the equipment should be noted.

9. Never pour any liquid into the opening. This will cause damage and/or electrical

shock.

10. Do not disable the protective grounding pin from the plug. The equipment must be

connected to a grounded main socket/outlet.

11. The Optical Storage devices are classified as Class 1 Laser products. Use of

controls or adjustments or performance of procedures other than those specified is

prohibited.

12. Do not touch the Laser lens inside the optical storage drive.

13. If any of the following situations arise, have the equipment checked by authorized

service personnel:

•The power cord or plug is damaged.

•Liquid has penetrated into the equipment.

•The equipment has been exposed to moisture.

•The equipment has not worked well or you cannot get it working according to

the User's Guide.

•The equipment has been dropped and damaged.

•The equipment has obvious signs of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN UNCONDITIONED ENVIRONMENT WITH A

STORAGE TEMPERATURE ABOVE 50° C (122°F). IT MAY DAMAGE THE

EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type recommended by the manufacturer.

iii

WEEE Statement

(Waste Electrical and Electronic Equipment)

The WEEE directive places an obligation on EU-based manufacturers, distributors,

retailers and importers to take-back electronics products at the end of their useful life. A

sister Directive, ROHS (Restriction of Hazardous Substances) compliments the WEEE

Directive by banning the presence of specific hazardous substances in the products at the

design phase. TheWEEE Directive covers products imported into the EU as of August 13,

2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance

the costs of recovery from municipal collection points, reuse, and recycling of specified

percentages per the WEEE requirements.

Instructions for disposal of WEEE by Users in the European Union

The symbol shown below is on the product or on its packaging, which indicates that this

product must not be disposed of with other waste. Instead, it is the user’s responsibility to

dispose of their waste equipment by handing it over to a designated collection point for the

recycling of waste electrical and electronic equipment. The separate collection and

recycling of your waste equipment at the time of disposal will help to conserve natural

resources and ensure that it is recycled in a manner that protects human health and the

environment. For more information about where you can drop off your waste equipment

for recycling, please contact your local city office, your household waste disposal service

or where you purchased the product.

TABLE OF CONTENTS

FCC-B Radio Frequency Interference Statement ........................................................i

Trademarks.....................................................................................................................i

Safety Instructions........................................................................................................ii

WEEE Statement ..........................................................................................................iii

Introduction...................................................................................................................1

ZPC-D5 Series Specifications ......................................................................................1

Processor Support ................................................................................................................1

Chipset ...................................................................................................................................1

Memory Support ....................................................................................................................1

Networking.............................................................................................................................1

Audio ......................................................................................................................................1

Hard Disk Drive......................................................................................................................1

Expansion Slots.....................................................................................................................1

Function keys.........................................................................................................................1

Right Side of System.............................................................................................................1

Left side of System…………………………………………………………………………………...1

System underneath ...............................................................................................................2

Back I/O ports ........................................................................................................................2

Power Supply.........................................................................................................................2

Dimensions ............................................................................................................................2

ZPC-D5 Series Overview...............................................................................................3

Keyboard Function keys .......................................................................................................8

Basic operation....................................................................................................................10

Using the AC adapter ..........................................................................................................10

Using the touchpad .............................................................................................................11

Card reader ..........................................................................................................................12

Wireless................................................................................................................................12

System Assembly........................................................................................................13

Necessary Tools..................................................................................................................13

Orientation of Key Parts......................................................................................................14

ZPC-D5 Disassembly...........................................................................................................15

Installing the Memory Module DDR3 SO-DIMM .................................................................16

Installing the Hard Disk Drive .............................................................................................18

Installing the Mini-PCIe Card (Optional).............................................................................19

Installing the Optical Drive (Optional)................................................................................20

All System View…………………………………………………………………………………......24

Cybernet Recycling SOP…………………………………………………………………………..25

Figures

Figure 1: Top View with Optical Disk Drive.................................................................3

Figure 2: Right side view with Optical Drive...............................................................4

Figure 3: Right side top view with Optical Drive ........................................................4

Figure 4: Left view and connectors.............................................................................5

Figure 5: Back view and connectors...........................................................................5

Figure 6: Bottom view ………………….………………………………..…….…………..... 6

Figure 7: CPU Heat Sink Ventilation ............ ……………………………………………..7

Figure 8: Top view power button and LEDs................................................................7

Figure 9: Function key (Fn)..........................................................................................8

Figure 10: F1-F5 Function keys....................................................................................8

Figure 11: Function key F8...........................................................................................9

Figure 12: Other Function keys...................................................................................9

Figure 13: Orientation of Key Parts..................................................................…… 14

Cybernet ZPC-D5 User Guide

Page 1

Introduction

Congratulations on purchasing the ZPC-D5. The ZPC-D5 Series is your best Keyboard

PC choice. With the sleek design and small form factor, it can easily fit on any desktop.

The feature packed platform gives you the power and performance you need.

ZPC-D5 Series Specifications

Processor Support

Intel® Atom™ D525. 1.8Ghz/1M Cache

Chipset

Intel® NM10 chipset

Memory Support

DDR3 800/1066/1333 MHz SO-DIMM SDRAM (Un-buffered Non-ECC)

1 DDR3 1333 MHz SO-DIMM slots (4GB Max)

Networking

Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek RTL8111DL

Audio

2 internal speakers @ 1.5W, 1 mic.

HD Audio Codec Realtek® ALC662

Hard Disk Drive

One 2.5” SATA Hard Disk Drive - 500GB/320GB/250GB/160GB

Supports Ultra DMA 66/100 mode

Expansion Slots

2Mini-PCIe

Function keys

There are eight Fn+Keys in keyboard.

Right Side of System

1 optical disk drive – 2.5” slim

Left Side of System

2 USB 2.0 ports.

3 Audio jacks – Line in, Line Out and Mic

1 MMC,SD,MS/PRO slot.

Cybernet ZPC-D5 User Guide

Page 2

System Underneath

2 Mini-PCIe slot.

1 DDR3 slot.

Back I/O Ports

1 DC/IN port

1 HDMI

1 Video(D-Sub) port

1 LAN RJ-45 jack

2 USB ports

1 Security lock slot

Power Supply

40 Watt Power Adapter, AC Input: 100~240V AC, 1A, 50-60Hz

DC Output: 19V, 2.1A

Dimensions

43cm x 17.2cm x 4cm (W x D x H)

Cybernet ZPC-D5 User Guide

Page 3

ZPC-D5 Series Overview

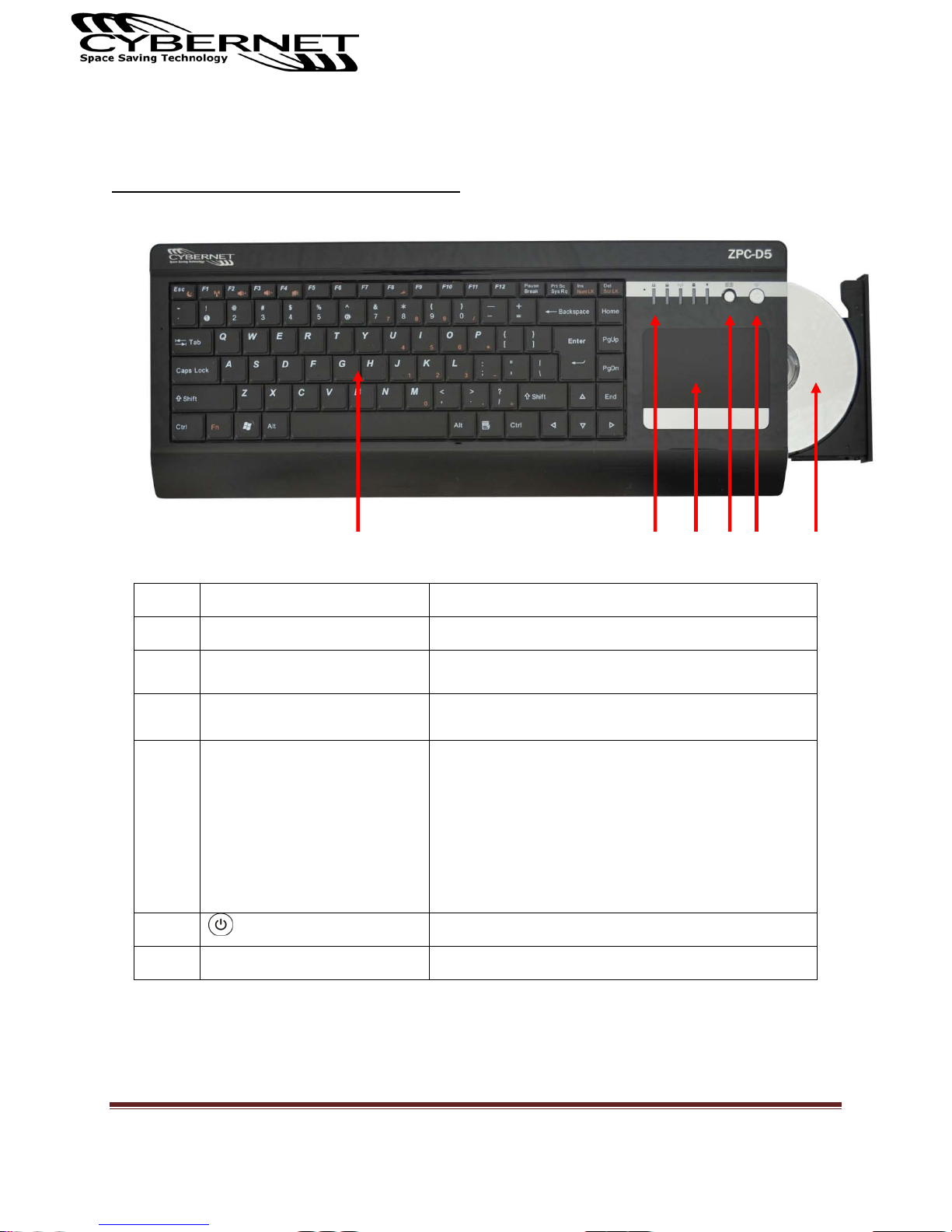

Figure 1: Top View with Optical Disk Drive

1 2 3456

No.

Item

Detail

Keyboard

Standard 86-key USA Keyboard

LED indicators

LED state indicators for LAN, num/caps lock,

etc.

Touchpad

Functions as optical mouse

Reset button or

HDMI/LCD Switch button

4.1 When the computer crashes and there is

no HDMI connector in the system, click this

button to reboot the system.

4.2 When there is an HDMI connector in

system, then switch major working screen

toggle mode from LCD to HDMI (or HDMI to

LCD). Screen resolution will be fixed at

1024x768.

Power button

Turn computer on/off or enter Standby Mode

Optical Drive

DVD-RW

Cybernet ZPC-D5 User Guide

Page 4

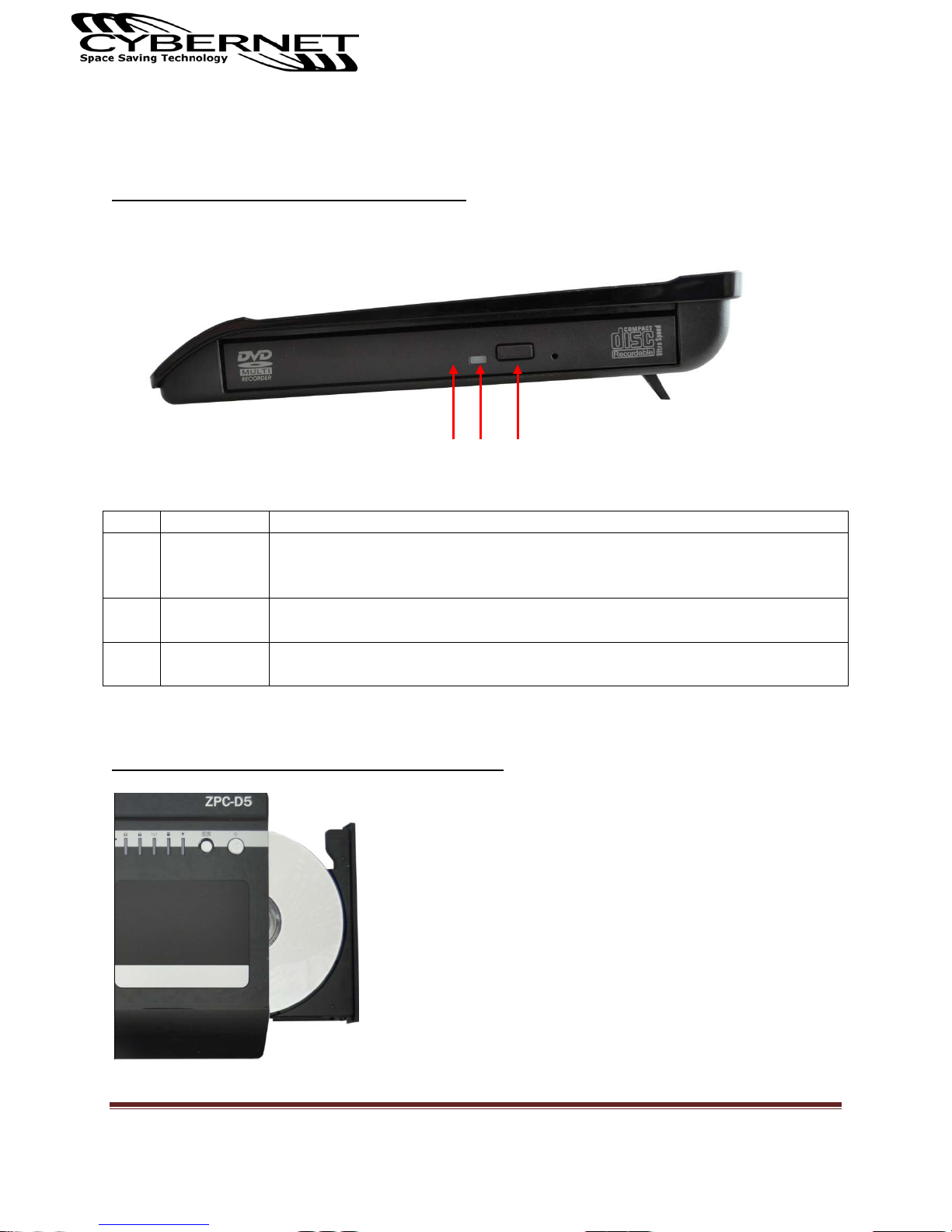

Figure 2: Right side view with Optical Drive

1 2 3

NO.

Item

Detail

DVD driver

Different computer models are equipped with different drives. The

DVD drive supports CD or DVD discs and have burning (R) or

repeated burning (RW) capabilities.

DVD

indicators

This indicator lights when the DVD drive is running.

Open key

(DVD)

Stops the DVD drive and opens the drive tray.

Figure 3: Right side Top view with Optical Drive

Indice

Altri manuali Cybernet Tastiera

Cybernet

Cybernet ZPC-H6 series Manuale utente

Manuali Tastiera popolari di altre marche

Vortexgear

Vortexgear POK3R Manuale utente

Razer

Razer RZ03-0188 Manuale utente

Logitech

Logitech RUGGED LITE Manuale utente

Honeywell

Honeywell ADEMCO 5839 Istruzioni per il montaggio

Hama

Hama AK-120 Manuale utente

Rodgers

Rodgers RK-76 Manuale utente

Logic Controls

Logic Controls KB5000 Series Manuale utente

Rapoo

Rapoo E9270P Manuale utente

iKey

iKey DP-88 Manuale utente

Logitech

Logitech G413 TKL SE Istruzioni di montaggio

Keychron

Keychron C1 Manuale utente

Dahua

Dahua NKB Manuale utente

Ultimate Technology

Ultimate Technology 500 POS Manuale utente

Ducky

Ducky Shine 5 Manuale utente

Mace

Mace MACALLY MERGOKEY Manuale utente

iKey

iKey KYB-42-KIOSK Manuale utente

Akko

Akko MX108 Manuale utente

Viper

Viper V770 Manuale utente
