This USB Hub makes the most of your computer and workspace by increasing the
number of available USB ports. There has never been a more convenient way to
expand your USB capacity.
Quick Start Guide
for USB 2.0 4-Port Hub
Model No.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ProductOverview ............................4
Installation..................................6
AppendixA..................................8
Troubleshooting
Appendix B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Radio Interference Statement
Appendix C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Lifetime Limited Warranty
Table of Contents
Thank you for purchasing a Cyber Power product. To enjoy all the features and benefits
of this USB Hub, please read and follow all installation and operation instructions
completely.
USB (Universal Serial Bus) is currently the standard for most
computers, notebooks and peripherals. The USB connections allow
the user to easily connect multiple devices. The Cyber Power USB 2.0
4-Port Hub (Model. CP-H420P) provides additional ports to connect up
to 4 USB devices to a single USB port on your computer.
The Quick Start Guide contains easy instructions in order to show you
how to set up and start using your Cyber Power USB Hub.
Introduction
1
Any PC or Macintosh computer with an available USB port and USB-
compliant operating system (Windows 98/ 98SE/ 2000/ ME/ XP, MacOS
8.6 or above, etc.)
NOTE: To use this USB hub with Windows 98 operating system, please visit
http://www.cyberpowersystems.com and download the appropriate software driver before
installing this Hub.
System Requirements
2
Package Contents
This package includes:
!USB 2.0 4-Port Hub (Model CP-H420P)
!AC Power Adapter
!5 A-miniB USB Cable
!User Manual
'

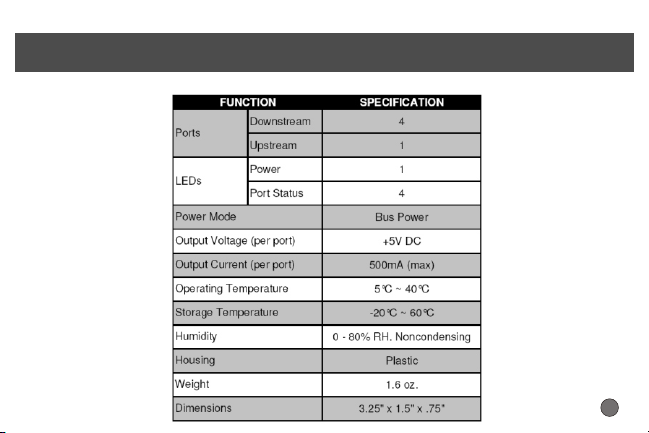

Specifications
3
12
3
5
4
2
Product Overview
Model CP-H420P
4
Product Overview - continued
1) Power Indicator - Blue LED will light when USB Hub is receiving power.
2) Downstream Ports - Connect your USB devices to these 4 ports.
3) Port Status Indicators - Green LEDs indicate port status and overcurrent
detection. When a device is connected to one of the ports, the associated
LED will light. If an overcurrent condition occurs, the LED for that port will
turn off, indicating a problem with that device.
4) Root (Upstream) Port
Connect your computer to this port to provide a link between the hub and
devices.
5) AC Adapter Power Connection
Connect your AC power adapter here. This hub operates in self-power
mode to ensure sufficient power is provided to connect USB devices.
5
Installation
This USB Hub is a plug-and-play device. Your computer will display the Add
New Hardware Wizard after connecting the hub to your computer.
Installation may be done whether your computer is powered on or off. It is not
necessary to restart your computer after installation.
1) Connect the A-miniB USB cable (included in this package) to the
Upstream port on the USB Hub, then connect the other end of the cable to
an unused USB port on your computer.
2) Connect your USB devices to the Downstream ports on the USB Hub.
6
Installation - continued
Self-Powering the Hub:
Plug the DC power adapter into the power jack, then plug the power adapter
into a wall outlet if additional power is required for connected USB devices.
NOTE:
To maximize USB Hub performance, it is recommended to plug Cyber Power
AC power adapter while using.
's
7
Appendix A
Troubleshooting
Problem Possible Cause A
Problem Possible Cause Action
Unit operates
Erratically.
Static electricity may
cause the hub to
behave erratically.
Reset the hub and
disconnecting it from
your computer. Wait 5
seconds, then
reconnect it.
USB devices
operate erratically or
can't be powered
Connected USB
devices may require
too much power for
bus-powered
Connect the AC power
adapter to the hub.
Unit fails to operate
at all.
Non-USB compliant
operating system.
Insure that your
computer is fully USB-
compatible and a USB-
compliant operating
system is installed.
(see System
Requirements section)
AC power adapter by
on.
operation.
8
